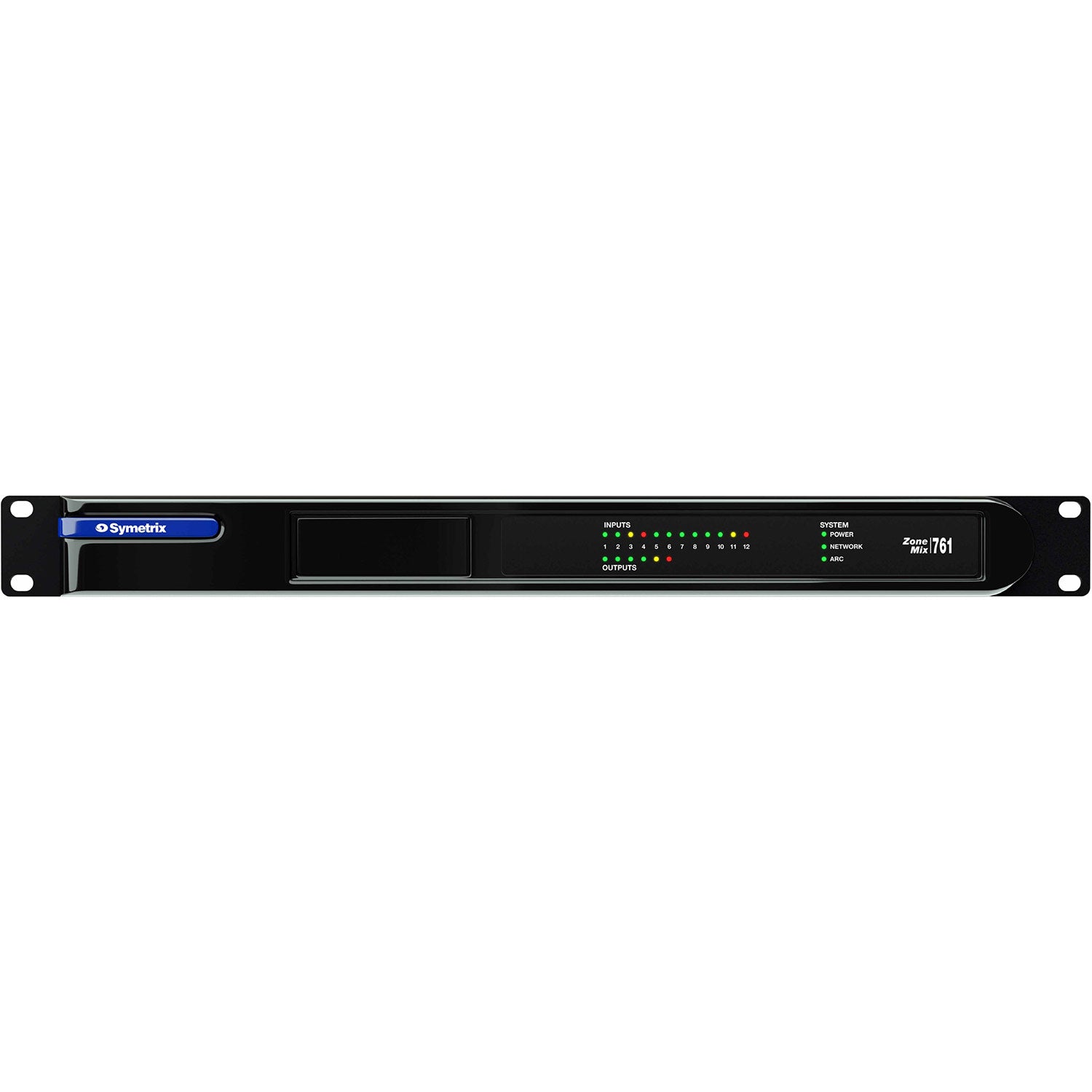

Symetrix ZoneMix 761 Integrator Series 6 Zone Mixer and Paging Station
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Integrator Series Zone Mix 761 is a complete zone mixing, paging, and music management solution designed to save integrators time and money. Built upon proven and reliable technology, the Zone Mix 761 is perfect for restaurants, hospitality establishments, night clubs and more.
The Zone Mix 761 combines a level of quality, polish, and features never before seen at such a competitive price. The beautiful Graphic User Interface provides a familiar hardware-like layout allowing for a low learning curve and quick use. From elegant remote controls to a simple 3rd party control protocol, the Zone Mix 761 is all about integration. It provides a level of audio comfort and security often overlooked with life safety system support for emergency announcement routing or system muting.
Features:
- Efficient setup using a straight forward Windows-interface connected over Ethernet.
- Optimal feature set with microphone preamplification, compression, and AGC, paging, feedback elimination, filters and equalization.
- Support for Symetrix ARC wall panel remotes and ARC-WEB for simple, intuitive end-user operation.
- 4 switchable mic or line inputs for paging from up to three locations plus emergency page, and 8 audio media inputs.
- 6 outputs route audio media inputs plus paging to as many as 6 unique locations.
Paging and music management for:
- Restaurants
- Sports Bars
- Fitness Clubs
- Night Clubs
- Hotels
- Casinos
- Retail Locations
- Museums
- Office Buildings
- Theme Entertainment
| INPUTS | |
| Number of Inputs | Twelve (12) total; Four (4) switchable balanced mic or line, Eight (8) mono-summed stereo -10 dBV line level. |

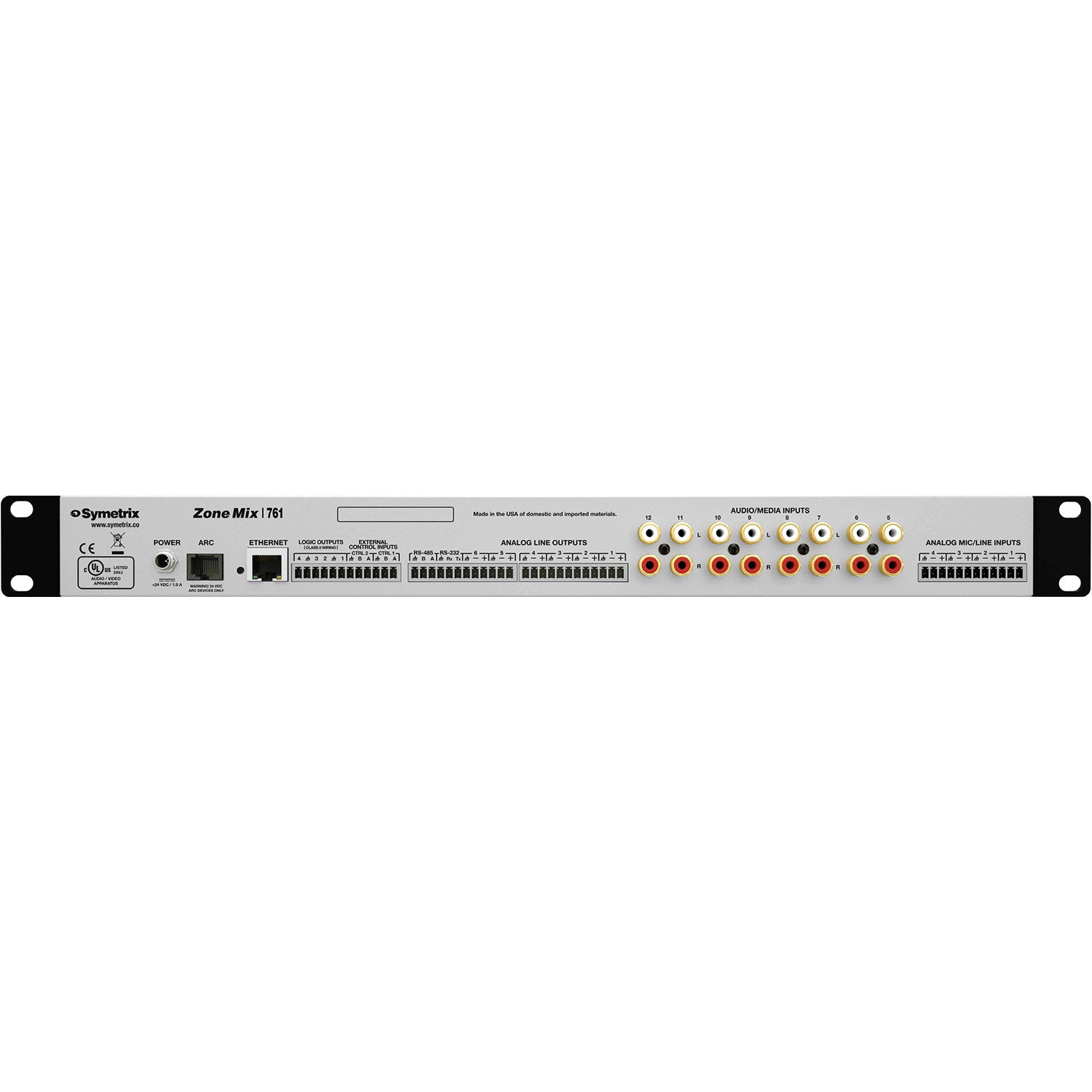

| Connectors | 3.81 mm terminal blocks (mic/ine), RCA (Audio Mediasource). |
| Nominal Input Level | +4 dBu line or-36 dBu mic level (software selectable) with 20 dB of headroom. |
| Mic Pre-amp Gain | +40 dB. |
| Maximum Input Level | +23 dBu mic/line, +8 dBV RCA |
| Input Impedance | > 18 k balanced,> 9 k unbalanced,> 2 k with phantom power engaged (Euroblock);> 20 k unbalanced (RCA) |
| CMRR | > 50 dB @ 1 kHz, unity gain |
| Mic Pre-amp EIN | < -125 dBu, 22 Hz - 22 kHz, 100 source impedance |
| Phantom Power | +20 VDC, 20 mA maximum per input |
| OUTPUTS | |
| Number of Outputs | Six (6) balanced line level |
| Connectors | 3.81 mm terminal blocks |
| Nominal Output Level | +4 dBu line level with 20 dB of headroom. For unbalanced analog output, do not connect the minus output terminal Unbalanced configuration results in 6 dB lower output level. |
| Maximum Output Level | +24 dBu. |
| Output Impedance | 200 balanced, 100 unbalanced |
| SYSTEM | |
| Sample Rate | 48 kHz |
| Frequency Response | 20 Hz - 20 kHz, +/- 0.5 dB |
| Dynamic Range | > 110 dB (A-Weighted), input to output |
| THD+Noise | < -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain |
| Interchannel Crosstalk | < -90 dB @ 1 kHz, typical |
| Latency | < 1.6 ms, input to output with all DSP inactive |
| SPACE REQUIRED | 1U (WDH: 48.02 cm x 22.15 cm x 4.37 cm / 18.91 in x 8.72 in x 1.72 in), depth is specified from front panel to back of connectors. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| ELECTRICAL | 100-240 VAC, 50/60 Hz, 25 Watts maximum Universal input |
| VENTILATION | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| CERTIFICATIONS OR COMPLIANCE | UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS |
| SHIPPING WEIGHT | 8.15 lbs. (3.70 kg) |
The Integrator Series Zone Mix 761 is a complete zone mixing, paging, and music management solution designed to save integrators time and money. Built upon proven and reliable technology, the Zone Mix 761 is perfect for restaurants, hospitality establishments, night clubs and more.
The Zone Mix 761 combines a level of quality, polish, and features never before seen at such a competitive price. The beautiful Graphic User Interface provides a familiar hardware-like layout allowing for a low learning curve and quick use. From elegant remote controls to a simple 3rd party control protocol, the Zone Mix 761 is all about integration. It provides a level of audio comfort and security often overlooked with life safety system support for emergency announcement routing or system muting.
Features:
- Efficient setup using a straight forward Windows-interface connected over Ethernet.
- Optimal feature set with microphone preamplification, compression, and AGC, paging, feedback elimination, filters and equalization.
- Support for Symetrix ARC wall panel remotes and ARC-WEB for simple, intuitive end-user operation.
- 4 switchable mic or line inputs for paging from up to three locations plus emergency page, and 8 audio media inputs.
- 6 outputs route audio media inputs plus paging to as many as 6 unique locations.
Paging and music management for:
- Restaurants
- Sports Bars
- Fitness Clubs
- Night Clubs
- Hotels
- Casinos
- Retail Locations
- Museums
- Office Buildings
- Theme Entertainment
| INPUTS | |
| Number of Inputs | Twelve (12) total; Four (4) switchable balanced mic or line, Eight (8) mono-summed stereo -10 dBV line level. |
| Connectors | 3.81 mm terminal blocks (mic/ine), RCA (Audio Mediasource). |
| Nominal Input Level | +4 dBu line or-36 dBu mic level (software selectable) with 20 dB of headroom. |
| Mic Pre-amp Gain | +40 dB. |
| Maximum Input Level | +23 dBu mic/line, +8 dBV RCA |
| Input Impedance | > 18 k balanced,> 9 k unbalanced,> 2 k with phantom power engaged (Euroblock);> 20 k unbalanced (RCA) |
| CMRR | > 50 dB @ 1 kHz, unity gain |
| Mic Pre-amp EIN | < -125 dBu, 22 Hz - 22 kHz, 100 source impedance |
| Phantom Power | +20 VDC, 20 mA maximum per input |
| OUTPUTS | |
| Number of Outputs | Six (6) balanced line level |
| Connectors | 3.81 mm terminal blocks |
| Nominal Output Level | +4 dBu line level with 20 dB of headroom. For unbalanced analog output, do not connect the minus output terminal Unbalanced configuration results in 6 dB lower output level. |
| Maximum Output Level | +24 dBu. |
| Output Impedance | 200 balanced, 100 unbalanced |
| SYSTEM | |
| Sample Rate | 48 kHz |
| Frequency Response | 20 Hz - 20 kHz, +/- 0.5 dB |
| Dynamic Range | > 110 dB (A-Weighted), input to output |
| THD+Noise | < -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain |
| Interchannel Crosstalk | < -90 dB @ 1 kHz, typical |
| Latency | < 1.6 ms, input to output with all DSP inactive |
| SPACE REQUIRED | 1U (WDH: 48.02 cm x 22.15 cm x 4.37 cm / 18.91 in x 8.72 in x 1.72 in), depth is specified from front panel to back of connectors. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| ELECTRICAL | 100-240 VAC, 50/60 Hz, 25 Watts maximum Universal input |
| VENTILATION | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| CERTIFICATIONS OR COMPLIANCE | UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS |
| SHIPPING WEIGHT | 8.15 lbs. (3.70 kg) |
