Tannoy CMS 803DC BM - Full-Range 8-Inch Blind Mount Ceiling Loudspeaker (White / Pair)

  • Dale #:

    TANN-CMS803DCBM
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

The CMS 803DC BM is a full bandwidth 360-Watt high sensitivity loudspeaker that utilises a third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 8-inch Dual Concentric pointsource driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certifi... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CMS 803DC BM is a full bandwidth 360-Watt high sensitivity loudspeaker that utilises a third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 8-inch Dual Concentric pointsource driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 803DC BM delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.

Features:

  • Full range ceiling loudspeaker for installation applications
  • 90 Watts continuous, 360 Watts peak power

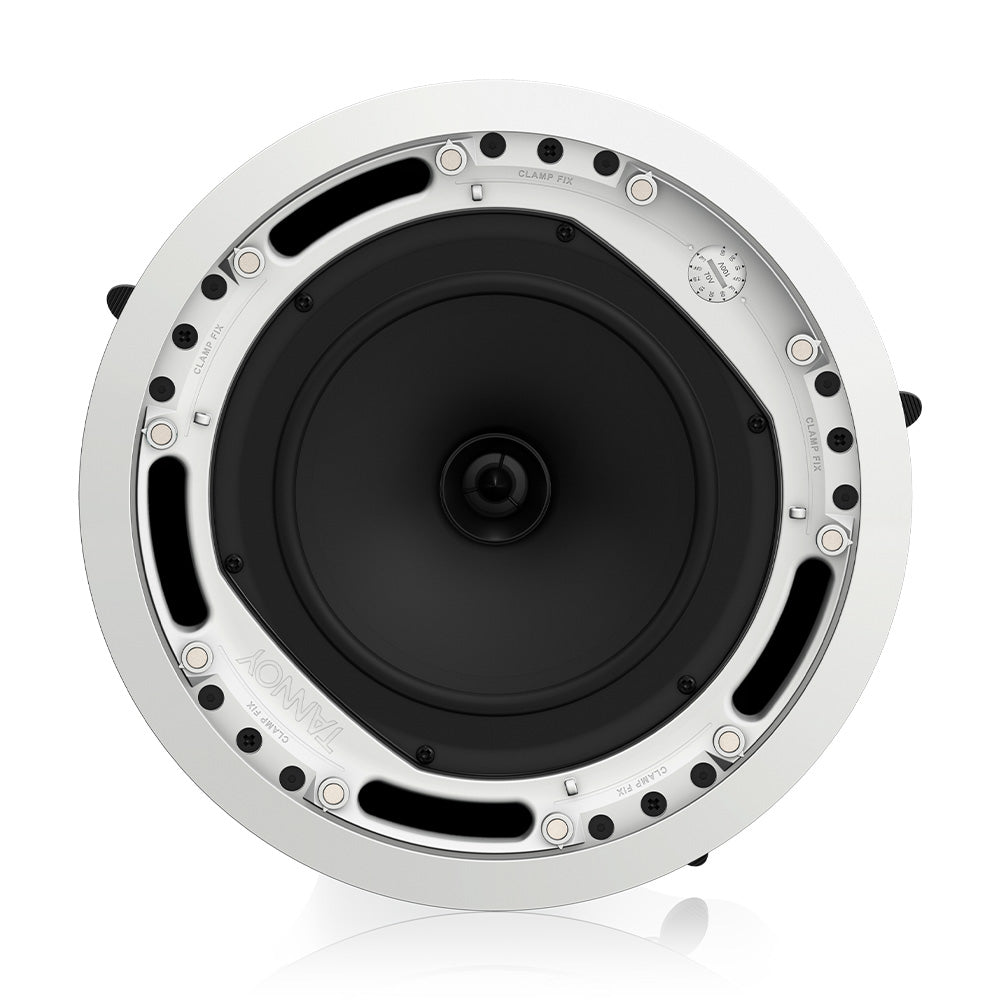

  • Next generation 8" Dual Concentric driver featuring Omnimagnet technology
  • Torus Ogive waveguide for improved high frequency response and directivity

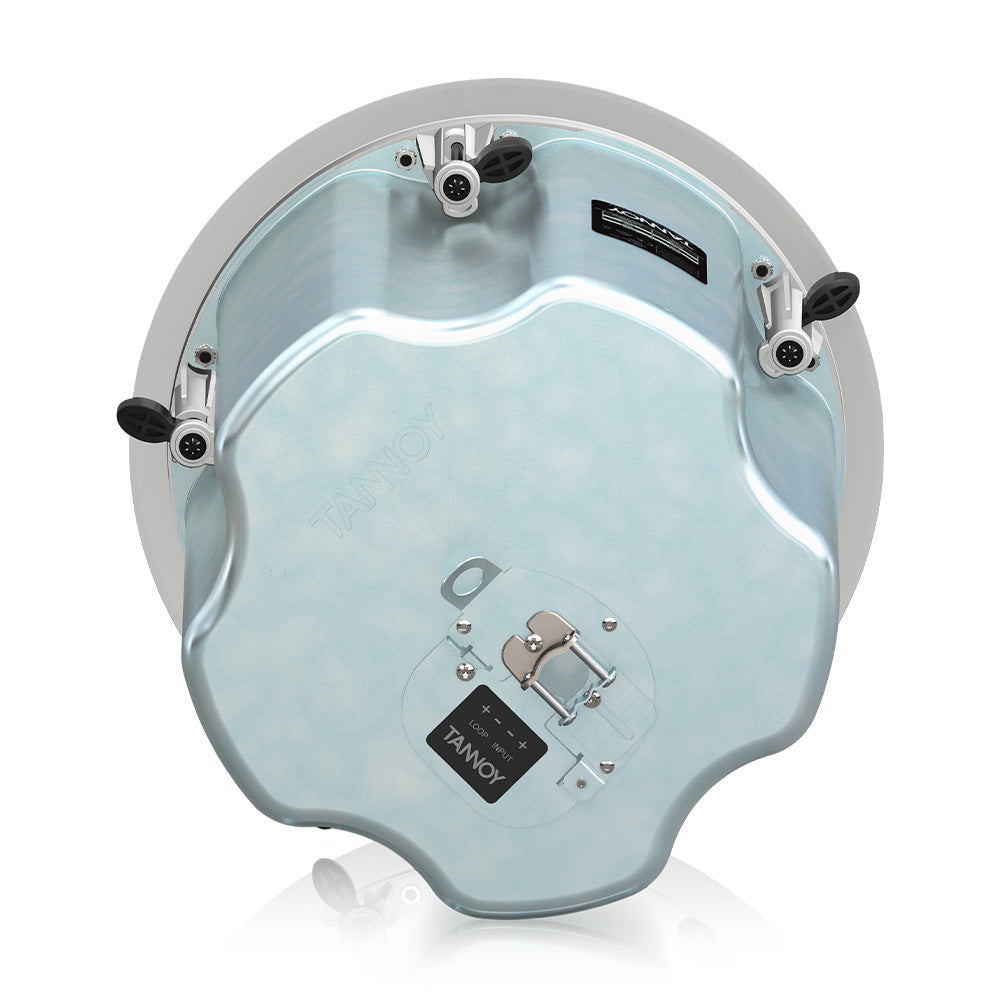

  • Blind Mount version supplied with acoustically enhanced zinc plated steel back can
  • Integrated single unit construction for ease of installation
  • UL 1480 certified for general signalling systems
  • UL 2043 certified for air-handling spaces
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel

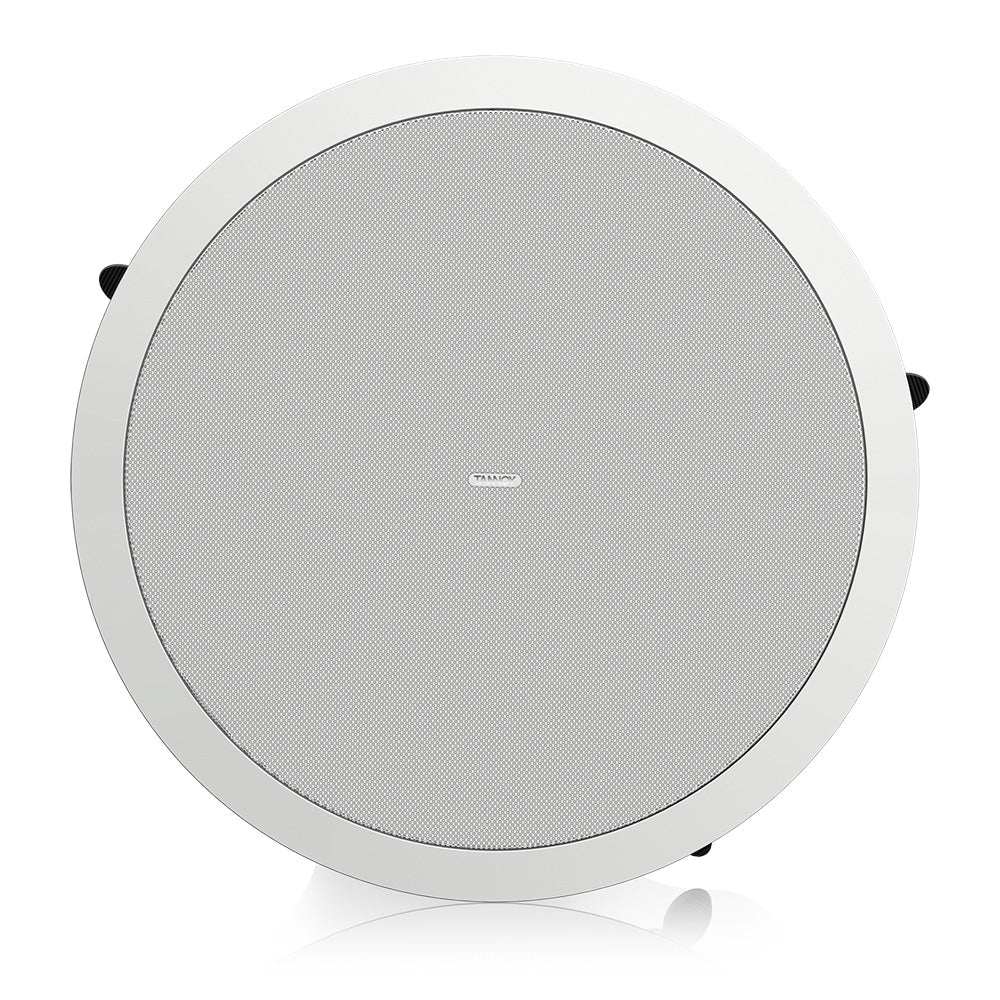

  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated UV resistant perforated steel mesh grille with dust protection
  • Removable magnetic grille for custom painting
  • Optional ARCO designer grilles available for minimal architectural impact
  • Self-aligning 5 way clamp mounting system
  • Mounting C-ring and ceiling tile rails included


Optimised for Installation
Specifically designed with a 5 way self-aligning clamp system for fast, simple and cost effective installation, CMS 803DC BM features an acoustically enhanced zinc plated steel back can, and a removable locking screw terminal connector with loop-thru functionality. A low insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.

LAB GRUPPEN Ready
The CMS 803DC BM is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.

More +

Product Specs

Performance
Frequency response (-3 dB) (1)

47 Hz - 30 kHz BM Backcan

Frequency range (-10 dB) (1)

40 Hz - 35 kHz BM Backcan

Frequency range (-10 dB) (1)

41 Hz - 35 kHz PI Backcan

System sensitivity (1 W @ 1 m) (2)

92 dB (1 W = 4 V for 16 Ohms)

Nominal coverage angle

90 degrees conical

Power handling (3)
Average

90 W

Programme

180 W

Peak

360 W

Recommended amplifier power

180 W @ 16 Ohms

Nominal impedance (Lo, Z)

16 Ohms

Rated maximum SPL
Average

112 dB

Peak

118 dB

With THP60 - average

110 dB

Transformer taps (via front rotary switch)
70 V

60 W (83 Ω) / 30 W (165 Ω) /15 W (330 Ω) / 7.5 W (660 Ω) /OFF & low impedance operation

100 V

60 W (165 Ω) / 30 W (330 Ω) /15 W (660 Ω) / OFF & lowimpedance operation

Transducers
Dual concentric point source driver

1 x 200 mm (8.0") Dual Concentricdriver, using Omnimagnet technology

Low frequency

44 mm (1.75") voice coil, treated multifiber paper pulp cone

High frequency

25 mm (1.00") PEI dome

Enclosure
Backcan

Zinc plated steel

Baffle

Reflex loaded UL 94V-0 rated ABS

Grille

Steel, with weather resistant coating

Safety features

Safety ring located at rear of enclosurefor load bearing safety bond

Clamping design

Security toggle clamp Min / Maxclamping range 9.5 mm (0.37") /60 mm (2.36") Recommendedclamp torque: 1.5 Nm

Backcan options
Blind mount (BM)

Complete with fi xed backcan

Pre install (PI)

Separate backcan for pre-installation

Cable entry options

Cable clamp & squeeze connector forconduit up to 22 mm

Conduit knockouts on PI Backcan

3 Sets of horizontal positions19 / 22 / 28 mm (0.75" / 0.87" / 1.10")

Connectors

Removable locking connectorwith screw terminals with“loop through” facility

Compliance

UL-1480, UL-2043, CE

Dimensions
Bezel diameter

319.0 mm (12.56")

Front of ceiling to rear of backcan

-

Front of ceiling to top of safety loop

-

BM model: Front of ceiling to rear of backcan

310.5 mm (12.22")

BM model: Front of ceiling to top of safety loop

327.7 mm (12.90")

PI model: Front of ceiling surface to rear of speaker unit

125.6 mm (4.94")

PI model: Front of accessory backcan bezel to top of safety loop

168.5 mm (6.63")

Hole cutout diameter (all models)

295 mm (11.61")

Net weight (ea)
CMS 803DC BM

8.5 kg (18.74 lbs)

CMS 803DC PI

5.0 kg (11.02 lbs)

PI Backcan

3.7 kg (8.1 lbs)

Included accessories

C-Ring, tile-bridge kit, paint mask,cut-out template, grille

Optional accessories

Plaster (mud) ring, Arco grille
