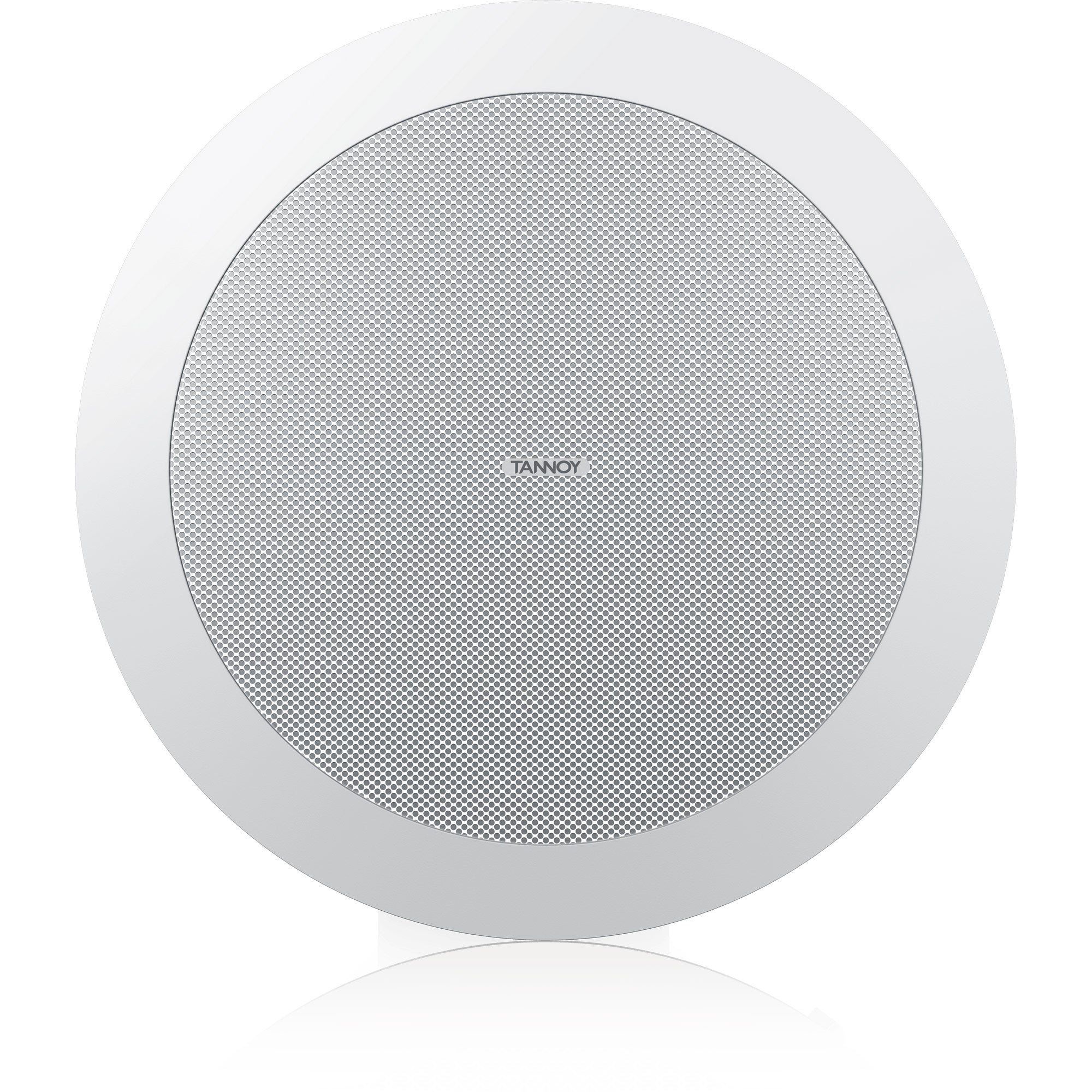

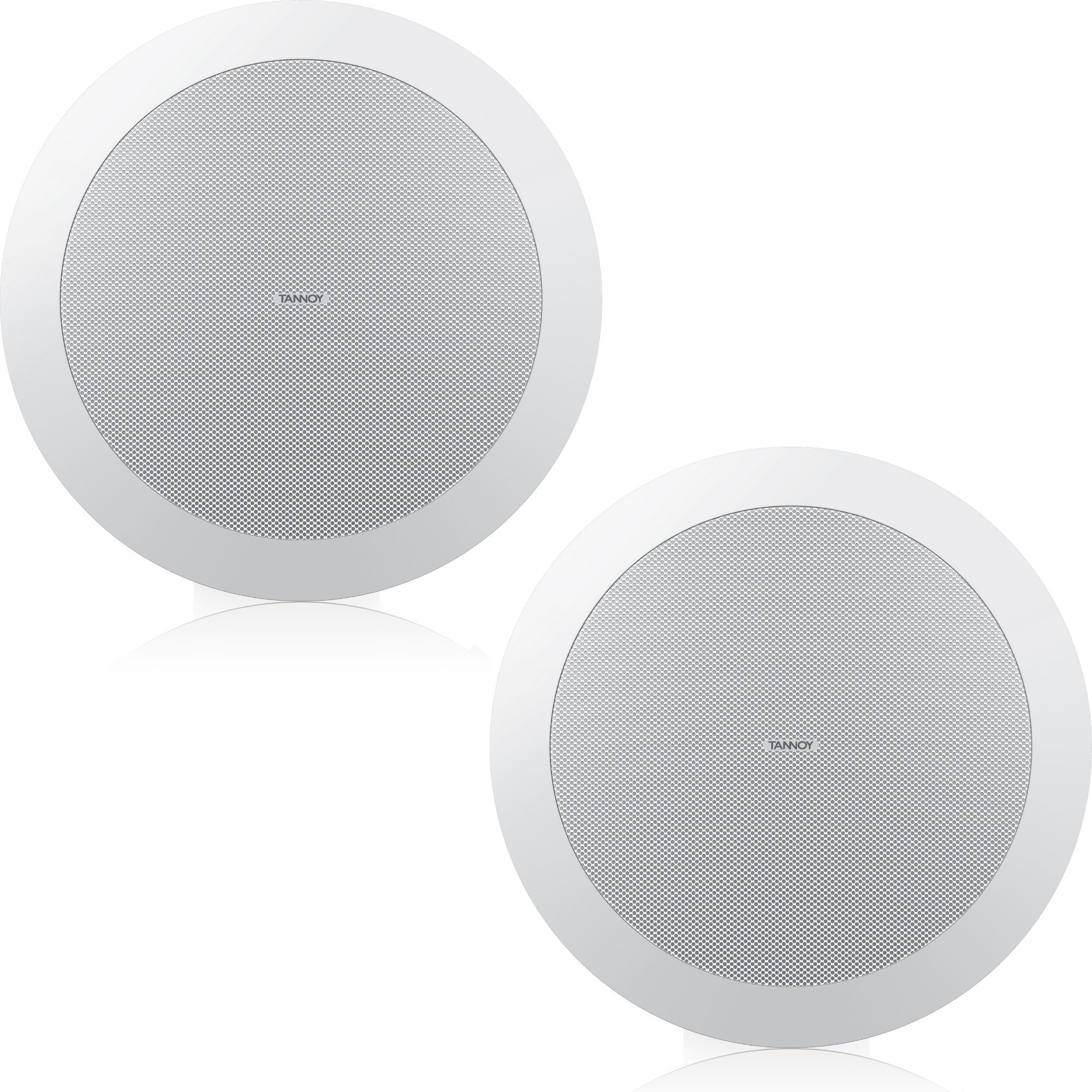

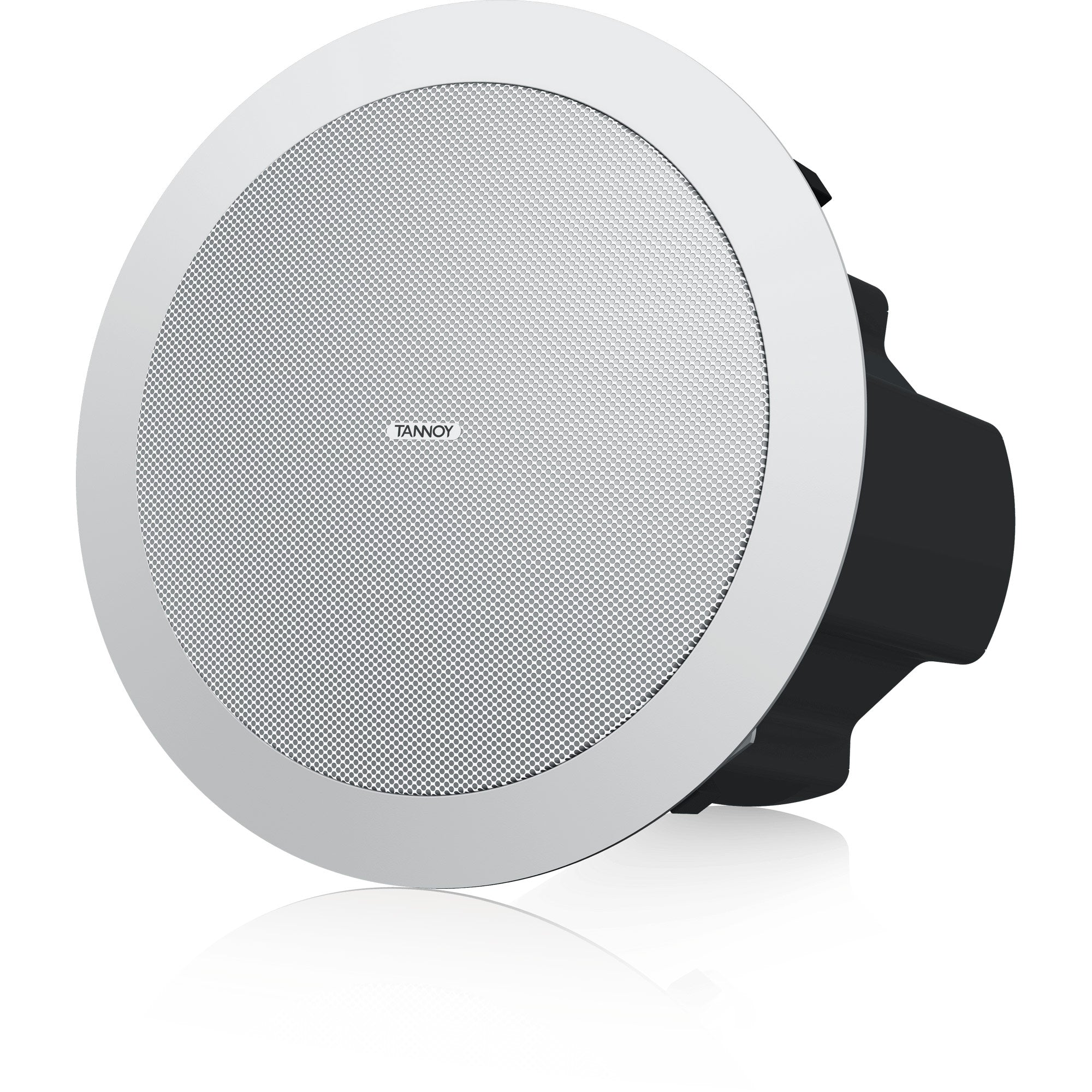

Tannoy CVS 4 - Two-Way 4-Inch Coaxial Ceiling Loudspeaker (White / Pair)

  • Dale #:

    TANN-CVS4
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

The CVS 4 is a compact 160-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 offe... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CVS 4 is a compact 160-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.

Exceptional Sound and Reliability

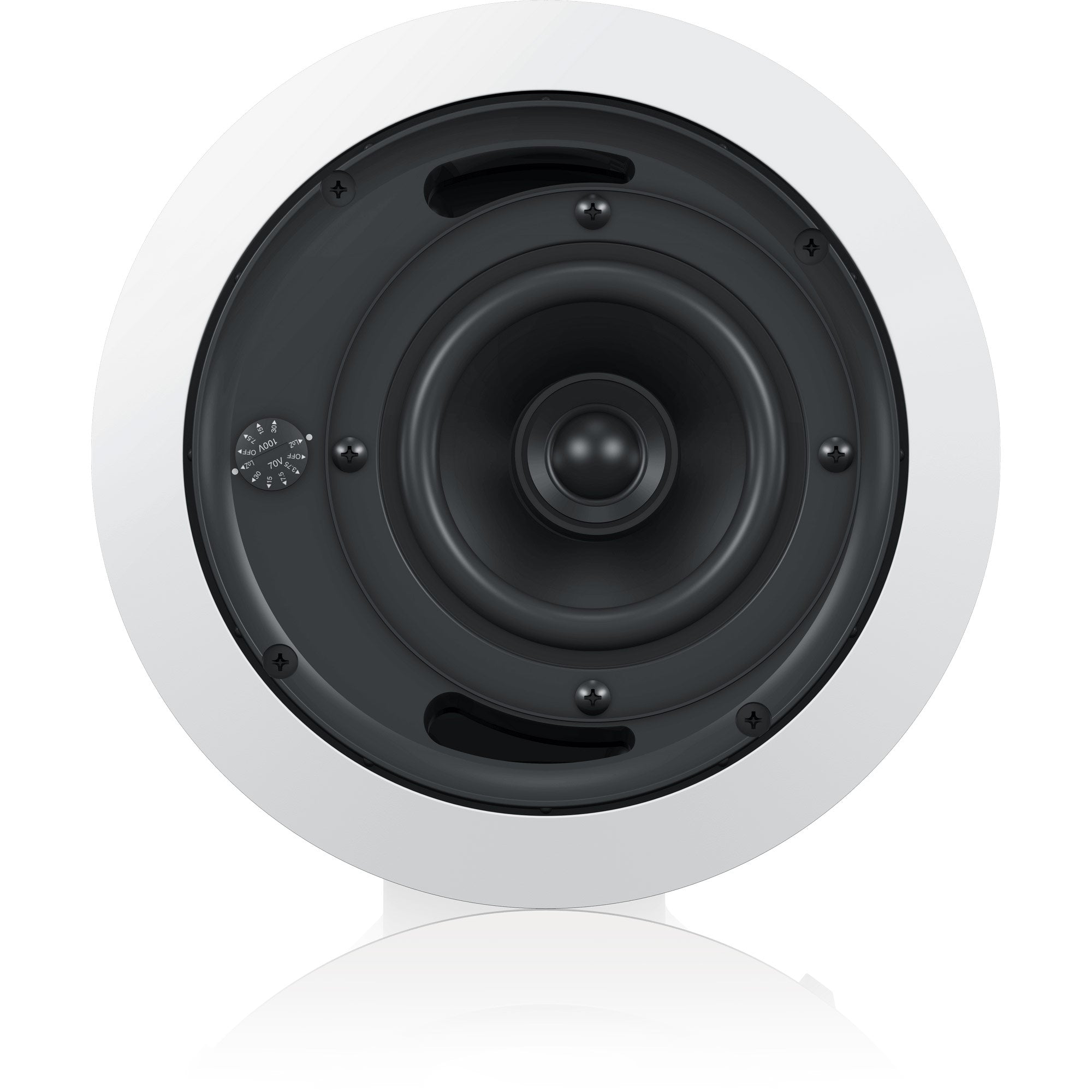

The design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. This compact unit is specifically designed for applications requiring the combination of excellent sonic quality for music and speech reinforcement and exceptional reliability.

Comprehensive Installation Package

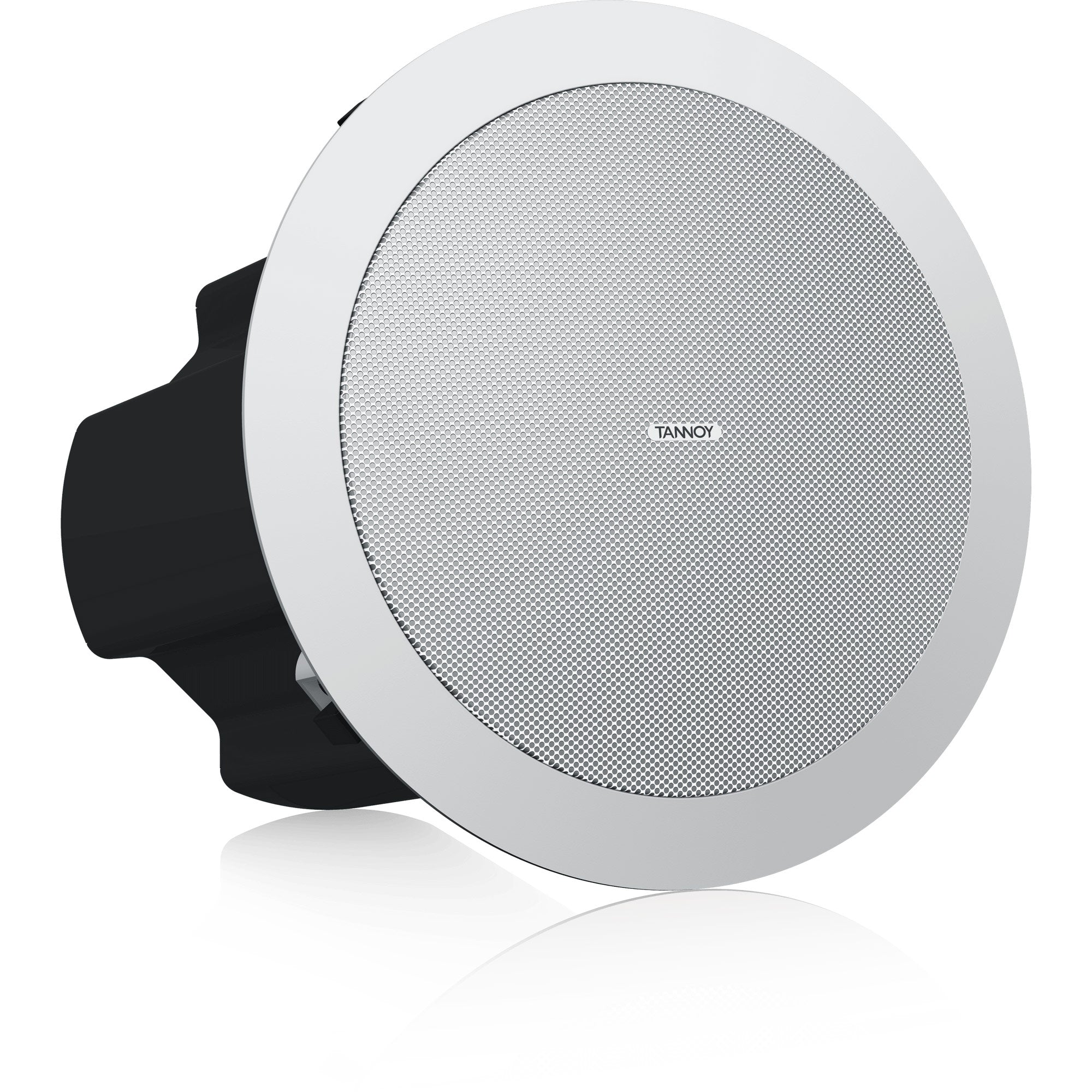

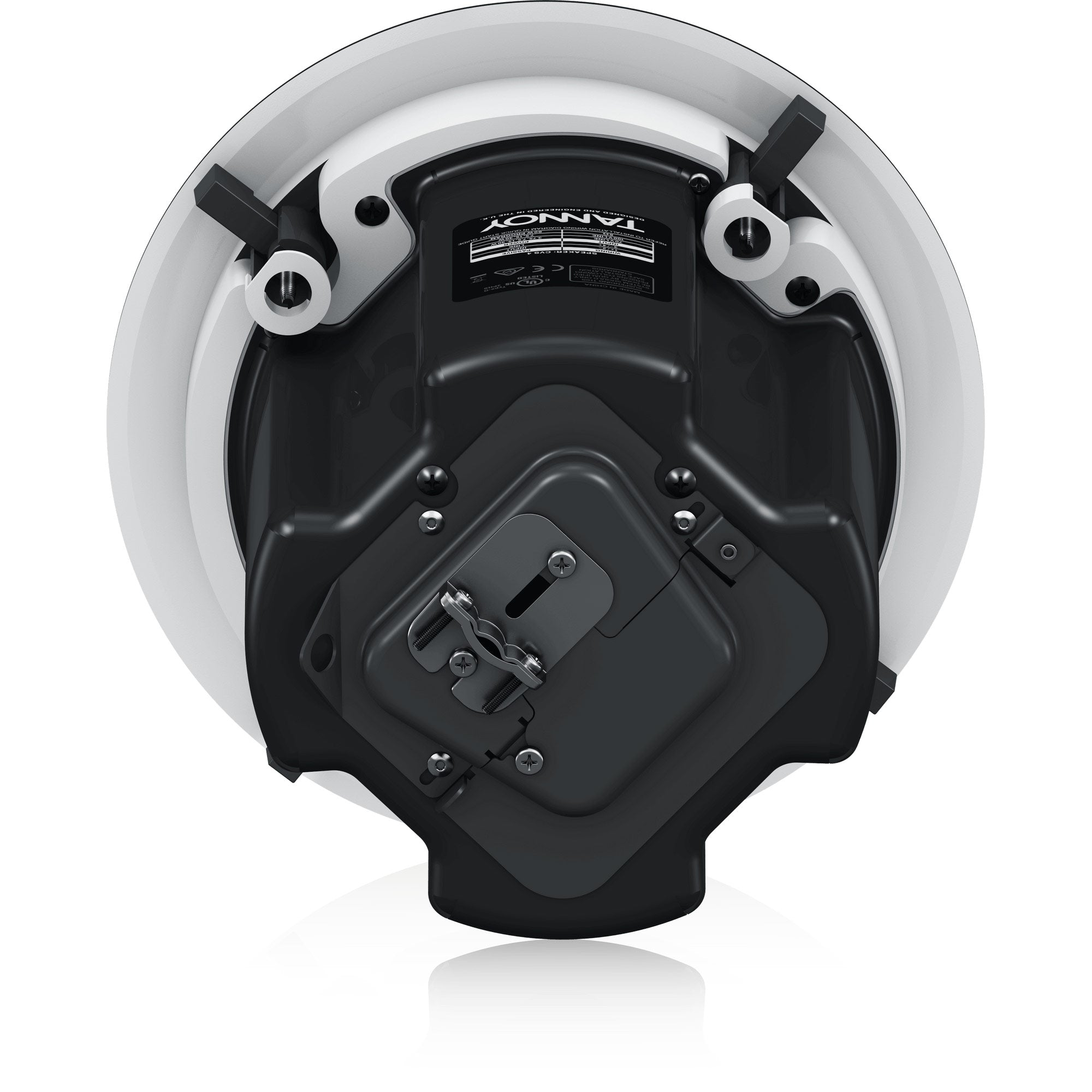

Supplied with an integral zinc-plated steel back can, with recessed termination box, the CVS 4 satisfies the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and “loop through” facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.

More +

Product Specs

Frequency response (-3 dB)1

85 Hz - 19 kHz

Frequency response (-10 dB)1

77 Hz - 22 kHz

System Sensitivity (1 W @ 1 m)2

87 dB (1 W = 2.45 V for 6 Ohms)

Nominal Coverage Angle

90 degrees conical

Coverage Angle (1 kHz to 6 kHz)

102 degrees

Directivity Factor (Q)

5.6 averaged 1 kHz to 6 kHz

Directivity Index (DI)

7.1 averaged 1 kHz to 6 kHz

Rated Maximum SPL

103 dB (average)
109 dB (peak)

Power Handling3
Recommended Amplifier Power

80 W @ 6 Ohms

Nominal Impedance

6 Ohms

Transformer Taps (via front rotary switch)
Transducers
Low Frequency

100 mm (4.00")
mineral loaded cone material

High Frequency

19 mm (0.75")

Enclosure
Safety Features

Safety ring located at rear of enclosure for
load bearing safety bond

Clamping Design

Security toggle clamp

Back Can Options
Cable Entry Options

Cable clamp and squeeze connector for
conduit up to 22 mm

Connectors

Removable locking connector with screw
terminals with "loop through" facility

Safety Agency Ratings

UL-1480, UL-2043, CE

Hole Cutout Diameter

180 mm (7.08")

Dimensions Bezel diameter

213.0 mm (8.39")

Front of ceiling to rear of back can

98.3 mm (3.87")

Front of ceiling to top of safety loop

46.5mm (1.83")

Net Weight (ea)

3.6 kg (7.9 lbs)

Included Accessories

C Ring, tile bridge, paint mask,
cutout template, grille

Optional Accessories

Plaster (mud) ring
