DALE SKU # TANN-CVS6

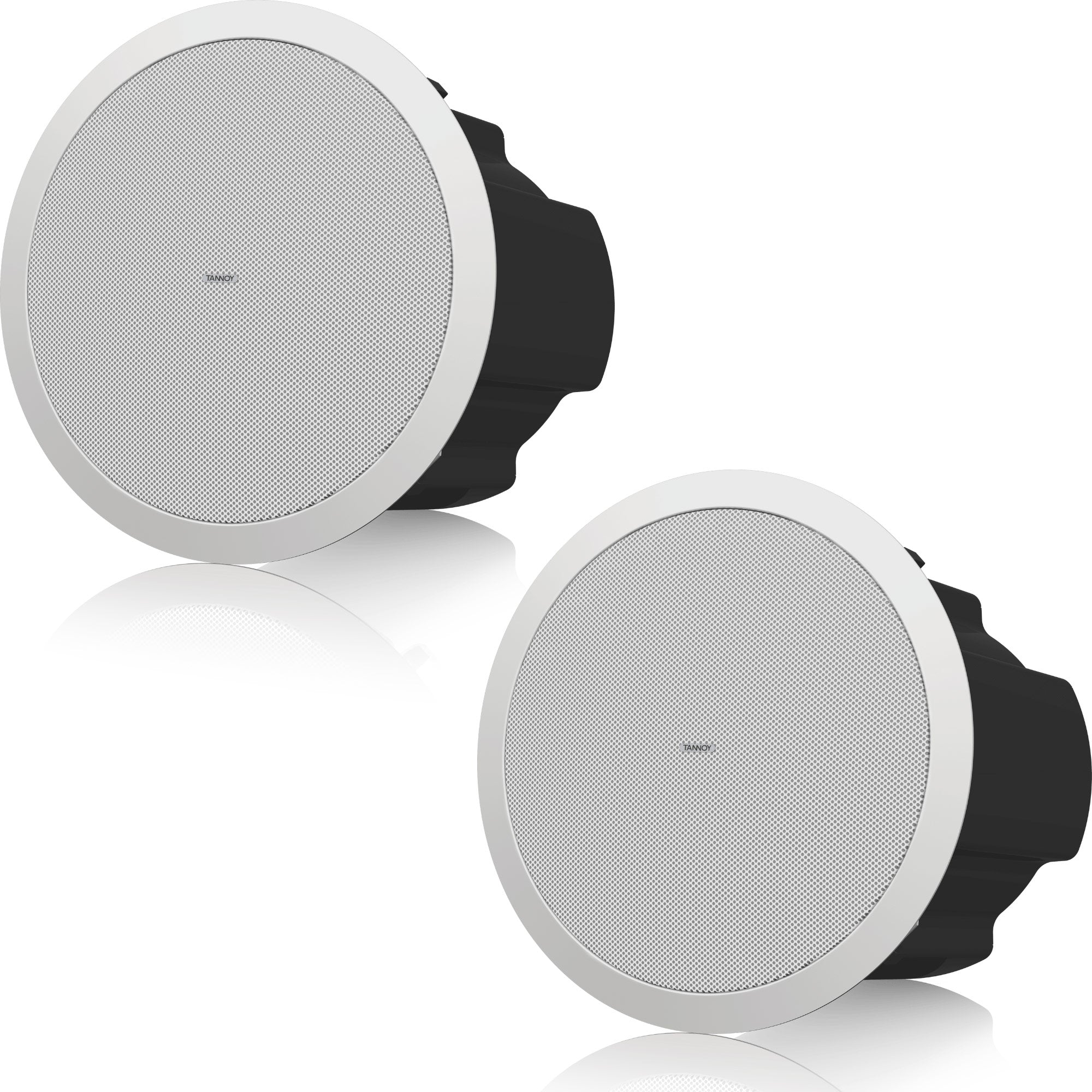

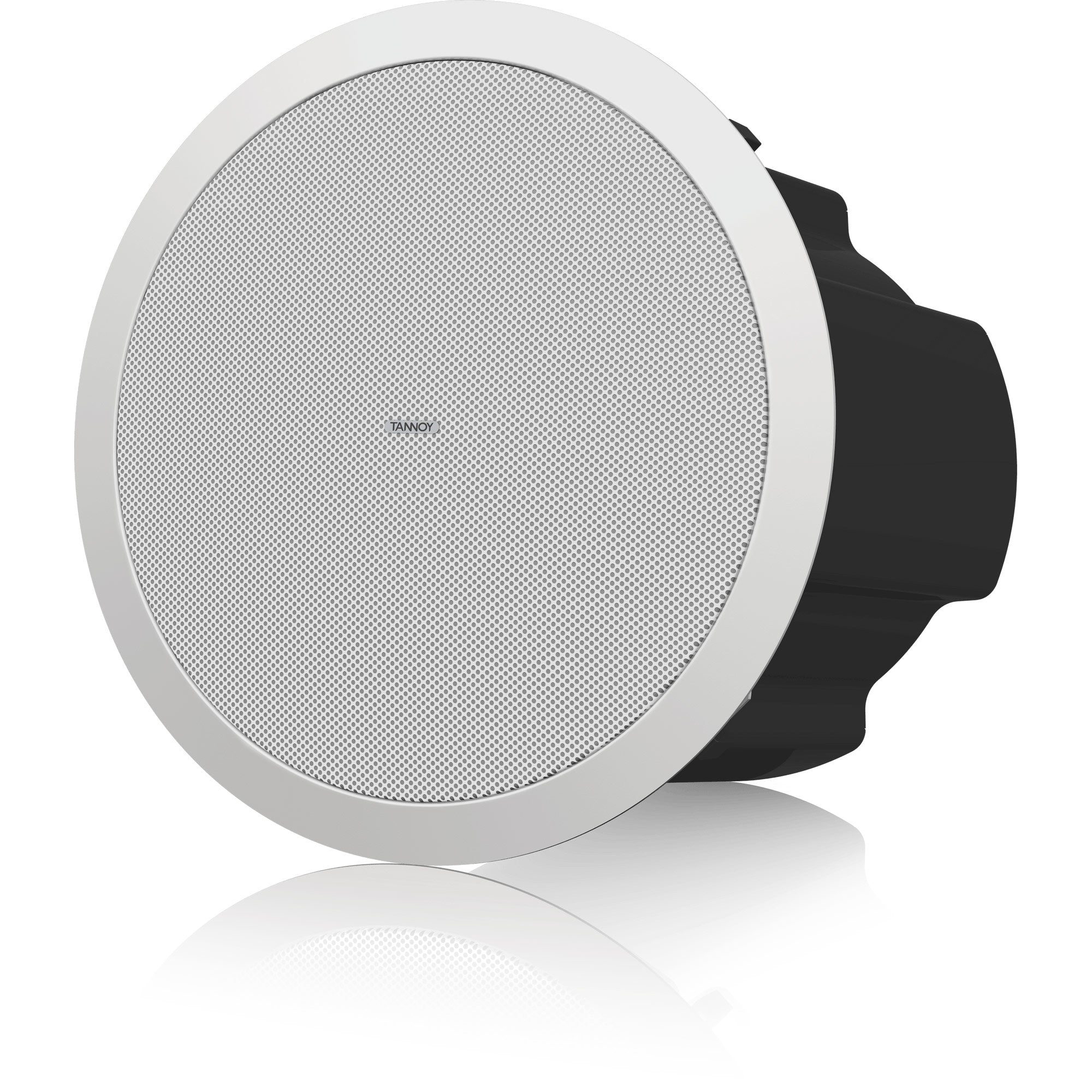

Tannoy CVS 6 - Two-Way 6-Inch Coaxial Ceiling Loudspeaker (White)

Sale price$262.00 Regular price$279.00
Save $17.00
  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Priced individually and sold in pairs.

    The CVS 6 is a compact 240-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 6 offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.

    Exceptional Sound and Reliability

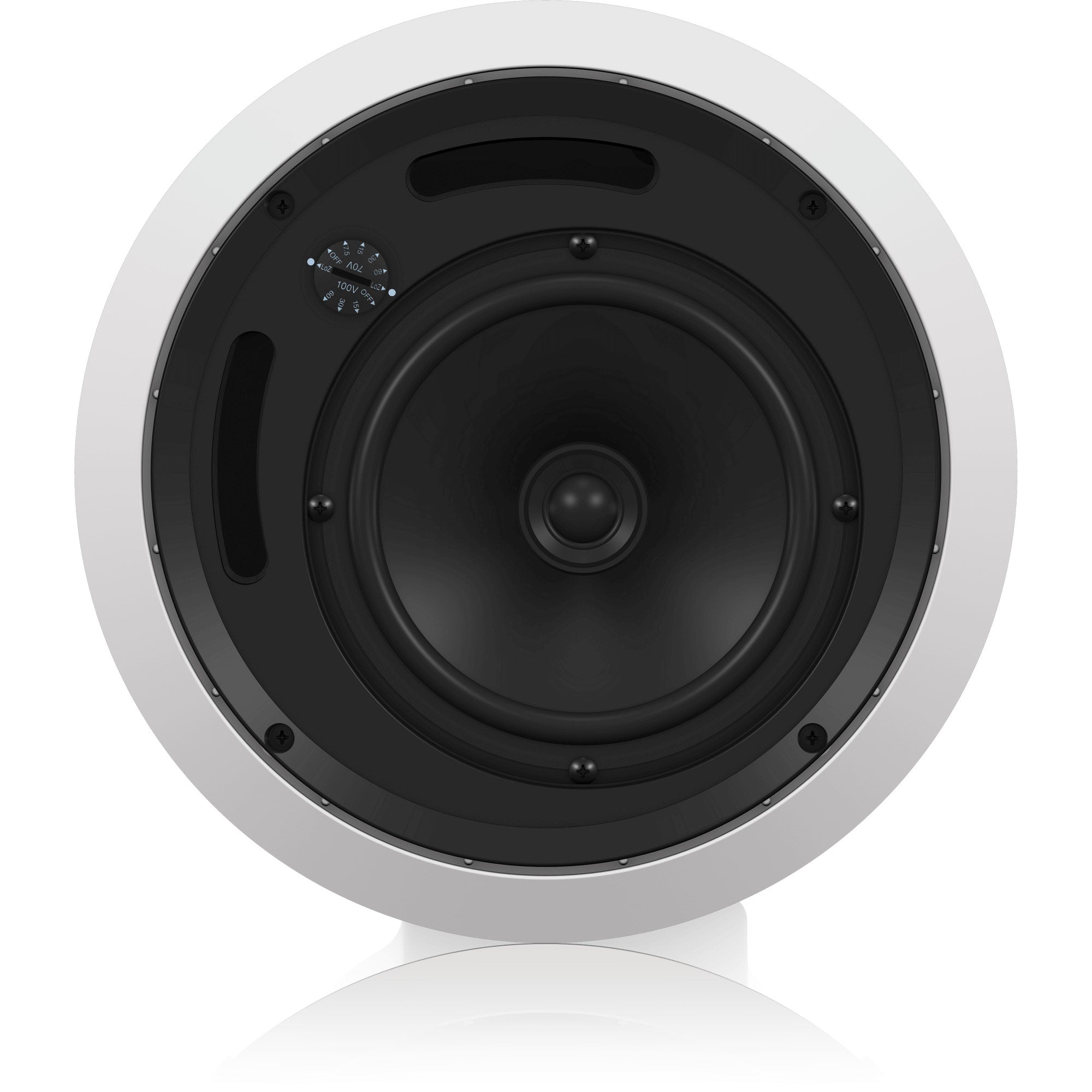

    The design comprises a 150 mm (6.00") mid bass driver with a coaxial 19 mm (0.75") high frequency section mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. This compact unit is specifically designed for applications requiring the combination of excellent sonic quality for music and speech reinforcement and exceptional reliability.

    Comprehensive Installation Package

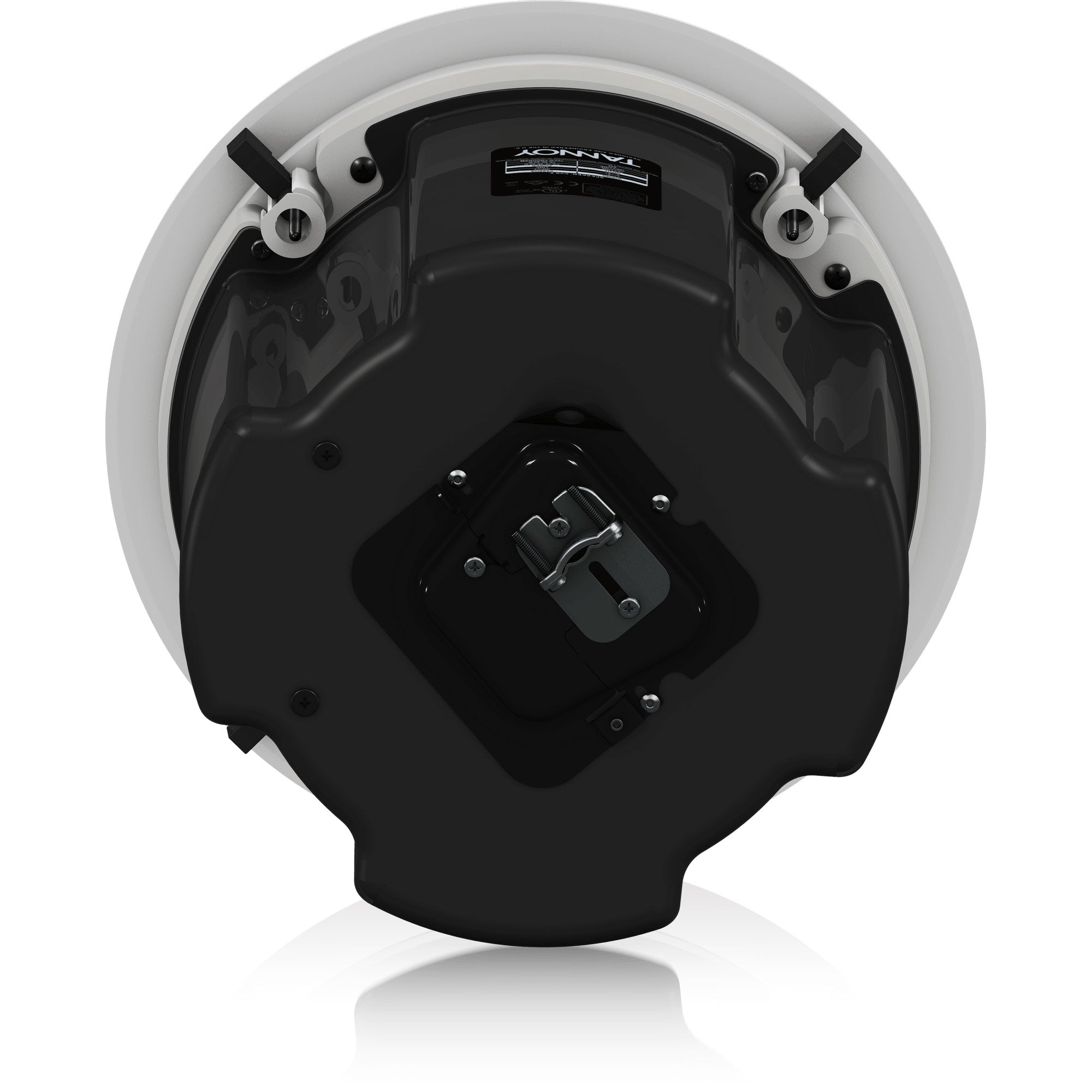

    Supplied with an integral zinc-plated steel back can, with recessed termination box, the CVS 6 satisfies the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and “loop through” facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.

    Frequency Response (-3 dB) (1)

    79 Hz - 21 kHz

    Frequency Range (-10 dB) (1)

    60 Hz - 24 kHz

    System Sensitivity (1 W @ 1 m) (2)

    91 dB (1 W = 2.45 V for 6 Ohms)

    Nominal Coverage Angle

    90 degrees conical

    Coverage Angle (1 kHz to 6 kHz)

    93 degrees conical

    Directivity Factor (Q)

    7.7 averaged 1 kHz to 6 kHz

    Directivity Index (DI)

    8 averaged 1 kHz to 6 kHz

    Rated Maximum SPL (2)

    Average: 109 dB
    Peak: 115 dB

    Power Handling (3)

    Average: 60 W
    Programme: 120 W
    Peak: 240 W

    Recommended Amplifier Power

    120 W @ 6 Ohms

    Nominal Impedance

    6 Ohms

    Transformer Taps (via front rotary switch)

    70 V: 60 W / 30 W / 15 W / 7.5 W / OFF and low impedance operation
    100 V: 60 W / 30 W / 15 W / OFF and low impedance operation

    Crossover

    2.5 kHz

    Distortion
    10% Full Power

    2nd Harmonic 250 Hz: 0.439%, 1 kHz: 0.396%, 10 kHz: 0.235%
    3rd Harmonic 250 Hz: 0.140%, 1 kHz: 0.458%, 10 kHz: 0.023%

    1% Full Power

    2nd Harmonic 250 Hz: 1.16%, 1 kHz: 1.014%, 10 kHz: 0.944%
    3rd Harmonic 250 Hz: 0.214%, 1 kHz: 0.685%, 10 kHz: 0.047%

    Transducers
    Low Frequency

    150 mm (6.00") mineral loaded cone

    High Frequency

    19 mm (0.75") coaxially mounted

    Physical
    Enclosure

    Back Can: Zinc plated steel
    Baffle: Reflex loaded UL 94 V-0 rated ABS
    Grille: Steel, with weather resistant coating

    Safety Features

    Safety ring located at rear of enclosure for load bearing safety bond

    Clamping Design

    Security toggle clamp
    Min / Max Clamping Range: 0.0mm (0.0") / 20.0mm (0.79")
    Recommended Clamp Torque: 1.5Nm

    Cable Entry Options

    Cable clamp and squeeze connector for conduit up to 22 mm

    Connectors

    Removable locking connector with screw terminals with "loop through" facility

    Safety Agency Ratings

    UL-1480, UL-2043, CE

    Hole Cutout Diameter

    250 mm (9.84")

    Dimensions

    Bezel diameter: 279.5 mm (11.01")
    Front of ceiling to rear of back can: 246.5 mm (9.70")
    Front of ceiling to top of safety loop: 258.5 mm (10.18")

    Net Weight (ea)

    6.5 kg (14.3 lbs)

    Included Accessories

    C Ring
    Tile bridge
    Paint mask
    Cutout template
    Grille

    Optional Accessories

    Plaster (mud) ring

    Packed Quantity

    2

    Priced individually and sold in pairs.
