Description

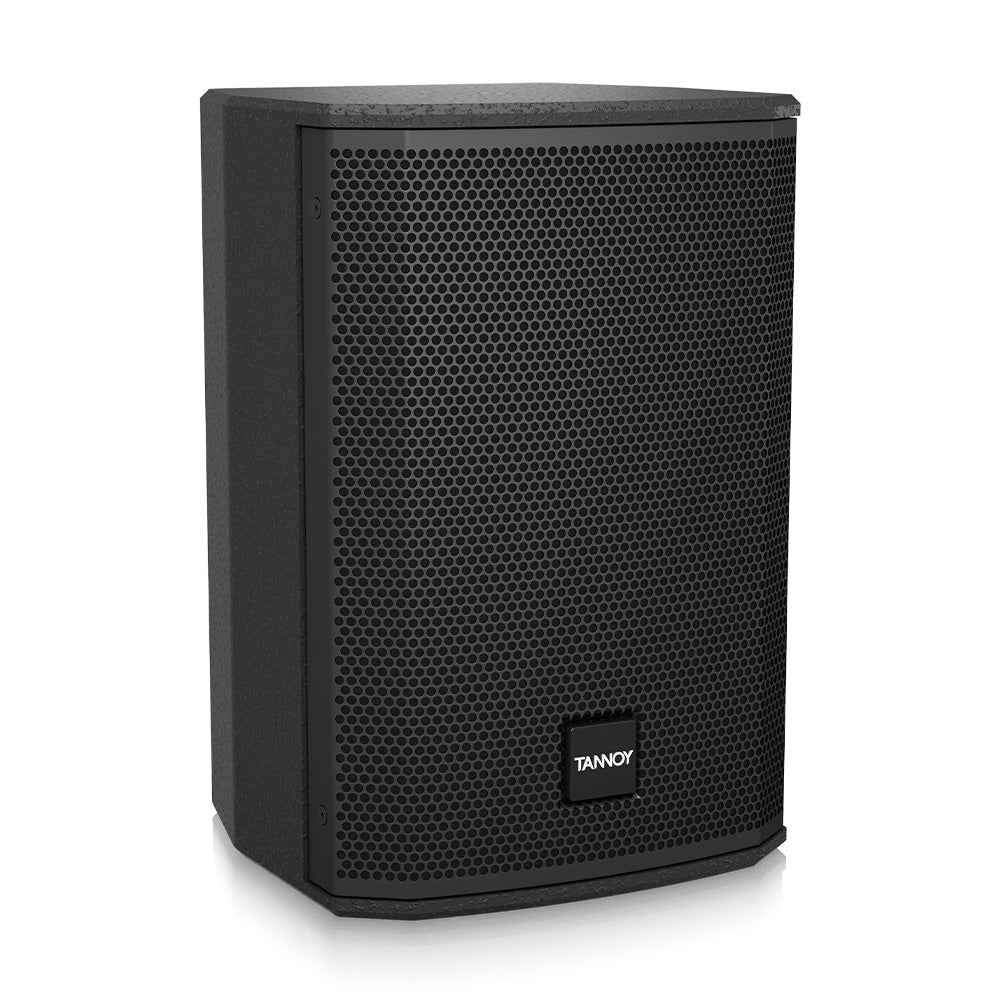

The VX 6 may be one of the smaller Dual Concentric full range loudspeakers in the VX range, but it boasts an exceptional performance-to-size ratio. VX 6 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. The VX 6 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Features:
- Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
- 100 Watts continuous, 400 Watts peak power
- 6" Dual Concentric full range driver for point source phase coherence
- Precise 90° dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor, delay and stage front fill applications
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint

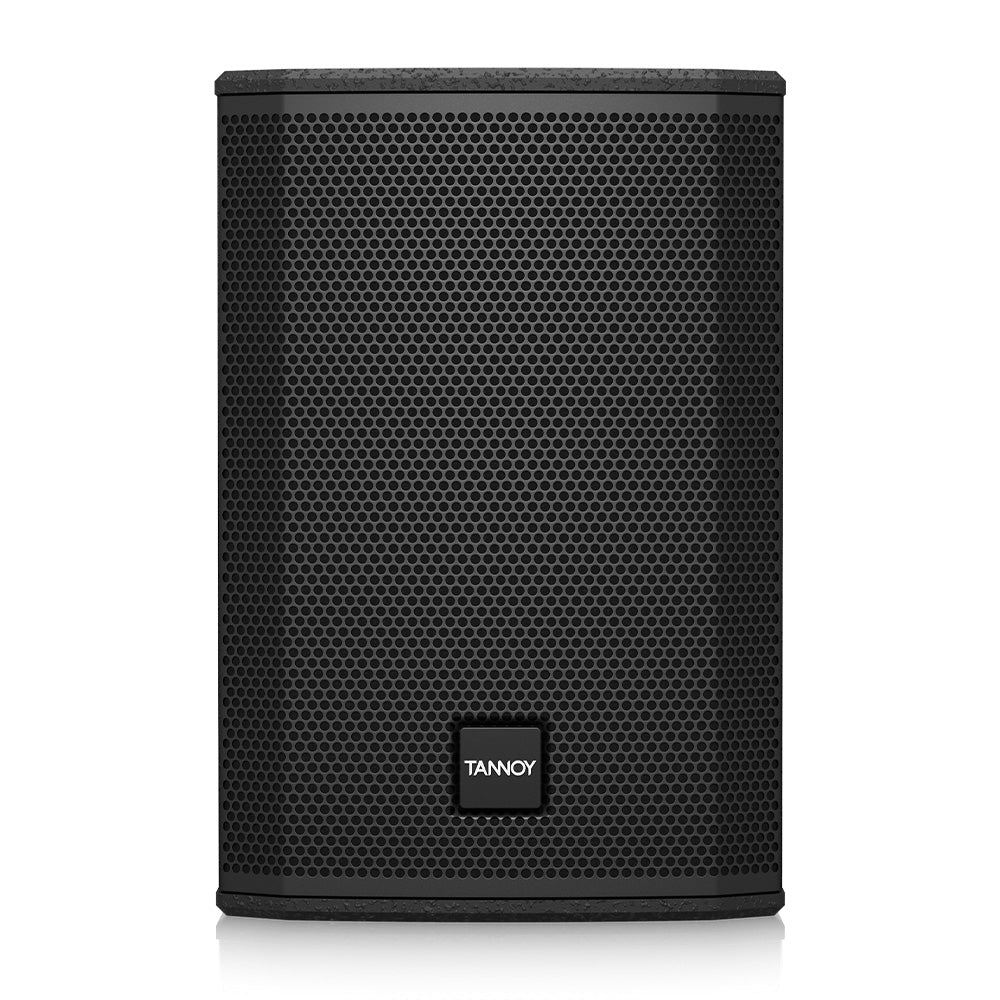

- Rugged powder coated perforated steel mesh grille
- Blanking plate for optional VTH pole mount
- Optional horizontal mounting yoke (available separately)
- Neutrik speakON* NL4 and barrier strip connectors for input and link output

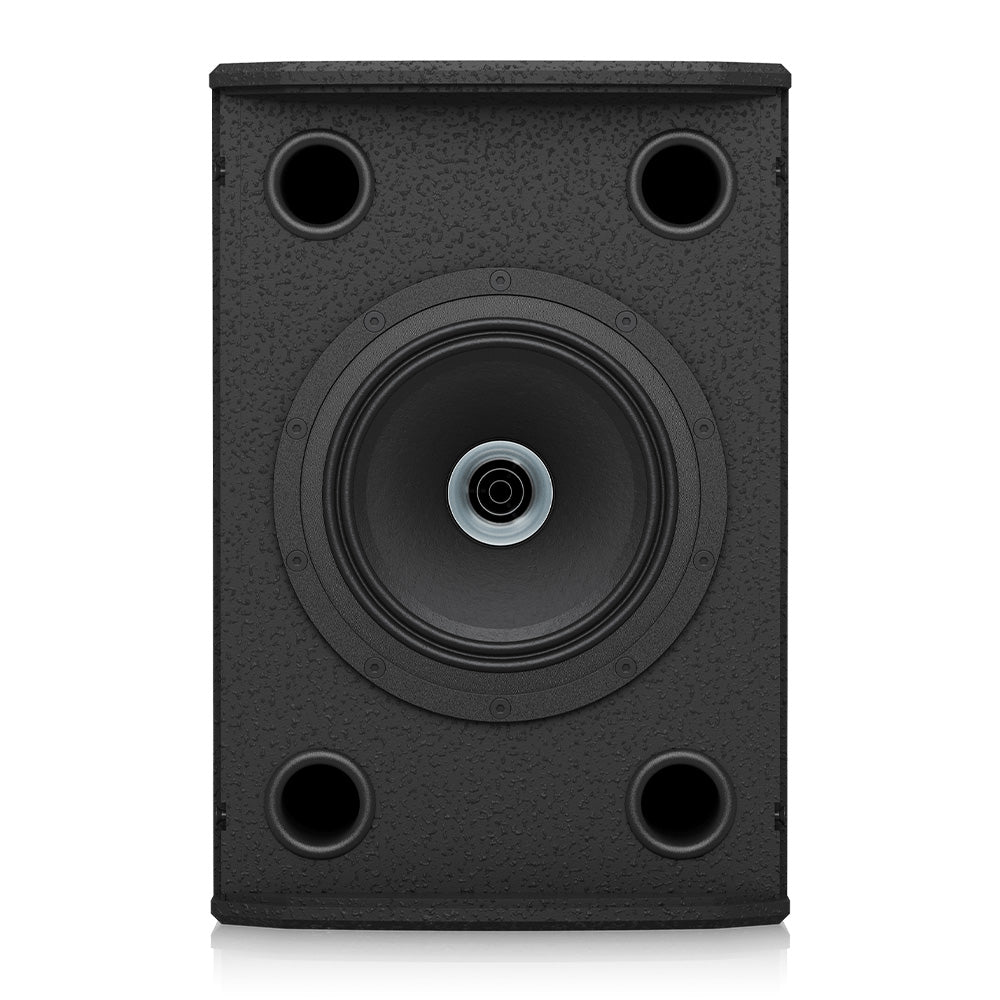

Dual Concentric Driver
The 400-Watt 150 mm (6 in.) version of TANNOY’s VX Series point source loudspeakers, VX 6’s constant directivity Dual Concentric drive unit technology ensures high power output with high sensitivity and exceptional efficiency. VX 6 delivers precise 90º dispersion for optimum coverage with exceptional forward gain.
Performance Applications
VX 6’s trapezoidal enclosure design provides a multitude of placement options including: small scale FOH, floor monitor, delay and stage front fill deployment, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. An extensive range of optional VX 6 high performance steel mounting hardware (available separately) includes a horizontal yoke bracket, and Omnimount spaced inserts for wall and ceiling installation. All hardware has been tested and certified for a greater than 5:1 safety ratio – giving installers complete peace of mind.
Frequency response (Full range mode) | 92 Hz - 35 kHz ±3 dB 80 Hz - 45 kHz -10 dB |
Nominal dispersion | 90¡ conical @ -6 dB point |
Directivity factor (Q) | 5.6 |
Directivity index (DI) | 7 |
Power handling (IEC) | |
Passive | 100 W continuous, 400 W |
Bi-amp | - |
Sensitivity | 91 dB (1 W @ 1 m)) |
Maximum SPL | |
Passive | 111 dB continuous, 117 dB peak |
Bi-amp | - |
Impedance | |
Passive | 8 ½ |
Bi-amp | - |
Crossover Type | Passive / Bi-amp switchable |
Components | 1 x 6" (150 mm) constant directivity PowerDual |
Enclosure | |

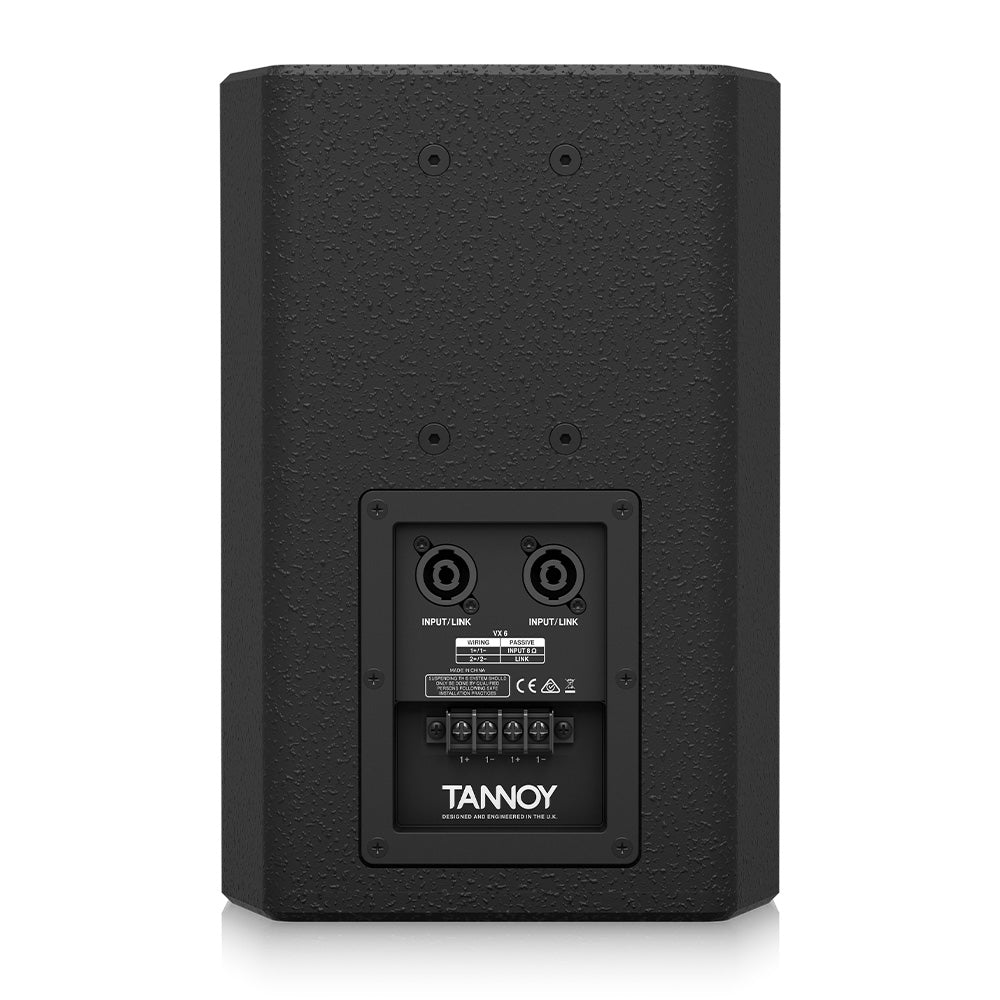

Connectors | 2x Neutrik speakON* NL4 1 x barrier strip terminals |
Wiring | |
Passive | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
Bi-Amp | - |
Dimensions H x W x D | 334 x 226 x 216 mm (13.1 x 8.9 x 8.5") |
Net weight | 5.0 kg (11.0 lbs) |
Construction | 12 mm (1/2") plywood, vented and internally braced |
Finish | Semi matt black paint (white optional) |
Grille | Powder coated perforated steel |
Flying hardware | M6 x 2 yoke bracket insert (4 mm allen key) M6 x 4 inserts Compatible with industry standard brackets Blanking plate for optional VTH pole mount |
Accessories | Multi Angle Wall Mount Multi Angle Wall Mount-WH Yoke Horizontal VX 5.2/VX 6 Yoke Horizontal VX 5.2/VX 6 - WH VTH Top Hat |
