DALE SKU # TASC-BDMP1MK2

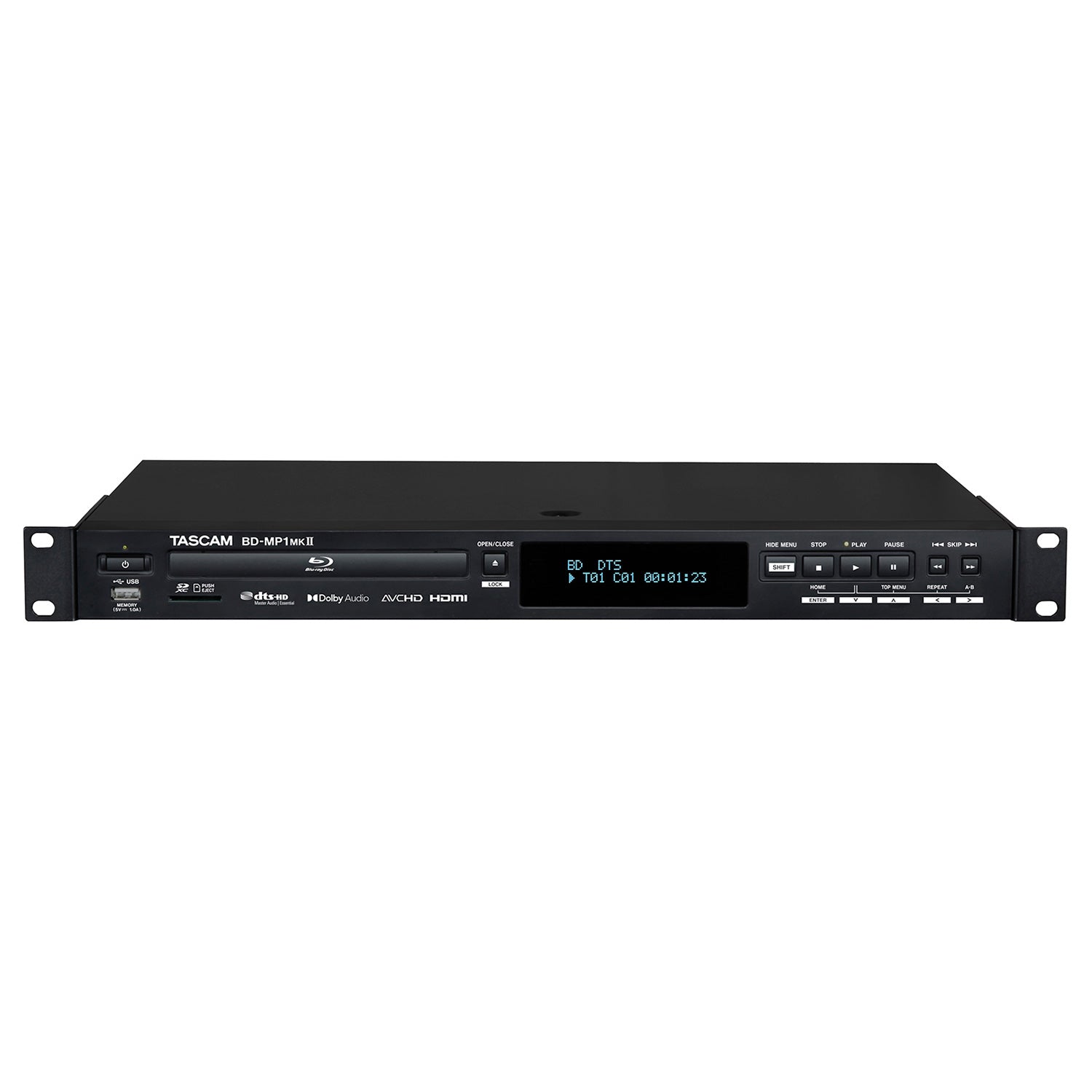

Tascam BD-MP-1MK2 - Professional Blu-Ray Player with SD / USB Playback

Sale price$549.00 Regular price$799.00
Save $250.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The TASCAM BD-MP1MKII is a professional-grade Blu-ray player that expands the legacy of TASCAM's popular BD-01U and BD-MP1 Blu-ray players. The BD-MP1MKII is the perfect choice for a wide range of high-end residential and commercial installations, including public, educational and commercial facilities, theaters, amusement and entertainment businesses, to name a few.

    Features:

    • Supports playback of various formats of Blu-ray, DVD, and CD discs
    • Supports playback of various video, still image, and audio formats from SD cards (SD/SDHC/SDXC up to 512G) and USB memory
    • Power on play function (Disc media only)
    • Seamless repeat function: by chapter, title, or A-B repetition
    • Hide MENU function to display only the main contents on the screen
    • Lock functions: panel, IR, and tray lock
    • HDMI output that can pass through audio formats such as Dolby Atmos and DTS-HD to an AV amplifier
    • Dual XLR balanced and RCA unbalanced outputs
    • RCA 7.1ch audio outputs
    • External remote control via LAN or RS-232C
    • 1U rackmount size
    • Resume function
    • Coaxial digital audio output supports Dolby Audio, DTS and other professional grade digital audio output formats.
    • Audio output level volume adjust function (0dB to -40dB)

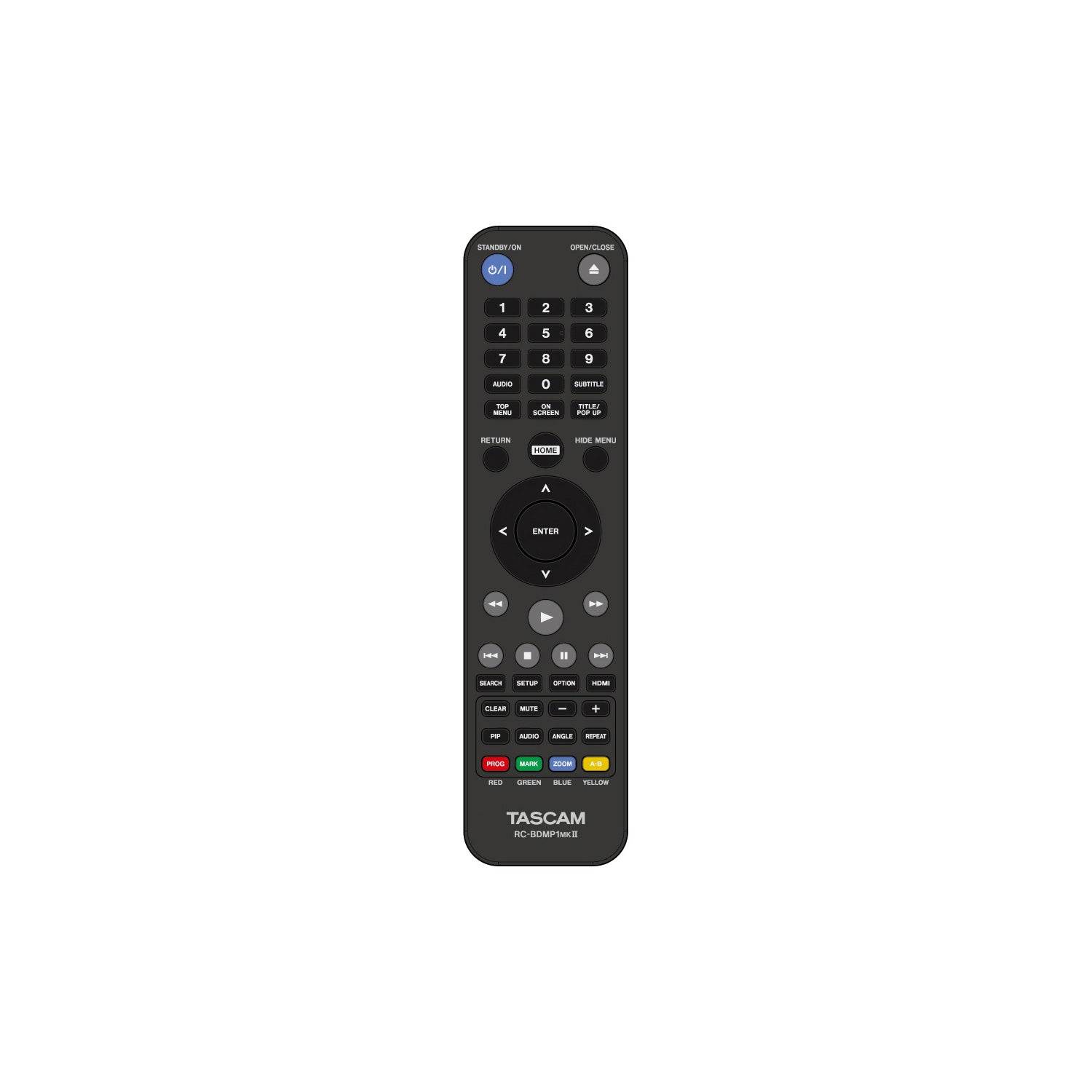

    • IR remote control included (RC-BDMP1MKII)


    DVD/CD, SD Card and USB Flash Memory Options

    The versatile BD-MP1MKII can automatically play back content in a wide range of file formats via any of the three front-panel media input slots, including Blu-ray/DVD/CD, USB Flash Memory, or SD card.

    Supports a Wide Range of Disc Formats
    The BD-MP1MKII eliminates the need for discrete audio/video playback devices in an installation, offering single-source playback for a wide range of media and file formats, including Blue-ray (BD25, BD50, BD-ROM, BD-R, BD-RE), DVD (DVD-ROM, DVD-R, DVD-RW, DVD-+R, DVD+RW), and CD (CD-DA, CD-R, CD-RW).

    Versatile File Format Playback Support
    The BD-MP1MKII is the ideal single-source playback solution for commercial and residential installations, supporting an extensive range of file formats, including Video (ASF, MPEG, AV1, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV), Image (JPEG, GIF, PNG) and Audio (WAV, MP3,WMA. AAC, FLAC, APE).

    Power-on Play and Repeat Mode
    The unique Power-on Play feature allows the BD-MP1MKII to start playing desired content immediately on power up, without having to engage the Play feature first (Disc media only). With Repeat Mode set to 'on,' content will automatically start, loop and play continuously until power is turned off.

    Panel Lock for Secure Operation
    Panel lock, IR and tray lock functions prevent accidental or user-error operation or alteration of pre-set controls in commercial installations, helping ensure consistent and reliable performance in any installation.

    Hide Menu Function for Elegant Power Up Display Sequence
    The monitor display can be set to show a black screen during start up rather than the manufacturer's standard factory setup and source select menus, creating an elegant and non-distracting visual start-up environment each time the system is turned on.

    Dual USB Memory Ports
    Two USB Memory Ports, one front panel and one back panel, allow fixed or interchangeable access to USB memory data for playback versatility.

    HDMI Output for Connecting Displays
    A standard rear panel HDMI Output connection provides easy, reliable plug-and-play connection to any HDMI-compatible monitor display or television. In addition to HD video, Dolby Atmos audio can also be output.

    Balanced and Unbalanced Outputs
    Highlighting its appeal to commercial installation environments, the BD-MP1MKII offers professional-grade XLR balanced stereo analog outputs as well as RCA unbalanced stereo outputs for versatility in audio routing, connection and setup.

    Coaxial and Digital Audio Output Connection
    The BD-MP1MKII provides support for professional-grade digital audio output formats including Dolby Audio, DTS, and others via back panel Coaxial and Digital Audio output connections. Playback of 2 channel linear PCM is also supported.

    7.1 Surround Sound System
    Immersive and full, rich audio playback for any commercial installation is provided via 7.1 Surround Sound System audio outputs — front left and right (FL/FR), Center (C), side left and right (SL/SR), surround back left and right (SBL/SBR) and subwoofer (SW).

    IP and RS-232C Ports for External Remote Control
    Seamless, reliable two-way device status feedback and control is offered for professional installations via back panel RS-232C and Ethernet connections, enabling the BD-MP1MKII to be integrated into more sophisticated AV setups.

    Fully Accessible Front Panel Control
    Control and operation of the BD-MP1MKII's Stop, Play, Pause and Fast Forward functions as well as navigation of the MENU setup without the IR remote controller is made possible by easy accessible front panel control buttons which can be locked/unlocked as desired.

    Compact 1U Rack Size
    Housed in an elegant black case, the compact 1U BD-MP1MKII is constructed out of durable metal, facilitating standard, seamless integration in any commercial rack or application. The rack ears can be removed and rubber feet are included for a clean shelf top installation application and look.

    Supported mediaÊ
    Disc Media *SL indicates single-layer discs and DL indicates doublelayer discs
    *This unit can play only BD and DVD-VIDEO that has the same region code as shown on the label on its chassis. It can also play DVD-VIDEO that is ALL.
    Blu-ray BD25, BD50, BD-ROM, BD-R(SL,DL), BD-RE(SL,DL)
    DVD DVD-ROM, DVD-R (SL, DL), DVD-RW, DVD+R (SL, DL), DVD+RW
    CD CD-DA, CD-R, CD-RW
    Disc formats *Blu-ray 3D supported
    Blu-ray BDMV, BDAV
    DVD DVD-Video, DVD-VR, AVCHD
    File formats *USB flash drive and SD card formats must use FAT16,FAT32, exFAT or NTFS file systems.
    Video ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV
    Audio WAV, MP3, WMA, AAC, FLAC, APE
    Picture JPEG, GIF, PNG
    Supported subtitle file format .sub, .ass, idx+sub (.idx+.sub)
    Audio
    BD/DVD/USB/SD
    Sampling frequency 44.1k/ 48k/ 64k/ 88.2k/ 96k/176.4k/ 192k Hz
    Bit length 16/24 bit
    CD
    Sampling frequency 44.1k/48k Hz
    Bit length 16/24bit
    MP3/WMA
    Sampling frequency 32k/44.1k/48k Hz
    Bitrate
    MP3 112k to 320k bps
    WMA 48k to 192k bps
    HDMI Output
    Connector HDMI 19pin Type A
    Resolution 480i/576i, 480p/576p, 720p, 1080i, 1080p
    Aspect ratio 16:9 Full, 16:9 Normal, 4:3 Pan / Scan, 4:3 Letterbox
    Video format NTSC, PAL, Multi
    HDMI signal system RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr(4:2:2)
    Digital Audio output
    COAXIAL
    Connector RCA pin jacks
    Format IEC60958-3(S/PDIF)
    Output impedance 75 ½ or lower
    Analog audio outputs
    Balanced
    Connectors XLR-3-32(1 : GND, 2 : HOT, 3 : COLD) _ 2 (Stereo)
    Normal output level +4dBu (1.23 Vrms)
    Maximum output level +20dBu (7.75 Vrms)
    Output impedance 200½ or lower
    Unbalanced
    Connector RCA pin jack _ 1 pair
    Normal output level -10dBV (0.316 Vrms)
    Maximum output level +6dBV (2.0 Vrms)
    Output impedance 210½ or lower
    7.1ch Audio outputs
    Connector RCA x8 (FL/FR/SL/SR/SBL/SBR/C/SW)
    Connector Color FL/SL/SBL: White
    FR/SR/SBR: Red
    C/SW: Black
    Normal output level -10dBV (0.316 Vrms)
    Maximum output level +6dBV (2.0 Vrms)
    Output impedance 210½ or lower
    RS-232C
    Connector D-sub 9pin
    Format RS-232C compliant
    ETHERNET
    Connector RJ-45
    Protocol 10BASE-T/100BASE-TX
    Cable Category 5e or faster
    USB
    Connector USB type-A _2 (front _1, back _1)
    Protocol USB2.0 compliant
    Rated supply voltage DC 5V, 1A
    Mass storage class Less than 2 TB
    File format FAT16/FAT32/exFAT/NTFS
    USB device class Mass storage class
    SD slot
    Supported media SD (512 MB-2 GB), SDHC (4 GB-32 GB), SDXC (64GB - 512GB)
    File format FAT16/FAT32/exFAT/NTFS
    Power AC100 - 240V, 50 - 60Hz
    Power consumption 30W
    Dimensions 482.6(W) _ 44(H) _ 280.7(D) mm
    Weight 2.64kg
    Operating temperature range 5 to 35¡C (41¡F - 95¡F)
    Included items BD-MP1MKII _ 1
    Power cord _ 1
    Wireless remote control (TASCAM RC-BDMP1MKII) _ 1
    AAA batteries _ 2
    Rackmount screw kit
    - Rackmount ears (left and right) _ 2
    - Screws for ear attachment _ 6
    - Screws for attachment to rack _ 4
    - Washers (for rack) _ 4
    Owner's manual (including warranty) _ 1
    Audio performance
    Frequency response 20 Hz- 20 kHz +/-0.5 dB
    (Fs = 44.1 KHz/48 KHz, JEITA)
    S/N 96dB or higher (during playback, JEITA)
    THD (Total Harmonic Distortion) 0.03%or less (1kHz, JEITA)
    Dynamic range 96dB or higher (JEITA)
    Channel separation 89dB or higher (JEITA)
