Description

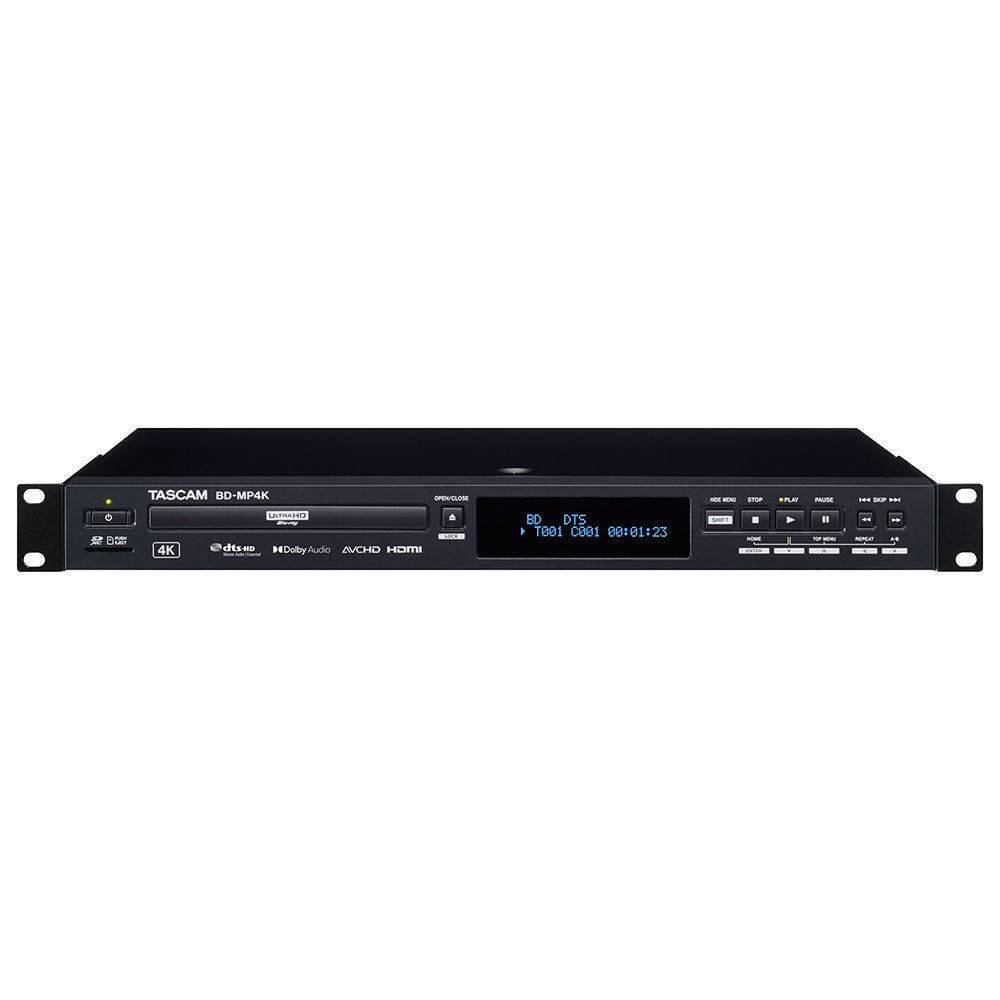

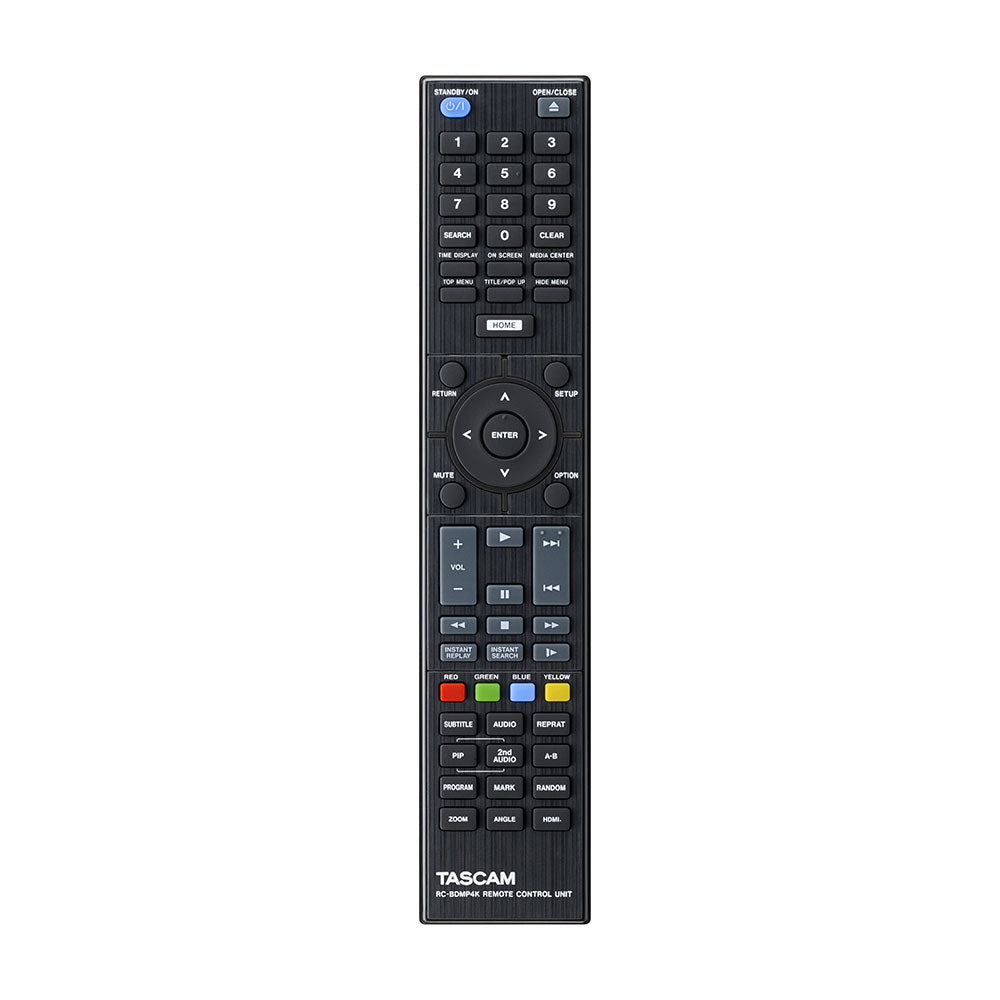

The BD-MP4K is a remote controllable 1U rack mount 4K UHD Blu-ray player with DVD/CD, SD card and USB flash memory playback. It supports a wide range of disc formats in addition to several different video, still image, and audio file formats. Featuring power on play with panel lock and hide menu functions, the BD-MP4K includes a wireless IR remote, and RS-232C and LAN ports for remote control. Professional XLR balanced audio outputs provide an optimal multi-media playback device for public/educational/commercial facilities, theaters, amusement and entertainment facilities, to name a few.
Features:
Power On Play / Seamless Repeat Functions
With the power on play function activated, the BD-MP4K will automatically start playback after the power is turned on. Seamless playback of the previous content can be performed by combining the power on play and the repeat playback function (*). Combining the capability of power on/off control with remote control will allow for the structuring of an automatic playback system.
(*) Some media may not be supported.
Lock Functions
Panel lock as well as IR and tray lock functions are also available to prevent accidental or unwanted operation.
Hide MENU Function
A unique Hide Menu function allows customization of the display monitor’s boot up process. In this mode, the monitor display screen can be set to display a black screen during start up rather than displaying the manufacturer’s standard factory setup screen and source select menus. This is also available when inserting discs.
External media ports
The BD-MP4K includes SDXC port on the front and USB port on the back to enable fixed or interchangeable usage of external media.
HDMI Output
HDMI output for easy connection to monitor displays or switchers.
XLR Balanced Audio Outputs
Professional-grade XLR balanced stereo analog outputs and RCA unbalanced stereo outputs are included.
Coaxial Digital Audio Output
Coaxial Digital Audio Out accommodates professional-grade digital audio output formats including Dolby, DTS, and others. Playback of 2 channel linear PCM is also supported.
Analog 7.1 Ch output
Analog outputs for 7.1 surround sound system are included.
Supports external remote control via LAN / RS-232C
Both RS-232C and gigabit Ethernet IP network connectivity are available for remote control.
Rugged metal casing, compact 1U rackmount size
Compact 1U rackmount size. Rugged and durable metal case. Menu operation without RC-BDMP4K(IR remote controller) is possible using the front panel control buttons.
In addition to Blu-ray disc, DVD and CD, the BD-MP4K also supports playback of video, still images, and audio from SD cards and USB memory.
Supported disc media
Supported file formats
More +
Product Specs
Disc Media | |
Blu-ray | 4K Ultra HD BD, BD25, BD50, BD-ROM, BD-R, BD-RE |
DVD | DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW |
CD | CD-DA, CD-R, CD-RW |
Disc type | |
Blu-ray | BDMV, BDAV |
DVD | DVD-Video, DVD-VR, AVCHD |
Format | FAT16, FAT32, exFAT or NTFS file system is needed in order to format USB flash memory and SD cards. |
Video | ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV |
Audio | WAV, MP3, WMA, AAC, FLAC, APE |
Picture | JPEG, GIF, PNG |
Audio | |
Blu-ray/DVD/USB/SD | |
Sampling frequency | 44.1k/48k/64k/88.2k/96k/176.4k/192k Hz |
Bit length | 16/24 bit |
CD | |
Sampling frequency | 44.1k/48k Hz |
Bit length | 16/24 bit |
MP3/WMA | |
Sampling frequency | 32k/44.1k/48k Hz |
Bit rate | |
MP3 | 112k to 320k bps |
WMA | 48k to 192k bps *Supports Ver.9 standard only, DRM not supported |
HDMI Output | |
VIDEO/AUDIO | |
Connector | HDMI 19pin Type A |
Version | 2.0 |
Resolution | 480i/576i, 480p/576p, 720p, 1080i, 1080p, 2160p *Monitor and cable must support 2160p output |
Aspect ratio | 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox |
Video format | NTSC, PAL, Multi |
HDMI signal system | RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr(4:2:2) |
AUDIO ONLY | *Video signals are not exported through the AUDIO ONLY terminal |
Connector | HDMI 19pin Type A |
Version | 1.4 |
Digital audio outputs | |
COAXIAL | |
Connector | RCA pin jack |
Format | IEC60958-3(S/P DIF) |
Output impedance | 75Ω |
Analog audio outputs | |
Balanced | |
Connector | XLR-3-32(1 : GND, 2 : HOT, 3 : COLD) × 2 (Stereo) |
Nominal output level | +4dBu (1.23 Vrms) |
Maximum output level | +20dBu (7.75Vrms) |
Output impedance | 200Ω |
Unbalanced | |
Connector | RCA pin jack × 2 |
Nominal output level | -10dBV (0.316 Vrms) |
Maximum output level | +6dBV (2.0Vrms) |
Output impedance | 200Ω |
7.1CH audio outputs | |
Connector | RCA pin jack × 8 (FL/FR/SL/SR/SBL/SBR/C/SW) |
Connector color | FL, SL, SBL : White FR, SR, SBR : Red C, SW : Black |
Nominal output level | -10dBV (0.316 Vrms) |
Maximum output level | +6dBV (2.0Vrms) |
Output impedance | 200Ω |
RS-232C | |
Connector | D-sub 9pin |
Format | RS-232C compliant |
ETHERNET | |
Connector | RJ-45 |
Compatible standard | 10BASE-T/100BASE-TX/1000BASE-T |
Protocol | SMB1/CIFS for Network Attached Storage TCP/IP for remote control |
USB | |
Connector | USB type-A x1 (Rear) |
Protocol | USB 3.0 compliant |
Rated supply voltage | DC 5V, 1A |
Mass storage class | 2TB (Max) |
File format | FAT16/FAT32/exFAT/NTFS |
SD | |
Media | SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB) |
Storage class | 512GB (Max) |
File format | FAT16/FAT32/exFAT |
Power | AC 100V to 240V, 50/60Hz |
Power consumption | 30W |
Dimensions | 482.6(W) × 44.0(H) × 280.7(D) mm |
Weight | 2.78kg / 6.13lb |
Operating temperature | 5 to 35°C |
Included items | Remote control unite (RC-BDMP4K), AAA batteries ×2, AC power code, 3P-2P conversion adapter, Rack-mounting kit, Owner's manual (with warranty) |
Audio performance | |
Frequency response | 20Hz to 20kHz, +/-0.5dB (JEITA) |
THD | 0.03% or less (1kHz, JEITA) |
S/N ratio | 96dB or more (JEITA) |
Dynamic range | 96dB or more (JEITA) |
Channel separation | 89dB or more ( JEITA) |
