Tascam BO-16DX/OUT 16-Channel DB25 to XLR Male Breakout Box
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

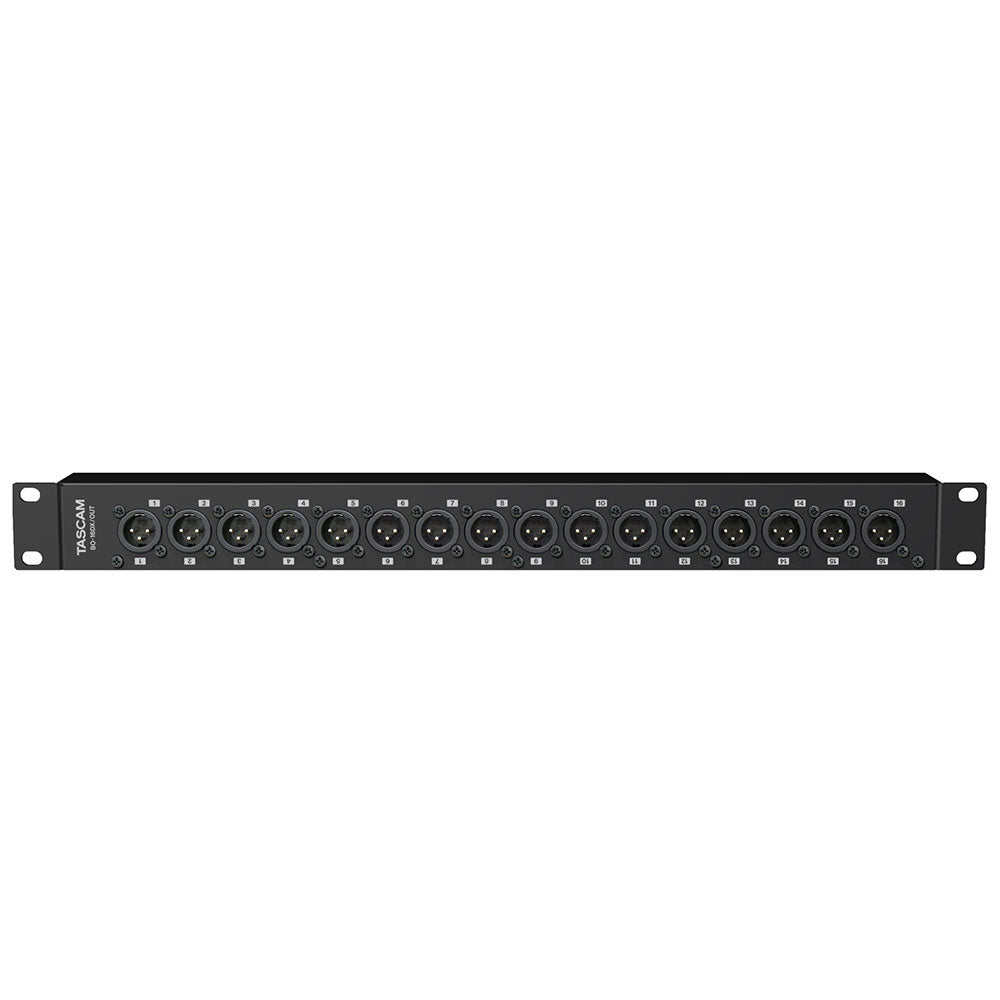

The TASCAM BO-16DX/OUT is a rugged, rackmounted audio adaptor designed for professional installation and live sound applications. 16 front-panel XLR outputs are internally bridged to dual D-Sub input connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.
Designed as companion pieces for the TASCAM ML-16D and ML-32D Analog to Dante convertors, a combination of BO-16DX/IN and BO-16DX/OUT provide an elegant communication link between your Analog and Digital subsystems.
The BO-16DX/OUT is designed to mount in either of two 180-degree rotations to simplify cabling runs and avoid unneccessary twisting of D-Sub connector cables within the rack.
Features:
- 16 XLR output connectors on the front panel
- Dual D-Sub input connectors compliant with AES59-2012 on the rear panel
- Multiple rackmounting options
- Short unit depth allows free layout in the rack
- 1U Rackmount size
- Rackmount screws included
| FRONT | |
| Connectors | XLR 3-32 _ 16 (1: GND, 2: HOT, 3: COLD) |
| REAR | |
| Connectors | D-sub 25pin female _ 2 |
| Attachment screws | No.4-40 UNC _ 4 (inch-type) |
| Dimensions (W_H_D) |
19.0" _ 1.7" _ 2.0" 482.6 _ 44.1 _ 51.5 mm |
| Weight | 1.99 lbs. / 0.9 kg |
| Included items | Rackmount screw kit, Owner's Manual (this document) including warranty |
The TASCAM BO-16DX/OUT is a rugged, rackmounted audio adaptor designed for professional installation and live sound applications. 16 front-panel XLR outputs are internally bridged to dual D-Sub input connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.
Designed as companion pieces for the TASCAM ML-16D and ML-32D Analog to Dante convertors, a combination of BO-16DX/IN and BO-16DX/OUT provide an elegant communication link between your Analog and Digital subsystems.
The BO-16DX/OUT is designed to mount in either of two 180-degree rotations to simplify cabling runs and avoid unneccessary twisting of D-Sub connector cables within the rack.
Features:
- 16 XLR output connectors on the front panel
- Dual D-Sub input connectors compliant with AES59-2012 on the rear panel
- Multiple rackmounting options
- Short unit depth allows free layout in the rack
- 1U Rackmount size
- Rackmount screws included
| FRONT | |
| Connectors | XLR 3-32 _ 16 (1: GND, 2: HOT, 3: COLD) |
| REAR | |
| Connectors | D-sub 25pin female _ 2 |
| Attachment screws | No.4-40 UNC _ 4 (inch-type) |
| Dimensions (W_H_D) |
19.0" _ 1.7" _ 2.0" 482.6 _ 44.1 _ 51.5 mm |
| Weight | 1.99 lbs. / 0.9 kg |
| Included items | Rackmount screw kit, Owner's Manual (this document) including warranty |
