Tascam BO-32DE 32-Channel Euroblock to DB25 Breakout Box


  • Dale #:

    TASC-BO32DE
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The TASCAM BO-32DE is a rugged, rackmounted audio adaptor designed for professional installation. 32 front-panel Eruoblock connectors are internally bridged to four D-Sub output connectors on the rear panel, providing fast and easy I/O and interconnectivity between CD players, Digital Audio playe... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

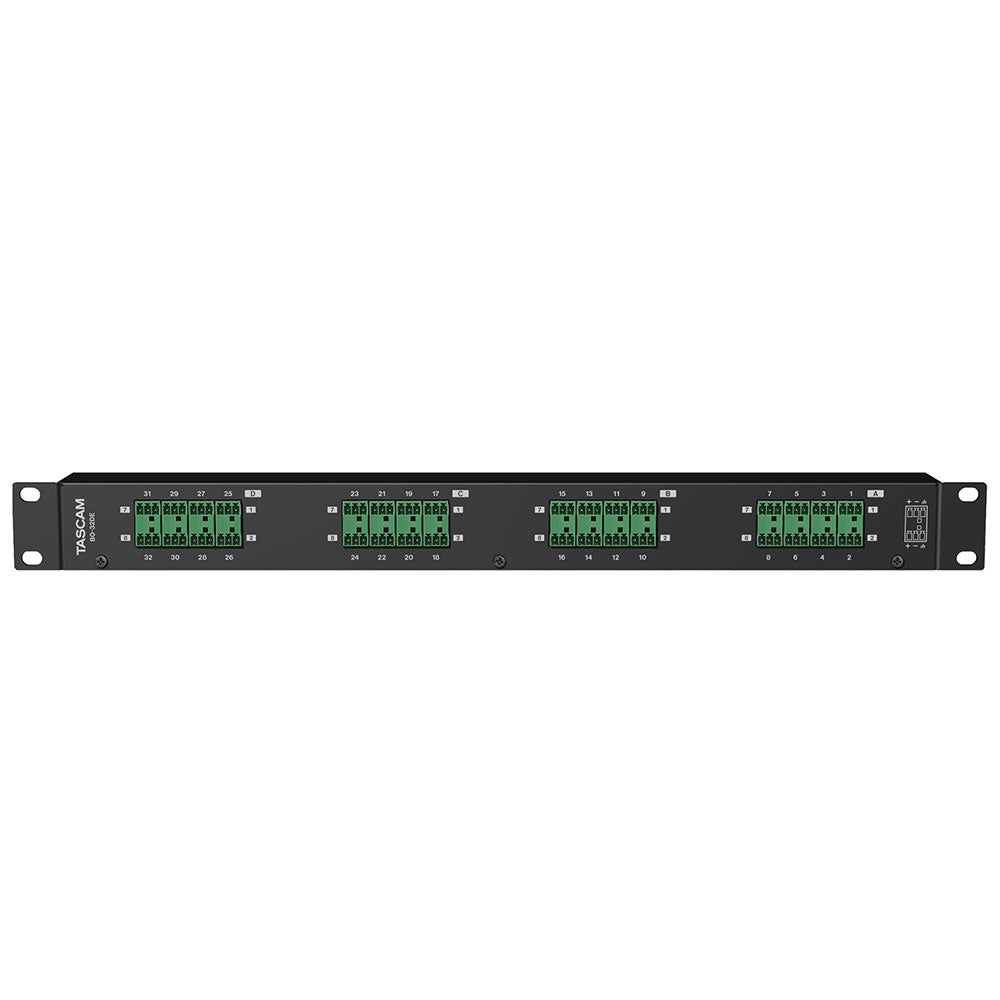

The TASCAM BO-32DE is a rugged, rackmounted audio adaptor designed for professional installation. 32 front-panel Eruoblock connectors are internally bridged to four D-Sub output connectors on the rear panel, providing fast and easy I/O and interconnectivity between CD players, Digital Audio players, Mic Preams, Zone Mixers, Distribution Amplifiers Audio over IP Convertors and more.

Euroblock terminals are the same for both input and output, so the 32 channels can be assigned freely as inputs or outputs in each 8 channel. The numbers of inputs and outputs can be set flexibly according to the needs of the system. For example, the unit could be set to have all 32 channels as inputs, 24 channels as inputs and 8 as outputs, or 16 channels each of inputs and outputs.

The included Euroblock plugs have tabs. Attaching the signal wires with wire bands minimizes stress on them during connection and disconnection.

The unit can be mounted in a rack facing forward or backward by changing the direction that the rack-mount ears are attached to it. The rackmount ears can also be removed when using the unit placed on a tabletop. Thanks to the compact size, including a depth of only 45 mm, this breakout box can even be mounted in the back of a rack case.

More +

Product Specs

FRONT
Connectors Euroblock × 16
(Balanced, 32ch, 3.81mm pitch)
REAR
Connectors D-sub 25pin female × 4
Attachment screws No.4-40 UNC × 8
(inch-type)
Dimensions
(W×H×D)
19.0" × 1.7" × 2.0"
482.6 × 44.1 × 50.8 mm
Weight 1.99 lbs. / 0.9 kg
Included items Euroblock plug have tab × 32, Cable banc kit, Rackmount screw kit, Owner's Manual (this document) including warranty

More +
