Description

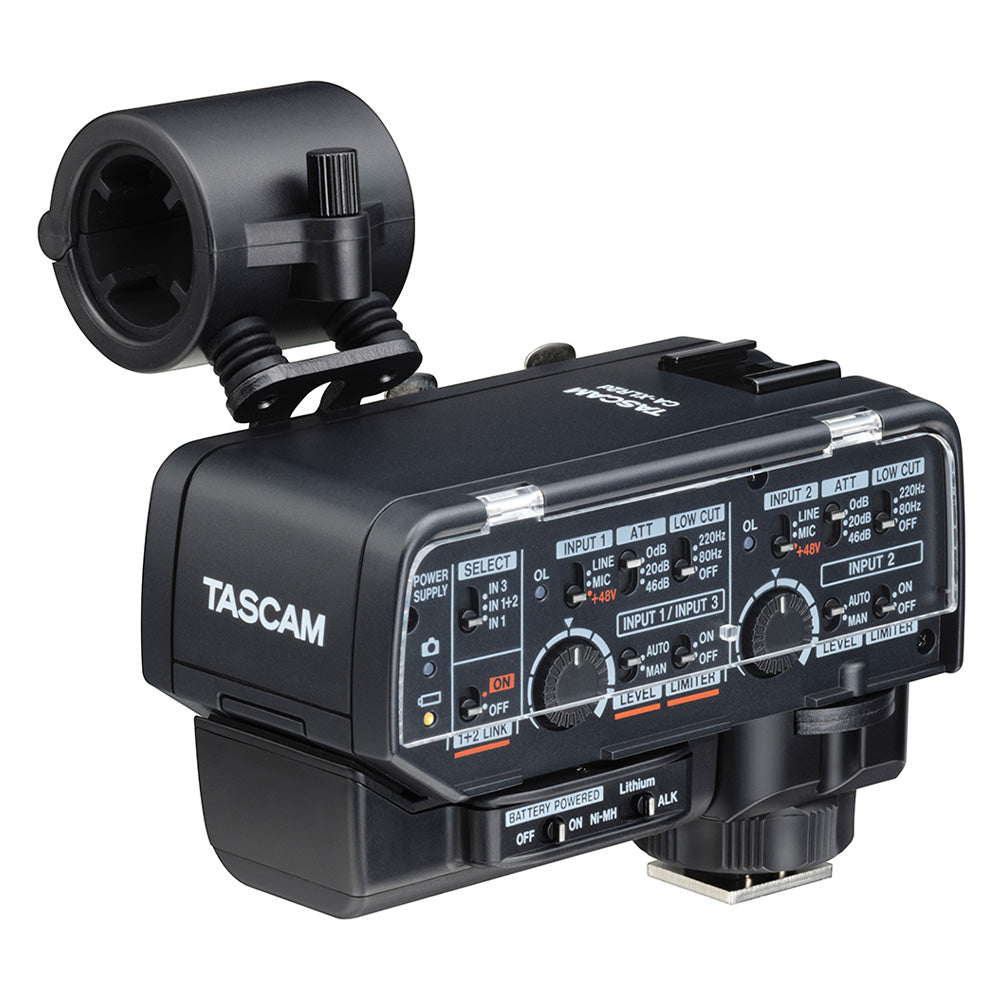

CA-XLR2d is a XLR microphone adapter for mirrorless cameras developed in collaboration with Nikon. Planned and developed in collaboration with Nikon, this analog interface camera kit provides a high-quality sound recording environment to wide-range of camera users.
Features:
- Microphone adapter with XLR input expansion for mirrorless cameras
- Equipped with 2 XLR/TRS input terminals, you can use the optimum microphone according to the set and environment
- Equipped with a high-performance HDDA mic preamplifier for high sound quality, low noise, and wide dynamic range
(microphone / line level switching, + 48V phantom power supply compatible) - Equipped with 1/8-inch stereo mini jack (INPUT 3) for a lavalier microphone or microphone requiring plug-in power
- Compatible with virtually all cameras that have an analog input by using the included battery box, cold shoe mount adapter, detachable microphone holder with shock mount mechanism, and analog audio cable
- Equipped with a convenient cable holder for wiring around the camera
- Camera mode: Audio can be transmitted to the microphone input of the camera.
- Headphone mode: Direct monitoring with headphones is possible.

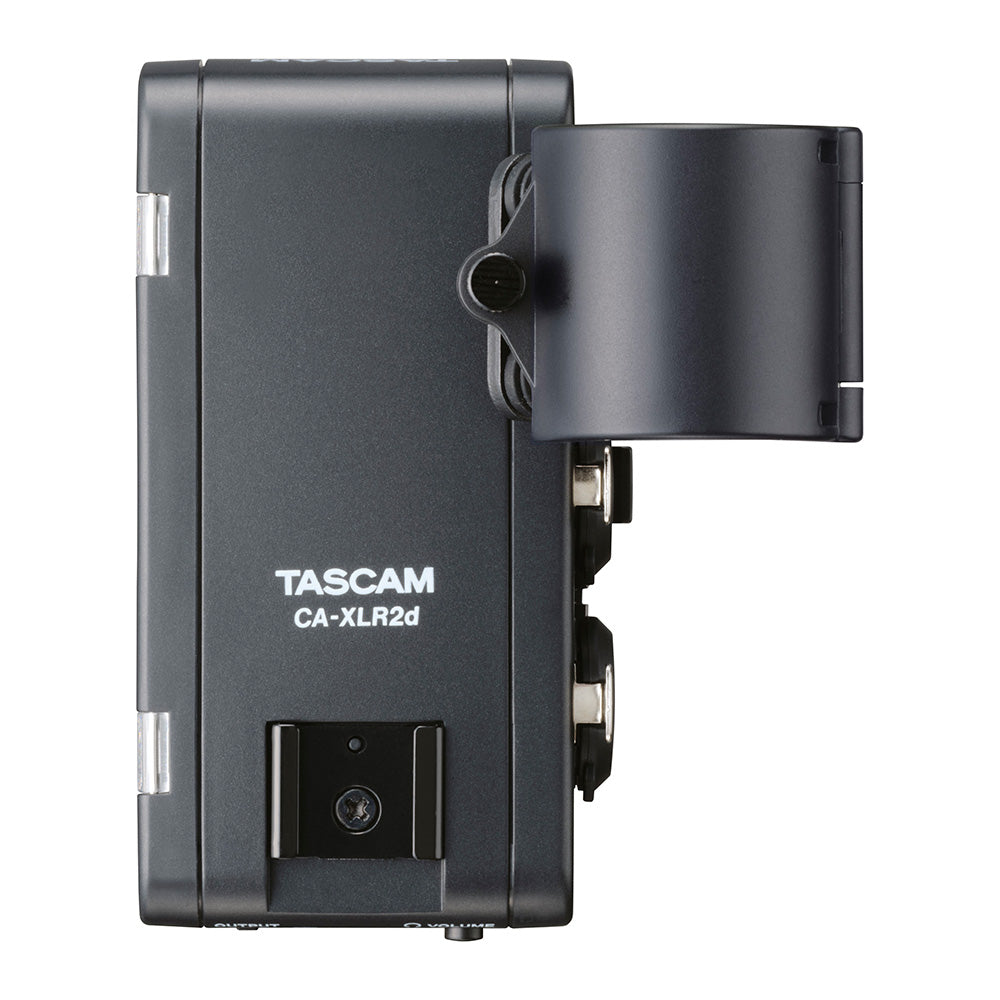

- Equipped a cold shoe mount on the top panel for extra adapters or accessories
Select the Best Microphone According to the Application
Choose the appropriate microphone or input that matches your application. From a single shotgun mic for interviews or dialog, to dual dynamic or condenser mics for stereo imaging, or the entire audio mix fed from the master mixer using the line level capability, CA-XLR2d supports a wide variety of shooting applications.
High-performance HDDA Mic Preamplifier Achieves High Sound Quality, Low Noise, and Wide Dynamic Range
CA-XLR2d is equipped with a high-performance microphone preamplifier that can process anything from room tone to explosions and support a wide range of sets and environments. Each input supports microphone / line level switching and + 48V phantom power supply. CA-XLR2d allows input of dynamic microphones, condenser microphones and line-level audio signals from a mixer.
Designed For a High Degree of Freedom
A cold shoe on the top panel expands setting flexibility. The shock mount mechanism is vibration resistant, noise-friendly and allows connection of various microphones. Two XLR/TRS input terminals and one 1/8-inch stereo mini microphone input terminals supports multiple shooting scenarios. CA-XLR2d has the flexibility that adapts to the gear necessary for the job.
Built-in Processing With User-friendly Control and Highest Recording Quality

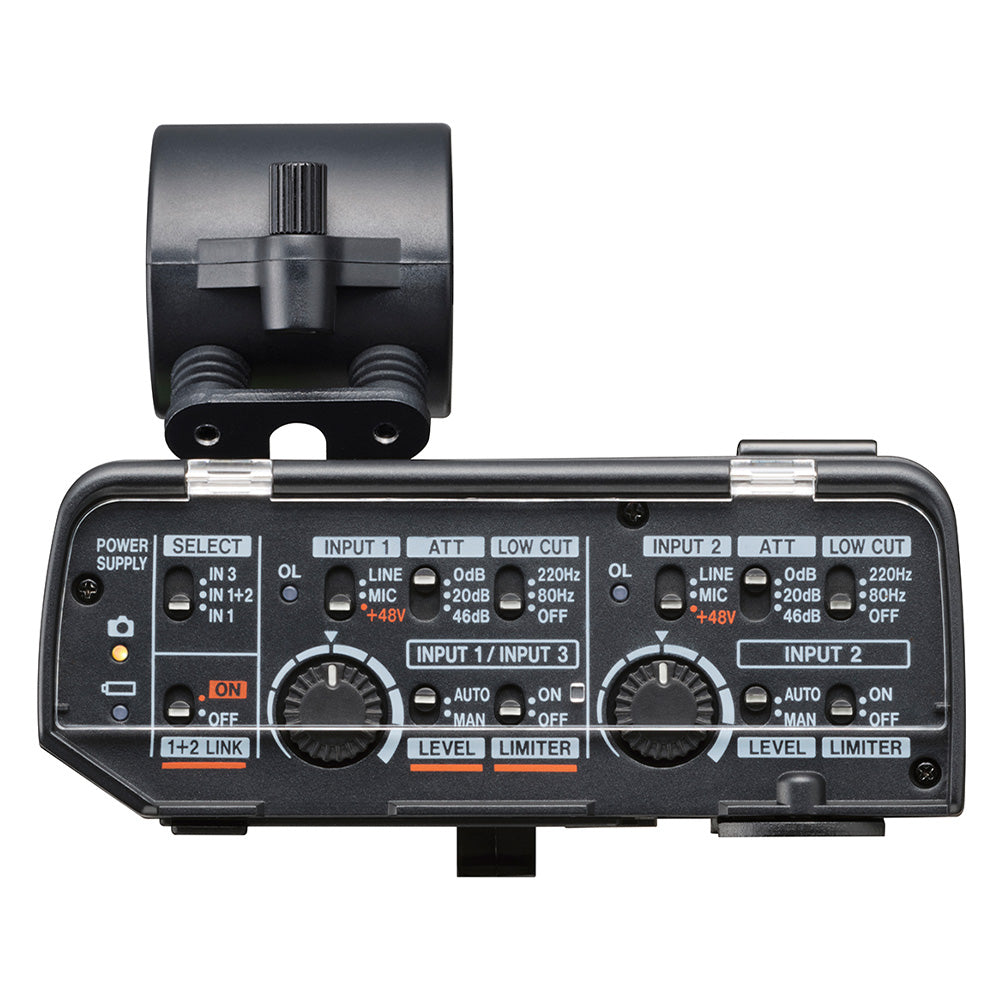

CA-XLR2d includes internal processing such as Auto Level, Low Cut Filter, and Limiter, all using convenient switches. The CA-XLR2 also supports the 1+2 LINK function, which allows you to adjust the L-R volume simultaneously when recording in stereo. The premium sound quality is possible because of professional grade 16bit/24bit, 48kHz/96kHz bit rates and sampling frequencies.
Achieve High-quality Sound Recording With Your Current Camera
CA-XLR2d-AN is compatible with virtually any camera that has an analog audio input. Attach the included battery box (2 AA batteries), and connect the analog output of CA-XLR2d to the microphone input of the camera with an audio cable.
What's Included:
- CA-XLR2d unit (with bottom connector cover) × 1
- CA-AK1-AN cold shoe mount adapter (attached to unit) × 1
- Battery holder (with connector cover) × 1
Note) Separately, two AA batteries are required - Mic holder (attached to unit) × 1
- Quick Guide (including warranty) × 1
- 3.5mm(1/8") stereo mini cable × 1
- TASCAM ID registration guide × 1
Sampling Frequency | 48k / 96k Hz |
Quantization Bit Rate | 16 / 24 bit * Fs / Bitrate are synchronized with the settings of the connected camera |
Number of channels | 2 channels |
MIC inputs (Balanced)Ê | |
INPUT 1/2 JacksÊ | |
Connectors | XLR-3-31 equivalent (1:GND, 2:HOT, 3:COLD) 6.3mm(1/4") standard TRS jacks Input (Tip:HOT, Ring:COLD, Sleeve:GND) * Phantom power supported by XLR only |
MIC IN | input switch set to "MIC" |
Input Impedance | 2k½ or higher |
Maximum Input Level | +6dBu (ATT setting "46dB")Ê*1 |
Minimum input level | -60dBu (ATT setting "0dB")Ê*1 |
Gain range | 66dB |
LINE IN | input switch set to "LINE" |
Input Impedance | 10k½ or higher |
Maximum Input Level | +24dBuÊ*1 |
Rated input level | +4dBuÊ*1 |
Gain range | 66dB |
MIC inputs (Unbalanced)Ê | |
INPUT 3 JackÊ | |
Connector | 3.5mm(1/8") Stereo mini jack * Support plug-in power |
Input Impedance | 2k½ or higher |
Maximum Input Level | +6dBV (ATT setting "46dB")Ê*2 |
Minimum input level | -60dBV (ATT setting "0dB")Ê*2 |
Gain range | 66dB |
Plug-in power | 2.7V |
PHONE / CAMERA output (Unbalanced)Ê | |
OUTPUT JackÊ | |
Connector | 3.5mm(1/8") Stereo mini jack |
Output level | 0.29Vrms (Fixed,OUTPUT setting "CAMERA") 0.5Vrms (Output volume setting at maximum_OUTPUT "HEADPHONE") |
Headphone working impedance | 16 to 250½ |
Power | 2 AA batteries (alkaline, NiMH or lithium-ion) Supplied through accessory shoe of compatible camera |
Power consumption | 2.0W (maximum) |
Dimensions | 88.2(W) _ 119.1(H) _ 110.0(D)mm (not including protrusions) |
WeightÊ | |
CA-XLR2d-C | 341g (mic holder attached, battery holder not attached) |
CA-XLR2d-F | 331g (mic holder attached, battery holder not attached) |
CA-XLR2d-AN | 357g (not including batteries, mic holder attached, battery holder attached) |
Operating temperature | 0 to 40¡C (32 to 104¡F) |
IncludedÊ | |
CA-XLR2d-C | Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-C accessory shoe mount adapter (attached to unit), CA-AK1-AN cold shoe mount adapter |
CA-XLR2d-F | Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-F accessory shoe mount adapter (attached to unit), CA-AK1-AN cold shoe mount adapter |
CA-XLR2d-AN | Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-AN cold shoe mount adapter(attached to unit) |
Frequency responseÊ | |
20Hz to 20kHz | +0.5dB/-1.0dB( to digital input,Fs=48kHz) |
20Hz to 40kHz | +0.5dB/-1.0dB( to digital input,Fs=96kHz) |
Mic amp EIN (equivalent input noise) | -120dBu or less(150½ termination, GAIN maximun, A-Weight) |
Dynamic range | 95dB or higher (22kHzLPF+A-Weight) |
