Tascam CA-XLR2D-F - CA-XLR2d XLR Microphone Adapter for Mirrorless Cameras (FujiFilm)

  • Dale #:

    TASC-CAXLR2DF
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

CA-XLR2d is a XLR microphone adapter for mirrorless cameras developed in collaboration with FUJIFILM. Developed together with FUJIFILM, this unit's hot shoe connection supports and provides a high compatibility with their data communication hot shoe. Features: Microphone adapter with XLR in... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

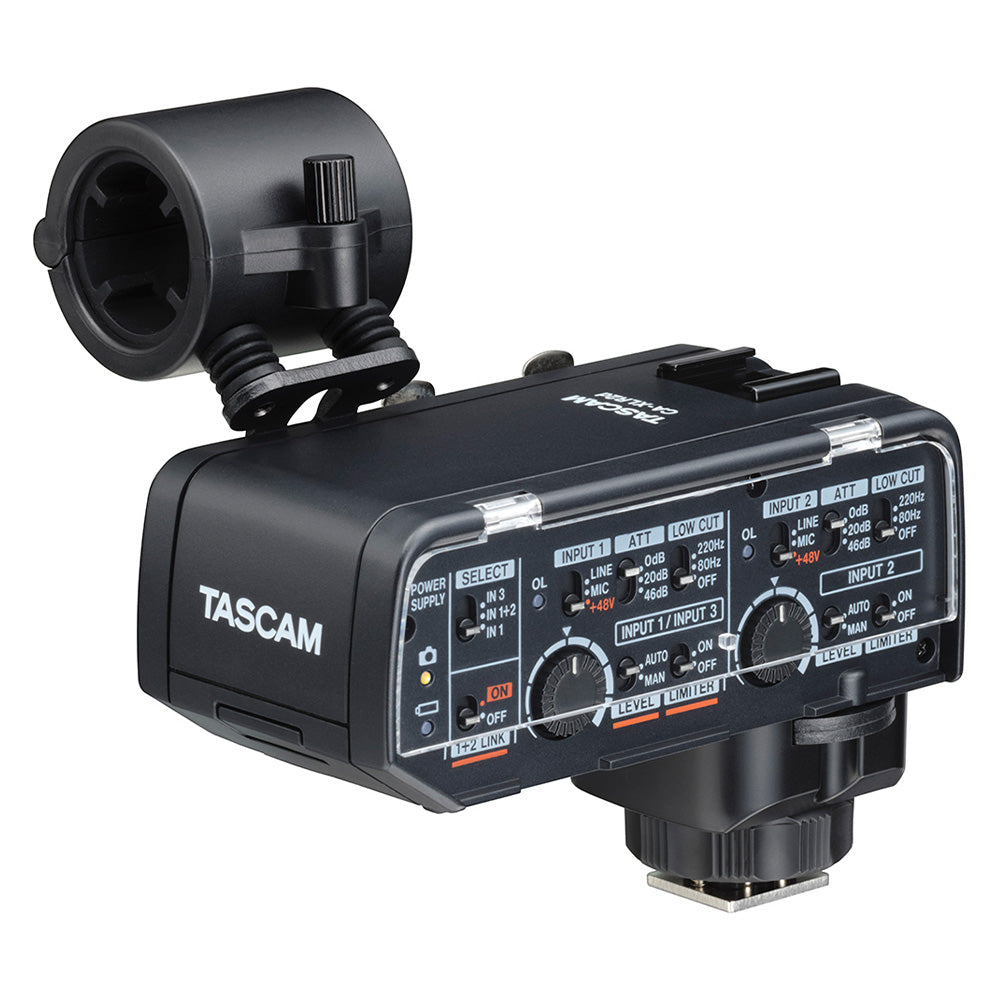

CA-XLR2d is a XLR microphone adapter for mirrorless cameras developed in collaboration with FUJIFILM. Developed together with FUJIFILM, this unit's hot shoe connection supports and provides a high compatibility with their data communication hot shoe.

Features:

  • Microphone adapter with XLR input expansion for mirrorless cameras
  • Equipped with 2 XLR/TRS input terminals, you can use the optimum microphone according to the set and environment
  • Equipped with a high-performance AD converter, it can directly transmit digital audio without deterioration to the camera via a accessory shoe.
    (Compatible manufacturers: Canon, FUJIFILM)
  • Power can be supplied from the camera body via the corresponding accessory shoe
    (Compatible manufacturers: Canon, FUJIFILM)
  • Equipped with a high-performance HDDA mic preamplifier for high sound quality, low noise,  and wide dynamic range
    (microphone / line level switching, + 48V phantom power supply compatible)
  • Equipped with 1/8-inch stereo mini jack (INPUT 3) for a lavalier microphone or microphone requiring plug-in power
  • Compatible with virtually all cameras that have an analog input by using the included battery box, cold shoe mount adapter, detachable microphone holder with shock mount mechanism, and analog audio cable
  • Equipped with a convenient cable holder for wiring around the camera
    • Camera mode: Audio can be transmitted to the microphone input of the camera.
    • Headphone mode: Direct monitoring with headphones is possible.
  • Equipped a cold shoe mount on the top panel for extra adapters or accessories


Select the Best Microphone According to the Application
Choose the appropriate microphone or input that matches your application. From a single shotgun mic for interviews or dialog, to dual dynamic or condenser mics for stereo imaging, or the entire audio mix fed from the master mixer using the line level capability, CA-XLR2d supports a wide variety of shooting applications.

Equipped With a High-performance AD Converter, Direct Transmission of Digital Audio to the Camera
Because of TASCAM know how and premium AD converters, the CA-XLR2d is all about clean, noise-free, professional audio. It enables high-quality audio and smart voice recording utilizing various specialized brands of audio equipment. By transmitting digital audio directly to the camera via an accessory shoe that supports digital transmission, there is no deterioration in sound quality, but it also frees you from the work of synchronizing images and sound in post production. In addition, the CA-XLR2d is driven by the power supply from the camera, so if you connect it to a compatible camera, you can have compact operation without the need for a dedicated power supply.

(Compatible manufacturers: Canon, FUJIFILM)

High-performance HDDA Mic Preamplifier Achieves High Sound Quality, Low Noise, and Wide Dynamic Range
CA-XLR2d is equipped with a high-performance microphone preamplifier that can process anything from room tone to explosions and support a wide range of sets and environments. Each input supports microphone / line level switching and + 48V phantom power supply. CA-XLR2d allows input of dynamic microphones, condenser microphones and line-level audio signals from a mixer.

Designed For a High Degree of Freedom
A cold shoe on the top panel expands setting flexibility. The shock mount mechanism is vibration resistant, noise-friendly and allows connection of various microphones. Two XLR/TRS input terminals and one 1/8-inch stereo mini microphone input terminals supports multiple shooting scenarios. CA-XLR2d has the flexibility that adapts to the gear necessary for the job.

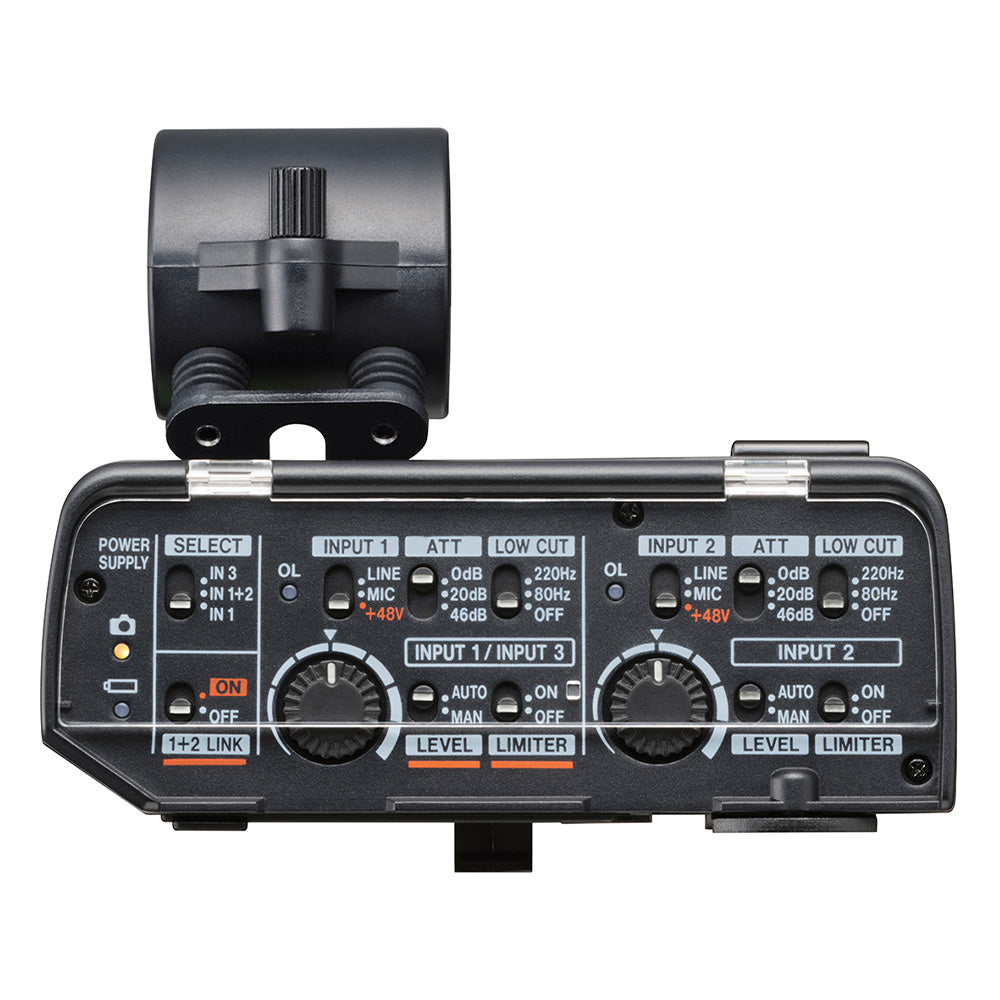

Built-in Processing With User-friendly Control and Highest Recording Quality
CA-XLR2d includes internal processing such as Auto Level, Low Cut Filter, and Limiter, all using convenient switches. The CA-XLR2 also supports the 1+2 LINK function, which allows you to adjust the L-R volume simultaneously when recording in stereo. The premium sound quality is possible because of professional grade 16bit/24bit, 48kHz/96kHz bit rates and sampling frequencies.

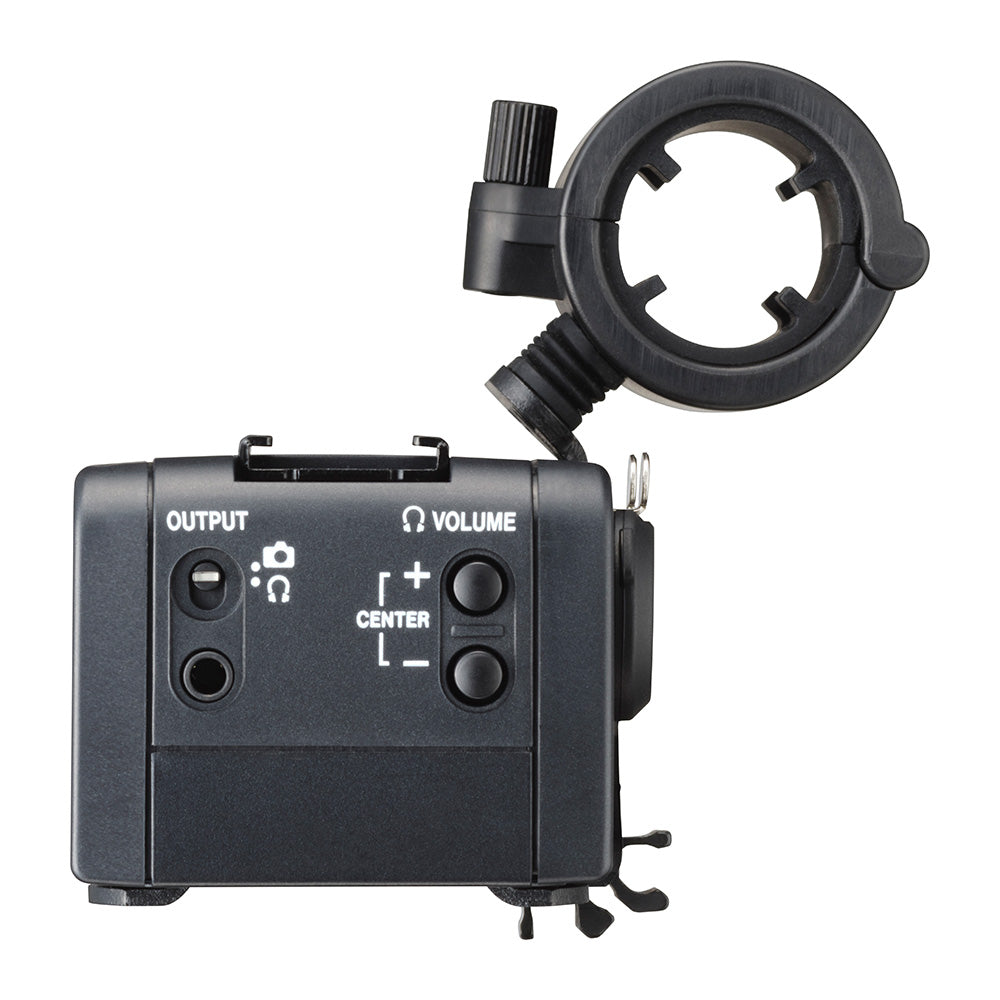

Direct monitoring using headphones is possible
Built-in analog output terminal with headphone mode options that provides latency-free direct monitoring.

(Compatible manufacturers: Canon, FUJIFILM)

Achieve High-quality Sound Recording With Your Current Camera
CA-XLR2d-AN is compatible with virtually any camera that has an analog audio input. Attach the included battery box (2 AA batteries), and connect the analog output of CA-XLR2d to the microphone input of the camera with an audio cable.

Included Items:

  • CA-XLR2d unit(with bottom connector cover) × 1
  • CA-AK1-F accessory shoe mount adapter (with connector cover/attached to unit) × 1
  • CA-AK1-AN cold shoe mount adapter (with interface connector cover) × 1
  • Battery holder (with connector cover) × 1
    Note) Separately, two AA batteries are required
  • Mic holder (attached to unit) × 1
  • Quick Guide (including warranty) × 1
  • 3.5mm(1/8") stereo mini cable × 1
  • TASCAM ID registration guide × 1

More +

Product Specs

Sampling Frequency 48k / 96k Hz
Quantization Bit Rate 16 / 24 bit
* Fs & Bitrate are synchronized with the settings of the connected camera
Number of channels 2 channels
MIC inputs (Balanced)
INPUT 1/2 Jacks
Connectors XLR-3-31 equivalent (1:GND, 2:HOT, 3:COLD)
6.3mm(1/4") standard TRS jacks Input (Tip:HOT, Ring:COLD, Sleeve:GND)
* Phantom power supported by XLR only
MIC IN input switch set to "MIC"
Input Impedance 2kΩ or higher
Maximum Input Level +6dBu (ATT setting "46dB") *1
Minimum input level -60dBu (ATT setting "0dB") *1
Gain range 66dB
LINE IN input switch set to "LINE"
Input Impedance 10kΩ or higher
Maximum Input Level +24dBu *1
Rated input level +4dBu *1
Gain range 66dB
MIC inputs (Unbalanced)
INPUT 3 Jack
Connector 3.5mm(1/8") Stereo mini jack
* Support plug-in power
Input Impedance 2kΩ or higher
Maximum Input Level +6dBV (ATT setting "46dB") *2
Minimum input level -60dBV (ATT setting "0dB") *2
Gain range 66dB
Plug-in power 2.7V
PHONE / CAMERA output (Unbalanced)
OUTPUT Jack
Connector 3.5mm(1/8") Stereo mini jack
Output level 0.29Vrms (Fixed,OUTPUT setting "CAMERA")
0.5Vrms (Output volume setting at maximum、OUTPUT "HEADPHONE")
Headphone working impedance 16 to 250Ω
Power 2 AA batteries (alkaline, NiMH or lithium-ion)
Supplied through accessory shoe of compatible camera
Power consumption 2.0W (maximum)
Dimensions 88.2(W) × 119.1(H) × 110.0(D)mm (not including protrusions)
Weight
CA-XLR2d-C 341g (mic holder attached, battery holder not attached)
CA-XLR2d-F 331g (mic holder attached, battery holder not attached)
CA-XLR2d-AN 357g (not including batteries, mic holder attached, battery holder attached)
Operating temperature 0 to 40°C (32 to 104°F)
Included
CA-XLR2d-C Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-C accessory shoe mount adapter (attached to unit), CA-AK1-AN cold shoe mount adapter
CA-XLR2d-F Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-F accessory shoe mount adapter (attached to unit), CA-AK1-AN cold shoe mount adapter
CA-XLR2d-AN Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-AN cold shoe mount adapter(attached to unit)
Frequency response
20Hz to 20kHz +0.5dB/-1.0dB( to digital input,Fs=48kHz)
20Hz to 40kHz +0.5dB/-1.0dB( to digital input,Fs=96kHz)
Mic amp EIN (equivalent input noise) -120dBu or less(150Ω termination, GAIN maximun, A-Weight)
Dynamic range 95dB or higher (22kHzLPF+A-Weight)
