Description

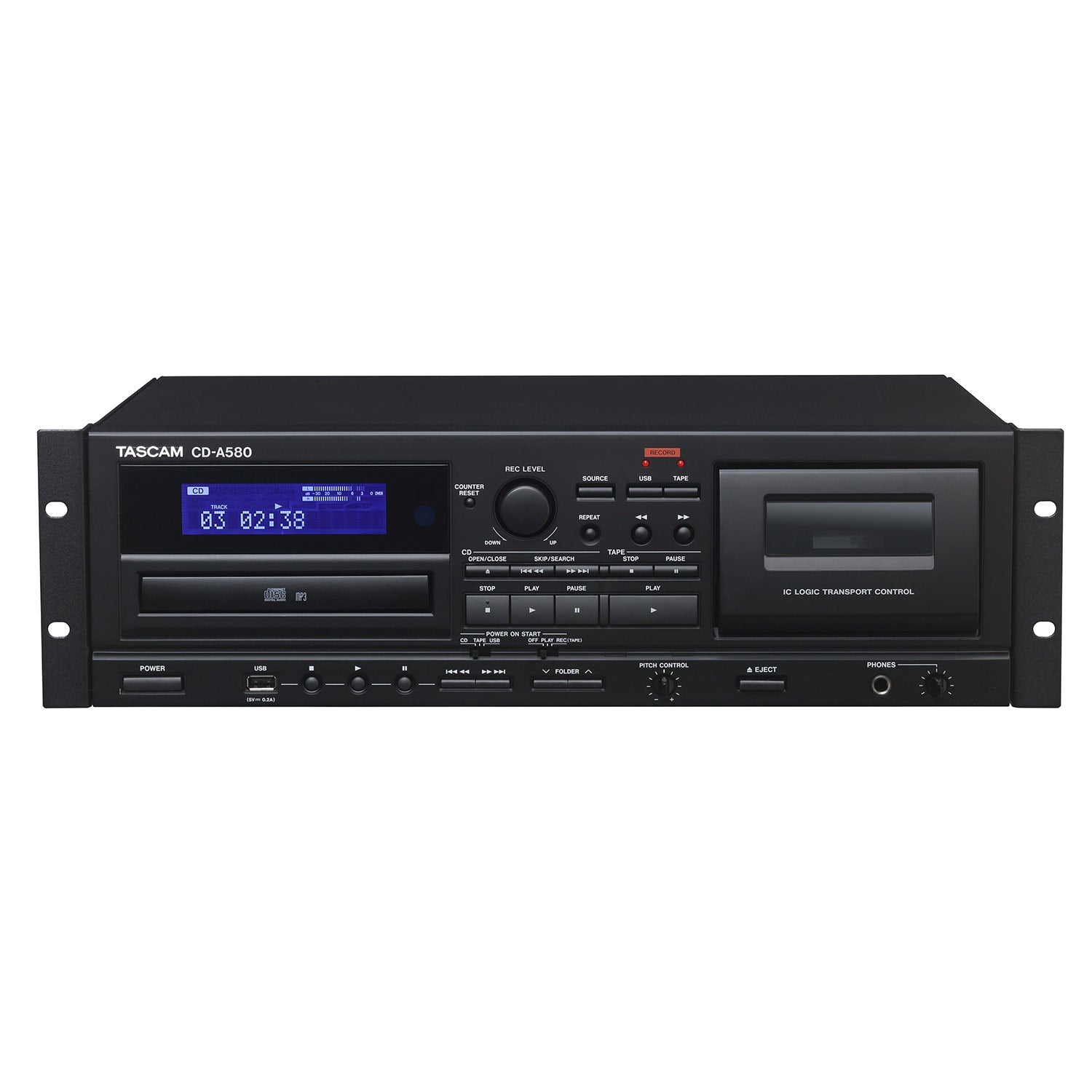

The multi-purpose CD-A580 plays from cassette, CD, or USB flash media. Cassette and USB recording is also available, allowing cassettes to be archived to USB as MP3 files. The CD-A580 combines a cassette deck, CD player and USB flash drive recorder/player into a single rack-mountable unit – perfect for installation and professional applications. A CD player and cassette tape recorder are joined with USB flash drive recording. Not only compatible the most popular types of media, the CD-A580 allows cassette tapes to be dubbed to USB media for archival.
Features:
Cassette deck
- One-way IC Logic transport control enables recording and playback
- Dub from CDs
- Dub from USB flash drive and recording from LINE Inputs
- +/-10% pitch control
- Supported cassette tape types:
- Playback: normal (TYPE I), chrome (TYPE II), metal (TYPE IV)
- Recording: normal (TYPE I), chrome (TYPE II)
- Recommended tape length: 10 minutes to 90 minutes
CD Player
- Playback of audio CDs, CD-RW discs and data CDs (MP3 files) supported
- Various repeat playback modes, including Single, All and Program
USB flash drive recorder/player
- Recording as MP3 files possible from CD, cassette and line input sources
- MP3 file playback
- Shuffle and program playback supported
- Folder repeat playback
- Manual file division (TAPE/LINE)
General
- Headphone jack with level control
- Infrared remote control included
- LCD display with level meters
- 3U rackmount size
Cassette Tape | |
Track System | Stereo |
Head Structure | Record/playback head x1, Erase head x1 |
Tape Type | Cassette Tape (C-10 Ð C-90) |
Supported Cassette Tape | |
Playback | Normal (TYPE I), Chrome (TYPE II), Metal (TYPE IV) |
Recording | Normal (TYPE I), Chrome (TYPE II) |
Pitch Control | ±10% (Playback Only) |
AUDIO PERFORMANCE | |
Wow and Flutter | 0.3% (W.RMS) |
Frequency Response | 50 ~ 12.5kHz ±4dB (Chrome) 50 ~ 12.5kHz ±4dB (Normal)Ê |
S/N Ratio |
59dB (Maximum input level, A-weighted) |
IN/OUT | |

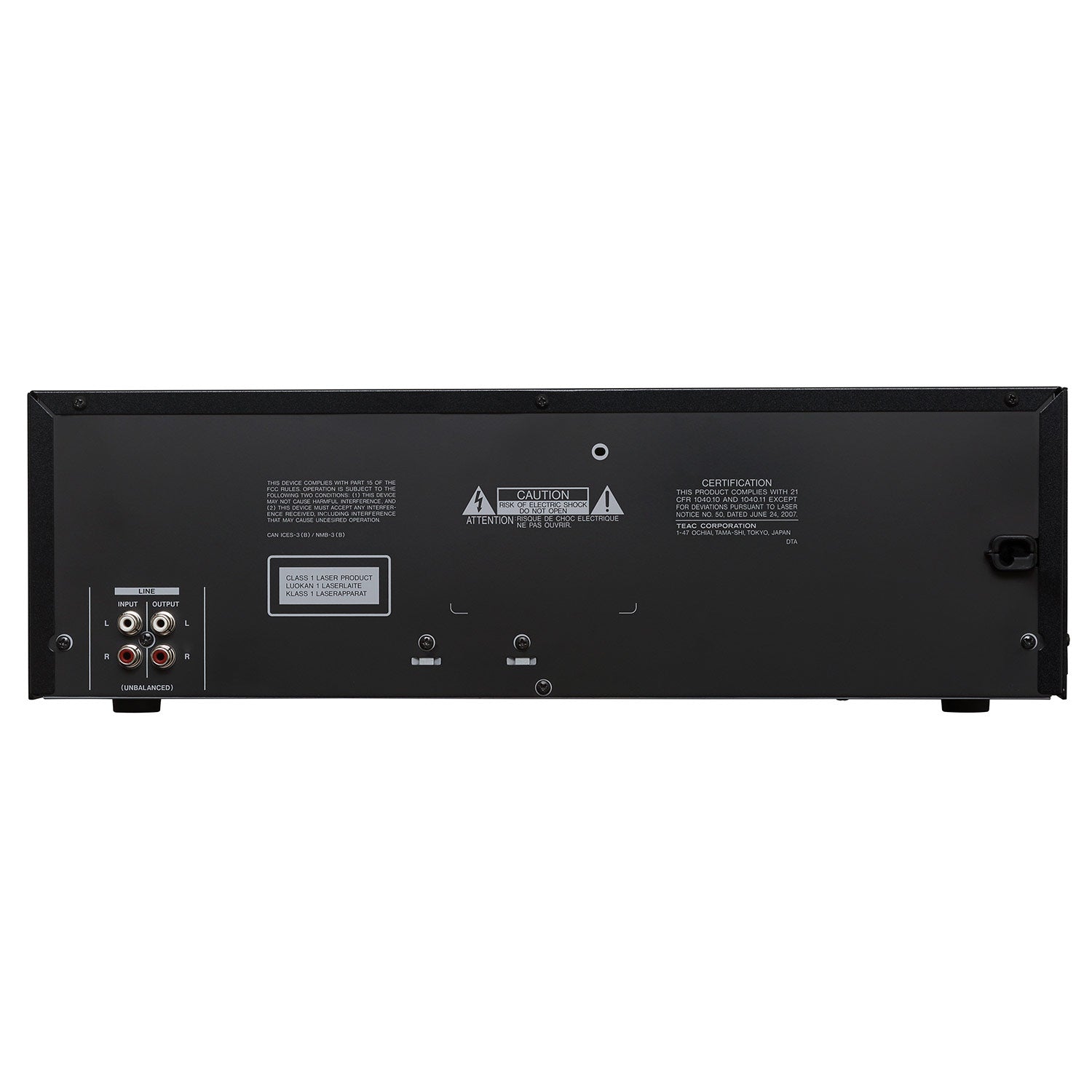

Nominal Input and Output Level (RCA) | 4.5dBu (0.46V) Impedence more than 50k ohmsÊ |
CD PLAYER | |
Supported Disc | CD/CD-R/CD-RW (12cm/8cm) |
Disc Format | CD-DA, MP3 data CD (ISO9660 Level 1/Level 2) |
AUDIO PERFORMANCE | |
Frequency Response | 20Hz ~ 20kHz ±2dB |
THD+N | Less than 0.02% (1kHz) |
Maximum Output Level | +6dBV (2.0V) |
USB RECORDER/PLAYER | |
Playback Format | ÊMP3 |
ÊSampling Frequency | 16k Ð 48kHz, 8k Ð 320kbps bit rates |
Record Format | MP3Ê |
ÊSampling Frequency | 44.1kHz, 128kbps bit rates |
Folder Levels | 8 levels supported |
AUDIO PERFORMANCE | |
ÊPlayback | 20Hz Ð 15kHz (±3dB), more than 85dB S/N |
ÊRecord | From CD: 20Hz Ð 15kHz (±3dB) From Line In: 100Hz Ð 15kHz (±3dB) More than 85dB S/NÊ |
Nominal Input Level (RCA) | -4.5dBu (-0.46V) _Input impedance: more than 50k½) |
Maximum Output Level (RCA) | +6dBV (2.0V) |
Headphone Output | 10mW+10mW (THD+N 0.1%, 32 ohms under CD MONITOR) |
Dimensions (W x H x D) | 19 x 5.5 x 11.4 inches (483 x 138.5 x 290 mm) |
Weight | 13.2 lb (6.0 kg) |

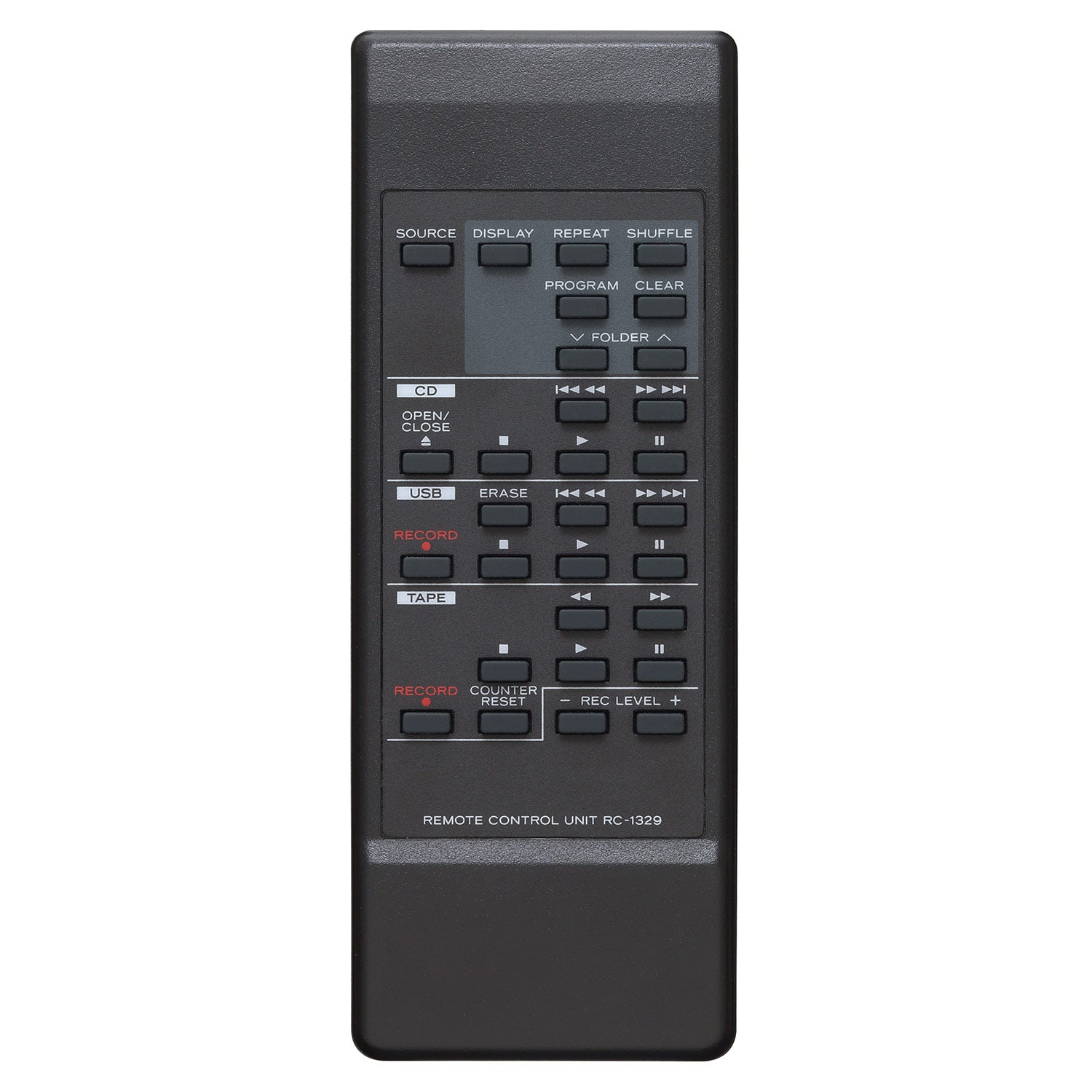

Included Accessories | Wireless remote control (RC-1329), AAA batteries (x2), Rack mounting screw kit, Owners manual / warranty card |
