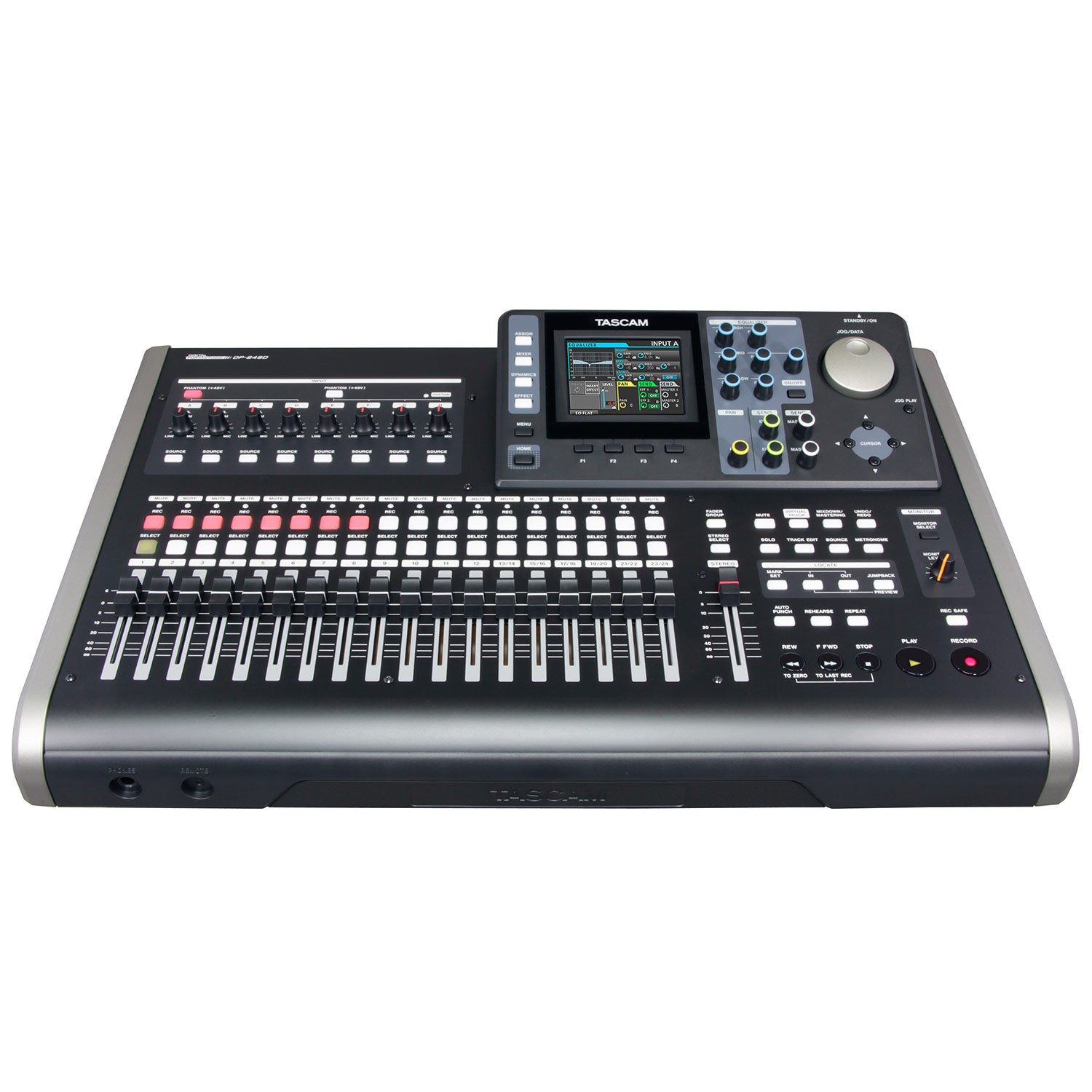

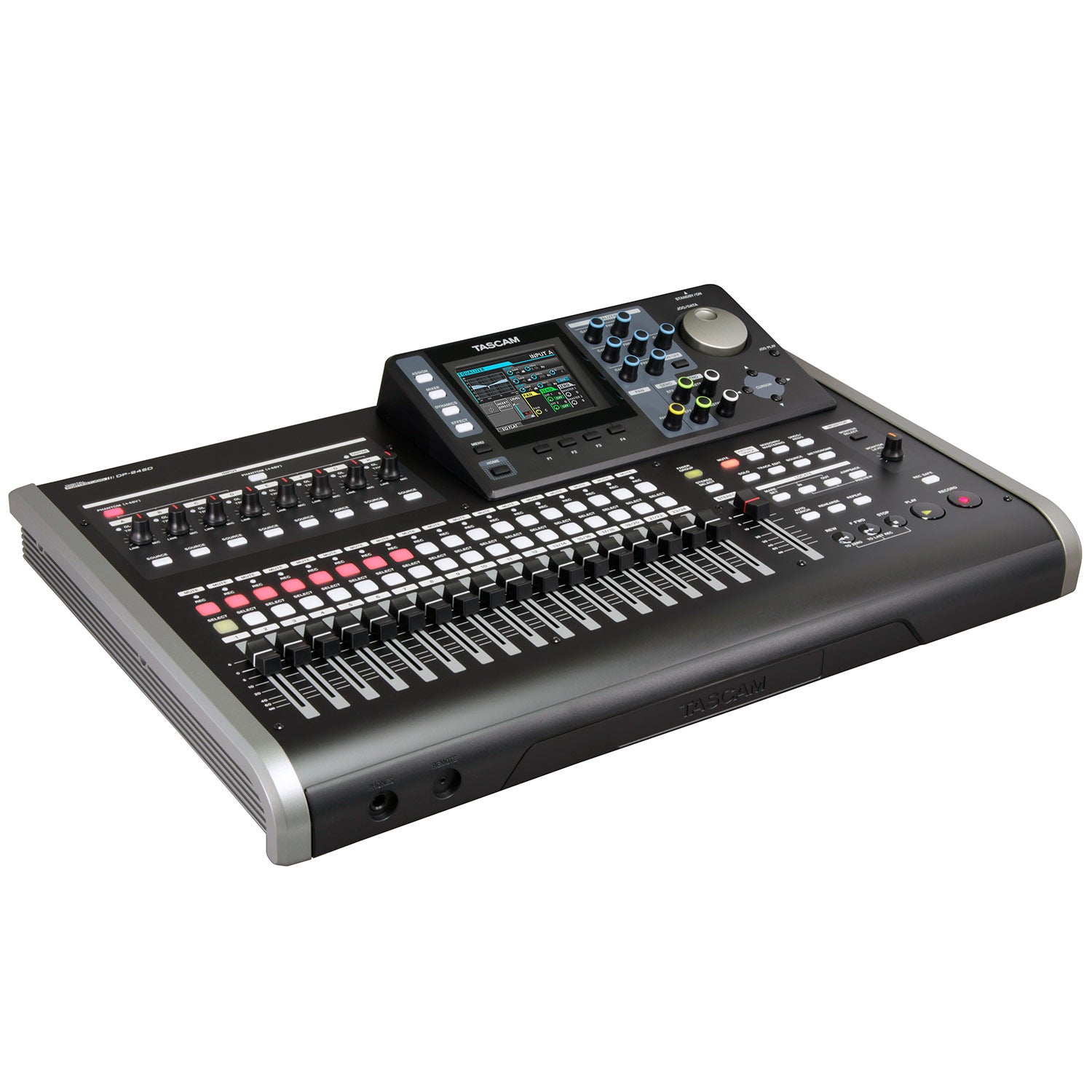

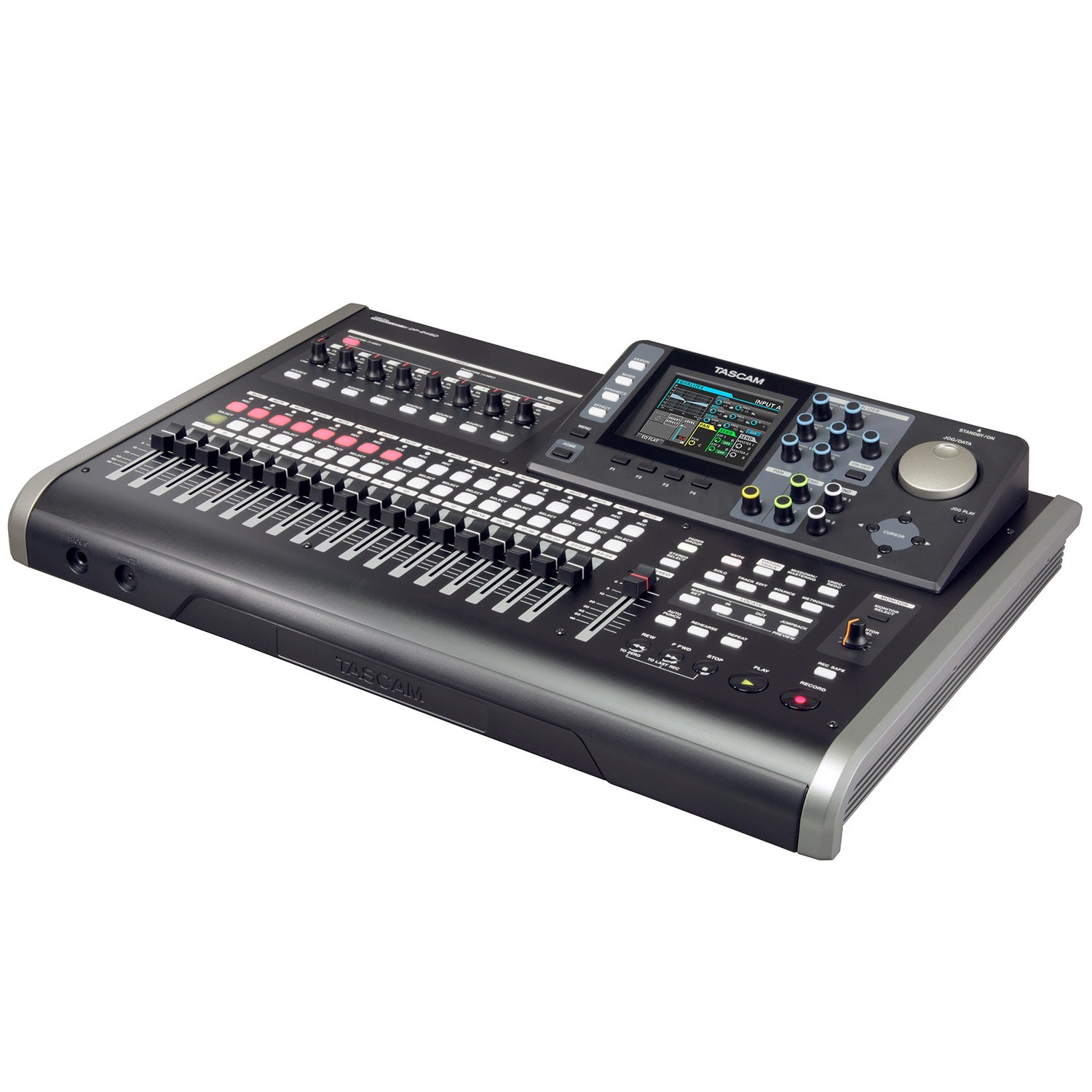

Tascam DP-24SD 24-Track Digital Portastudio (SD Drive)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:TASC-DP24SD

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simltaneous recording. The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative. For clear display of your mix, the DP-24SD has a large color LCD displaying tracks, meters, and effects parameters. A set of 12 encoders control EQ, effects sends, and panning. Built-in effects include compression, guitar amp modeling, delay, reverb, with a total of 10 effects processirs available during mixing.

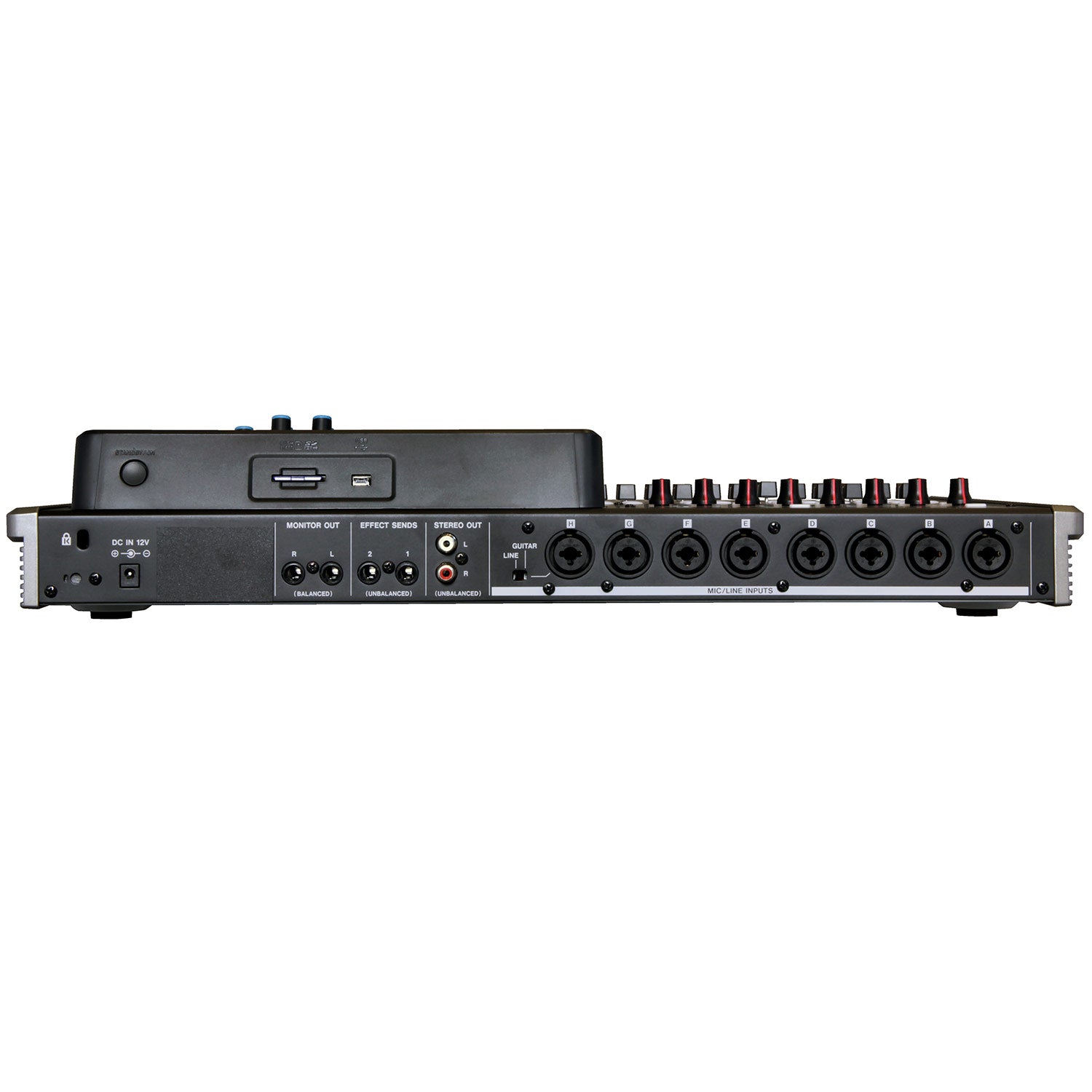

    Eight XLR mic/line inputs each provide phantom power for condenser microphones, switchable in banks of four. One input includes an instrument-level impedence switch for direct input recording of guitar or bass. Balanced monitor outputs and effects sends are also provided on the rear panel. A USB output allows tracks and mixes recorded to your SD card to be transferred to a computer for CD burning or sharing online.

    For a complete music production on a desktop, there's no simpler choice than the DP-24SD.

    Features:

    • Simultaneous 24-track playback
    • 12 mono tracks + 6 stereo tracks
    • Simultaneous 8-track recording
    • 16 or 24 bit, 44.1 or 48 kHz recording
    • 8 XLR/TRS combo connectors
    • Phantom power supplied on all inputs (INPUT A-D,E-H)
    • High-impedance input available (INPUT H)
    • Stereo RCA output
    • 2 effect send outputs (1/4" TS jack)
    • 70mW/ch headphone amplifier
    • Remote connector for optional RC-3F footswitch
    • INPUT A-H and each track equipped with 3-band EQ
    • Automatic punch in/out
    • Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
    • Undo and Redo function with Undo history
    • Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
    • Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
    • Mix-down effects (Reverb, Delay, Stereo Chorus)
    • Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)
    • Track bounce function
    • Virtual track (8 virtual track per one track: including use track)
    • Locate mark up to 99 for one song
    • File transferring via USB2.0
    • Chromatic tuner
    • Metronome
    • 19 Faders
    • Peak-hold function on the level meter of the LCD
    • Sub-frame editing
    • Dedicated AC adapter included (TASCAM GPE248-120200-Z)
    • SD card included
    • RoHS certified

    19 faders eliminates layer structuring
    Even with the DP-24SD's number of tracks and features, there's no easier multi-track recorder to use. Nineteen track faders and one master fader allows instant access to any track without selecting pages or banks of faders.

    A 3.5" full-color LCD and self-illuminated buttons for increased visibility
    Both models have a 3.5" LCD screen and select, self-illuminated buttons - making it easy to view your entire creative process. Some of the illuminated buttons include (SOURCE, SELECT, REC, MUTE).

    12 rotary knobs are linked to the LCD for easy operation
    The DP-24SD have similarly employed rotary knobs to control dynamics such as EQ, effect send and other related features.
    Solid-state SD/SDHC media ensures confident recording, free from shock and vibration
    The DP-24SD employ SD/SDHC media. SD/SDHC cards provide secure shock resistance due to the absence of any moving parts. File format of the DP-24SD is FAT 16 or 32. The Portastudio recorded files can be accessed on your computer when connected via USB.

    8 XLR/TRS inputs, 8 channel recording, 24 track playback
    Both units have 8 XLR-TRS combo inputs. You can record up to eight sources at one time.
    INPUT A-H and each track are equipped with 3-band EQ
    The equalizer for each track and each input are independent from other effects. Record like any professional studio with EQ for each individual track.
    8 dynamics effects, guitar effects and mix-down effects
    Use up to 8 dynamics effects at once, one for each input source. For example, utilize the built-in compressor effect for your bass, guitar and drum tracks. A multieffects processor includes guitar amp modeling, chorus, flange, delay and other effects.

    When the mutlieffects processor is used, only four dynamics effects are available. The stereo reverb on send/return 1 is always available.

    Create a master track without using a computer with the TASCAM mastering effects.
    In the mastering effect section you will find a 3-band equalizer, a 3-band multiband compressor and 3 normalize effects for setting peak amplitude - take your stereo master file to the next level of quality.

    Professional Connections Integrate with your Studio Hardware
    The headphone amplifier has a high output power of 70mW/ch
    The headphone amplifier of the DP-24SD provide easy monitoring in loud environments such as a rehearsal studio or live event.
    RCA stereo output and two unbalanced 1/4" TS outputs

    High-impedance input available on INPUT H when set to GUITAR

    Phantom power supplied on all inputs

    Dedicated MONITOR OUT for monitor speakers

    Remote connector for optional RC-3F footswitch

  • Recording Media SD (512MB – 2GB) / SDHC card (4GB – 32GB)
    File System SD card:FAT16 / SDHC card:FAT32
    INPUT A-H

    XLR

    Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), Balanced
    Input impedance 2.4k ohms
    Nominal input level -14dBu
    Maximum input level +2dBu
    TRS

    Connector 6.3mm(1/4")TRS phone jack, Balanced
    Input impedance 22k ohms or more
    / 1M ohms(when INPUT H, GUITAR selected)
    Nominal input level +4dBu
    Maximum input level +20dBu
    STEREO OUT

    Connector RCA pin-jack, Unbalanced
    Output impedance 200 ohms
    Nominal output level -10dBV
    Maximum output level +6dBV
    EFFECT SENDS
    Connector 6.3mm(1/4")TS phone jack, Unbalanced
    Output impedance 200 ohms
    Nominal output level -10dBV
    Maximum output level +6dBV
    MONITOR OUT
    Connector 6.3mm(1/4")TRS phone jack, Balanced
    Output impedance 200 ohms
    Nominal output level -2dBu
    Maximum output level +14dBu
    PHONES

    Connector 6.3mm(1/4")stereo phone jack
    Maximum output level 70mW + 70mW (THD+N 0.1% or less, 32 ohms loaded)
    USB
    Connector
    USB Mini-B type 4-pin
    Format USB2.0 High-Speed mass-storage class
    REMOTE

    Connector
    2.5mm TRS jack
    Power Dedicated AC adapter (TASCAM GPE248-120200-Z, included)
    Power consumption 12W (when phantom power supplying)
    Dimensions 514(W)×100.4(H)×336.9(D)mm / 20.2"(W)×4.1"(H)×13.4""(D)
    Weight 6.2kg / 13.67 lb
    Accessories AC adapter, 4GB SD card, warranty card, owner's manual
    Audio performance
    Frequency response 20Hz to 20kHz (+/-1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
    S/N Ratio 90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
    THD 0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
    Operating system requirements
    Windows
    OS Windows XP, Windows Vista, Windows 7, Windows 8
    CPU Pentium 300MHz or more
    Memory 128MB or more
    USB USB2.0
    Macintosh
    OS Mac OS X Snow Leopard(V10.6), OS X Lion(V10.7), OS X Mountain Lion(V10.8), OS X Mavericks(V10.9)
    CPU Power PC, iMAC, G3, G4 266MHz or more
    Memory 64MB or more
    USB USB2.0
