Tascam FR-AV2 - Compact 32-Bit Float Field Recorder and Timecode Generator with Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The TASCAM FR-AV2 is a compact and comprehensive audio recording solution for videographers, combining enhanced 32-bit float point recording with built-in timecode generation to greatly improve efficiency. Ultimate Timecode allows you to integrate industry-standard videography gear, with no need for an external timecode device. And you can wirelessly monitor your audio signals with the optional AK-BT2 Bluetooth adapter.
This product only compatible with AK-BT2 adapter.
Features:
- Dual ADCs with enhanced 32-bit float recording for fast setup and worry-free capture
- 2 XLR/TRS Combo inputs with Ultra HDDA Preamps, EIN -127dBu, and 3.5 mm input
- Rec format: 48k/96k/192kHz supported
- Timecode IN/OUT and timecode generation/sync function with high accuracy TCXO
- Wireless audio monitoring with the optional AK-BT2 Bluetooth adapter (sold separately)
- 2-in/2-out USB-C audio interface for Mac/Windows/iOS devices supporting 32-bit float
- Supports up to SDXC 512 GB recording media
- Free TASCAM RECORDER CONNECT app for iOS, iPadOS and Android allows you to control multiple units including FR-AV2 and DR-10L Pro with the optional AK-BT2 Bluetooth adapter (sold separately)
- 2-inch color LCD screen for easy visibility and operability
- Multiple functions on inputs, including low-cut, compressor, limiter, and noise gate
- Adjustable input delay to compensate for distance between microphones [0-300 ms].
- Output delay adjustment available to compensate for camera video and audio output [0-300 ms].
- Mark and auto-slate tone functions
- Automatic file closing function to prevent the loss of recorded data if the batteries run out
- 3.5mm stereo headphone jack
- Camera/EXT input with plug-in power (+2.5V/+5.0V) function and Camera/Line outputs
- Wireless timecode synchronization with Atomos UltraSync Blue
- 3 AA batteries or USB bus power
- Supports capturing metadata (WAV file BEXT and iXML) when recording
- Compact, lightweight fiberglass enclosure designed for use with camera rigs
No-Clip Recordings
The FR-AV2's enhanced 32-bit float recording up to 192kHz means you'll never have to scrap a recording due to distorted or weak audio levels. When recording at lower bit depths like 24-bit and 16-bit, loud sound sources can cause digital clipping that cannot be fixed during editing. By using dual analog-to-digital converter technology, recordings are captured with greater dynamic range and clarity — you can increase the level of dialog without creating a distracting change in tone or dynamics.

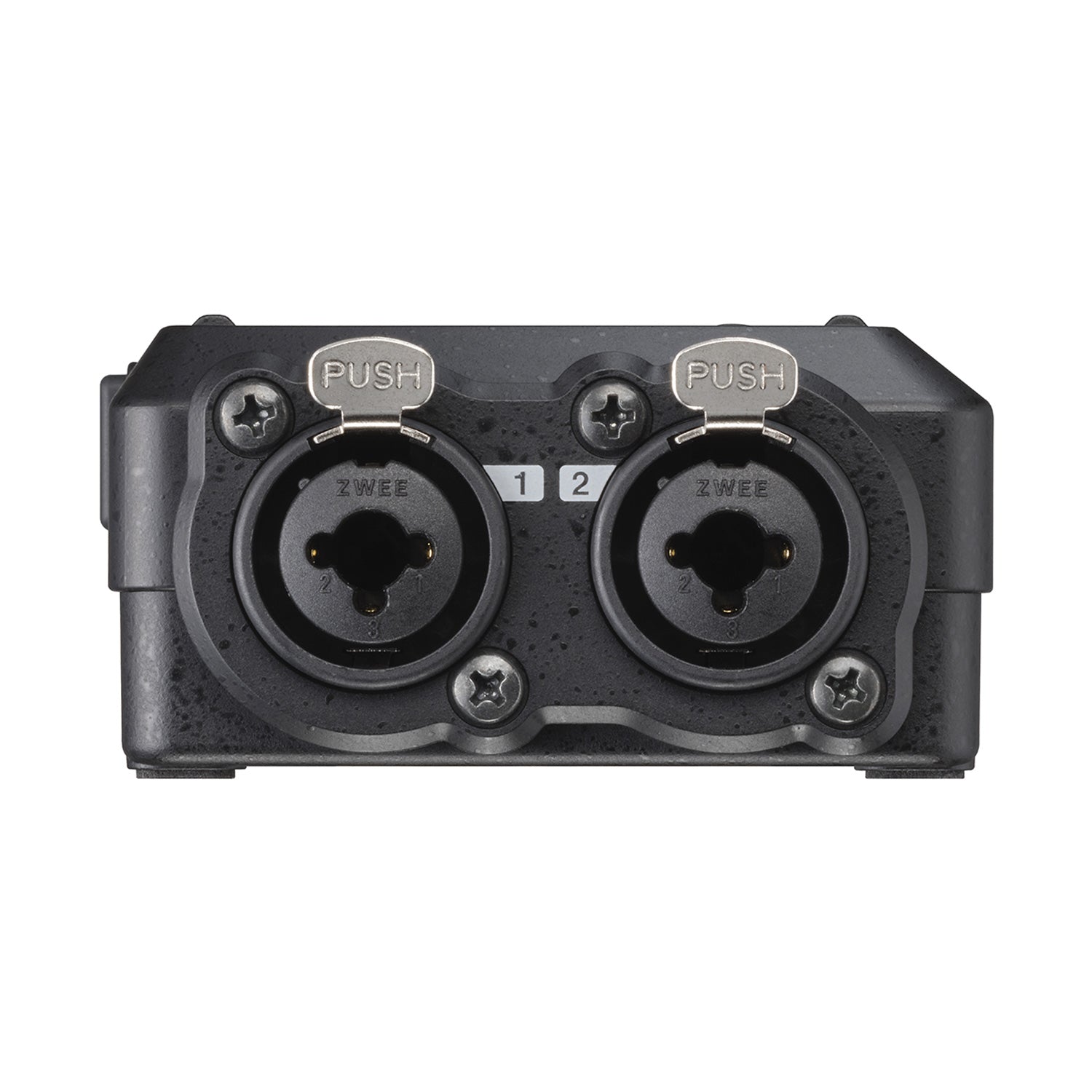

Premium XLR/TRS Combo Inputs
Connect microphones and professional line-level sources directly to the FR-AV2 dual Ultra HDDA preamps. Capture audio with maximum clarity and ultra-quiet with an EIN of -127dBu. In addition, the 3.5mm stereo input supports the use of wireless microphones, lavalier mics, and any other audio sources you might have in your arsenal.
Ultimate Timecode Generation
You'll be able to streamline your videography rig and take less gear to shoots with the FR-AV2. FR-AV2 generates and reads timecode via 3.5 mm IN/OUT for DSLR cameras and also supports Jam-Sync for any external timecode devices. Using the optional AK-BT2 Bluetooth adapter, you can also wirelessly sync timecode with supported Atomos UltraSync BLUE devices.
Wireless Audio Monitoring
Adding the optional AK-BT2 Bluetooth adapter allows you to wirelessly monitor audio signals on the fly. Depending on your recording environment, choose one of three modes to confirm you are receiving the best signal possible including connectivity, monitoring quality and latency settings. Dual wired and wireless monitoring work in parallel, which means 2 users can monitor the audio simultaneously.
iPhone Filmmaker, Meet Your Professional Audio Interface
Whether you're always on-the-go or find yourself creating impromptu content, the FR-AV2 can easily fit into your iPhone video rig with a USB-C cable. This allows high quality audio from professional XLR inputs and the ability to send and sync timecode. Via TC OUT/IN, with your phone, the FR-AV2 transforms your mobile videos into pro-grade productions.
Simple and Comprehensive Field Recorder
You won't find a more comprehensive audio recorder for videography — the FR-AV2 allows you to focus more on your video shoot and less on your audio gear. With the FR-AV2 mounted to your camera you have dual audio inputs, 32-bit float recording, onboard timecode generation and sync, and wireless audio monitoring capability — all in a single rugged housing.
High-Precision Sync in Demanding Environments
The FR-AV2 is equipped with a high-accuracy temperature-compensated crystal oscillator (TXCO), designed for ultra-precise and consistent sync performance even in high-temperature environments.
Advanced Input Processing
Fine-tune your audio before capture with onboard low-cut filter, compressor, limiter, and noise gate.
High-Capacity Audio Recording
Even when using 32-bit recording mode, the FR-AV2 provides the recording capacity you need to handle long video shoots. With support for up to 512GB SDXC recording media, you'll spend less time swapping cards and more time creating content.

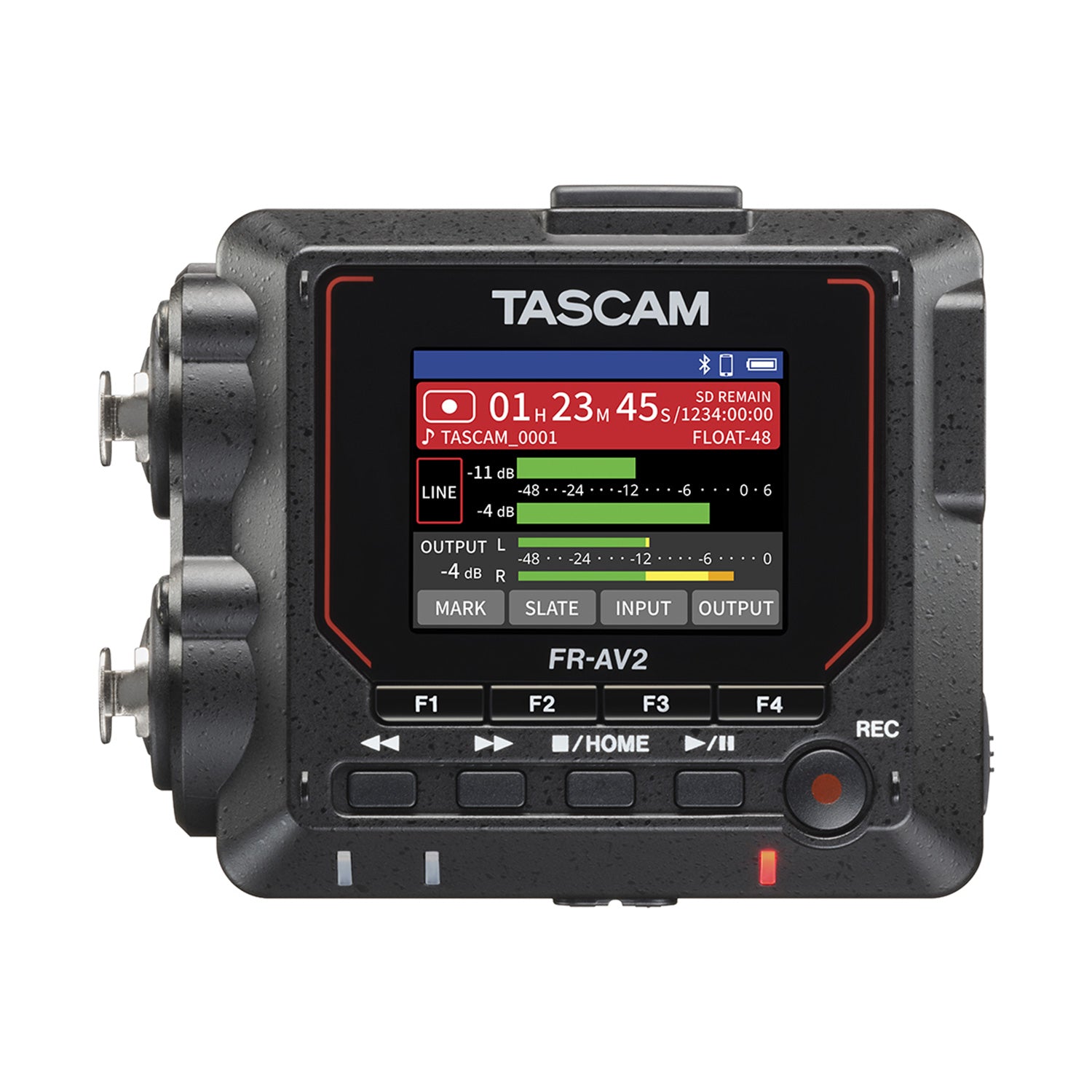

Color LCD Control
A vibrant 2-inch color LCD display maximizes visibility and operability when managing your shoot.
AK-BT2 Bluetooth Adapter
The optional Bluetooth adapter can be used for wireless timecode, to sync multiple FR-AV2 units, to monitor audio or even sync multiple FR-AV2 and DR-10L Pro units simultaneously with the *TASCAM Recorder Connect app.
(*The AK-BT2 is only compatible with the FR-AV2. Please use the AK-BT1 for the DR-10L Pro)
App Control
The free, downloadable TASCAM Recorder Connect app for iOS, iPad OS and Android allows you to simultaneously control multiple FR-AV2 and DR-10L Pro units from your portable device.
(Requires AK-BT2 Bluetooth adapter for the FR-AV2 and AK-BT1 for the DR-10L Pro, both sold separately)
32-bit Float Audio Interface
The FR-AV2 functions as a 2-in/2-out USB-C audio interface for Mac/Windows/iOS devices supporting 32-bit float
Auto File Save Function Offers Safety and Security
TASCAM's unique Auto File Save function prevents data loss in the unforeseen event of power loss. Recorded data is automatically saved every 20 seconds, which minimizes loss when faced within unexpected hurdles.
| Recorder specifications | |
| Recording media/file systems | microSD cards (64 MB - 2 GB), microSDHC cards (4 GB - 32 GB), microSDXC cards (48 GB - 512 GB) |
| Recording / playback formats | WAV (BWF) |
| Sampling frequency | 48 kHz, 96 kHz, 192 kHz |
| Quantization bit depth | 24-bit/32-bit float |
| Maximum number of input channels | 2 |
| Maximum number of recordable tracks | 2 |
| Analog audio input ratings | |
| [MIC] input is selected | |
| Maximum input level | +4 dBu |
| Minimum input level | -76 dBu |
| Input impedance | 2.0 k½ or more |
| Phantom power | +24V / +48V *selectable when [MIC] input is selected |
| [LINE] input is selected | |
| Maximum input level | +24 dBu |
| Nominal input level | +4 dBu (GAIN setting at minimum) |
| Input impedance | 8 k½ or more |

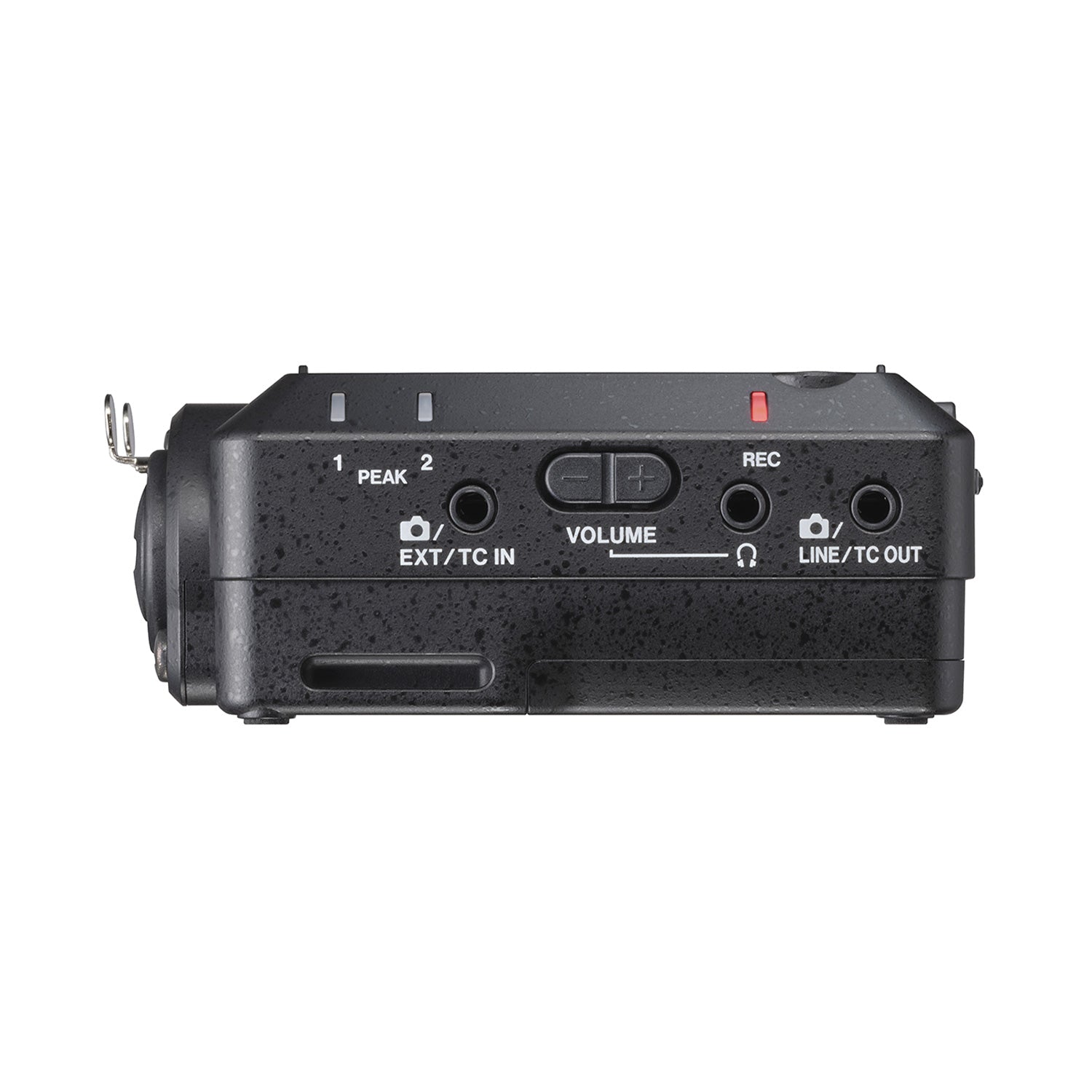

| Line input (unbalanced) | Camera/EXT/TC IN jack (can provide plug-in power) |
| Connector | 3.5mm (1/8") stereo mini jack |
| Maximum input level | +1 dBV |
| Nominal input level | - 19 dBV (GAIN setting at minimum) |
| Minimum input level | - 79 dBV |
| Input Impedance | 6.0 k½ or more (when plug-in power is turned off) 1.6 k½ or more (when plug-in power is turned on) |
| Plug-in power | +2.5 V/+5.0 V |
| TC IN | (Tip: Timecode IN, Ring: _, Shield: GND) |
| Signal level range | 0.5Vp-p to 5.0 Vp-p |
| Input impedance | 10 k½ or more |
| Analog audio output ratings | |
| Line output (unbalanced) | Camera/LINE/TC OUT jack |
| Connector | 3.5 mm (1/8") stereo mini jack Camera/LINE (Tip: L ch, Ring: R ch, Sleeve: GND) |
| Maximum output level | +6 dBV |
| Nominal output level | - 10 dBV (with - 16 dBFS as standard) |
| Output impedance | 210 ½ |
| TC OUT | |
| LTC selected | (Tip: Timecode OUT, Ring: _, Shield: GND) |
| Output level | 1.8 Vp-p |
| Output impedance | 1.0 k½ |
| When MIC selected | (Tip: Timecode OUT, Ring: R ch, Shield: GND) |
| Output level | 50 mVp-p |
| Output impedance | 110 ½ |
| Headphone output | headphone jack |
| Connector | 3.5mm (1/8") stereo mini jack |
| Maximum output | 50 mW + 50 mW (THD + N less than 0.1% into 32 ½ load) |
| Recommended headphone impedance | 16Ð400 ½ |

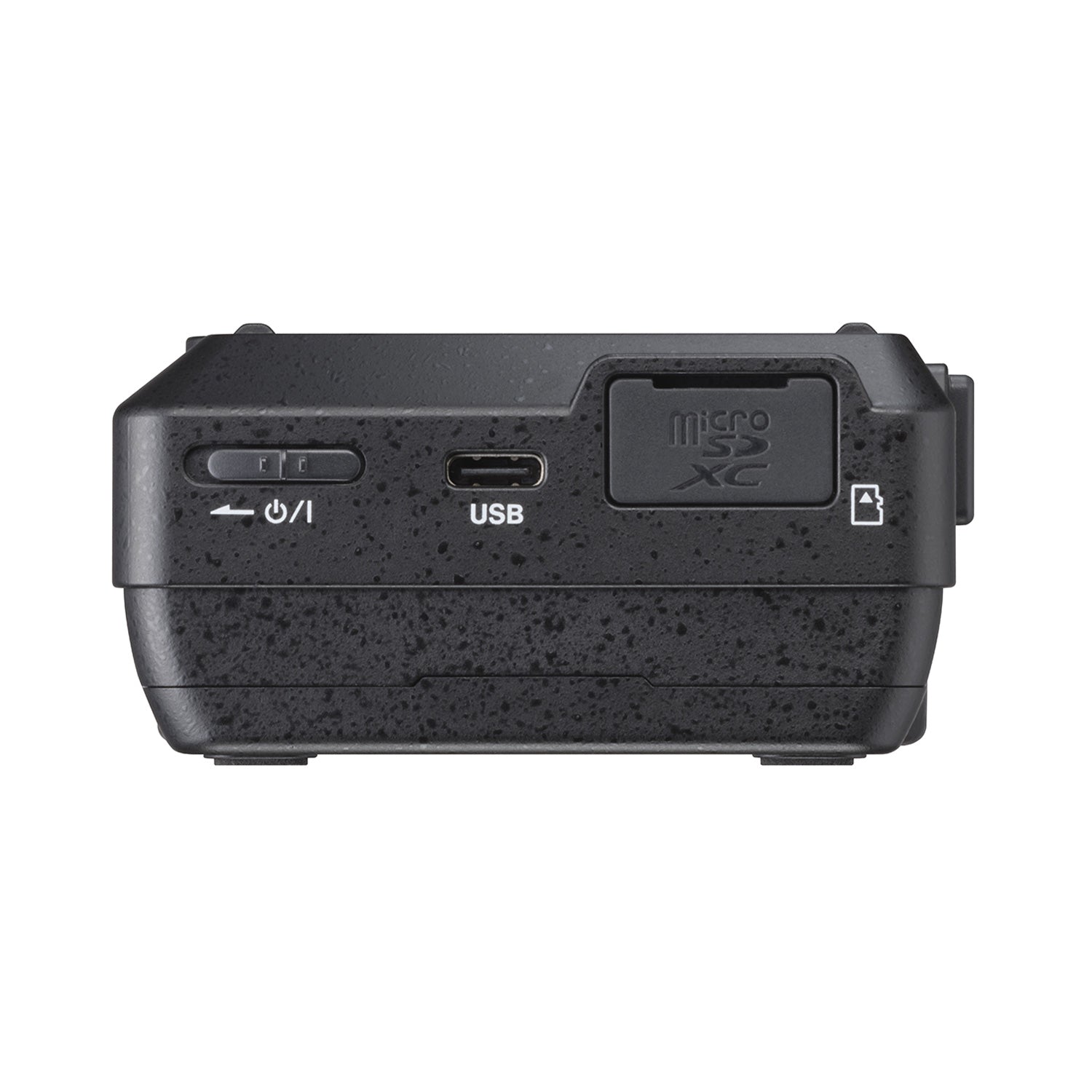

| USB | |
| Connector | USB Type-C |
| Transfer format | USB2.0 High Speed |
| Device Class | Mass Storage Class Class 2.0 (USB Class Compliant) |
| USB Audio | |
| Sampling frequency | 48 / 96 kHz |
| Quantization bit depth | 24-bit / 32-bit float |
| Number of inputs | 2 channels * output from this unit |
| Number of outputs | 2 channels *input to this unit |
| Time code input / output | |
| Format | According to SMPTE ST 12-1 (LTC) |
| Frame rate | 23.98, 24, 25(50), 29.97(59.94), 29.97DF(59.94DF), 30(60) fps * * Half frame rate time code is used for high frame rate videos of 50 fps or higher. |
| Bluetooth device connector | For Bluetooth adapter (AK-BT2) only |
| General | |
| Power | 3 AA batteries (alkaline, NiMH or lithium-ion) USB bus power from a computer, etc. TASCAM PS-P520U AC adapter (sold separately) |
| Power consumption | 3.8 W (maximum) |
| Weight | 267 g (including batteries) 195 g (not including batteries) |
| Operating temperature range | 0 - 40¡C |
| Dimensions | 99 x 80.4 x 40.3 mm (W x H x D, including protrusions) |
| Included items | FR-AV2 x1 Safety guide (including warranty) x1 TASCAM ID registration guide x1 |
| Battery operation time (continuous operation) | |
| Using alkaline batteries (EVOLTA) | Input jacks 1/2 input Phantom power not used STEREO WAV (BWF) / 48 kHz Recording at 24-bit About 9.0 hours Input jacks 1/2 input Phantom power used (+48V, load: 3mA x 2) STEREO WAV (BWF) / 48 kHz Recording at 32-bit float About 4 hours 30 minutes |
| Using Ni-MH battery (eneloop) | Input jacks 1/2 input Phantom power not used STEREO WAV (BWF) / 48 kHz Recording at 24-bit About 8 hours 30 minutes Input jacks 1/2 input Phantom Phantom power used (+48V, load: 3mA x 2) STEREO WAV (BWF) / 48 kHz Recording at 32-bit float About 5 hours 30 minutes |
| Using lithium-ion batteries (Energizer Ultimate Lithium) | Input jacks 1/2 input Phantom power not used STEREO WAV (BWF) / 48 kHz Recording at 24-bit About 15 hours Input jacks 1/2 input Phantom power used (+48V, load: 3mA x 2) STEREO WAV (BWF) / 48 kHz Recording at 32-bit float About 10 hours |
| Note | When using phantom power, the operation time might be reduced, depending on the mic being used. |
| Audio performance | |
| Mic amp EIN (equivalent input noise) | -127 dBu or less |
| Frequency response, Input jacks 1Ð2 to PCM data | 20-20 kHz at 48 kHz: +0 dB/-0.5 dB 20-40 kHz at 96 kHz: +0.5 dB/-1.0 dB 20-60 kHz at 192 kHz: +0.5 dB/-3.0 dB |
| Dynamic range, Input jacks 1Ð2 to PCM data (20kHz LPF, A-weighting, JEITA) |
132 dB or higher |
| Total harmonic distortion ratio (THD+N) Input jacks 1Ð2 (LINE/MIC IN) to PCM data |
(1kHz sine wave, _2dBFS input, GAIN setting at minimum, 20kHz LPF, JEITA) 0.02% or less Note: JEITA indicates conformance to JEITA CP-2150 |
| Recording times (in hours : minutes) / 32 GB (microSDHC) vs. 128 GB (microSDXC) | |
| WAV 24-bit (Stereo Link: On) | 48 kHz: 30:50 / 123:26 96 kHz: 15:25 / 61:43 192 kHz: 7:42 / 30:51 |
| WAV 32-bit float (stereo) | 96 kHz: 11:34 / 46:16 |
| WAV 32-bit float (Stereo Link: On) | 192 kHz: 5:47 / 23:8 |
| Note | The recording times shown above are estimates. They might differ depending on the microSD card in use. The recording times shown above are not continuous recording times, but rather they are the total possible recording times for the microSD card. If Stereo Link is off and only one channel is recorded, maximum recording times will be about double those above. |
| Operating system and other requirements for TASCAM RECORDER CONNECT | |
| iOS/iPadOS devices | iOS 17/iPadOS 17, iOS 16/iPadOS 16 |
| Android devices | Android 14, Android 13, Android 12 |
