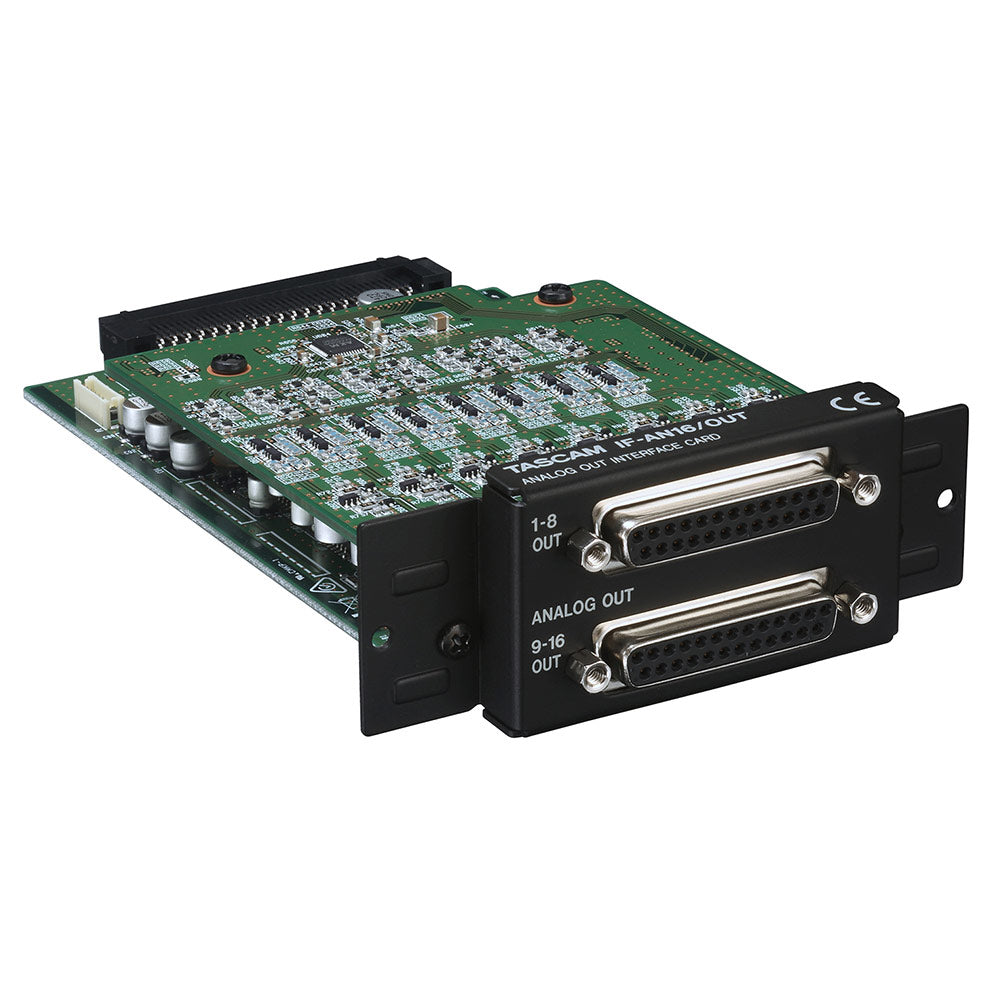

Tascam IF-AN16/OUT 16-Channel Analog Output Card for DA-6400 Recorder
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IF-AN16 / OUT is an analog output interface card for the DA-6400 / DA-6400dp digital multi-track recorders. Equipped with 16 analog output channels and 32-channel recording is available by using two IF-AN16 / OUT cards.
Use as a multi-channel output source for playback in theaters
By mounting the IF-AN16/OUT to DA-6400 series, it can be utilized as a compact 1 rack space multi-playback system.
For multi-channel playback in amusement parks
By mounting the IF-AN16/OUT to the 1U size DA-6400 recorder, it can be utilized as a multi-playback system and its compact 1 rack size remains the same. It syncs the video and audio with the Timecode System.
| Format | |
| Sampling frequency | 44.1k/48k/88.2k/96k Hz |
| Bit length | 16-bit/24-bit |

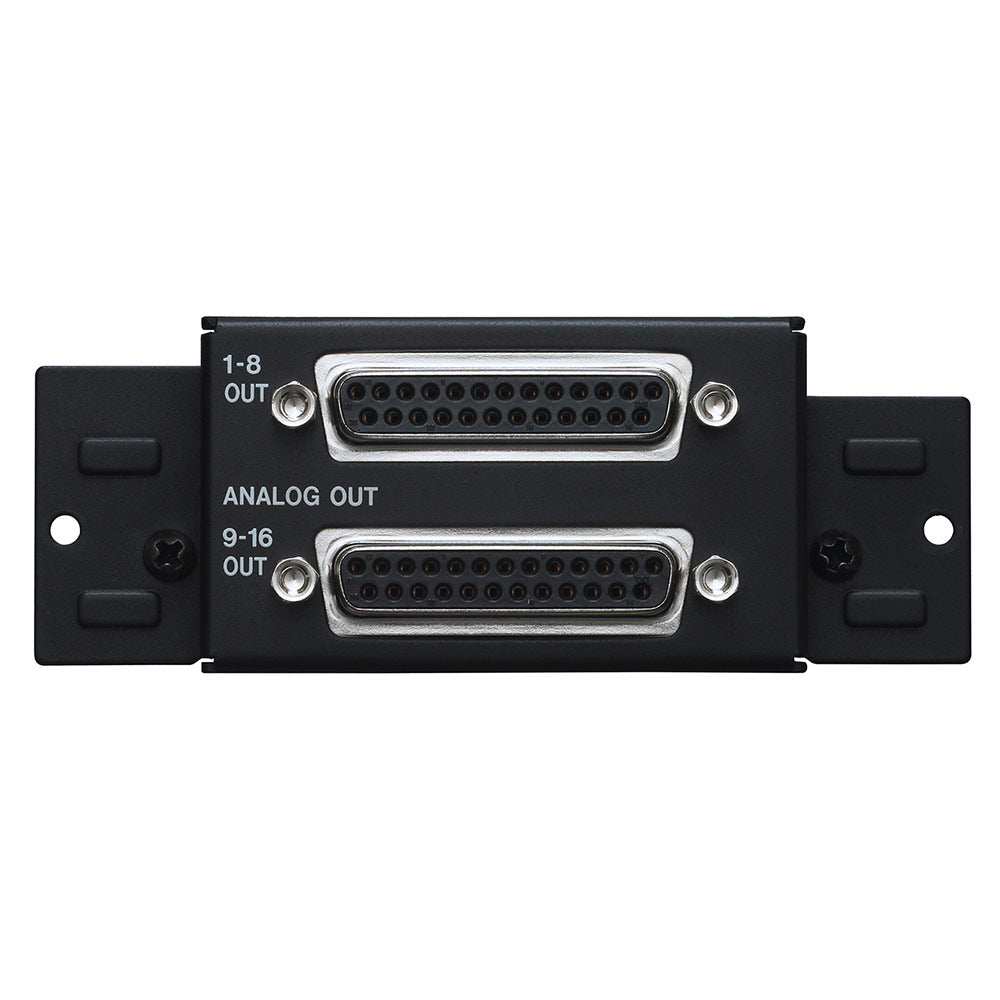

| Analog output 1-8/9-16 | |
| Connector | D-Sub 25-pin |
| Locking screws | No.4-40 UNC (inch type) |
| No. of output channels | 16 |
| Nominal output level / maximum output level | +4dBu/+24dBu +4dBu/+22dBu +4dBu/+20dBu +4dBu/+18dBu +6dBu/+15dBu |
| Output impedance | 200½ |
| Output attenuation | 0 <> -14dB (0.5dB steps) |
| Applicable load impedance | 2k½ or more |
| Dimensions | 107(W)_40(H)_161.5(D)mm |
| Weight | 240g |
| Accessories | Owner's manual (with warranty) |
| Audio performance | |
| Frequency response | +0.1dB/-0.5dB_20Hz/20kHz__16dBFS input, Fs=44.1k/48kHz, JEITA_ +0.1dB/-1.0dB_20Hz/40kHz__16dBFS input, Fs=88.2k/96kHz, JEITA_ |
| THD | 0.001% or less (0dBFS input, 1kHz, Fs=44.1k/48k/88.2k/96kHz, JEITA) |
| S/N ratio | 110dB or more (Fs=44.1k/48k/88.2k/96kHz, JEITA) |
| Dynamic range | 110dB or more (Fs=44.1k/48k/88.2k/96kHz, JEITA) |
| Crosstalk | 110dB or more (1kHz, Fs=44.1k/48k/88.2k/96kHz, JEITA) |
The IF-AN16 / OUT is an analog output interface card for the DA-6400 / DA-6400dp digital multi-track recorders. Equipped with 16 analog output channels and 32-channel recording is available by using two IF-AN16 / OUT cards.
Use as a multi-channel output source for playback in theaters
By mounting the IF-AN16/OUT to DA-6400 series, it can be utilized as a compact 1 rack space multi-playback system.
For multi-channel playback in amusement parks
By mounting the IF-AN16/OUT to the 1U size DA-6400 recorder, it can be utilized as a multi-playback system and its compact 1 rack size remains the same. It syncs the video and audio with the Timecode System.
| Format | |
| Sampling frequency | 44.1k/48k/88.2k/96k Hz |
| Bit length | 16-bit/24-bit |
| Analog output 1-8/9-16 | |
| Connector | D-Sub 25-pin |
| Locking screws | No.4-40 UNC (inch type) |
| No. of output channels | 16 |
| Nominal output level / maximum output level | +4dBu/+24dBu +4dBu/+22dBu +4dBu/+20dBu +4dBu/+18dBu +6dBu/+15dBu |
| Output impedance | 200½ |
| Output attenuation | 0 <> -14dB (0.5dB steps) |
| Applicable load impedance | 2k½ or more |
| Dimensions | 107(W)_40(H)_161.5(D)mm |
| Weight | 240g |
| Accessories | Owner's manual (with warranty) |
| Audio performance | |
| Frequency response | +0.1dB/-0.5dB_20Hz/20kHz__16dBFS input, Fs=44.1k/48kHz, JEITA_ +0.1dB/-1.0dB_20Hz/40kHz__16dBFS input, Fs=88.2k/96kHz, JEITA_ |
| THD | 0.001% or less (0dBFS input, 1kHz, Fs=44.1k/48k/88.2k/96kHz, JEITA) |
| S/N ratio | 110dB or more (Fs=44.1k/48k/88.2k/96kHz, JEITA) |
| Dynamic range | 110dB or more (Fs=44.1k/48k/88.2k/96kHz, JEITA) |
| Crosstalk | 110dB or more (1kHz, Fs=44.1k/48k/88.2k/96kHz, JEITA) |
