Description
The TASCAM ML-32D is a professional Dante-focused converter made specifically to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize Sub-D format connectors. A poweful and flexible solution, the TASCA... Read MoreRetail Price: $3,399.00 Our Price: $2,999.00
Free Shipping (Continental US)
Suggested Accessories
Description

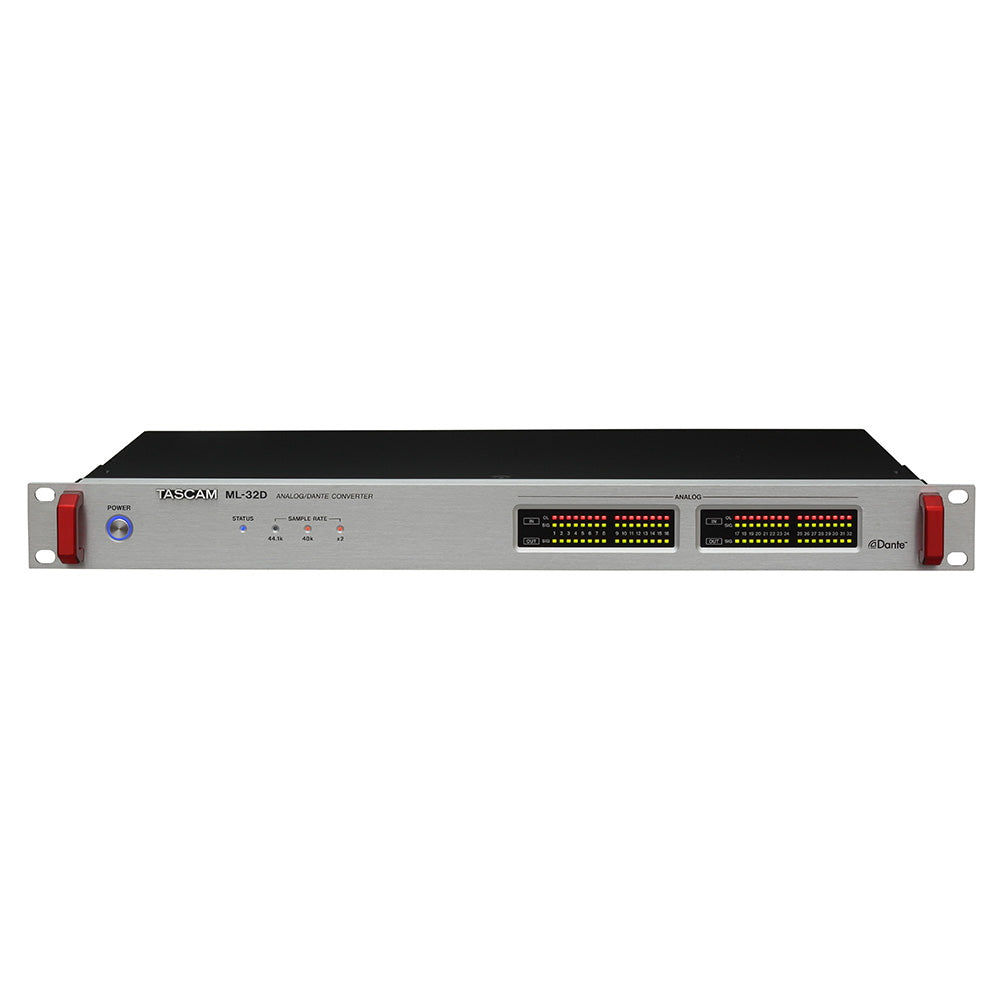

The TASCAM ML-32D is a professional Dante-focused converter made specifically to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize Sub-D format connectors.
A poweful and flexible solution, the TASCAM ML-32D has 4 D-Sub intputs and 4 D-Sub outputs, whch can easiy be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices. This simple, yet elegant, solution enables audio to be quickly and easily inserted into - or extracted from - the Dante audio stream.
Features:
The Dante protocol was developed to provide uncompressed, multi-channel, low-latency digital audio over a standard Ethernet network aupporting as many as 1024 channels of 32b bit/192kHz audio over an existing CAT 5/6 Ethernet system.
Since inception, Dante has seen steady adoption by a growing number of systems integrators, especially those specializing in AVB (Audio Video Bridging). In addition, Dante continues to gain a foothold in the live sound arena, with hundreds of hardware products from various manufacturers supporting this innovative communications protocol. These live sound applications include: House of Worship (HOW), institutional installations, theaters, audio for stadiums and other public facilities and broadcast.
The TASCAM ML-32D makes it possible to transmit 32-channel analog line input/output signals.
Primary and Secondary network connections redundancy and security
Primary and secondary connectors enable building a redundant system with a duplex network. Should the primary network route fails the ML-32D automatically switches to the secondary network route. This highly secure system prevents interruption and introduces no noise during the switch.
Flexible routing to connected Dante-compatible devices
The TASCAM ML-16D uses Dante Controller to configure the main unit and to connect to other Dante-compatible devices. Dante Controller enables flexible routing configuration to other Dante-compatible devices.
About Dante Controller
Dante Controller is a free software application released by Audinate.
Integrated Signal/Overload indicator
The front panel is equipped with a signal/overload indicator that enables monitoring of analog input/output signals. The signal indicator turns on when a signal level becomes lower than -60dBFs.
5 selectable reference levels which can accommodate to a variety of scenes
The TASCAM ML-32D features selectable reference level setting from 5 maximum level options: +24dBu, +22dBu, +20dBu, and +18dBu (the standard level is +4dBu) and +15dBu (the standard level is +6dBu), which can accommodate to a variety of purposes including professional use in broadcasting studios, public address systems and recording environments.
More +
Product Specs
Formats | 44.1/48 kHz, 16/24 bit 88.2/96 kHz, 16/24 bit |
PRIMARY/SECONDARY connectors | Connector: RJ-45 Transmission protocol: Dante Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab) Cables: category 5e or faster STP cables |
ANALOG OUTPUT connectors | Connector: D-sub 25-pin Locking screws: No. 4-40 UNC (inch type) Nominal output levels: +4 dBu, +6 dBu (only when maximum output level is +15 dBu) Maximum output levels: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (set by REF. LEVEL switches) Output impedance: 200 Ω or lower Applicable load impedance: 2 kΩ or higher |
ANALOG INPUT connectors | Connector: D-sub 25-pin Locking screws: No. 4-40 UNC (inch type) Nominal input levels: +4 dBu, +6 dBu (only when maximum input level is +15 dBu) Maximum input levels: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (set by REF. LEVEL switches) Input impedance: 10 kΩ or higher * 0 dBu=0.775 Vrms |
ANALOG IN to DANTE OUT | |
Frequency response | +0.1 dB/-0.5 dB: 20 Hz/20 kHz (-16 dBFS input, 44.1/48 kHz sampling frequency, JEITA), +0.1 dB/-0.5 dB: 20 Hz/40 kHz (-16 dBFS input, 88.2/96 kHz sampling frequency, JEITA) |
Distortion (THD+N) | 0.001% or less (-1 dBFS input, 1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA) |
S/N ratio | 113 dB or higher (44.1/48/88.2/96 kHz sampling frequency, JEITA) |
Crosstalk | 115 dB or higher (1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA) |
DANTE IN to ANALOG OUT | |
Frequency response | +0.1 dB/-0.5 dB: 20 Hz/20 kHz (-16 dBFS input, 44.1/48 kHz sampling frequency, JEITA), +0.1 dB/-1.0 dB: 20 Hz/40 kHz (-16 dBFS input, 88.2/96 kHz sampling frequency, JEITA) |
Distortion (THD+N) | 0.001% or less (-1 dBFS input, 1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA) |
S/N ratio | 110 dB or higher (44.1/48/88.2/96 kHz sampling frequency, JEITA) |
Crosstalk | 115 dB or higher (1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA) |
Other | |
Power | AC100-240 V, 50/60 Hz |
Power consumption | 22W |
Dimensions | 483 × 45 × 303.8 mm (width x height x depth) |
Weight | 3.5 kg |
Operating temperature range | 0–40º |
Included items | Main unit x1, Power cord x1, Rackmount screw kit x1, Owner’s Manual (this document) including warranty x1 |
