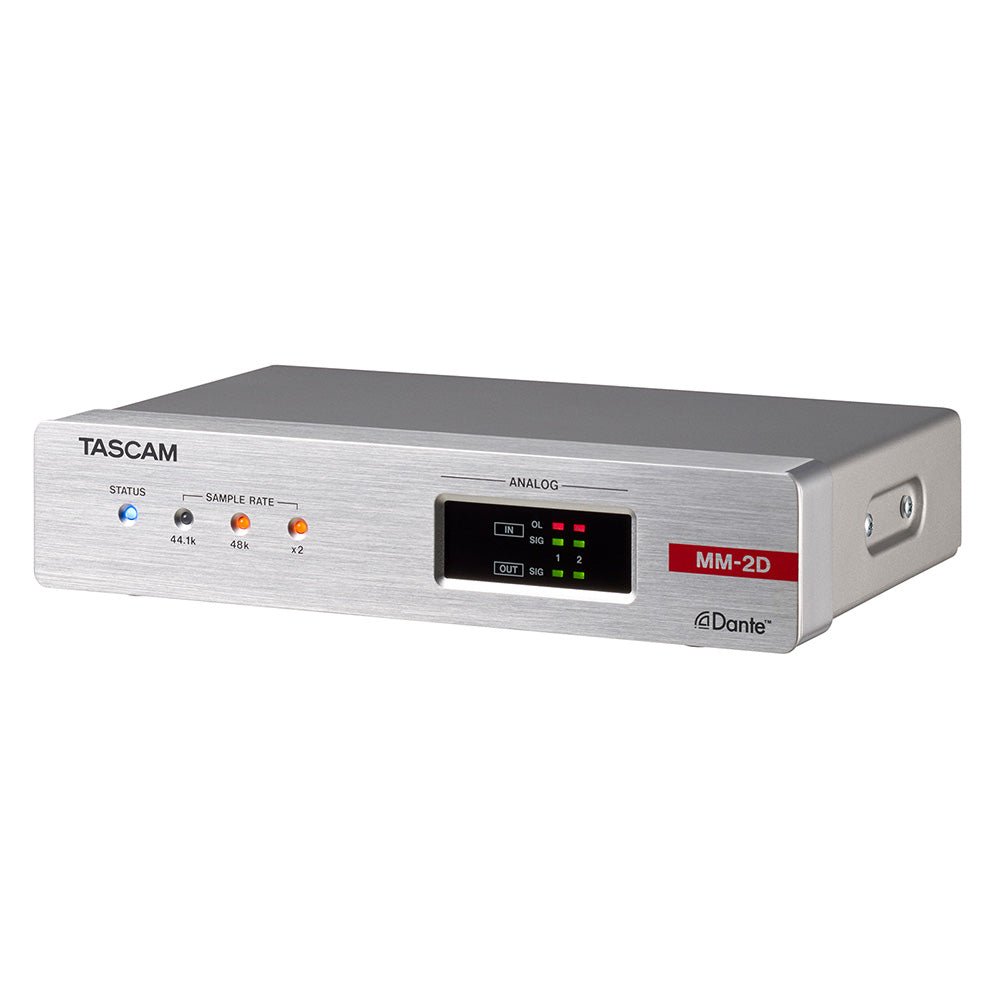

Tascam MM-2D-X 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer

  • Dale #:

    TASC-MM2DX
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The MM-2D-X is a compact converter that converts 2-channel mic/line input/output signals into Dante signals. With half the size of a standard 1U rack, the MM-2D-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to full... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The MM-2D-X is a compact converter that converts 2-channel mic/line input/output signals into Dante signals. With half the size of a standard 1U rack, the MM-2D-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-2D-X supports up to 96kHz/24bit and uses XLR connectors for analog mic/line input/output.

Features:

  • 2-channel mic/line input with phantom power (+48v) support
  • Supports remote mic gain control
  • 2 line output
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Up to 24bit/96kHz
  • Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 6 in/4 out matrix mixer)
  • Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
  • Compatible with Dante Domain Manager and Dante AES67 Mode
  • Flexible scene preset function allows to work in different area situations (Up to 50 presets)
  • Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
  • 2 types of user control software available for Windows/Mac/iOS/Android devices:
    For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
    For end-users: simple app design for only the necessary functions such as area volume settings, etc.
  • Remote control via Dante
  • Half-rack mountable size

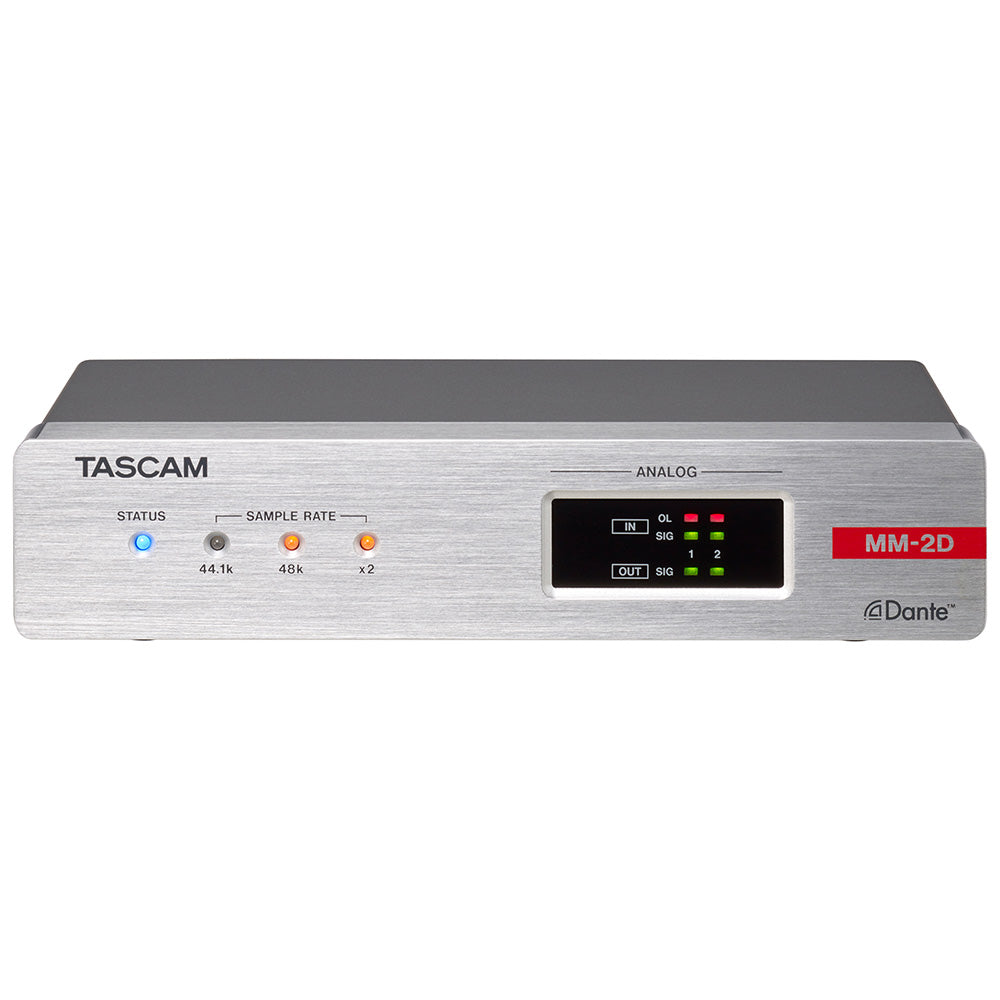

  • Equipped with indicators that show LAN/Dante connection status and sample rate
  • Equipped with signal indicators that monitor line input/output signals
  • Configurable reference level (via remote control only)
  • Surface rack mountable angles for installation under desks included
  • Optional accessories:
    AC adapter PS-P1220E for redundant power supply available
    Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case


2 mic/line input/output, 4 Dante input/output
The MM-2D-X can either convert 2-channel mic/line input signals into 2 Dante output signals, or 2 Dante input signals into 2-channel line output signals. In addition, it also supports 4-channel Dante input/output as well, making it possible to use audio sources within an established Dante network.

Half-rack size Dante Compact Processor Series
The Dante Compact Processor Series has a line-up of models with different input/output specifications:

MM-4D/IN, 4-channel mic/line input
ML-4D/OUT, 4-channel line output
MM-2D, 2-channel mic/line input/output
AE-4D, AES/EBU 4-channel input/output

For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.

Optimal input/output unit for different Dante systems
The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments.

Structuring small scale systems with the DSP function
The Dante Compact Processor Series are equipped with a matrix mixer that includes a DSP feature with compressors, parametric EQs, limiter, delay, etc. functions. From the input of microphone signals to the output of powered speakers; also applicable with recording/playback systems, the Dante Compact Processor Series can build up a complete small system on their own.

Flexible routing
Routing to each Dante device is easy via Dante controller. Input/output units can be added flexibly to new or already established Dante systems.

Compatible with Dante Domain Manager and AES67 mode
The Dante Compact Processor Series are compatible with Dante Domain Manager, which features security functions and enables the use of wide-area networks. This helps the Dante Compact Processor Series access easily to Dante systems using already established network infrastructures. With the AES67 mode, connection to AES67 network systems is also possible.

The advantages of introducing Dante Network Audio
These are some of the benefits provided when adopting Dante Network Audio:

Reduction of system costs
It is possible to have a maximum transmission of 128ch I/O with one single CAT5e cable. This leads to fewer cables needed, not to mention the reduction of costs on wiring and space for cable pits.

Improved connection flexibility
All equipment can be freely connected and routed by applying star connections.

About Dante
Dante is a transmission protocol developed by Audinate. It enables multi-channel transmission (512ch IN/512ch OUT) and word-clock sync with high accuracy via network with gigabit Ethernet standard.

More +

Product Specs

Formats and channels 44.1/48/88.2/96kHz,16/24-bit, 2 channels
Input/output ratings
DATA/DATA+PoE connectors
Connector RJ-45
Transmission protocol Dante
Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab)
Cables category 5e or faster STP cables

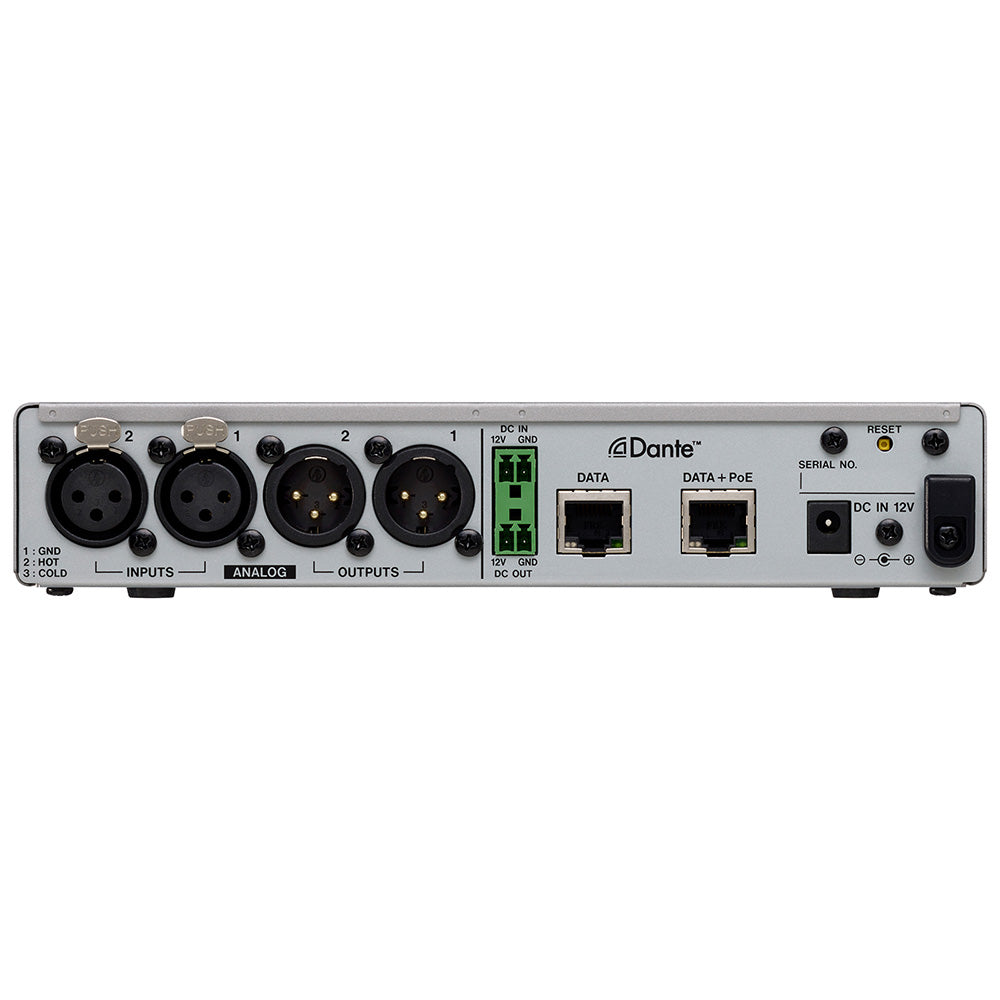

ANALOG IN connectors
Connector XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Minimun input level -74 dBu
Maximum input level +26 dBu
Input impedance 2.0 kΩ or higher
ANALOG OUT connectors
Connector XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output levels +4 dBu (when Ref. Level not -9 dBFS)
+6 dBu (when Ref. Level set to -9 dBFS)
Maximum output level (switchable) +15 dBu (Ref. Level: -9 dBFS)
+18 dBu (Ref. Level: -14 dBFS)
+20 dBu (Ref. Level: -16 dBFS)
+22 dBu (Ref. Level: -18 dBFS)
+24 dBu (Ref. Level: -20 dBFS)
Output impedance 200 Ω or lower
Other
Power PoE class 0
TASCAM PS-P1220E AC adapter (sold separately)
Power consumption 6W
Dimensions 214 x 44.45 x 136.1 mm (W x H x D, including protrusions)
Weight 878 g
Operating temperature range 0°C-40°C
Included items Installation brackets, Owner's manual (including warranty)
Audio performance
MIC IN → DANTE OUT
Mic amp EIN (equivalent input noise) -125 dBu (150Ω, 22kHz LPF+A, JEITA)
Frequency response +/-0.5 dB: 20 Hz - 20 kHz(44.1/48kHz sampling frequency, JEITA)
+/-0.5 dB: 20 Hz - 40 kHz(88.2/96kHz sampling frequency, JEITA)
Distortion (THD+N) 0.005 %(when -1 dBFS input, 44.1/48/88.2/96kHz samplingfrequency, JEITA)
S/N ratio 105 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
Crosstalk 100 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
Dynamic range 105 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
DANTE IN → LINE OUT
Frequency response +/-0.5 dB: 20 Hz - 20 kHz(44.1/48kHz sampling frequency, JEITA)
+/-0.5 dB: 20 Hz - 40 kHz(88.2/96kHz sampling frequency, JEITA)
Distortion (THD+N) 0.005 %(when -1 dBFS input, 44.1/48/88.2/96kHz samplingfrequency, JEITA)
S/N ratio 105 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
Crosstalk 100 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
Dynamic range 105 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
