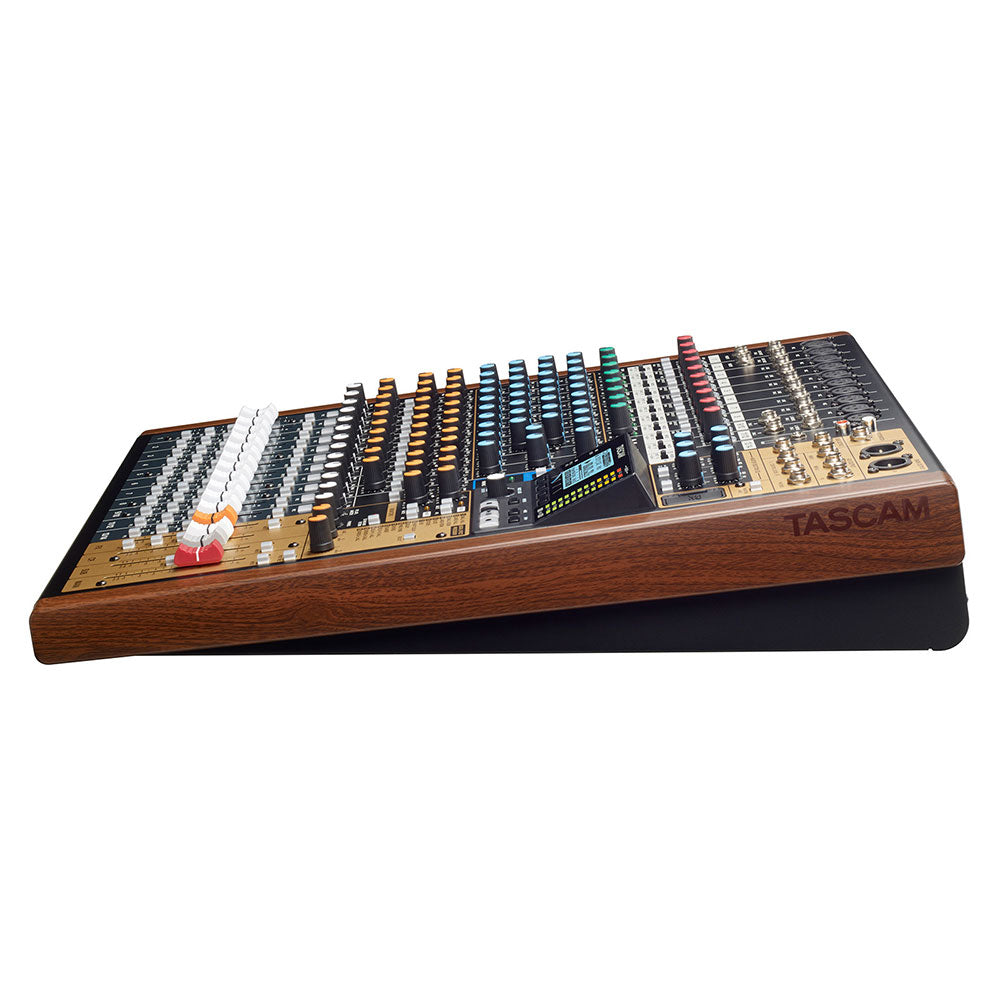

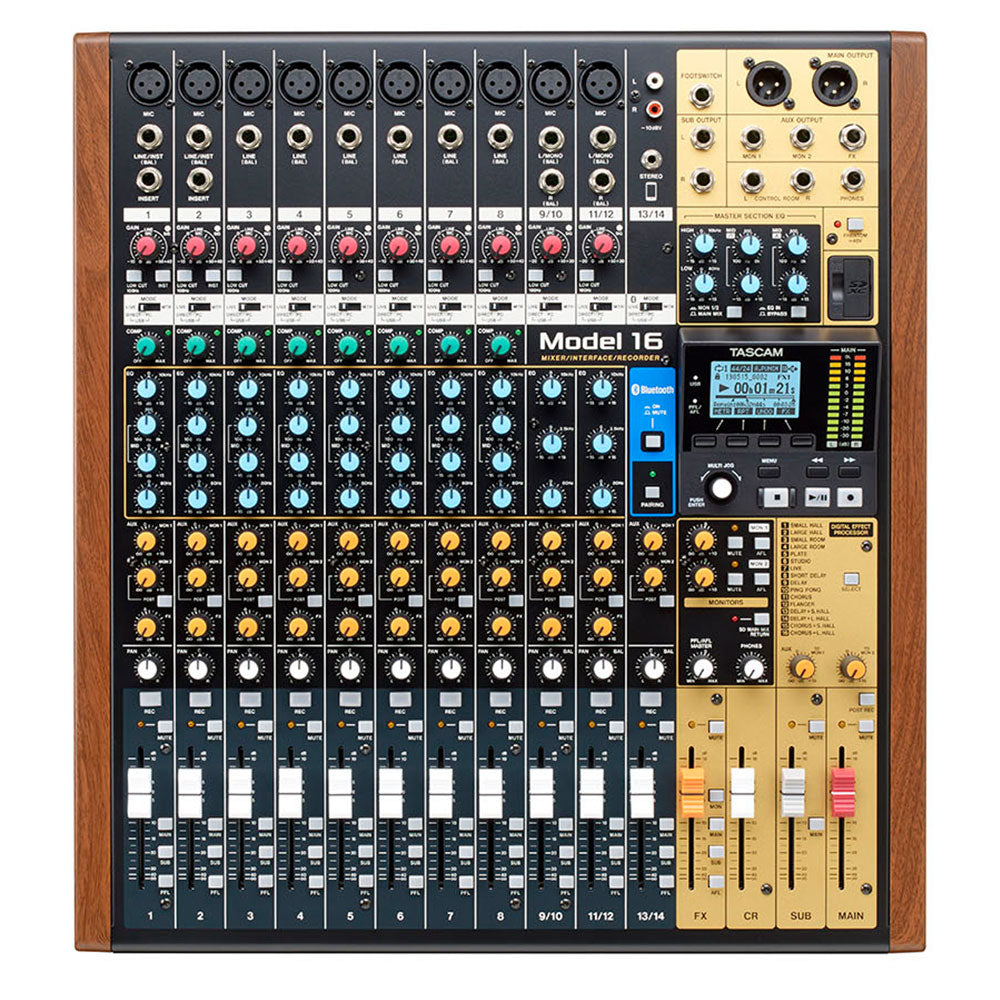

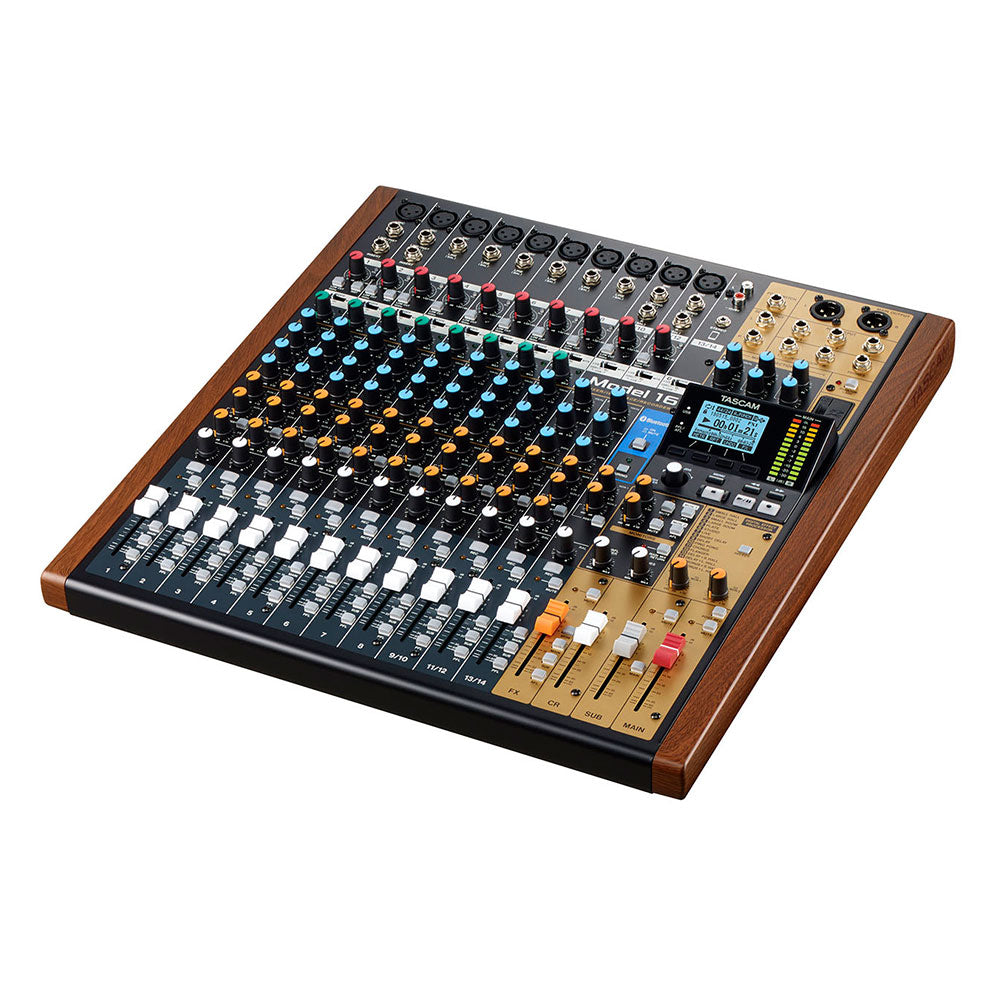

Tascam Model 16 Mixer / Interface / Recorder

  • Dale #:

    TASC-MODEL16
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

TASCAM's Model 16 all-in-one mixer brings the flagship Model 24's powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a full-featured small format mixer that combines the warmth of analog with a digital workflow. The Model 16 is the p... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

TASCAM's Model 16 all-in-one mixer brings the flagship Model 24's powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a full-featured small format mixer that combines the warmth of analog with a digital workflow. The Model 16 is the perfect mixing solution for small format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless.

With the Model 16, your perfect mix has met its match.

Features:

  • 16-track multi-track recorder (WAV, up to 48kHz/24-bit) to SD, SDHC and SDXC cards (Class 10 or higher required)
  •  Punch in/out capability (up to 8 tracks simultaneously)
  •  Built-in USB Audio Interface to send/receive (16-in/14-out) audio data to/from DAW
  • 14 inputs (10 Monaural XLR/TRS balanced and 2 Stereo-paired TRS balanced)
  • 10 mic Pre-amps utilizing TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 8)
  • Pre-amp Gain Controller with Signal/Over-load Indicator (CH 1 thru 12)
  • Input Mode switch (LIVE/USB/MTR) per input channel
  • 1-knob compressor (CH 1 thru 8)
  • 3-band EQ with a sweep-able mid-range frequency (CH 1 thru 8)
  • 100Hz Low-cut Filter (CH 1 thru 12)
  • Phantom Power (+48V) for all XLR inputs
  • 3 AUX Outputs (MON 1[pre], MON 2[pre/post], FX[post])
  • Mute, MAIN/SUB, PLF switches per input channel
  • Bluetooth® 5.0 input supporting both AAC and SBC codecs
  • LINE Inputs via RCA Pin and 1/8" Stereo Mini jacks (CH 13/14)
  • Hi/Lo shelf, wide and narrow-Q semi-parametric EQs (for Main and SUB outputs)
  • 16 TASCAM Effects like reverb, delay, chorus and flange
  • MAIN Output via XLR balanced and SUB Output via TRS balanced connectors
  • 12-segment LED Output Level Meters
  • 1 Stereo Output for Control Room
  • 1/4" Stereo Headphone Output
  • REMOTE connector for a Foot Switch (TASCAM RC-1F)
  • Self-emitted buttons for key operations such as REC and Play for better status legibility
  • Comprehensive simplified menu tree
  • Multi Jog-dial for quick menu operation
  • 19-inch rack mountable with optional Model 16 rackmount kit
  • FAUX wood Side Panels (Removable)


14 Inputs for Complete Flexibility
14 easy-to-access top-panel inputs provide flexible options for microphones or instrument connections, including 10 Mic/14 Line/2 Inst to allow easy access for connecting microphones, instruments or other audio sources for live recording or mixing. A Bluetooth 5.0 enabled Stereo Input Source Channel also provides stereo RCA and 1/8" Stereo (selectable) jacks for streaming audio device level control.

Pristine Audio Quality
Mic Inputs 1 through 8 deliver pristine audio quality, featuring TASCAM's Ultra-HDDA (High Definition Discrete Architecture) technology for pure, transparent natural tone with ultra-low noise.

Professional Channel Strip Control Features
A tactile Gain knob tops each channel for precise tweaking of input levels. A push-button Lo-Cut filter and three-position Input Selector (Live/PC/MTR) facilitate quick and precise control of input source signals. A 1-knob inline Compressor is available on inputs 1-8 as is a mid-range sweepable 3-band EQ.

Maximum Audio Routing Possibilities and Monitoring
3 Aux bus (MON1, MON2[pre/post], FX) and PFL Listen round out the Model 16's pro-level signal path routing options. A Sub bus provides an additional stereo lineout source to the master SEND section.

3 AUX Outs let you route the audio signal for stage monitoring, or to external gear such as outboard effects, signal processors or headphone mixes. And the Footswitch control jack provides additional monitoring and control features.

Powerful Internal 16-Track Multi-track Digital Recorder
The Model 16's MTR section features a powerful internal 16-Track Multi-track recorder, capturing 14 Inputs and 2 Main Mix simultaneous tracks of audio to an internal SD card in pristine 24-bit/48 kHz quality. Record anything from live performance to rehearsals, worship events, spoken word and meetings, as well as perform overdubs and punch-in/out quickly and easily.
Recorded tracks can be immediately mixed, mastered or exported to a computer for further editing, formatting and publishing.

High-Quality Internal Audio Interface
An internal 16 input/14 output USB audio interface captures audio at a 24-bit/48 kHz sampling rate for recording or playing back from an external DAW (digital audio workstation). The new generation TASCAM USB driver delivers the minimum size of the audio buffer which can be set to as low as 4 samples, resulting in extremely low latency and the highest level of efficiency when recording audio.

Versatile Input Capability
Using the channel Mode switch, each channel can select the input source as needed. This allows a super flexible input configuration to be selected where some inputs can be live, other inputs can play tracks from the internal MTR, while other inputs can play tracks from a computer via USB, all simultaneously.

16 Editable Multi-Effects
The Model 16's versatile Effects Section offers 16 editable and foot-controllable multi-effects, including reverb, delay, chorus and flange.

4-Band Master EQ
A 4-Band EQ with mid-range sweepable, wide/narrow Q can be dialed in for crafting the perfect mix, assignable to MAIN outs or MON1/2 outs as you like.

Options and Accessories
Expand recording and mixing possibilities with Model 16's optional accessories, including the RC-1F Footswitch, AK-RM16 Model 16 Rack Mount Kit, AK-DC16 Model 16 dust cover, TM-Series Microphones, and TH-Series Headphones.

More +

Product Specs

Recording section
Supported Media SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or higher required.
File System SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
Recording File Format WAV(BWF)
Playback Format WAV, BWF
Sampling Frequency 44.1k / 48k Hz
Bit Depth 16 / 24 bit
Maximum Recordable ChannelNumber 16ch (14ch + 2 stereo mix)
Audio Inputs
MIC IN CH1 to 8, 9/10, 11/12
Connector XLR 3-31 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Input Level +10dBu
Nominal Input Level -8dBu
Minimum Input Level -58dBu
Gain Adjustable Range 0 to 50dB
Input Impedance 1.8k ohm
Phantom Power supply +48V
LINE IN CH1 to 8, 9/10, 11/12
Connector 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Input Level +22dBu
Nominal Input Level +4dBu
Gain Adjustable Range -10 to +40 dB: CH 1 to 8, +20 to +30 dB: CH 9/10 and 11/12
Input Impedance 22k ohm
INST IN CH 1 and 2
Connector 1/4" (6.3mm) TRS Phone jack (T: HOT, R: GND, S: GND, Unbalanced)
Maximum Input Level +22dBu
Nominal Input Level +4dBu
Gain Adjustable Range -10 to +40 dB
Input Impedance 1M ohm
INSERT CH 1 and 2
Connector 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)
Return (Ring)
Maximum Input Level +18dBu
Nominal Input Level 0dBu
Input Impedance 10k ohm
Send (Tip)
Maximum Output Level +18dBu
Nominal Output Level 0dBu
Output Impedance 100 ohm
RCA INPUT
Connector RCA Pin jack (Unbalanced)
Maximum Input Level +8dBV
Nominal Input Level -10dBV
Input Impedance 10k ohm
STEREO INPUT
Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
Maximum Input Level +8dBV
Nominal Input Level -10dBV
Input Impedance 10k ohm
Outouts
MAIN OUTPUT
Connector XLR 3-32 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Output Level +22dBu
Nominal Output Level +4dBu
Output Impedance 100 ohm
SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT
Connector 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Output Level +16dBu
Nominal Output Level -2dBu
Output Impedance 100 ohm
PHONES OUT
Connector 1/4" (6.3mm) Stereo Phone jack
Output Level 80mW + 80mW (32 ohm loaded)
REMOTE Compatible with TASCAM RC-1F Foot Switch
Connector 1/4" (6.3mm) TS Phone jack
USB Audio for connection with PC
Connector USB B type 4-pin
Format USB2.0 High-Speed, Mass-storage class/USB Audio Class
Sampling Rate 44.1k / 48k Hz
Bit Depth 16 / 24 bit
Maximum INPUT 16ch
Maximum OUTPUT 16ch
Bluetooth®
Version 5.0
Output Class Class 2 (Transmission range: approx. 33 ft. / 10 m)
* Transmission range may vary, depending on surroundings.
Supported Profile A2DP, AVRCP 1.0
Supported A2DP Codecs SBC, AAC
A2DP Content Protection SCMS-T
Channel EQ
Low-Cut 100Hz, -18dB / Octave
Hi-Shelving +15dB / -15dB, Cut off frequency = 10kHz
Mid Peaking
(MONO): +15dB / -15dB, 100Hz to 8kHz Variable
(STEREO): +15dB / -15dB, Center frequency = 600Hz
MID Band Q Fix, 0.55
Low-Shelving +15dB / -15dB, Cut off frequency = 80Hz
Master section EQ
Hi-Shelving +15dB / -15dB, Cut off frequency = 10kHz
MID-WIDE Peaking
+15dB / -15dB, 100Hz to 8kHz Variable, Q: 0.5 FIX
MID-NARROW Peaking
+15dB / -15dB, 100Hz to 8kHz Variable, Q: 5 FIX
Low-Shelving +15dB / -15dB, Cut off frequency = 60Hz
Internal Effects
Type 1 SMALL HALL / 2 LARGE HALL / 3 SMALL ROOM / 4 LARGE ROOM / 5PLATE / 6 STUDIO / 7 LIVE / 8 SHORT DELAY/ 9 DELAY / 10 PINGPONG / 11 CHORUS / 12 FLANGER / 13 DELAY + S.HALL / 14 DELAY+ L.HALL / 15 CHORUS + S.HALL / 16 CHORUS + L.HALL
Power AC 100 to 240V, 50/60Hz
Power Consumption 40 W
Dimensions 430(W) × 112.9(H) × 463(D)mm
16.9(W) × 4.45(H) × 18.2(D)inch
(including knob height and protrusion)
Weight 7 kg / 15.4 lb
Operating Temperature 5 to 35 ˚C / 41 to 95 ˚F
Include Items AC Cord, Owner's manual (incl. Warranty card)
Audio Performance
Residual Output Noise -100dBu (MAIN OUT, MAIN fader: MIN)
Equivalent Input Noise -127dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Total Harmonic Distortion 0.01% or less (MIC IN to MAIN OUT, Max input level, +10dBu, 1kHz, GAIN min.)
0.004% or less (MIC IN to MAIN OUT, nominal input level, +4dBu, 1kHz, GAIN min.)
Frequency Response 20Hz to 30kHz (+0.5/-1.0dB: Analog)
20Hz to 20kHz (+0.5/-1.0dB: Digital)
Crosstalk -80dB, channels / input and output
(1kHz, PAN fully counter clockwise / fully clockwise)
Maximum Gain 74dB (MIC->MAIN OUT)
50dB (MIC->INSERT OUT)
74dB (MIC->SUB OUT)
79dB (MIC-CR OUT)
75dB (MIC->MONITOR OUT)
75dB (MIC->FX OUT)
24dB (USB/SD -> MAIN OUT)
(EQ flatten, PAN fully counter clockwise / fully clockwise)
Windows
Compatible Computers Windows-compatible computer with a USB2.0 port
CPU Dual core / 2GHz or faster
Memory 2GB or more
Driver USB Audio Class 2.0, ASIO2.0, WDM (MME)
Screen Resolution 1280 × 800 Dots or more
Macintosh
Compatible Computers Apple Macintosh computer with a USB2.0 port
CPU Dual core / 2GHz or faster
Memory 2GB or more
Driver Core Audio
Screen Resolution 1280 × 800 Dots or more
Supported OS
Windows Windows 10 (May 2019 Update) , Windows 8.1 , Windows 7
Mac macOS Catalina , macOS Mojave , macOS High Sierra (10.13) , macOS Sierra‎ (10.12) , OS X El Capitan (10.11)
