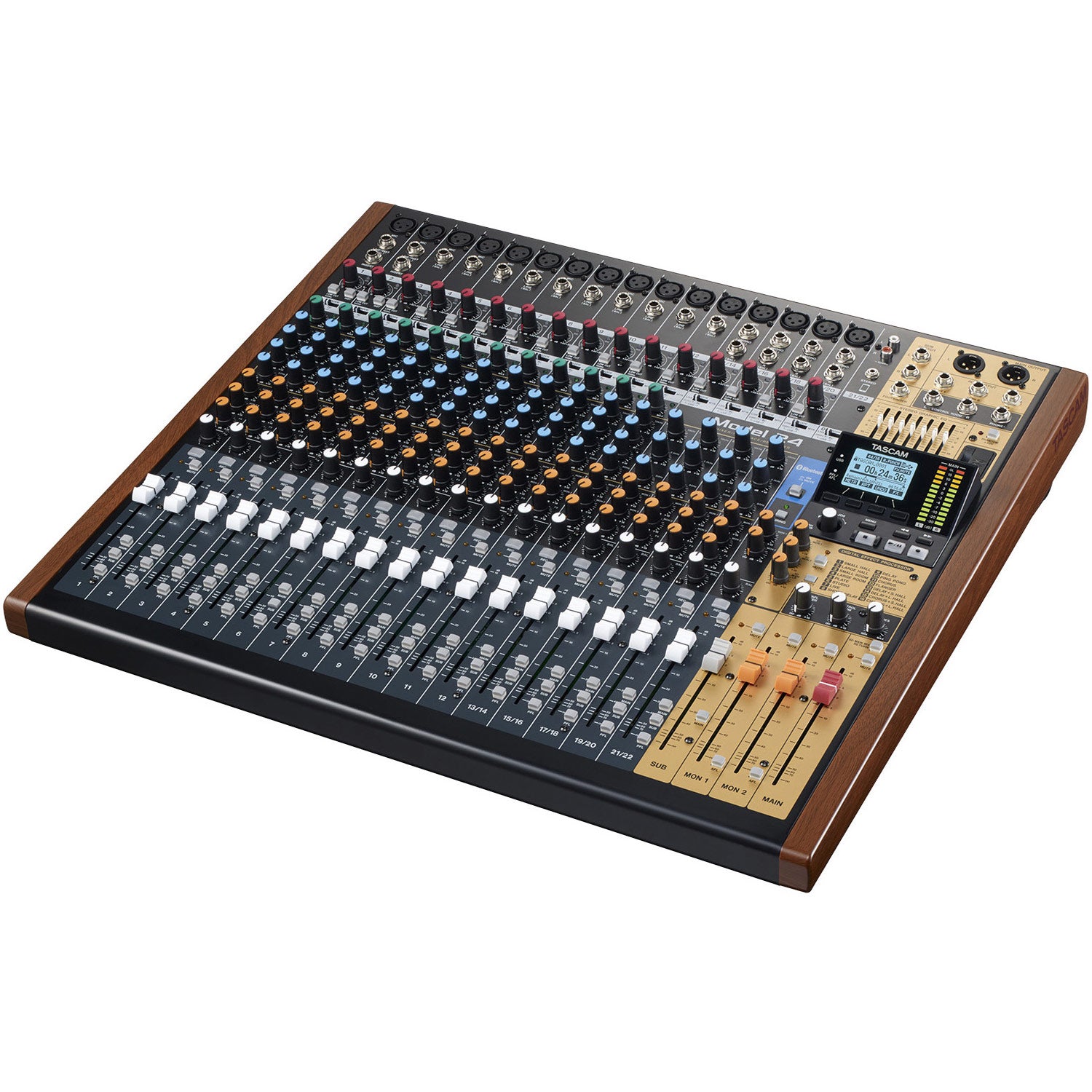

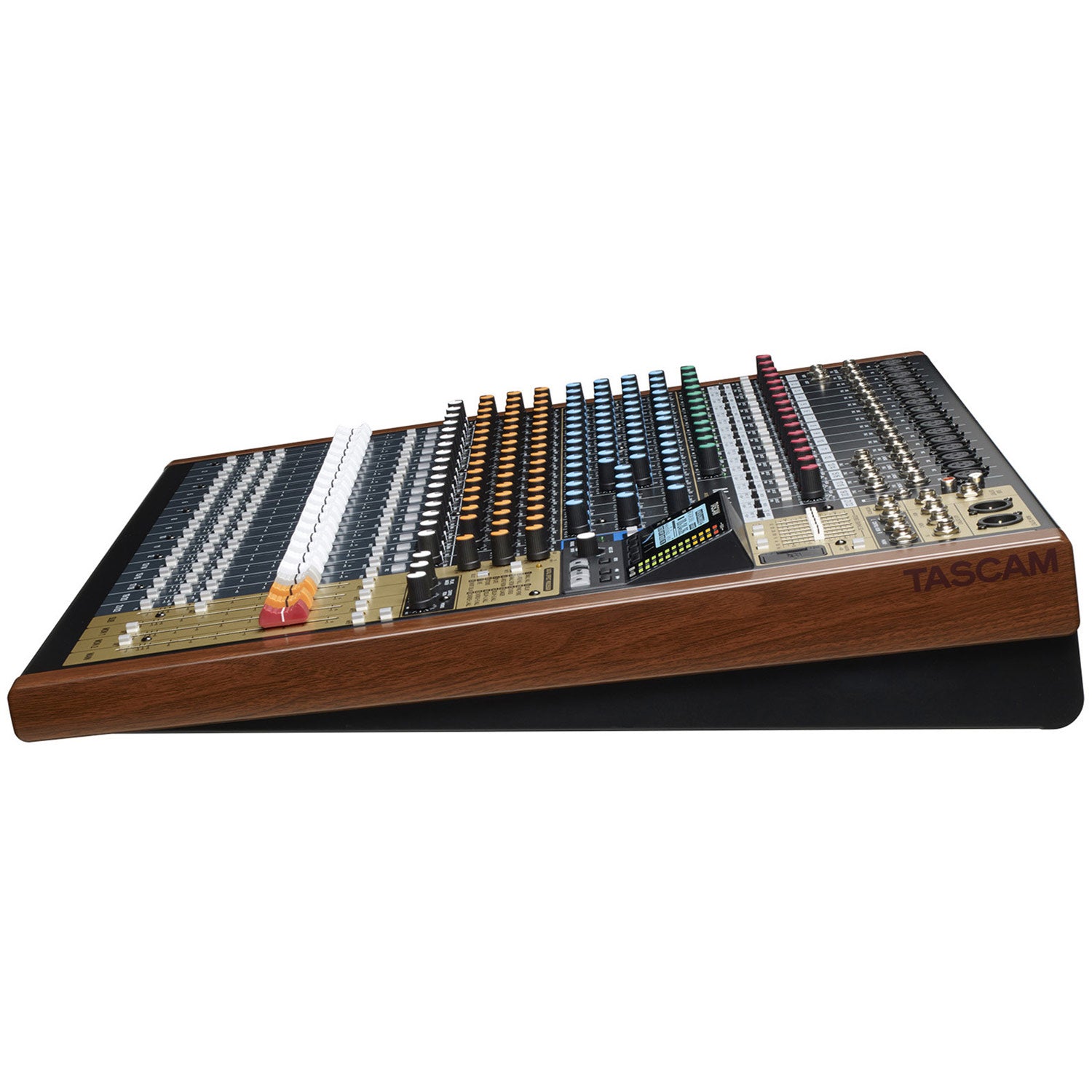

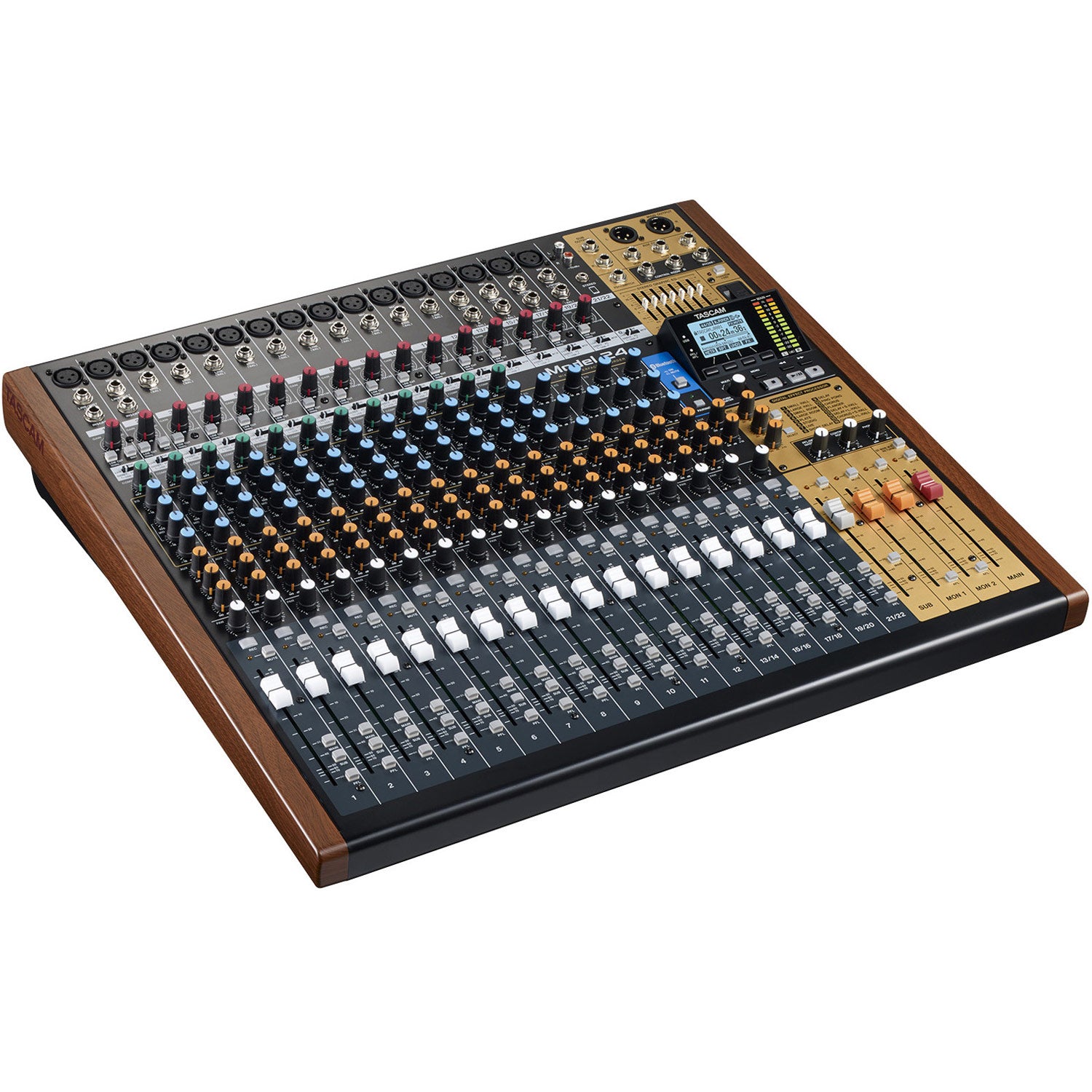

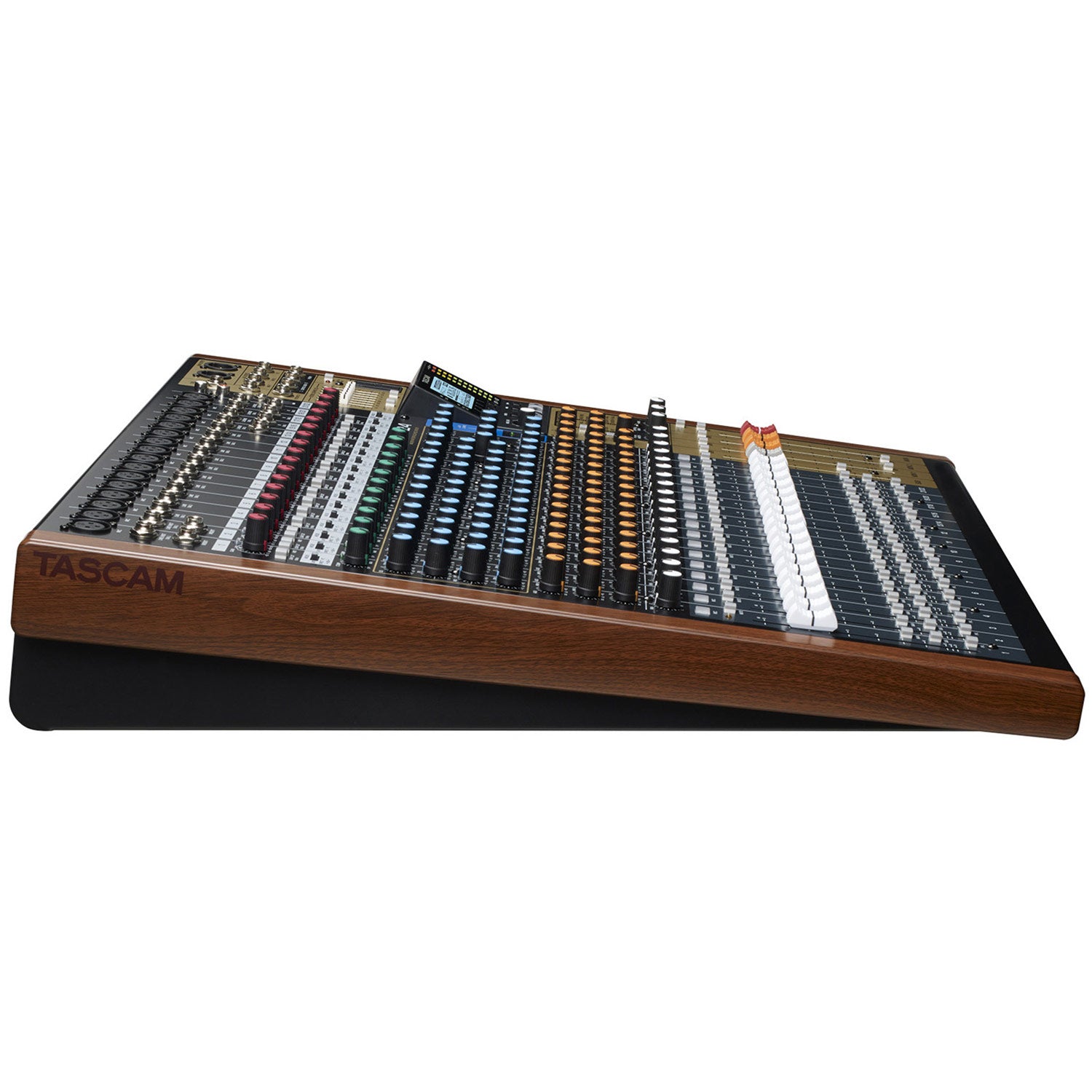

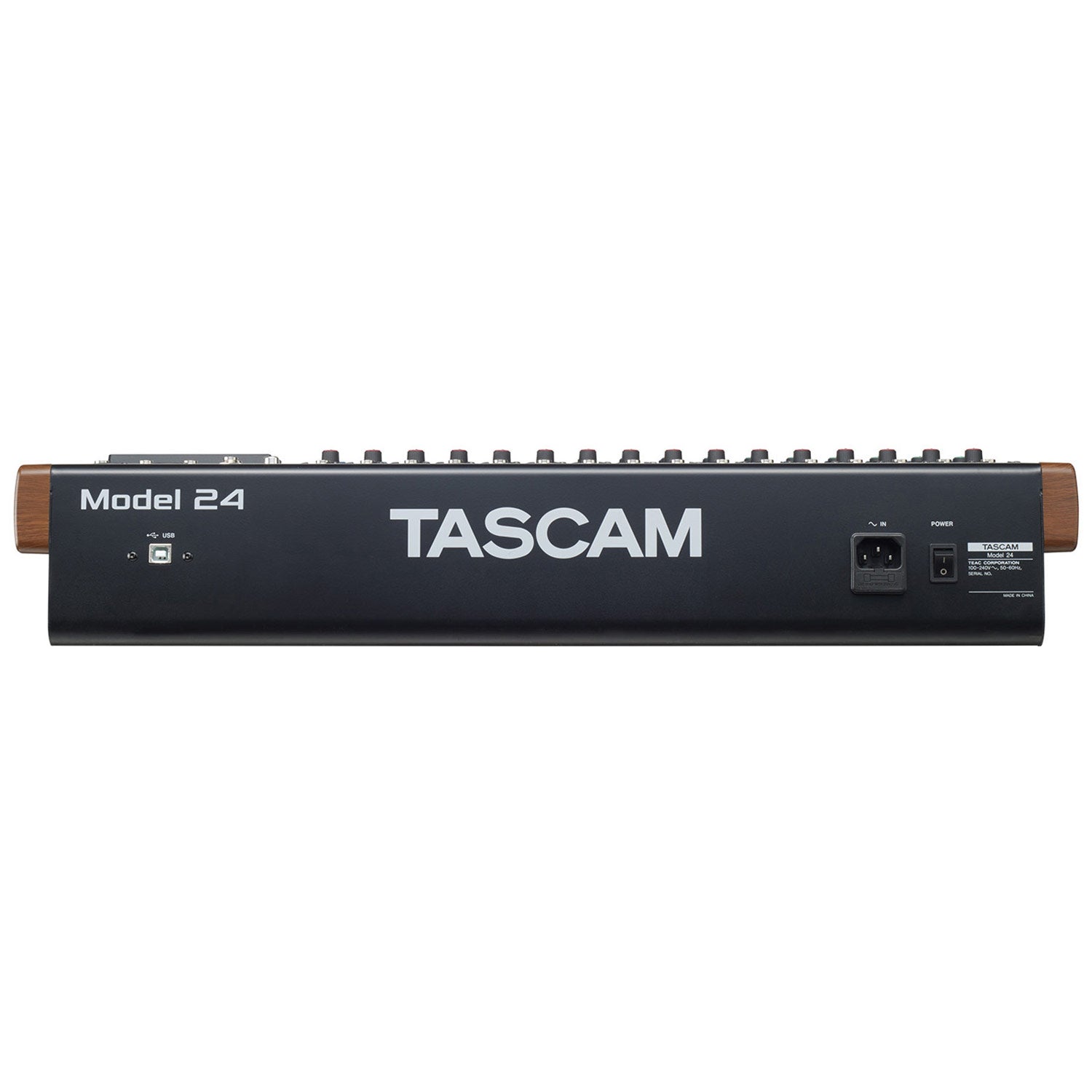

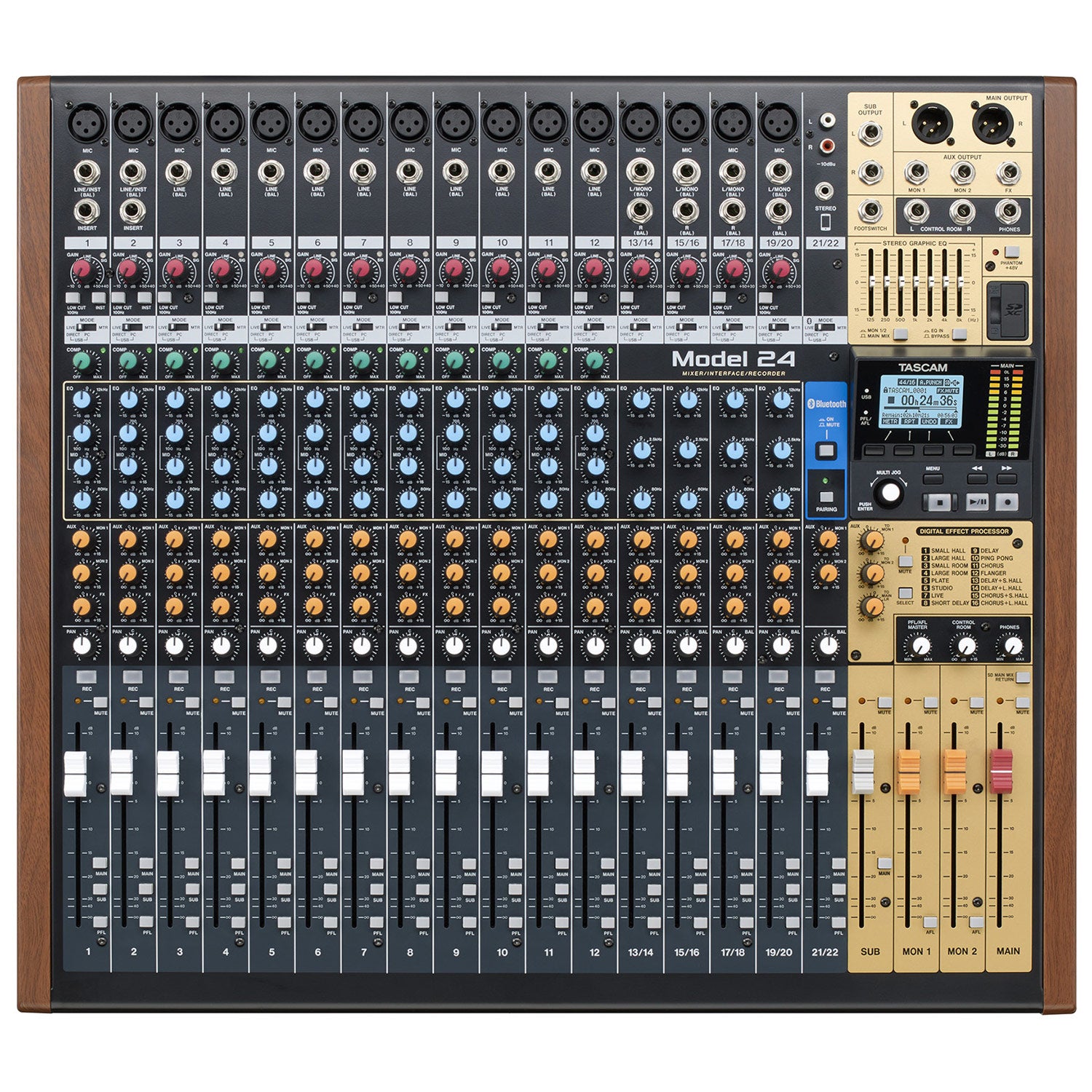

Tascam Model 24 Mixer / Interface / Recorder

  • Dale #:

    TASC-MODEL24
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Model 24 is a powerful, versatile, hybrid mixer for both live and recording that integrates a full-featured 22-channel professional mixer, a 24-track internal digital recorder, and a 22 X 24 USB audio interface. Model 24 is perfect for performance, recording, or both simultaneously. Mixer Fea... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Model 24 is a powerful, versatile, hybrid mixer for both live and recording that integrates a full-featured 22-channel professional mixer, a 24-track internal digital recorder, and a 22 X 24 USB audio interface. Model 24 is perfect for performance, recording, or both simultaneously.

Mixer Features:

  • 22 total input channels
  • 16 microphone preamps with 48V Phantom power
  • 2 Hi-Z instrument inputs
  • 20 balanced line inputs - 12 mono, 4 stereo
  • 1 stereo multi-input channel for Bluetooth, USB, RCA or 1/8"stereo input
  • Main and Sub stereo buses
  • 3 AUX sends (MON 1, MON2 and Effects)
  • 1 knob compressor for channels 1-12
  • 7-band graphic stereo EQ selectable for Main and Monitor outputs
  • Wireless Bluetooth® connectivity and playback
  • Onboard multi-effects processor with 16 effects selections
  • 100mm faders capable of fine adjustment
  • Independent input channel assign for live, internal MTR, or USB playback

Recorder Features:

  • Multitrack recording function similar to the legendary TASCAM Portastudio
  • 24 tracks (22 tracks + stereo master) can be recorded internally
  • Multi-channel playback for advanced live performance backing or mixing
  • Punch in/out recording capability

Audio Interface Features:

  • USB 2.0 audio interface
  • 24 in (22 input channels + stereo master)
  • 22 out
  • Up to 24-bit/48kHz recording quality


Recording. Reinvented.
TASCAM has continuously been providing industry-leading recording solutions for decades, such as the TASCAM 38 Open Reel 8-track, the DA-88 Digital 8-track and the legendary Portastudio Cassette and Digital Multitrack recorders. TASCAM now builds on this legacy to deliver a new classic: the Model 24 Multitrack Recorder/Mixer/Interface.

Whether used for rehearsal, live shows or studio production, this triple-function recording console perfectly meets the needs of today's working and recording musician.

Simple, Intuitive Design
One glance is all you need. The TASCAM Model 24 was developed for easy and immediate operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need to menu diving, and all input/output connections are all on the surface for quick and easy access.

The Model 24 is truly a modern take on a classic design.

TASCAM's Revolutionary Recording Technology
Featuring 16 high-grade TASCAM mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it's time to record The TASCAM Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to support punch in/out 8 tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for immediate mixdown.

Flexible Connectivity
In addition to the studio quality mic preamps and powerful EQ and routing options the Model 24 features a dedicated stereo channel 1/8", dual RCA Bluetooth™ connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finaly, the TASCAM Model 24 can also act as a powerful audio interface and will connect directly to your PC or Mac for easy integration with your DAW of choice.

Durability and Reliability
Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that TASCAM's legendary reliability will keep the music going.

More +

Product Specs

Recording section
Supported Media SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 128GB)
File System SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
Recording File Format WAV
Playback Format WAV, MP3
Sampling Frequency 44.1k / 48k Hz
Bit Depth 16 / 24-bit
Recordable Channel Max. 24 channels (22ch + 2 stereo mix)
Audio Inputs
MIC IN CH1 to 13, 15, 17, and 19
Connector XLR 3-31 (1: GND, 2: HOT, 3: COLD)
Maximum Input Level +10dBu
Nominal Input Level –8dBu
Minimum Input Level –58dBu
Gain Adjustable Range 0 to 50dB
Input Impedance 1.8kΩ
LINE IN CH1 to 20
Connector 1/4" (6.3mm) TRS Phone jack (Balanced)
Maximum Input Level +22dBu
Nominal Input Level +4dBu
Gain Adjustable Range –10 to +40dB: CH1 to 12, +20 to +30dB: CH13/14 to 19/20
Input Impedance 22kΩ
INSERT CH 1 and 2
Connector 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)
Return (Ring)
  Nominal Input Level 0dBu
  Maximum Input Level +18dBu
  Input Impedance 10kΩ
Send (Tip)
  Nominal Input Level 0dBu
  Maximum Input Level +18dBu
  Input Impedance 100Ω
RCA INPUT
Connector RCA Pin jack (Unbalanced)
Maximum Input Level +8dBV
Nominal Input Level –10dBV
Input Impedance 10kΩ
STEREO INPUT
Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
Maximum Input Level +8dBV
Nominal Input Level –10dBV
Input Impedance 10kΩ
OUTPUTS
MAIN OUTPUT
Connector> XLR 3-32 (1: GND, 2: HOT, 3: COLD)
Maximum Output Level +4dBu
Nominal Output Level +22dBu
Output Impedance 100Ω
SUB OUT, MONITOR, FX OUT CONTROL ROOM OUT
Connector> 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND)
Nominal Output Level –2dBu
Maximum Output Level +16dBu
Output Impedance 100Ω
PHONES OUT
Connector 1/4" (6.3mm) Stereo Phone jack
Output Level 80mW + 80mW (32Ω loaded)
PHANTOM POWER 48V
REMOTE Compatible with TASCAM RC-1F Foot Switch
Connector 1/4" (6.3mm) TS Phone jack
USB Audio for connection with PC
Connector USB B type
Sampling Rate 44.1k / 48k Hz
Bit Depth 16 / 24-bit
Maximum INPUT and OUTPUT 24 Inputs / 22 Outputs
USB
Connector USB Mini-B type 4-pin
Format USB2.0 High-Speed, Mass-storage class/USB Audio Class
Bluetooth®
Output Class Class 2 (Transmission range: approx. 33ft. / 10 m)
* Transmission range may vary, depending on surroundings.
Bluetooth® version 4.0
Supported Profile A2DP, AVRCP 1.0
Supported A2DP Codecs SBC, AAC
A2DP Content Protection SCMS-T
Channel EQ
Low-Cut 100Hz, –18dB / Octave
Hi-Shelving +15dB / –15dB, Cut off frequency: 12kHz
Mid Peaking
(MONO): +15dB / –15dB, 100Hz to 8kHz Variable
(STEREO): +15dB / –15dB, Center frequency = 600Hz
MID Band Q Fix, 0.55
Low-Shelving +15dB / –15dB, 100Hz, Center frequency = 80Hz
Graphic EQ
Band 7-Band
Frequency 125 / 250 / 500 / 1k / 4k / 8k Hz
Gain +15dB / –15dB
FX
Type 1 SMALL HALL / 2 LARGE HALL / 3 SMALL ROOM / 4 LARGE ROOM / 5 PLATE / 6 STUDIO / 7 LIVE / 8 SHORT DELAY/ 9 DELAY / 10 PING PONG / 11 CHORUS / 12 FLANGER / 13 DELAY + S.HALL / 14 DELAY + L.HALL / 15 CHORUS + S.HALL / 16 CHORUS + L.HALL
Power AC 100 to 240V, 50/60Hz
Power Consumption 52 W
Dimensions (W×H×D) 576 × 513 × 112.5 mm (including side panels, knobs and connectors)
540 × 503 × 112.5 mm (excluding side panels. including knobs and connectors)
including Side panels 22.67" × 20.20" × 4.43" / 576 × 513 × 112.5 mm (including knobs and connectors)
excluding Side panels) 20.26" × 19.80" × 4.43" / 540 × 503 × 112.5 mm (including knobs and connectors)
Weight 22.04 lbs. / 10 kg
Operating Temperature 41˚ to 95˚F / 5˚ to 35˚C
Include Items AC Cord, Owner's manual (incl. Warranty card)
Residual Output Noise –102dBu (MAIN OUT, MAIN fader: MIN)
Equivalent Input Noise –128dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Total Harmonic Distortion 0.01% or less (MIC IN to MAIN OUT, Max input level, 1kHz, GAIN min.)
Frequency Response 20Hz to 30kHz (+0.5/–1.0dB: Analog)
20Hz to 20kHz (+0.5/–1.0dB: Digital)
Crosstalk –80dB, channels/input and output (1kHz, PAN fully counter clockwise/fully clockwise)
Maximum Gain 74dB (MIC to MAIN OUT)
50dB (MIC to INSERT OUT)
74dB (MIC to SUB OUT)
79dB (MIC to CR OUT)
75dB (MIC to MONITOR OUT)
75dB (MIC to FX OUT)
24dB (USB/SD to MAIN OUT)
(EQ and-EQ flatten, PAN fully counter clockwise/fully clockwise)
Computer System Requirements
Windows
Compatible Computers Windows-compatible computer with a USB2.0 port
OS Windows 10 (April 2018 Update) New , Windows 8.1 , Windows 7
CPU Dual core / 2GHz or faster
Memory 2GB or more
Driver USB Audio Class 2.0,  ASIO2.0, WDM (MME)
Screen Resolution 1280 × 800 Dots or more
Macintosh
Compatible Computers Apple Macintosh computer with a USB2.0 port
OS macOS High Sierra (10.13) , macOS Sierra‎ (10.12) , OS X El Capitan (10.11)
CPU Dual core / 2GHz or faster
Memory 2GB or more
Driver Core Audio
Screen Resolution 1280 × 800 Dots or more
