Tascam MZ-372 Industrial-Grade Zone Mixer


  • Dale #:

    TASC-MZ372
  • Availability:

    Not in Stock But We'll Ship ASAP
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Designed for permanent installation, the TASCAM MZ-372 offers versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package. For maximium flexibility, source content can include music, spoken word (microphone), turntable, and more – all easily contro... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Designed for permanent installation, the TASCAM MZ-372 offers versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package. For maximium flexibility, source content can include music, spoken word (microphone), turntable, and more – all easily controlled via familiar sliders and assignment controls.

Features:

  • Maximum flexibility for audio routing, input selection, and multiple redundant output flow, perfect for integrator, musical instrument, and residential applications
  • Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input “sets”
  • Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
  • Two redundant output channels each with stereo XLR balanced and unbalanced RCA-type connectors; each with separate volume control
  • Separate stereo booth, recording, and headphone outputs each with independent control
  • One additional mic-compatible XLR input on the front panel with “Talkover” function automatically lowering source audio
  • Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
  • Compact 3U rack mount design

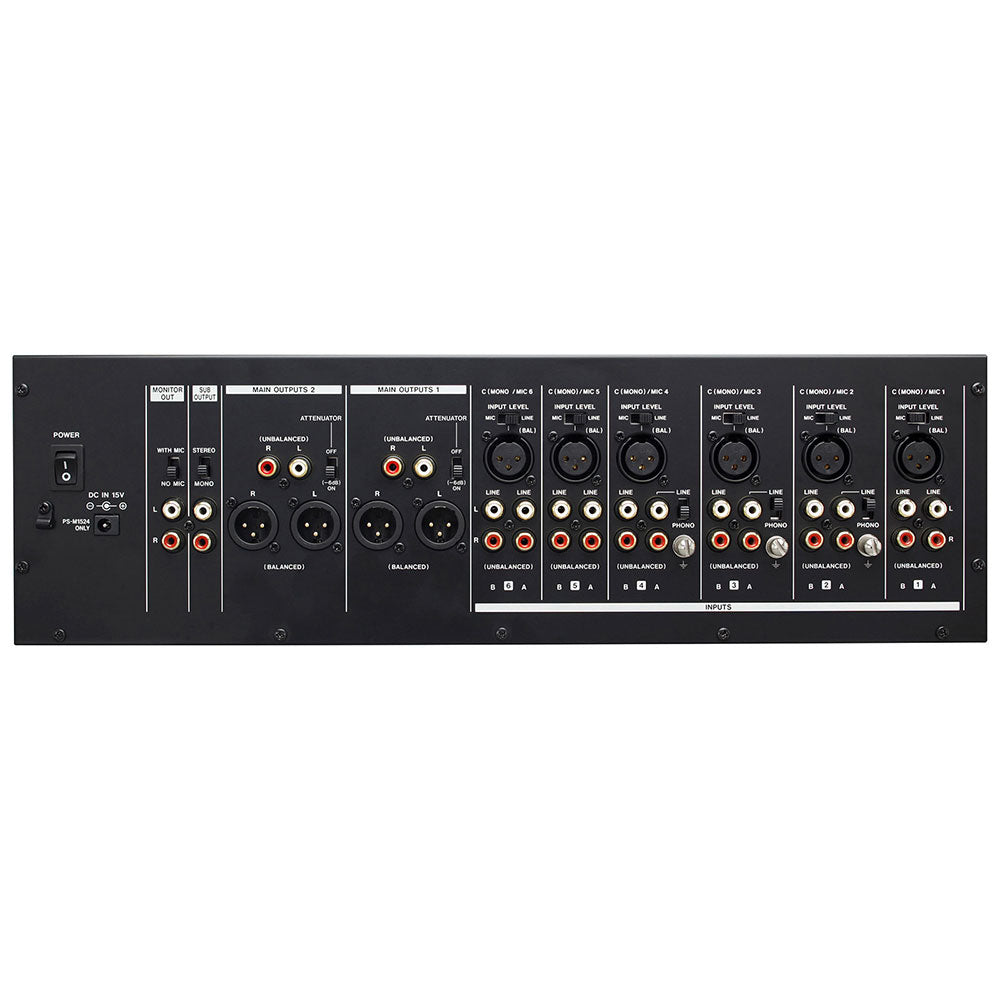

Flexible I/O
The MZ-372 allows multiple audio sources (19 total) to be mixed, muted, and routed to 2 redundant outputs, controlled by familiar volume sliders and assignment buttons. Input signals can be inserted via 6 audio channels, each consisting of 2 sets of unbalanced RCA stereo pairs, and 6 XLR inputs for a total of 12 sets of RCA inputs and 6 XLR inputs. In addition, channels 2/3/4 can be set to accommodate phono-level signals for use with a turntable. Lastly, and located conveniently on the front panel, one additional XLR input is available driving a studio quality mic preamp and ducking circuit for easy voiceover and announcement work.

Multiple Zone Outputs
Twin outputs each feature a combination of balanced XLR or RCA unbalanced connectors for easy integration into virtually any audio system. This flexibility allows combinations of microphones, CD/DVD/Blu-ray players, instruments - or any other audio source - to be selected or muted, and sent simultaneously to the dual outputs, each with it’s own volume control. Finally, the convenient “Talkover” function will automatically lower any mixed channel source so the microphone connected to the front panel can easily be can be heard in whichever zones you choose.

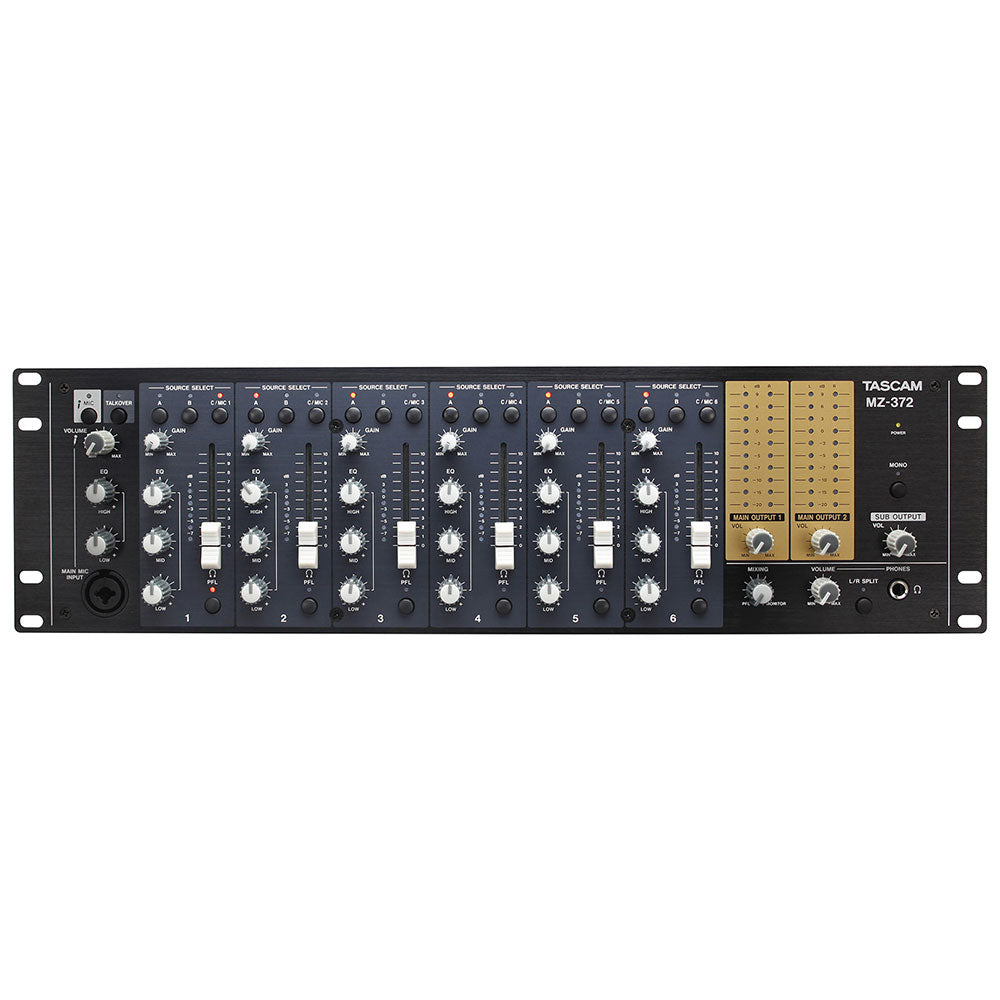

Easy, Immediate Control
Familiar volume sliders, switches/buttons, EQ knobs, and mute buttons make the MZ-372 simple and fast to operate and set up. There is even a master recording stereo output, which can send audio to an external recorder which makes event or music performance capturing easy. The Booth outputs provide another stereo feed with independent control for additional monitoring.

Simple channel operation
Each channel features an LED level meter and fader, input source selector, 3-band equalizer, and pre-fader monitor level control.

More +

Product Specs

Audio inputs
MAIN MIC INPUT (Balanced)
Connectors XLR 3-31 / 1/4" (6.3mm) TRS combo jack × 1
(1: GND, 2: HOT, 3: COLD) / (Tip: HOT, Ring: COLD, Sleeve: GND)
Nominal input level
VOLUME knob at MAX –65dBu
VOLUME knob at MIN –30dBu
Input impedance 33kΩ
MIC INPUTS (Balanced)
Connectors XLR 3-31 × 6 (1: GND, 2: HOT, 3: COLD)
Set to MIC
Maximum input level –30dBu
Minimum input level –65dBu
Input impedance 33kΩ
Set to LINE
Maximum input level –1dBu
Minimum input level 20dBu
Input impedance 22kΩ
LINE INPUTS (Unbalanced)
Connectors RCA Pin jack × 12 pairs
Nominal input level –10dBV
Maximum input level 10dBV
Input impedance 22kΩ
Audio outputs
MAIN OUTPUTS (Unbalanced)
Connectors RCA Pin jack × 2 pairs
Rated output level –10dBV
Maximum output level 6dBV
Output impedance 200Ω
MAIN OUTPUTS (Balanced)
Connectors XLR 3-31 × 2 pairs (1: GND, 2: HOT, 3: COLD)
Rated output level 4dBu
Maximum output level 24dBu
Output impedance 200Ω
SUB OUTPUT
Connectors RCA Pin jack × 1 pair
Rated output level –16 dBV
Maximum output level 0dBV
Output impedance 200Ω
MONITOR OUT
Connectors RCA Pin jack × 1 pair
Rated output level –16 dBV
Maximum output level 0 dBV
Output impedance 200Ω
PHONES
Connectors 1/4" (6.3mm) Stereo phone jack × 1
Maximum output 50mW + 50mW (into 32Ω load)
Power Dedicated AC adapter (TASCAM PS-M1524)
Input voltage AC 100 - 240V, 50/60Hz
Output voltage DC 15V
Output current 2.4A
Power consumption 35W
Dimensions (W×H×D) 19.0" × 5.2" × 3.7" / 482 × 132 × 93.2 mm
Weight 7.1 lbs. / 3.2 kg
Accessory AC adapter (TASCAM PS-M1524), Cord for AC adapter (JAPAN USA/EUROPE) × each1, Rackmount screw kit, Owner's Manual (including warranty)
Audio performance
Frequency response 20Hz to 20kHz
Distortion 0.03% or less
S/N Ratio 80dB
Crosstalk 65dB
