Description

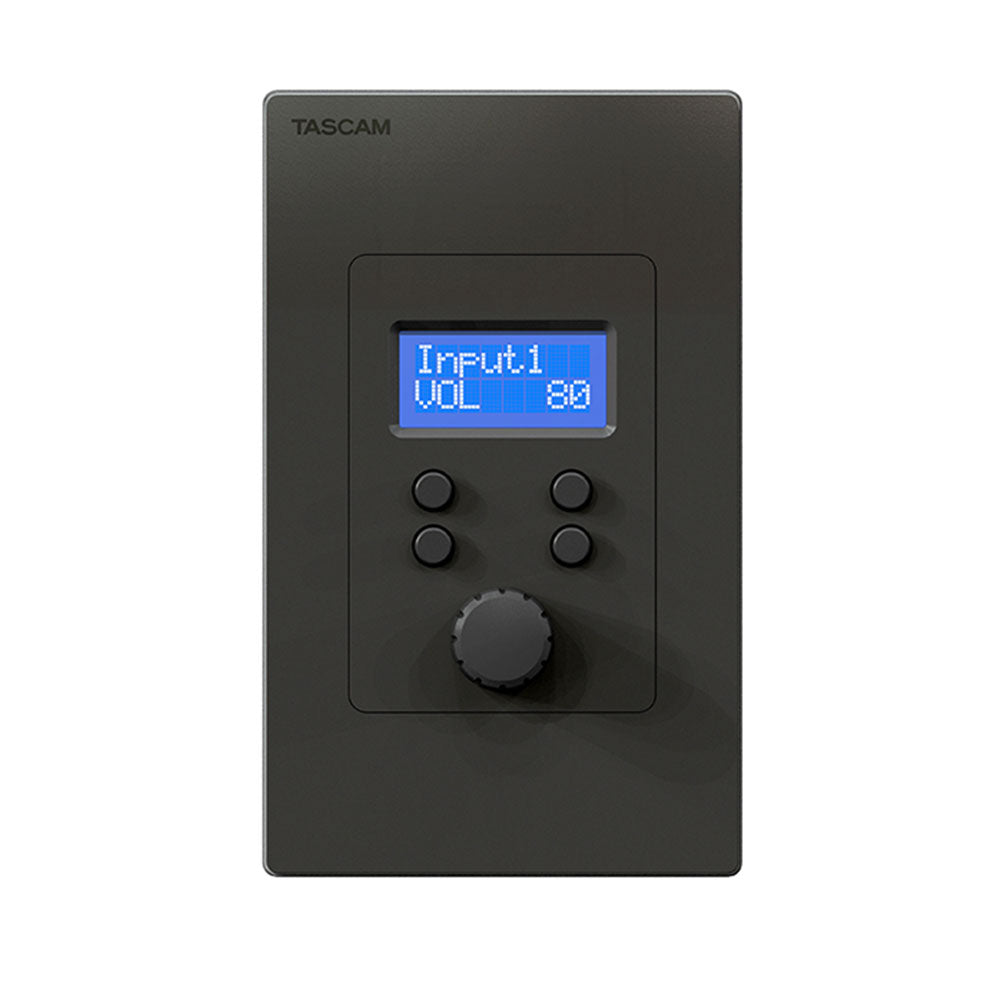

The RC-W100 for the MX-8A 8 Input /8 Output Matrix Mixer with DSP. Designed for quick and easy operation in meeting rooms, lecture halls, stores, restaurants, and multipurpose spaces, the RC-W100 Wall Mount Controllers incorporate an easy-to-read LCD display, one rotary encoder with a push switch, and four push button switches.
Input/output ratings | |
RS-485 connector * | |
Connector | RJ-45 x2 |
Cables | category 5e or higher cables |
General | |
Power | powered by MX-8A |
Power consumption | 0.24W |
Dimensions | 70 x 114 x 54 mm (W x H x D, including protrusions) |
Weight | 140g |
Operating temperature range | 0 - 40¡C (32 - 104¡F) |
Included items | Owner's Manual (including warranty) |
The RC-W100 for the MX-8A 8 Input /8 Output Matrix Mixer with DSP. Designed for quick and easy operation in meeting rooms, lecture halls, stores, restaurants, and multipurpose spaces, the RC-W100 Wall Mount Controllers incorporate an easy-to-read LCD display, one rotary encoder with a push switch, and four push button switches.
Input/output ratings | |
RS-485 connector * | |
Connector | RJ-45 x2 |
Cables | category 5e or higher cables |
General | |
Power | powered by MX-8A |
Power consumption | 0.24W |
Dimensions | 70 x 114 x 54 mm (W x H x D, including protrusions) |
Weight | 140g |
Operating temperature range | 0 - 40¡C (32 - 104¡F) |
Included items | Owner's Manual (including warranty) |
