Tascam SB-16D - 16x16 Dante Stage Box for SonicView Series

Offering the same performance and hardware quality as TASCAM Sonicview recording and live mixers, TASCAM SB-16D Dante-networked 16-in/16-out stage boxes offer all the advantages of Dante networking, combined with seamless integration with TASCAM Sonicview recording mixers. The stage boxes can be used as a floor stage box or rack mounted, and multiple stage boxes can be used simultaneously in a Dante network.

Features:

• 16 in/16 out Dante enabled stage box with redundancy
• 16 XLR mic/line inputs with +48 phantom power and SIG OL LED input signal/overload indicators
• 16 XLR line outputs with SIG OL LED output signal indicators
• Up to 96 kHz sampling and 32-bit precision
• Supports both floor installation and 3U rack mounting
• Fully controllable from connected TASCAM Sonicview mixers
• Remote control and offline editing using TASCAM IO Control app for macOS, Windows, and iPadOS
• Equipped with DC input and supports redundant power supply (DC power supply not included)

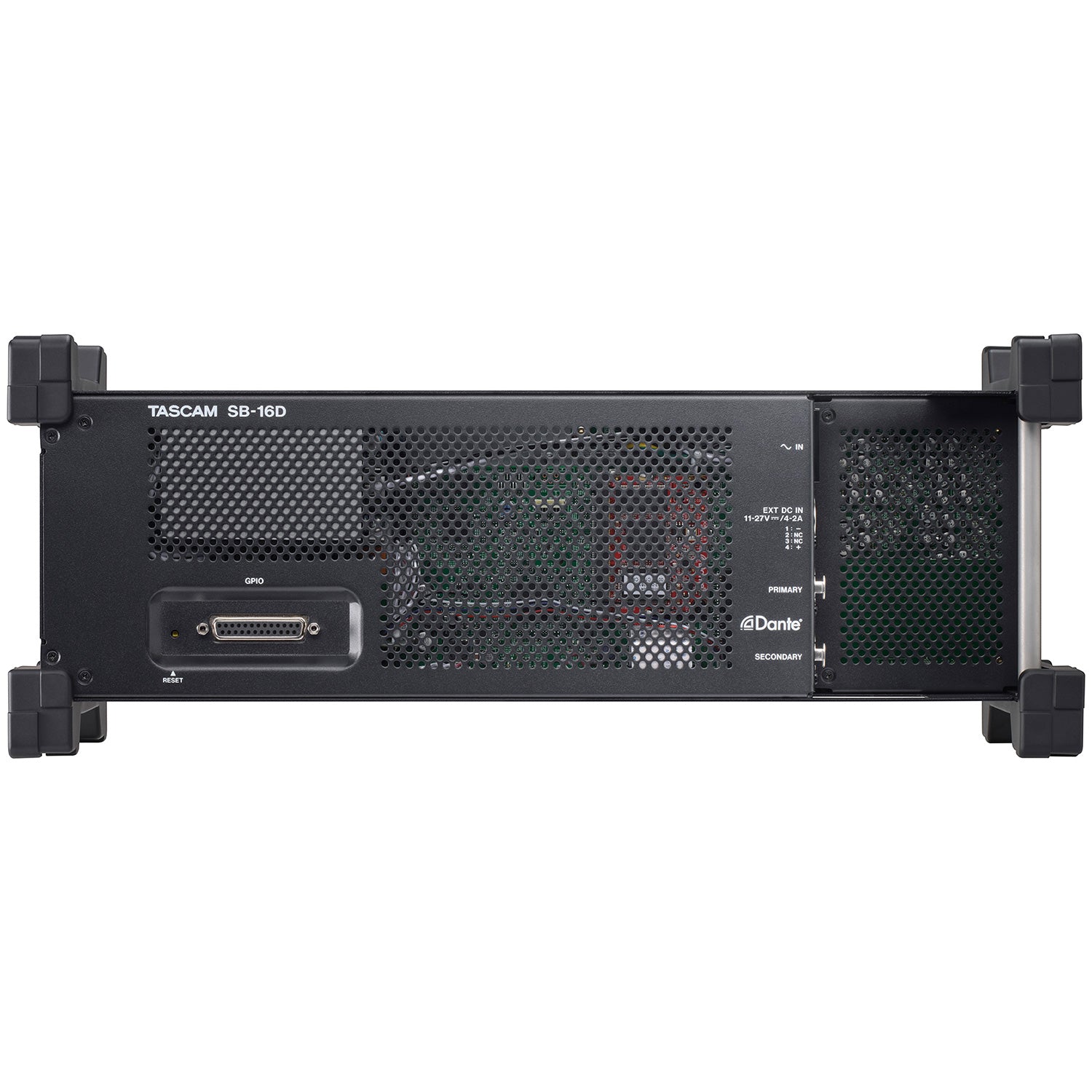

• Equipped with 8 in/8 out expansion GPIO terminals, expandable to 16 in/16 out when connected to a TASCAM Sonicview mixer
• Switchable reference level
• Equipped with etherCON compatible connectors as Dante connection
• Dante Domain Manager support
• AES67 interoperability
• SMPTE ST 2110 interoperability

Seamless Integration with TASCAM Sonicview Recording Mixers
When a SB-16D stage box is connected to a TASCAM Sonicview 16XP or 24XP recording mixer, microphone gain can be remotely controlled from the mixing console, and all SB-16D I/O comes up on the TASCAM Sonicview VIEW touch screens for hassle-free ease of use. In addition, the SB-16D is equipped with 8-in/8-out GPIOs, which expand to 16-in/16-out GPIOs when connected to a TASCAM Sonicview recording mixer, facilitating parallel control.

A Full Complement of I/O with the Features You Need

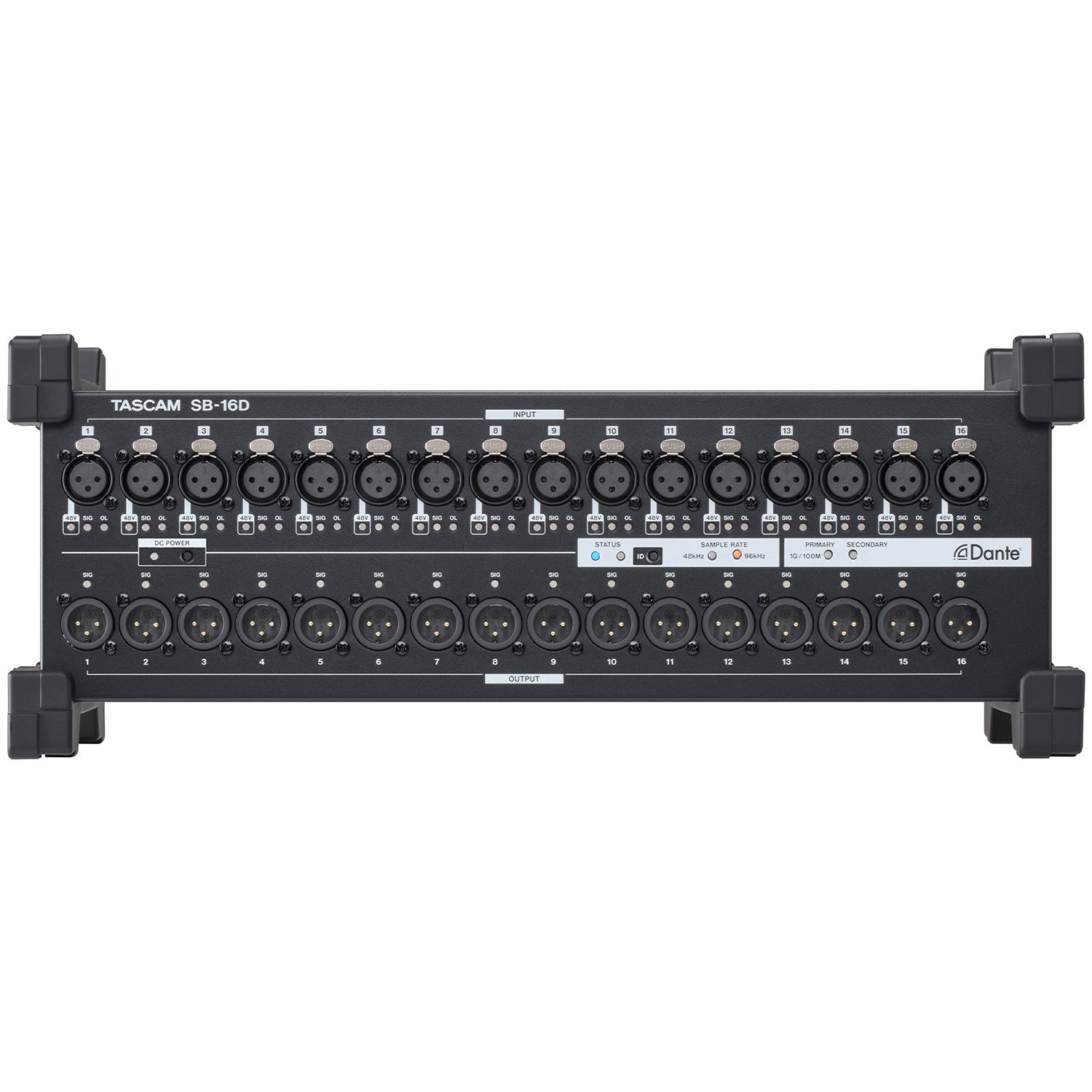

Easily accommodate large ensembles and extensive installed Dante systems using the SB-16D's 16 XLR mic/line inputs and 16 XLR line outputs. Need more I/O? Simply network multiple SB-16Ds.

The mic/line inputs are extremely quiet, achieving a -128 dBu EIN with a +32 dBu maximum input level. Each input channel has +48V phantom power and an SIG OL LED for input-level monitoring. Each line output also is equipped with SIG OL LEDs.

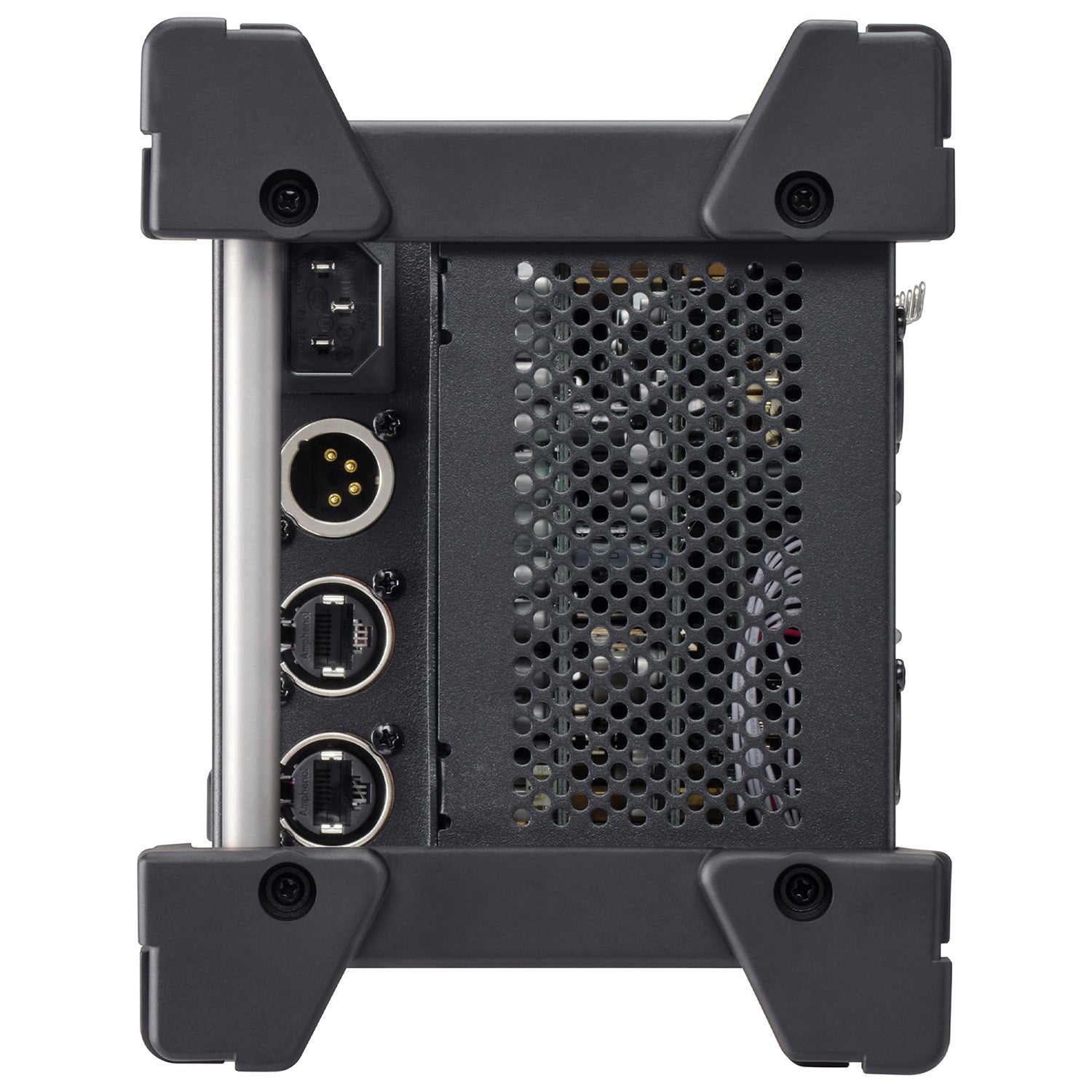

The SB-16D supports Dante Domain Manager in addition to AES67 and SMPTE ST 2110 interoperability. Two Dante ports equipped with etherCON-compatible Dante connectors enable redundant streams with robust connections. For additional system reliability, a DC power input is provided that supports a redundant power supply (not included).

Class 1 HDIA Mic Preamps and 32-bit ADCs for Best-in-Class Sound
As in TASCAM Sonicview recording mixers, each SB-16D microphone input feeds a TASCAM Class 1 HDIA (High Definition Instrumentation Architecture) preamp—the finest mic preamp TASCAM has ever made. Thanks to an instrumentation amplifier with extremely good noise characteristics in the first stage, Class 1 HDIA microphone preamps exhibit excellent EIN, signal-to-noise ratio, distortion ratio, and frequency response. The mic inputs can accept up to +32 dBu signals, providing plenty of headroom for sudden level increases.

As with TASCAM Sonicview recording mixers, the SB-16D uses 32-bit analog-to-digital converters and a 96 kHz sampling frequency. Repeated internal and external evaluations were conducted to fine-tune the SB-16D, ensuring best-in-class sound that will never disappoint.

Flexible Positioning for Floor and Rack Applications

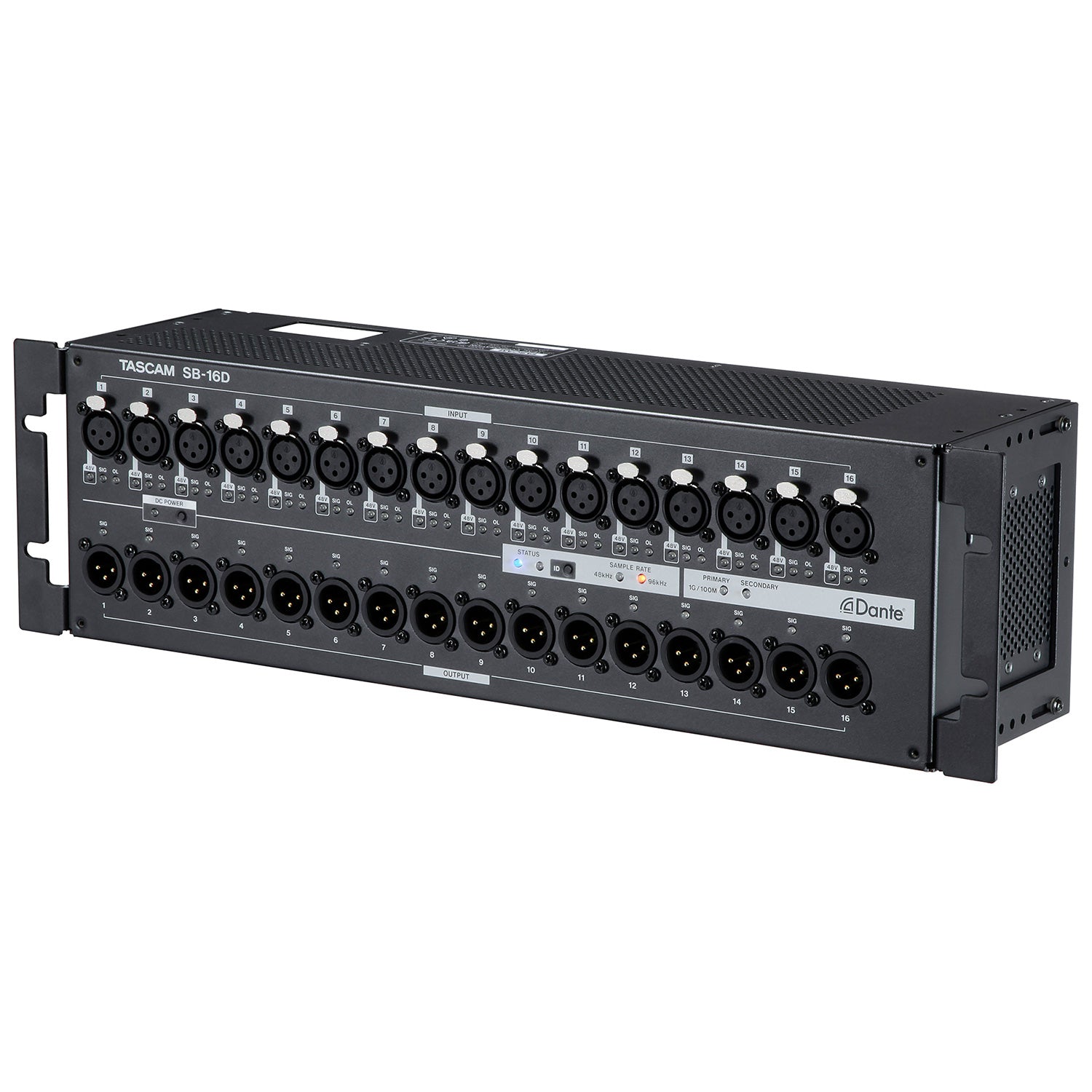

Whether you want a networked floor box for stage use, or rack-mounted inputs for recording and broadcast studios and commercial installs, the SB-16D provides the flexibility you need. It can be 3U rack-mounted with the included brackets, which offer two angle options. Mount the jack panel on the front of the rack and take advantage of the SB-16D's cable hole to conveniently and safely route connected cables in the back.

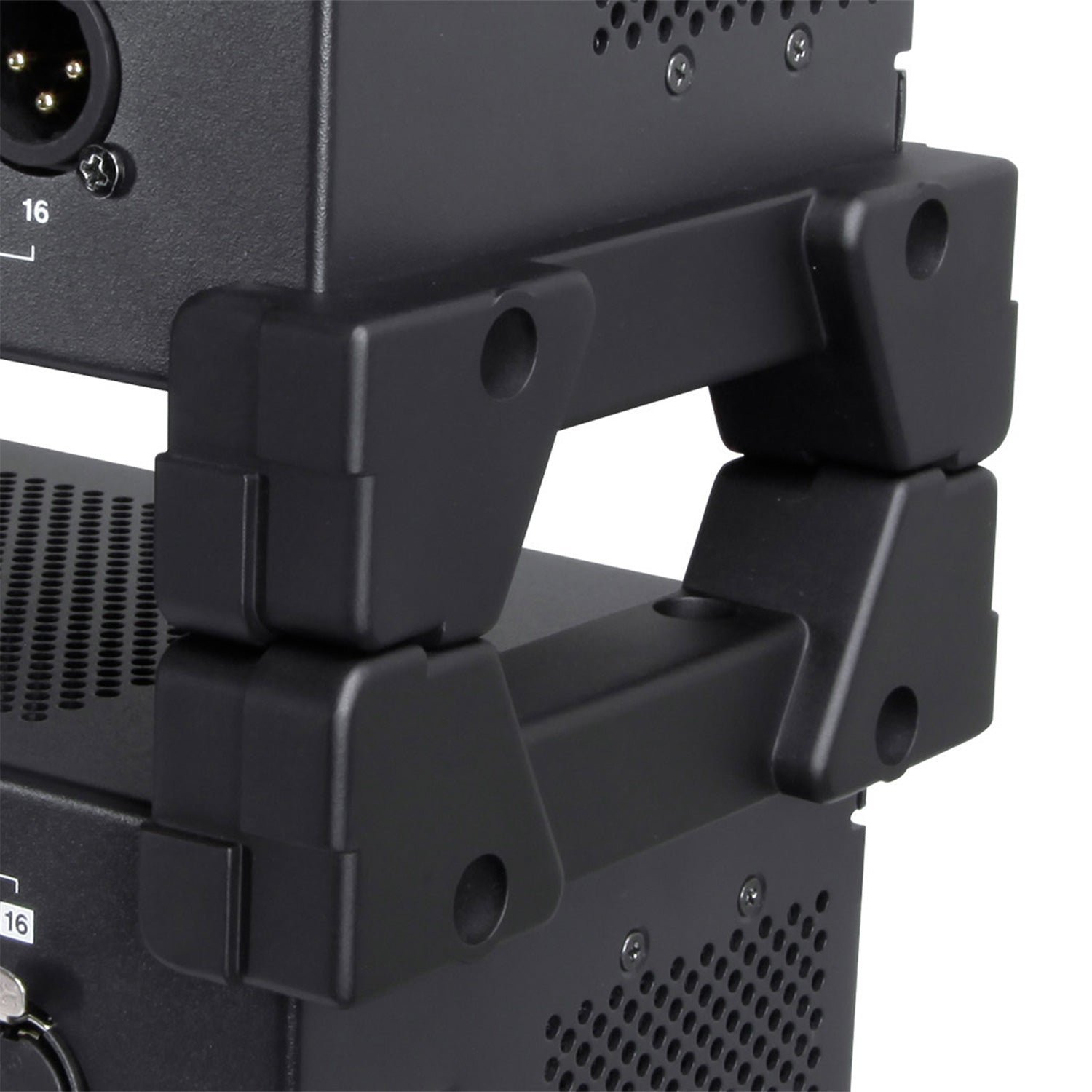

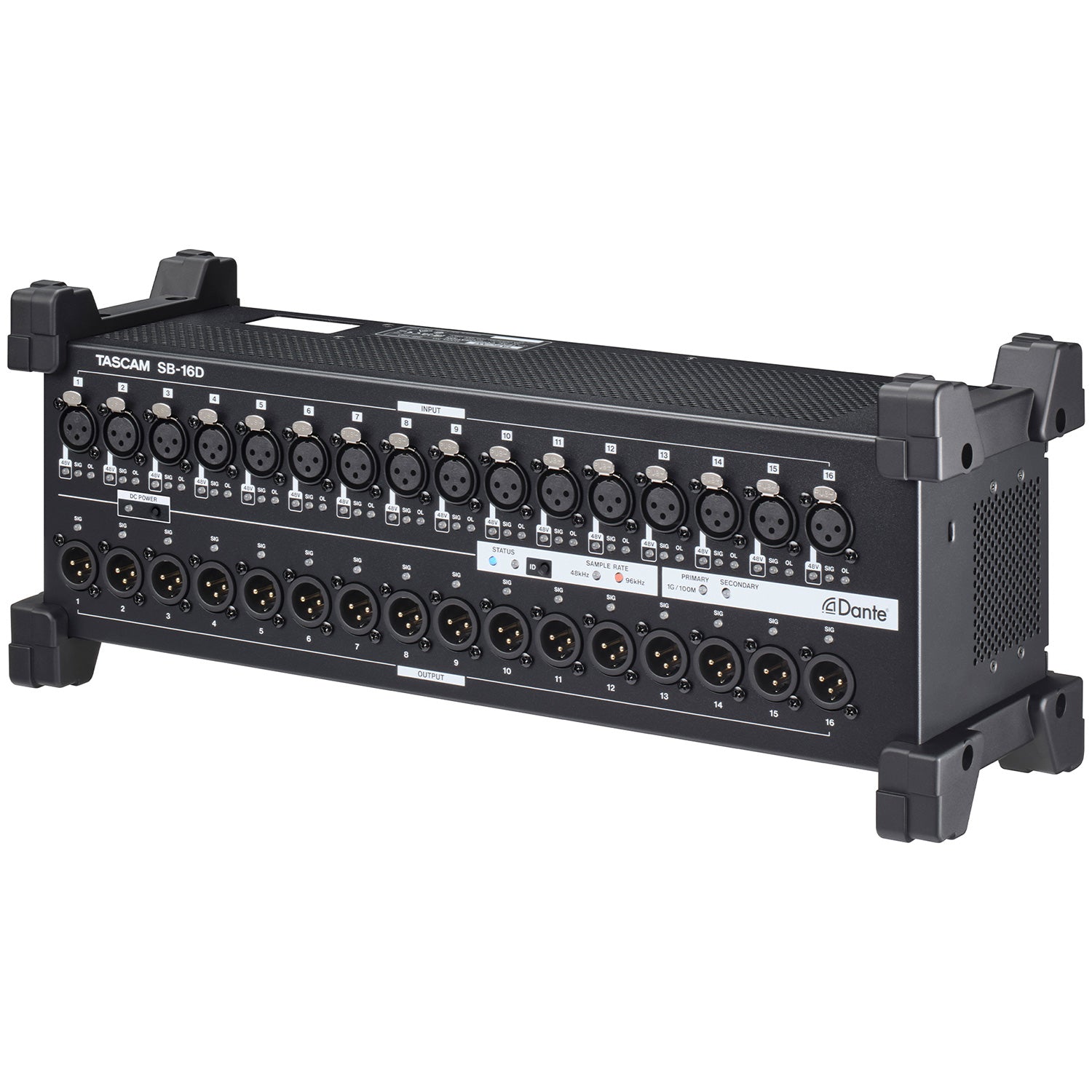

Large rubber feet maintain stability, even with cables connected, when the SB-16D is used as a floor box. Multiple stage boxes can be stacked for ease of transportation and stability during installation. A handle makes the SB-16D easy to carry.

TASCAM IO Control Remote Control App
Whether your SB-16D is onstage, backstage, in a control room, or in an equipment closet, you're always in full control with the free TASCAM IO Control software for macOS, Windows, and iPadOS. Manage your stage box from virtually anywhere in the venue, even when the SB-16D is used in standalone mode.

Included Items:

• SB-16D x 1
• Power cord (JAPAN USA/EUROPE/OCEANIA) x 3
• Rack mount angle(mounting screw)set x 1
• Rack mount screw kit x 1
• TASCAM ID registration guide x 1
• Owner's Manual with warranty x 1
