DALE SKU # TASC-STUDIOBRIDGE

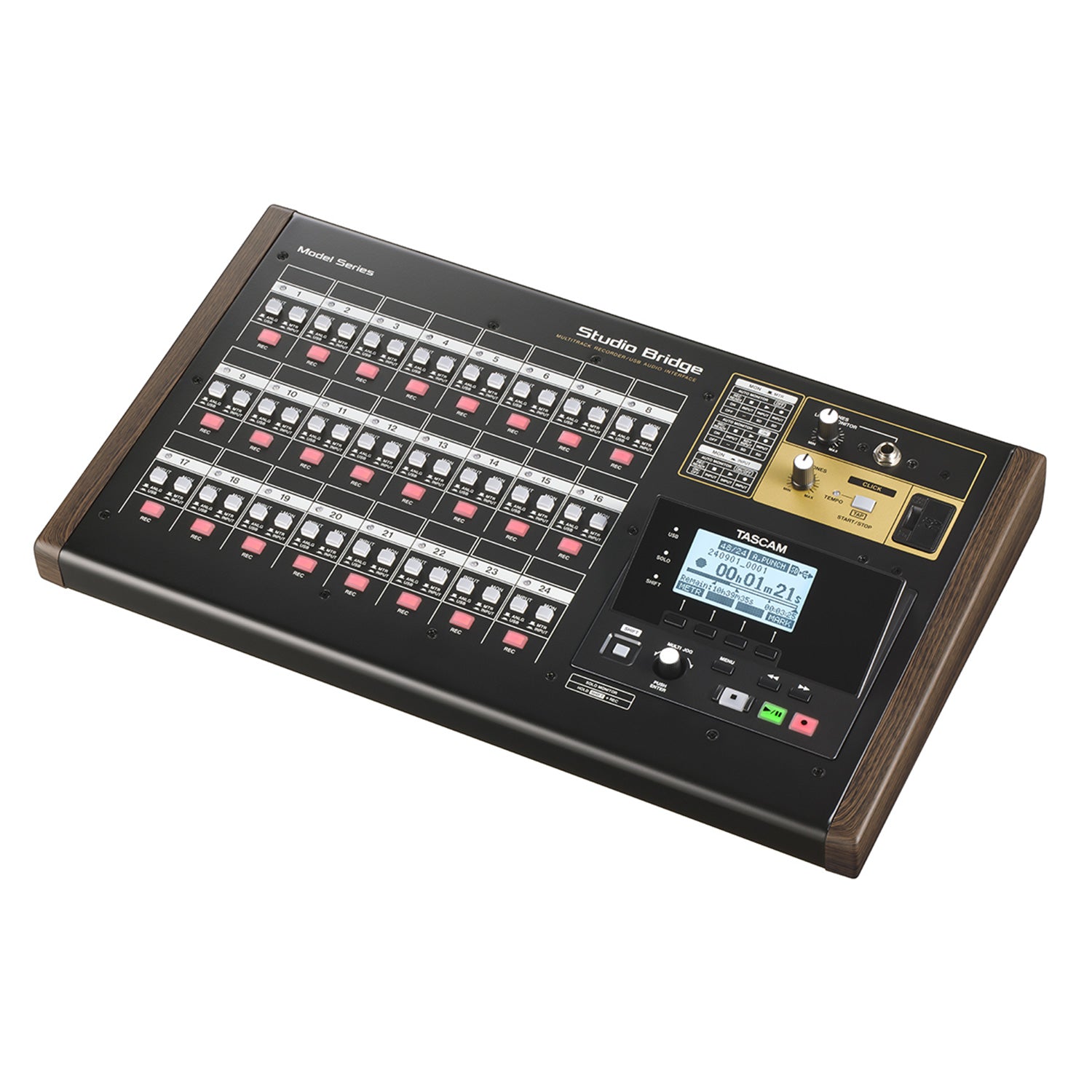

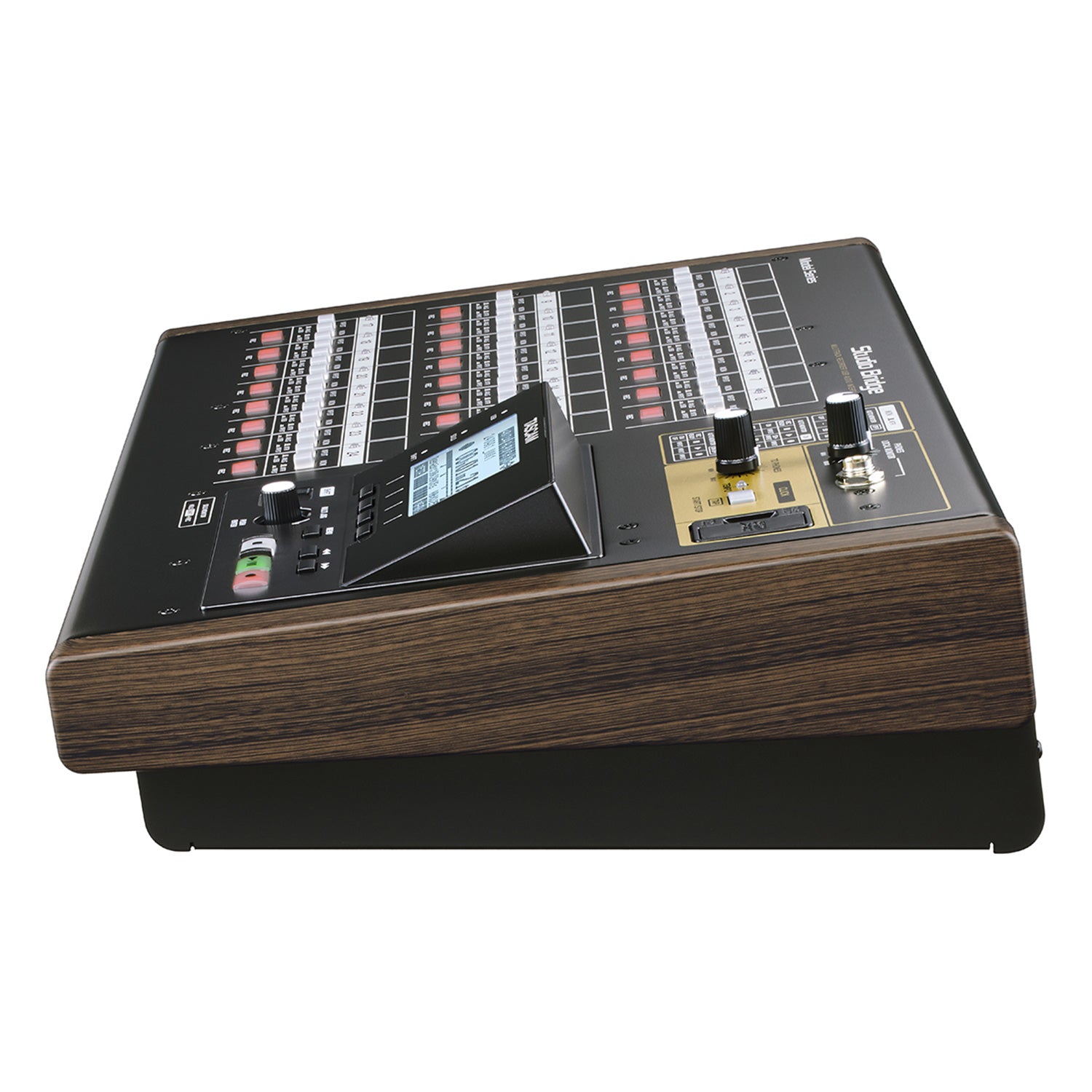

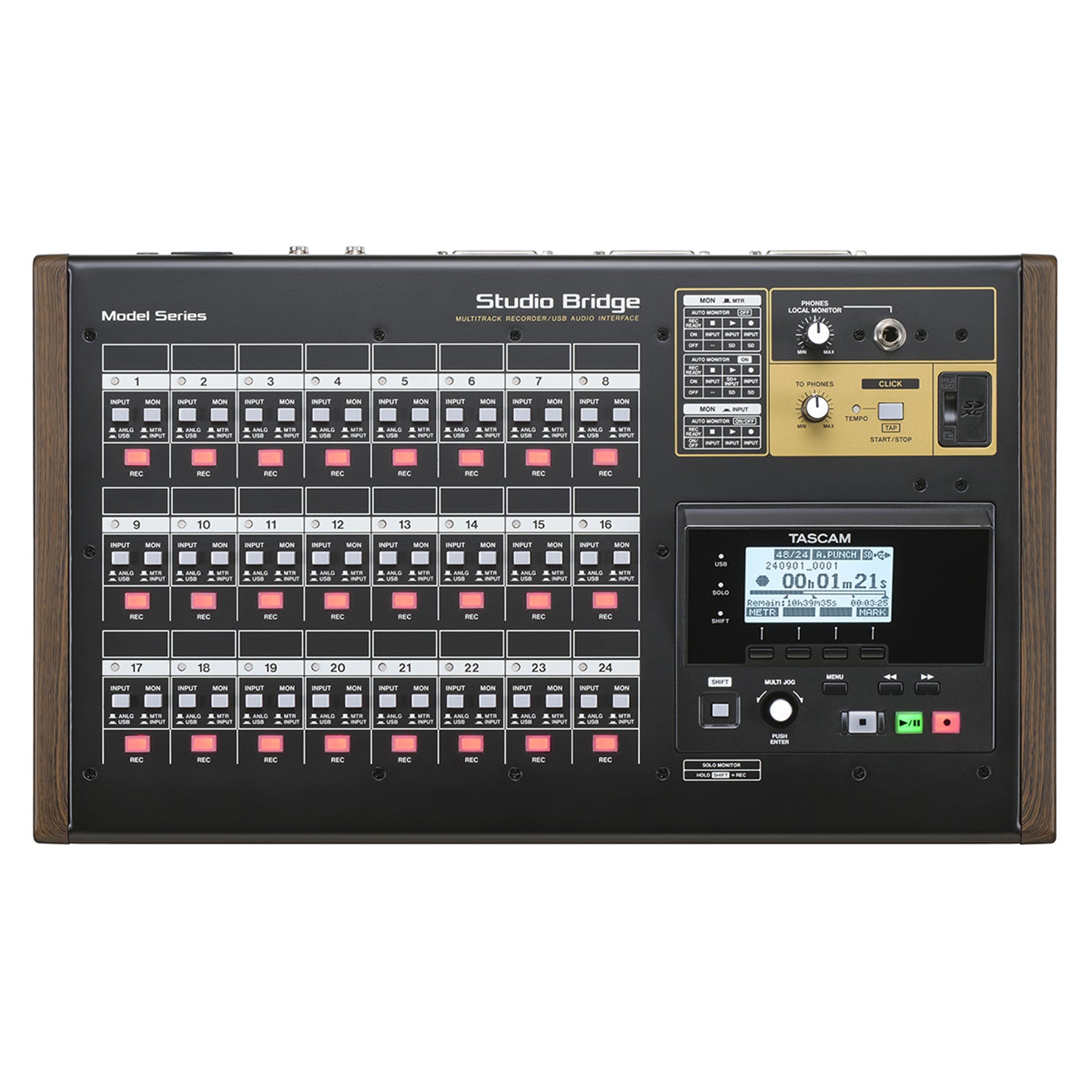

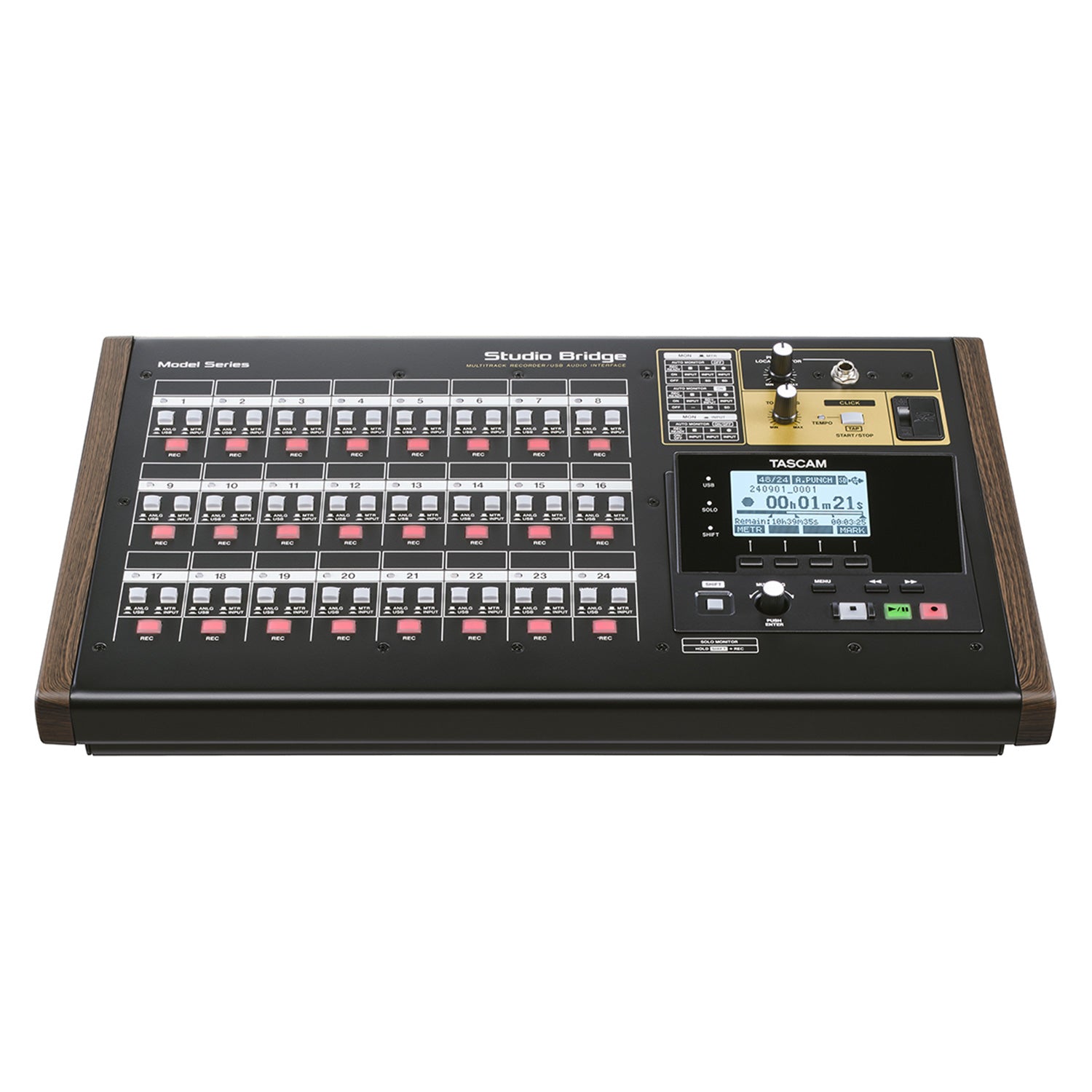

Tascam Studio Bridge - 24-Track Recorder and USB Audio Interface with MIDI

Sale price$999.00 Regular price$1,299.00
Save $300.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Model Series Studio Bridge is quite literally the bridge between analog mixers and digital recording devices whether you use a DAW or prefer a DAWless setup. Preserve the lush analog tone from your mixing console while tracking and mixing to your DAW of choice or to the Studio Bridge's on-board multitrack recorder. Tracks recorded to the on-board recorder or your DAW can be returned to your analog console for mix summing, turning digital recordings into warm analog productions. Whether tracking at a personal recording studio or a live environment, the Studio Bridge handles all your needs with ease.

    Features:

    • On-board 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
    • 24-IN/24-OUT USB audio interface
    • 24 DB25 analog line level input and output
    • DAW transport control and REC READY control via HUI/MCU
    • Dedicated Settings Panel application with Meter Bridge MIDI IN/OUT allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control
    • Headphone and Local Monitor Output
    • Dual Footswitch control
    • 44.1k/48kHz 16/24bit WAV(BWF) format
    • Recording media SD card up to 512GB
    • MTC output and MIDI clock with Song Position Pointer
    • Built in Metronome and Click Out
    • 19-inch Rack-mountable with optional AK-RMSTBG


    24-Channel Modular Multitrack Recorder DAWLess solution

    Your analog mixer can connect to the Studio Bridge as a modular recorder with 24 channels. Easily record and mix 24 tracks with the Studio Bridge - no computer required. You can even sum your mixes to the onboard recorder and export stereo mix .wav files for release-ready productions.

    24-IN/24-OUT Audio/MIDI Interface for DAWs
    TASCAM knows you want true analog flavor on your DAW recordings, and we’re here to help. Your analog mixer can easily connect to your DAW using the Studio Bridge as a 24-IN/24-OUT audio interface. You can record directly into any DAW and even create a summed mix using your console and outboard gear with audio returns.

    DAW Transport Controller and Dedicated Meter Bridge Software
    Studio Bridge also works as a DAW transport controller. Rec/Play/Stop and Rec Ready buttons link directly to your DAW for ease of use. The control software includes a digital meter bridge which is available for PC /Mac to monitor audio levels on each channel, including the stereo master bus.

    MIDI Synchronization for Your Sequencers
    With MIDI In/Out ports, your favorite drum machines, sequencers, synths, and controllers can easily be integrated into any production. Unlock your creativity with your go-to analog hardware and the Studio Bridge.

    Live Recording Applications
    In live environments the Studio Bridge becomes your mobile recording studio when connected to your mixing console. Just one piece of gear - no complex system, no computer required.

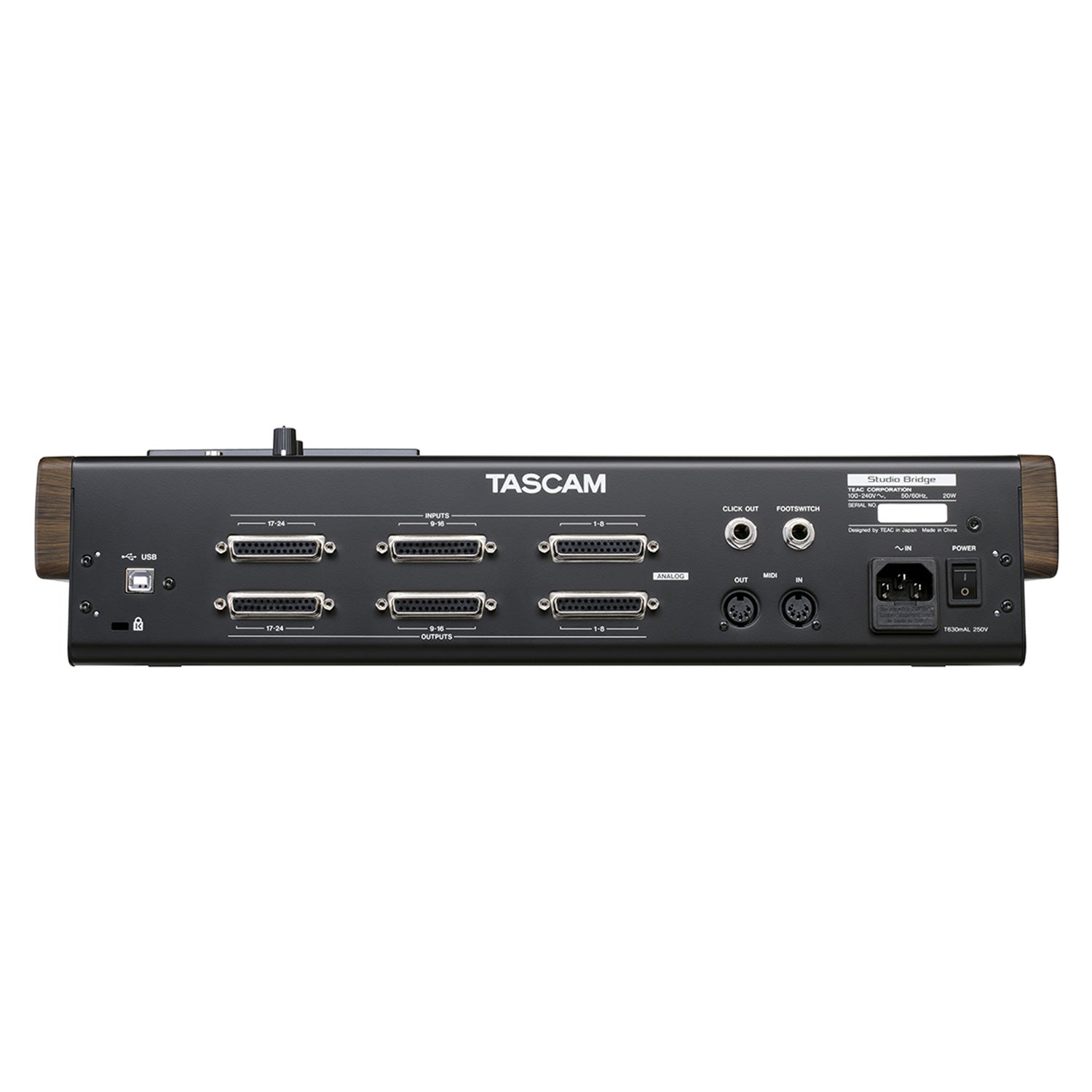

    Inputs / Outputs
    With 24-INS and 24-OUTS over DB25 connectors, the Studio Bridge has more than enough I/O for tracking and mixing larger productions. Plus, no preamps means you can preserve that bold, beautiful analog signal chain you’ve put so much effort into creating.

    Local Monitoring
    Monitor inputs and track sources through the dedicated headphone/local monitor section on the front panel of the Studio Bridge.

    Solo function
    Solo any of the 24 inputs quickly by pushing shift and REC to the corresponding track. To check if any channels are in solo mode, a quick glance to the master section will reveal if the solo indicator is live.

    Click out
    Precision is a must. Keep your performers on time and locked in with the internal metronome and dedicated TRS click output.

    Recorder specifications
    Supported media SD (512 MB to 2 GB), SDHC (4 GB to 32 GB), SDXC (64 GB to 512 GB)
    *(Class 10 or higher)
    Recording format WAV (BWF)
    Playback format WAV (BWF)
    Sampling rate 44.1/48 kHz
    Quantization bit depth 16-bit / 24-bit
    Maximum number of recording tracks 24
    Maximum number of input and output channels Inputs: 24 / Outputs: 24
    Analog audio input/output ratings
    Line input connectors (1Ð8, 9Ð16, 17Ð24) Pin assignments (same for 1Ð8, 9Ð16 and 17Ð24)
    TASCAM DB-25 Pinout Standard (AES59-2012 compliant)
    Connector 25-pin balanced D-sub
    Fixed screws No. 4-40 UNC (inch type)
    Maximum input level +24 dBu
    Nominal input level +4 dBu
    Input impedance 10 k½ or more
    Line output connectors (1Ð8, 9Ð16, 17Ð24) Pin assignments (same for 1Ð8, 9Ð16 and 17Ð24)
    TASCAM DB-25 Pinout Standard (AES59-2012 compliant)
    Connector 25-pin balanced D-sub
    Fixed screws No. 4-40 UNC (inch type)
    Maximum output level +24 dBu
    Nominal output level +4 dBu
    Output impedance 200 ½
    PHONES/LOCAL MONITOR jack
    Connector 6.3mm (1/4") standard stereo jack
    Maximum output 80 mW + 80 mW (into 32½ load)
    Working impedance 16 to 600 ½
    Control input/output ratings
    USB
    Connector USB Type-B
    Transfer format USB 2.0 High-Speed
    Device classes Mass storage, USB audio class 2.0 (USB class compliant)
    USB audio
    Sampling rate 44.1 kHz / 48 kHz
    Quantization bit depth 24-bit
    Number of inputs 24 channels (Output from this unit)
    Number of outputs 24 channels (Input to this unit)
    CLICK OUT jack
    Connector 6.3mm (1/4") standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
    FOOTSWITCH jack
    Connector 6.3mm (1/4”) standard TRS jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, supports momentary (unlatch) types)
    MIDI OUT connector
    Connector 5-pin DIN
    Format MIDI 1.0
    MIDI IN connector
    Connector 5-pin DIN
    Format MIDI 1.0
    Power AC 100-240 V, 50/60 Hz
    Power consumption 20W
    Dimensions
    With side panels 446.5 _ 114.6 _ 269.5 mm
    (W _ H _ D, including protrusions)
    Without side panels 414.6 _ 114.6 _ 269.5 mm
    (W _ H _ D, including protrusions)
    Weight 4.5kg
    Operating temperature range 0Ð40¡C (32Ð104¡F)
    Operating humidity range 5Ð85% (without condensation)
    Included
    Studio Bridge _ 1
    Power cord (for Japan/USA, 3-pronged with protective grounding) _ 1
    Power cord (for other, 3-pronged with protective grounding) _ 1
    3-prong to 2-prong adapter (for Japan) _ 1
    Safety Guide (with warranty) _ 1
    TASCAM ID registration guide _ 1
    Audio performance
    (Line in _ line out for both 44.1kHz and 48kHz sampling rates)
    Frequency response 20 Hz Ð 20 kHz
    (+0.3/_0.7 dB, 1 kHz)
    Dynamic range 100 dB or more (22kHz LPF + A-weight)
    Total harmonic distortion ratio (THD+N) 0.003% or less (1 kHz, at maximum input level)
    Crosstalk _100 dB or less (1kHz BPF)
    Recording times
    Recording format Recording time (hours: minutes) for 32GB card
    16-bit/44.1kHz WAV, 24 tracks 4:10
    16-bit/48kHz WAV, 24 tracks 3:50
    24-bit/44.1kHz WAV, 24 tracks 2:47
    24-bit/48kHz WAV, 24 tracks 2:33
