Description

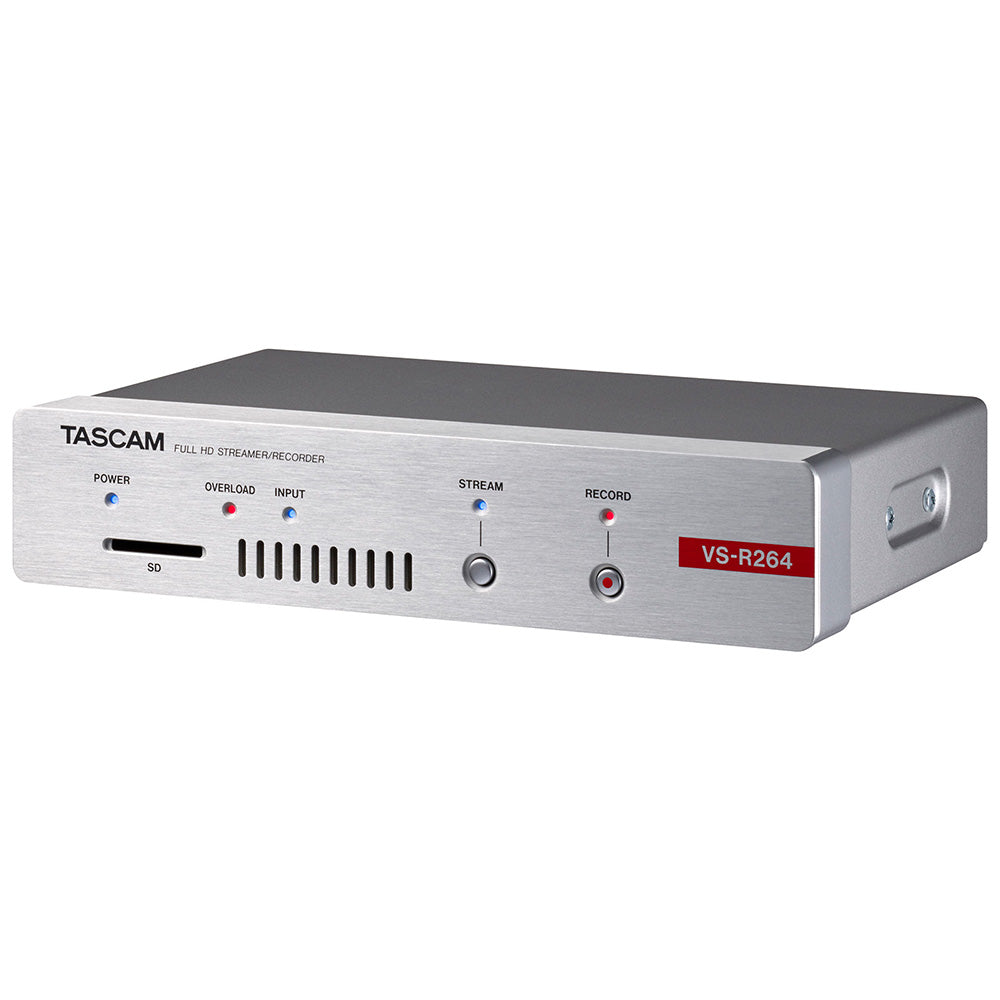

The VS-R264 is a Full HD AV over IP streaming encoder and decoder that simultaneously records, encodes, streams, and decodes Full HD video streams (1920x1080) using H.264 long GOP encoding with bit rates up to 30 megabits over standard networks suitable for 100Mbps or 1Gbps.
Features:
The VS-R264-A Stand-Alone Encoder and Decoder For Live Streaming
The VS-R264 live stream encoder addresses the growing demand for an external stand-alone YouTube encoder in live streaming environments. Additionally, the VS-R264 provides Full HD streaming to popular Content Delivery Networks (CDNs) including Wowza, Ustream, AWS Elemental MediaLive and CloudFront, to name a few.
The half-rack size VS-R264 functions as a stand-alone unit-no external computer is needed for recording or streaming.
Notice for Copyright
Creative works as picture images, movies, music and others are to be protected by applicable copyright laws, and when you intend to use those works in recording, reproducing, broadcasting or other means for the purpose of commercial use, you are required to obtain the license by copyright owners therefor. The license terms might be different in each occasion and the copyright owner. Please be advised that you contact your content service providers and/or applicable copyright management organization.
Notice for Streaming
In case of your streaming for commercial purpose, unlike for personal use, you might be required to conclude the specific service agreement with your content service providers or your content service provider may not allow commercial use in general. Please check the terms of use of the content service provider in choosing your content service provider.
Professional Audio and Video Streaming In AV over IP Applications

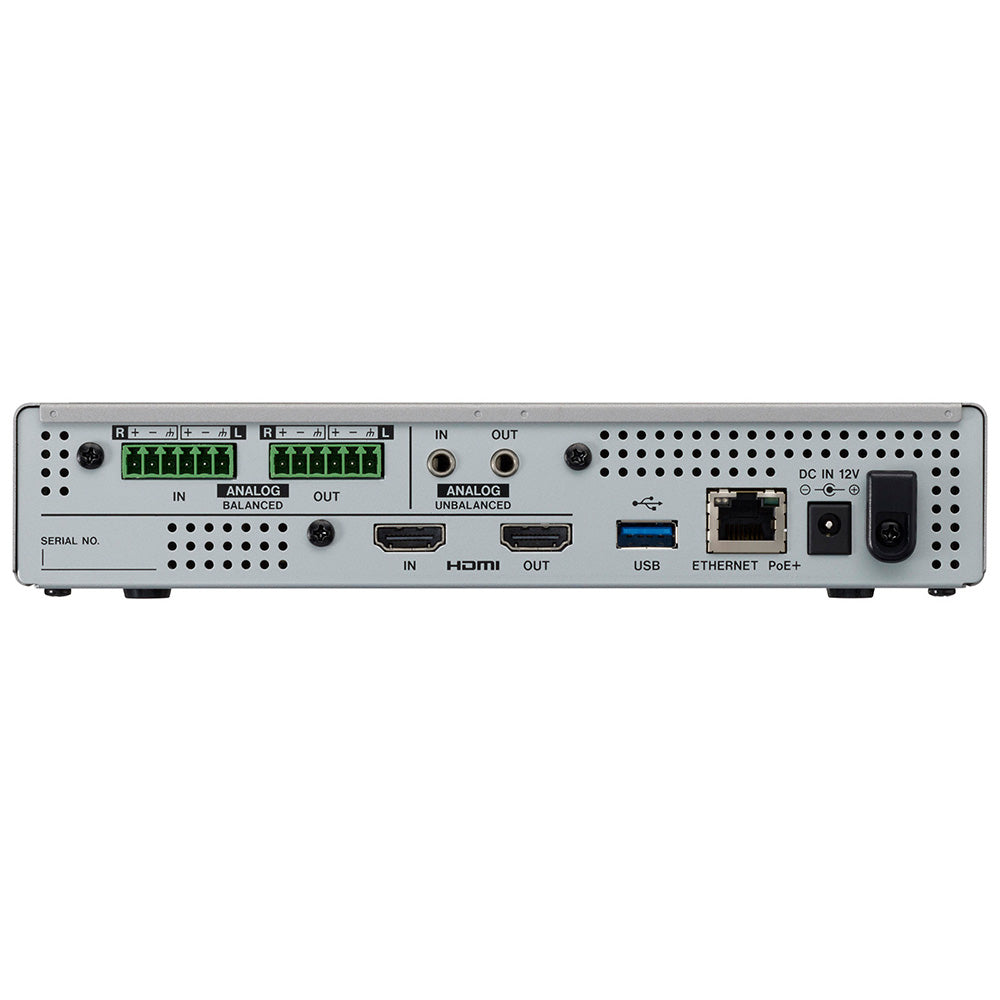

Balanced analog Euroblock/Phoenix low voltage wire connectors and unbalanced analog 1/8" (3.5mm) mini-stereo jacks provide versatile audio I/O connections for a wide range commercial AV over IP environments, including corporate, education, house of worship, government, industrial and security.
TASCAM Professional Audio Integration With Streaming Video
Audio can be embedded from analog sources and de-embedded to drive networked audio playback for ceiling speakers, or digital audio within the HDMI I/O can be used. An integrated installed output level configuration function and reference level switching function (up to +20dBu) allows reliable and flexible system structuring when streaming video.
Compliant With Standard Live Streaming Protocols
The VS-R264 live streaming encoder is compatible with popular standard streaming protocols, including HLS, RTMP, RTP/RTSP, Multicast, Unicast-all with RESTful API for integration into control systems in commercial AV installations.
Simultaneous Recording and Archiving Via SD and USB
The VS-R264 can record directly to USB connected media or SD cards via a front panel loading slot.
Create, Archive and Backup Files Automatically Via FTP
Recorded files can be automatically uploaded to an FTP server automatically for creating back-up copies, editing, or repurposing to the web.
TASCAM DISCOVERY App and Web-GUI allow easy remote management of multiple VS-R unit systems
The Mac/Windows TASCAM DISCOVERY app allows multiple VS-R units connected to the network to be managed from a simple Web-browser based GUI. All configuration settings are saved within the VS-R devices, so that in normal operation no computer is needed for streaming or recording.
No AC Adaptor Required for Commercial AV Installations
PoE+ functionality eliminates the need for AC adaptors in AV installations. Optional TASCAM AC power supply sold separately where external AC power is required.
TASCAM PS-P1220E
Power supply also can be done by the optional AC adapter (TASCAM PS-P1220E; sold separately)
More +
Product Specs
Video | |
HDMI IN Connector | HDMI v1.4a (Type A) |
HDMI OUT Connector | HDMI v2.0 (Type A) |
Input Resolutions | |
2160p | - |
1080p | 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps |
720p | 60 / 59.94 / 50 fps |
576p | 50 fps |
480p | 60 / 59.94 fps |
Frame Rate Limit | on/off |
Encode Scalling Resolutions | Passthru / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p |
Encode Format | H.264 (Baseline / Main/High) |
Encode bitrates | 500k to 30M bps |
Bitrate Control | Variable / Constant |
key frame interva | 0.25-1.00-16.5(sec) or 3-1000(frame) |
Audio | |
Analog Audio inputs (UNBALANCED) | |
Connector | 3.5mm Stereo mini jack |
Nominal input level | -10dBV (0.316Vrms) |
Maximum input level | +6dBV (2.0Vrms) |
Analog Audio inputs (BALANCED) | |
Connector | Euroblock (balanced) 3.81 mm pitch |
Nominal input level | +4dBu(1.23Vrms, Ref.Level other than -9dBFS) +6dBu(1.55Vrms, Ref.Level -9dBFS) |
Maximum input level | +15dBu(4.36Vrms, Ref.Level -9dBFS) +18dBu(6.16Vrms, Ref.Level -14dBFS) +20dBu(7.75Vrms, Ref.Level -16dBFS) |
Analog Audio outputs (UNBALANCED) | |
Connector | 3.5mm Stereo mini jack |
Nominal output level | -10dBV (0.316Vrms) |
Maximum output level | +6dBV (2.0Vrms) |
Analog Audio outputs (BALANCED) | |
Connector | Euroblock (balanced) 3.81 mm pitch |
Nominal output level | +4dBu(1.23Vrms) |
Maximum output level | +15dBu(4.36Vrms, Ref.Level -9dBFS) +18dBu(6.16Vrms, Ref.Level -14dBFS) +20dBu(7.75Vrms, Ref.Level -16dBFS) |
Output Volume | -∞, -72 to +6dB (1dB step) |
Audio Codec | AAC, 64k to 512k bps, 32k/44.1k/48k Hz |
Storage | |
Storage Media | USB Drive, SD/SDHC card |
USB Connection | USB3.0 A-type |
Record Bit Rates | 500k to 30M bps |
Stream | |
Video Transport Protocols | RTMP / RTSP / HLS / Unicast / Multicast |
Simultaneous Streaming | 1 x RTMP / 2 x Unicast / 1 x Multicast |
Stream Bit Rates | 500k to 30M bps |
Network | |
Network Connectivity | 1Gb Ethernet |
Full-featured web browser based UI | Designed for tablets and desktops Encoder and decoder configuration for unicast, multicast and RTMP |
IP Address | DHCP (Default) / Static |
Command and Control | HTTP Auto-detect and discover other TASCAM encoder and decoder units on subnet. |
Other | |
Power | PoE+, TASCAM PS-P1220E AC adapter (sold separately) |
Dimensions | 214(W) × 44.5(H) × 136.1(D)mm (including protrusions) |
Weight | 0.85kg |
Operating temperature range | 0 to 40 °C |
Included items | Installation brackets, Euroblock plugs, Cable band kit, USB memory(including Discovery app, reference Manual), Quick Start guide, warranty |
