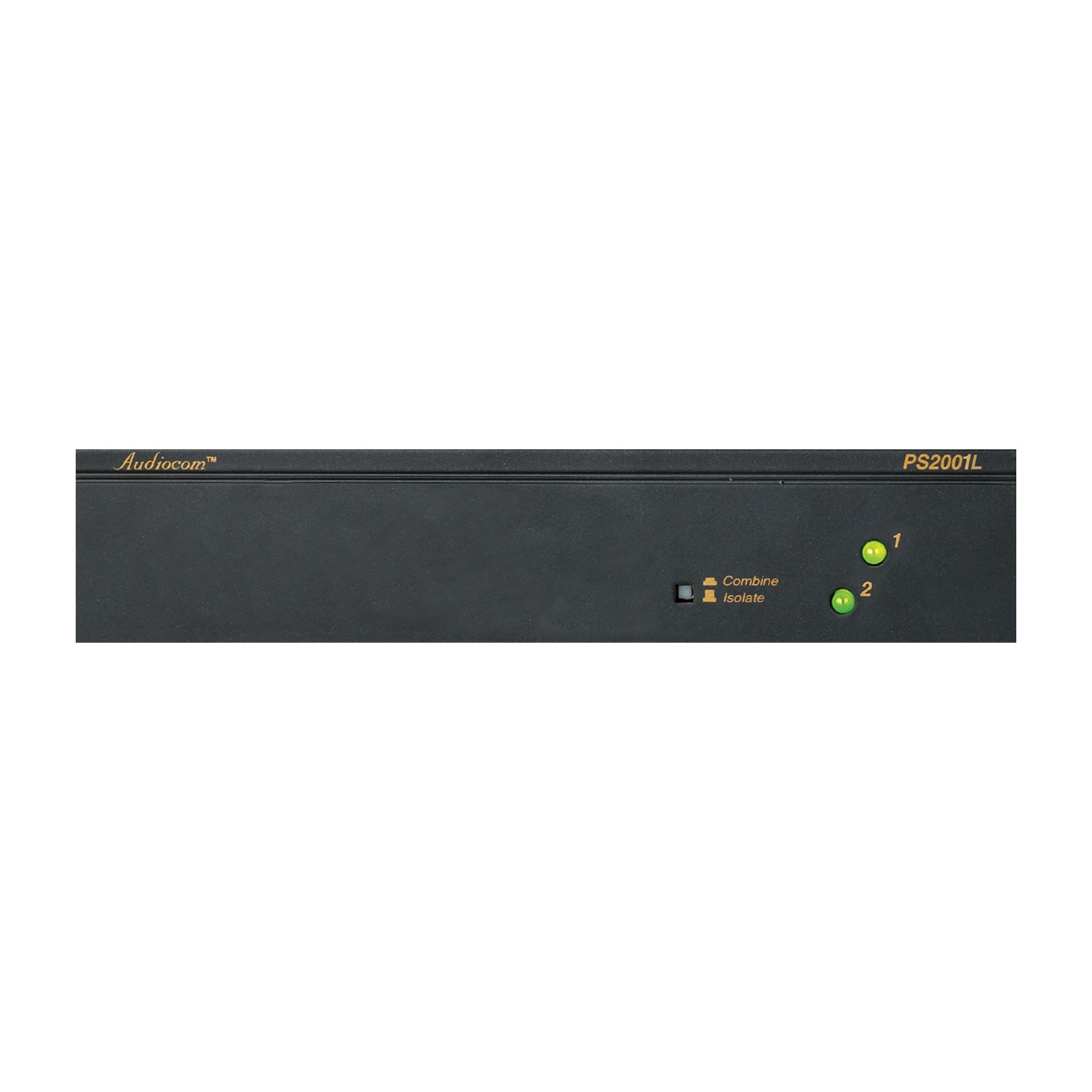

Telex AudioCom PS-2001L - 2-Channel Power Supply for IFB Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PS-2001L is a versatile power supply that can be used in a variety of RTS Audiocom intercom system applications. It directly accepts any AC input power from 100 to 240VAC, 50/60Hz and can be configured to power two (2) separate intercom channels or one large intercom channel with twice the intercom station capacity. Additionally, the unit can be configured for compatibility with Clear-Com Intercom Systems. The unit may be rack mounted or used on a desktop. For rack mounting, optional hardware is required. For desktop use, four (4) non-marring rubber feet are supplied.
Features:
- Combine / Isolate Switch
- Channel Status Indicators
- Universal AC Power Input
- Instantaneous Auto-Reset
- Intercom Channel Connectors
- BAL / UNBAL Selector Switch
- Clear-Com Compatible
The unit combines the audio signals of the two (2) channels to create a single audio channel where all users can intercommunicate. Instantaneous Auto Reset (IAR), the newest technology inperformance and safety, which uses a revolutionary newcircuitry that dynamically monitors line fault conditions. Then, when the fault is removed, automatically brings individual power supply channels up. The indicators are green for normal operation and red when there is an overload or short circuit.

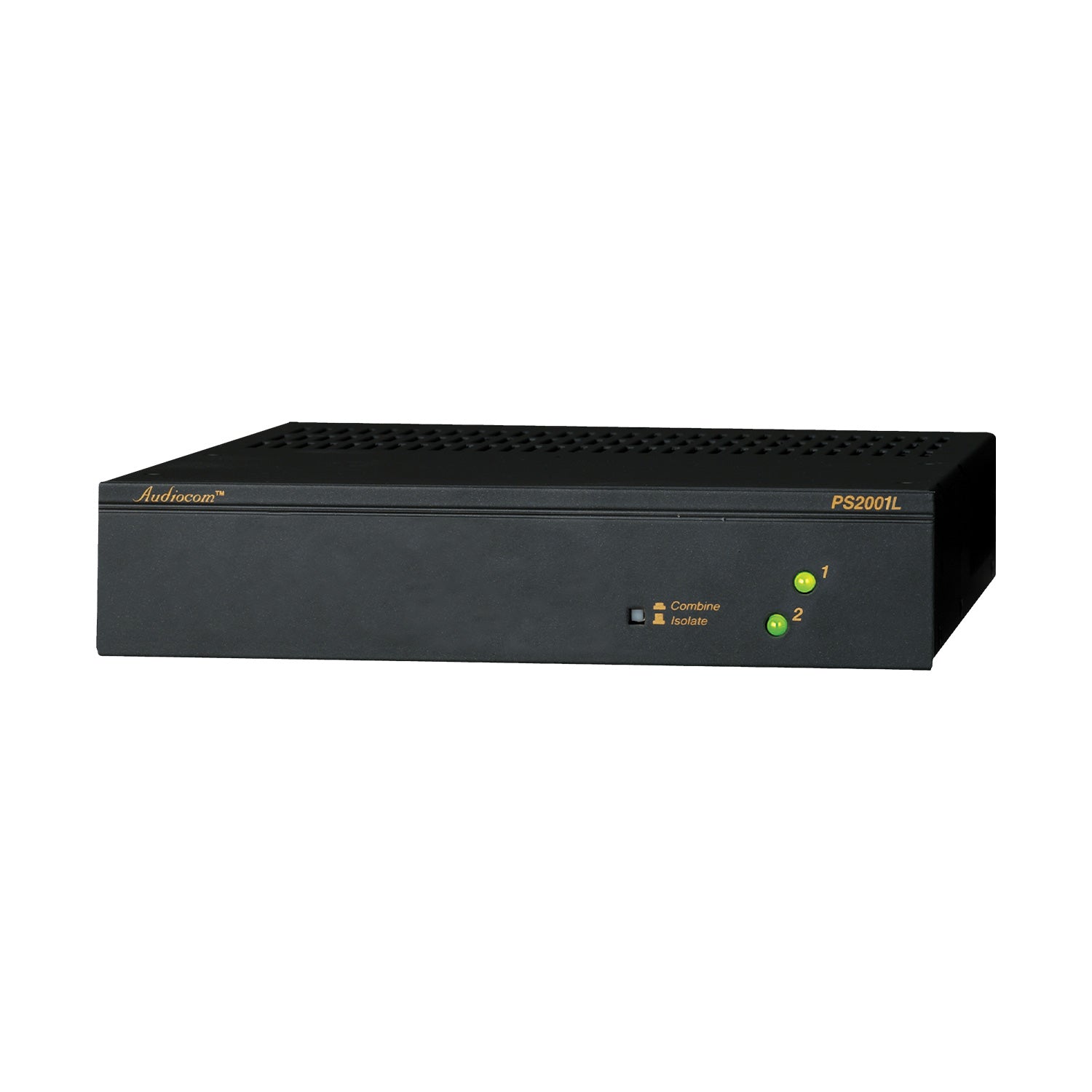

Combine/Isolate switch – When the switch is set to the Isolate position, each channel connector is powered separately and has completely separate intercom audio. When the switch is set to the Combine position, each channel is still powered separately, but the audio signals are combined so that all users on both channels can intercommunicate.
This selector switch allows the user to configure the unit for use in either an RTS Audiocom (BALANCED) or Clear-Com (UNBALANCED) system. Compatibility includes channel connector pin-outs, channel power requirements, and call signaling requirements. The default setting for this switch is in the RTS Audiocom (BAL) position.
| General | |
| Input Power Requirements | 100 to 240VAC, 50/60Hz |
| Output Power (each channel) | 24±1VDC, 1A |
| Dimensions | 1.75 in (44.5 mm) high 8.25 in (209.5 mm) wide 10.31 in (261.9 mm) deep |
| Weight | approximately 2.5lb (1.13kg) |
| Environmental Requirements | Storage: -20¡C to 80¡C, 0% to 95% humidity, non-condensing Operating: 0¡C to 50¡C, 0% to 95% humidity, non-condensing |
| Intercom Channels | |

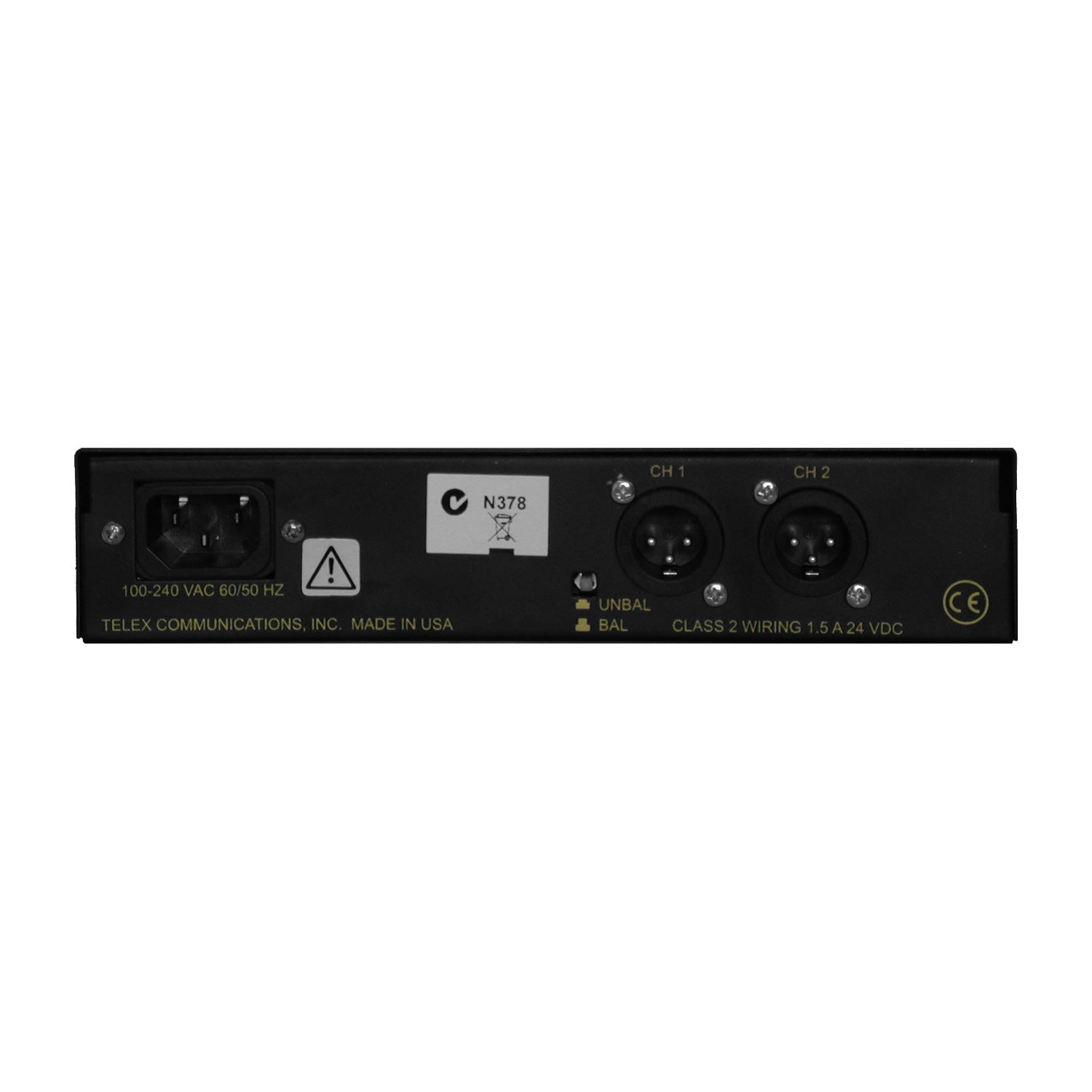

| Connector Type | One XLR-3M audio connector for each channel. Pin-out depends on setting of BAL/UNBAL a switch for balanced or unbalanced operation as defined below |
| Balanced Mode (set to BAL position) | |
| Line Terminating Impedance | 300½ ±10% |
| Connector Pin-out | Pin 1 Common (audio and DC return) Pin 2 Full-duplex, balanced intercom audio and +24VDC output Pin 3 Full-duplex, balanced intercom audio and +24VDC output |
| Unbalanced Mode (set to UNBAL position) | |
| Line Terminating Impedance | 200½ ±5% |
| Connector Pin-out | Pin 1 Common (audio and DC return) Pin 2 .30±1VDC output Pin 3 Full-duplex, unbalanced Intercom audio high |
| Speaker Inputs (SPS-2001 Only) | |
| Type | RCA Phone Jack |
| Tip | Speaker + Input |
| Sleeve | Speaker - Input |
| Approvals | UL, CUL, CE |
The PS-2001L is a versatile power supply that can be used in a variety of RTS Audiocom intercom system applications. It directly accepts any AC input power from 100 to 240VAC, 50/60Hz and can be configured to power two (2) separate intercom channels or one large intercom channel with twice the intercom station capacity. Additionally, the unit can be configured for compatibility with Clear-Com Intercom Systems. The unit may be rack mounted or used on a desktop. For rack mounting, optional hardware is required. For desktop use, four (4) non-marring rubber feet are supplied.
Features:
- Combine / Isolate Switch
- Channel Status Indicators
- Universal AC Power Input
- Instantaneous Auto-Reset
- Intercom Channel Connectors
- BAL / UNBAL Selector Switch
- Clear-Com Compatible
The unit combines the audio signals of the two (2) channels to create a single audio channel where all users can intercommunicate. Instantaneous Auto Reset (IAR), the newest technology inperformance and safety, which uses a revolutionary newcircuitry that dynamically monitors line fault conditions. Then, when the fault is removed, automatically brings individual power supply channels up. The indicators are green for normal operation and red when there is an overload or short circuit.
Combine/Isolate switch – When the switch is set to the Isolate position, each channel connector is powered separately and has completely separate intercom audio. When the switch is set to the Combine position, each channel is still powered separately, but the audio signals are combined so that all users on both channels can intercommunicate.
This selector switch allows the user to configure the unit for use in either an RTS Audiocom (BALANCED) or Clear-Com (UNBALANCED) system. Compatibility includes channel connector pin-outs, channel power requirements, and call signaling requirements. The default setting for this switch is in the RTS Audiocom (BAL) position.
| General | |
| Input Power Requirements | 100 to 240VAC, 50/60Hz |
| Output Power (each channel) | 24±1VDC, 1A |
| Dimensions | 1.75 in (44.5 mm) high 8.25 in (209.5 mm) wide 10.31 in (261.9 mm) deep |
| Weight | approximately 2.5lb (1.13kg) |
| Environmental Requirements | Storage: -20¡C to 80¡C, 0% to 95% humidity, non-condensing Operating: 0¡C to 50¡C, 0% to 95% humidity, non-condensing |
| Intercom Channels | |
| Connector Type | One XLR-3M audio connector for each channel. Pin-out depends on setting of BAL/UNBAL a switch for balanced or unbalanced operation as defined below |
| Balanced Mode (set to BAL position) | |
| Line Terminating Impedance | 300½ ±10% |
| Connector Pin-out | Pin 1 Common (audio and DC return) Pin 2 Full-duplex, balanced intercom audio and +24VDC output Pin 3 Full-duplex, balanced intercom audio and +24VDC output |
| Unbalanced Mode (set to UNBAL position) | |
| Line Terminating Impedance | 200½ ±5% |
| Connector Pin-out | Pin 1 Common (audio and DC return) Pin 2 .30±1VDC output Pin 3 Full-duplex, unbalanced Intercom audio high |
| Speaker Inputs (SPS-2001 Only) | |
| Type | RCA Phone Jack |
| Tip | Speaker + Input |
| Sleeve | Speaker - Input |
| Approvals | UL, CUL, CE |
