Telex HR-1 A4M Single-Sided Headset with Flexible Dynamic Boom Mic
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
A4M connector for RTS and Telex systems.

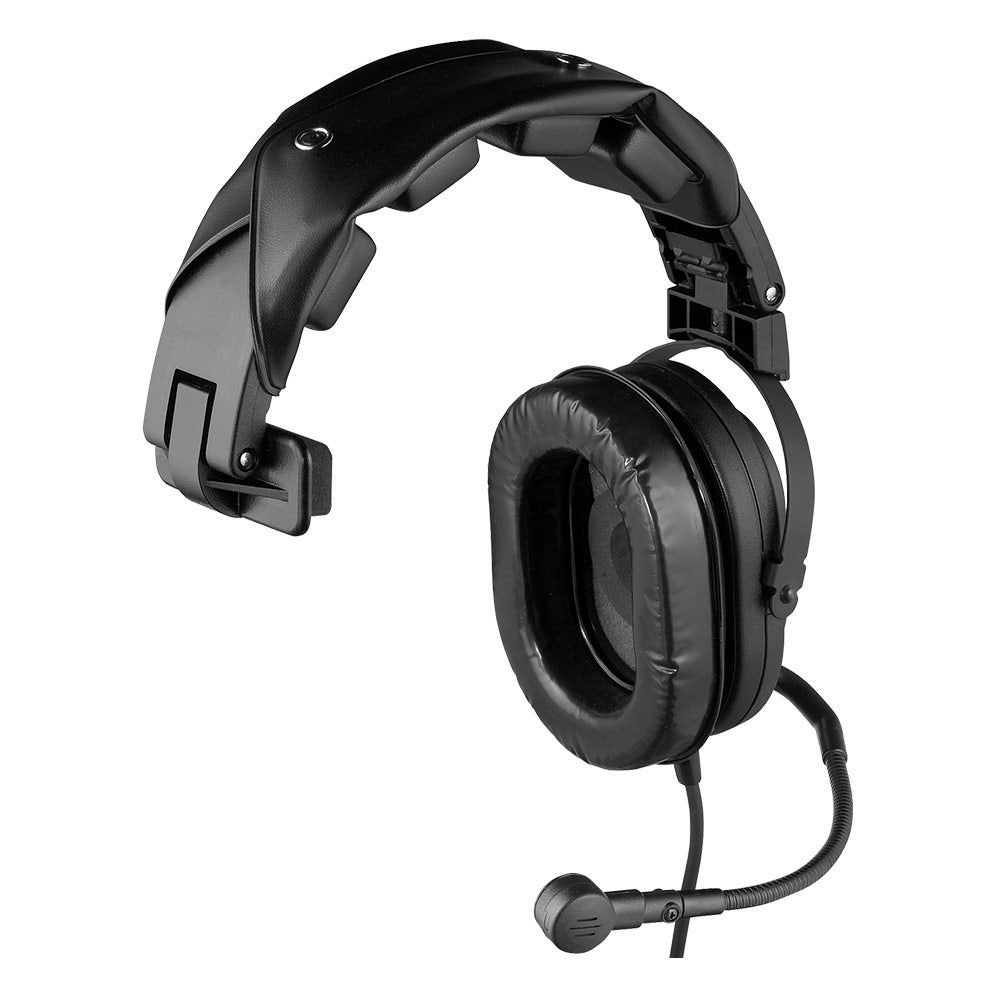

The HR-1 is a single-sided, medium-weight passive noise reduction headset with dynamic noise-canceling microphones. The headset has a noise reduction rating of 21dB; suitable for use in a moderately noisy environment. The ergonomic moleskin-covered headband design distributes the ear cushion pressure evenly over the entire ear with no pressure points, ensuring hours of comfortable wear. An added advantage of this headset design is that it folds into compact form for ease of transport and storage.
| Type | Dynamic |
| Frequency Response | 50 Hz - 15 kHz |
| Sensitivity | 100 5 dB SPL (1 kHz, 1 mW input) |
| Impedance (at 1 kHz) | 150 ohms (receivers wired in parallel) |
| Microphone and Amplifier | |
| Element Type | Noise-canceling dynamic |
| Frequency Response | 100 Hz - 8 kHz |
| Sensitivity | -53 +2/-1 dB (ref: 1 V/bar at 1 kHz with 12 Vdc supply voltage and 100-ohm load) |
| Matching Impendance | 50-600 ohms |
| Cordage | |
| HR-1 | Straight cord, 5 ft. (1.5 m) |
| Connectors | 4 pin XLR male or female, 5pin XLR male or female |
| Weight | |
| Gross Weight | Approx 16 oz. (454 g) |
| Effective Head Weight | Approx 14.2 oz. (403 g) |
| Color | Black |
A4M connector for RTS and Telex systems.
The HR-1 is a single-sided, medium-weight passive noise reduction headset with dynamic noise-canceling microphones. The headset has a noise reduction rating of 21dB; suitable for use in a moderately noisy environment. The ergonomic moleskin-covered headband design distributes the ear cushion pressure evenly over the entire ear with no pressure points, ensuring hours of comfortable wear. An added advantage of this headset design is that it folds into compact form for ease of transport and storage.
| Type | Dynamic |
| Frequency Response | 50 Hz - 15 kHz |
| Sensitivity | 100 5 dB SPL (1 kHz, 1 mW input) |
| Impedance (at 1 kHz) | 150 ohms (receivers wired in parallel) |
| Microphone and Amplifier | |
| Element Type | Noise-canceling dynamic |
| Frequency Response | 100 Hz - 8 kHz |
| Sensitivity | -53 +2/-1 dB (ref: 1 V/bar at 1 kHz with 12 Vdc supply voltage and 100-ohm load) |
| Matching Impendance | 50-600 ohms |
| Cordage | |
| HR-1 | Straight cord, 5 ft. (1.5 m) |
| Connectors | 4 pin XLR male or female, 5pin XLR male or female |
| Weight | |
| Gross Weight | Approx 16 oz. (454 g) |
| Effective Head Weight | Approx 14.2 oz. (403 g) |
| Color | Black |
