Description

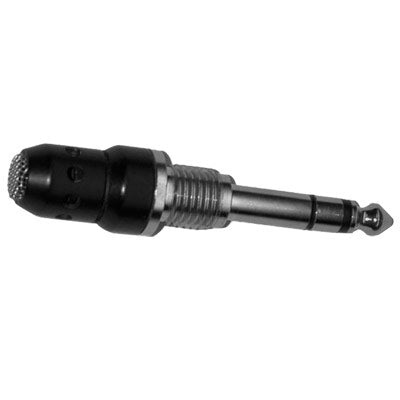

The MCP-90-0 microphone is a phantom-powered "back-electret" miniature condenser flush microphone. The back-electret feature provides greater sensitivity, wider frequency response, and superior immunity from handling noise than a diaphragmelectret microphone. This microphone is under 3" in length and extends less than 1" from the intercom panel, lending to use in small, confined spaces without the obtrusiveness of a regular size mic. The removable windscreen (figure 1) provides pop filtering, response-shaping and overload protection to further enhance the acoustic performance of the microphone. The MCP-90 microphones are mechnically designed for quick, easy mounting to RTS keypanels and selected Audiocom intercoms.The frequency response is tailored for full-range sound reproduction with natural sound pick-up optimized for close-up use.
The microphones are fitted with a threaded TRS male connector that is compatible with RTS standard threaded TRS female connectors. The MCP-90 series is designed to be phantom powered with a wide voltage range of 1.5 to 9 VDC.Features:- Standard Gooseneck Microphone Used with RTS Keypanels
- Miniature, ultra-lightweight back-electret condenser panel microphone with TRS connector for RTS keypanels and select Audiocom intercoms
- Single-D cardioid back-electret design for improved sensitivity, directivity and intelligibility in keypanel operator and intercom base station communications applications
- Versatile custom windscreen provides pop filtering, response-shaping and prevents overload of microphone
- Full-range frequency reproduction and sound pickup optimized for close-up use and directional pickup pattern
- Accepts wide range of phantom power options from 1.5 to 9 VDC, easily supplied by most communications panels designed with 1/4 inputs
Generation Element | Dual condenser, back-electret |
Frequency Response | 100 Hz to 15,000 Hz |
Polar Patterns | Cardioid Sensitivity |
Open Circuit Voltage | 4.5mV (-47 dB)/pascal @ 1 kHz |
Dynamic Range | 102 dB |
Output Impedance | Compatible with RTS and Telex intercom panels |
Power Requirements | 1.5 to 9 VDC phantom supply |
Current Consumption | <500 μA |
Color | Nonreflecting black |
Environmental Conditions, Relative Humidity 0-50% | -29¡ to 74¡C (-20¡ to 165¡F) |
Relative Humidity 0 to 95% | -29¡ to 57¡C (-20¡ to 135¡F) |
Mounting | Male threaded TRS |
Dimensions | |
Knurled Stem to Head Length | |
MCP-90-0 | 43.82 mm (1.725Ó) |
Maximum Head Diameter | 14 mm (0.55 in.) |
Accessories Furnished | Specially designed windscreen to prevent overloading and distortion in normal operation |
The MCP-90-0 microphone is a phantom-powered "back-electret" miniature condenser flush microphone. The back-electret feature provides greater sensitivity, wider frequency response, and superior immunity from handling noise than a diaphragmelectret microphone. This microphone is under 3" in length and extends less than 1" from the intercom panel, lending to use in small, confined spaces without the obtrusiveness of a regular size mic. The removable windscreen (figure 1) provides pop filtering, response-shaping and overload protection to further enhance the acoustic performance of the microphone. The MCP-90 microphones are mechnically designed for quick, easy mounting to RTS keypanels and selected Audiocom intercoms.The frequency response is tailored for full-range sound reproduction with natural sound pick-up optimized for close-up use.
The microphones are fitted with a threaded TRS male connector that is compatible with RTS standard threaded TRS female connectors. The MCP-90 series is designed to be phantom powered with a wide voltage range of 1.5 to 9 VDC.Features:- Standard Gooseneck Microphone Used with RTS Keypanels
- Miniature, ultra-lightweight back-electret condenser panel microphone with TRS connector for RTS keypanels and select Audiocom intercoms
- Single-D cardioid back-electret design for improved sensitivity, directivity and intelligibility in keypanel operator and intercom base station communications applications
- Versatile custom windscreen provides pop filtering, response-shaping and prevents overload of microphone
- Full-range frequency reproduction and sound pickup optimized for close-up use and directional pickup pattern
- Accepts wide range of phantom power options from 1.5 to 9 VDC, easily supplied by most communications panels designed with 1/4 inputs
Generation Element | Dual condenser, back-electret |
Frequency Response | 100 Hz to 15,000 Hz |
Polar Patterns | Cardioid Sensitivity |
Open Circuit Voltage | 4.5mV (-47 dB)/pascal @ 1 kHz |
Dynamic Range | 102 dB |
Output Impedance | Compatible with RTS and Telex intercom panels |
Power Requirements | 1.5 to 9 VDC phantom supply |
Current Consumption | <500 μA |
Color | Nonreflecting black |
Environmental Conditions, Relative Humidity 0-50% | -29¡ to 74¡C (-20¡ to 165¡F) |
Relative Humidity 0 to 95% | -29¡ to 57¡C (-20¡ to 135¡F) |
Mounting | Male threaded TRS |
Dimensions | |
Knurled Stem to Head Length | |
MCP-90-0 | 43.82 mm (1.725Ó) |
Maximum Head Diameter | 14 mm (0.55 in.) |
Accessories Furnished | Specially designed windscreen to prevent overloading and distortion in normal operation |
