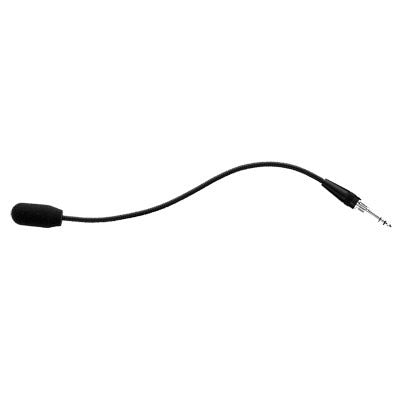

Telex MCP-90-12 Phantom Powered 12" Miniature Panel Mount Gooseneck Microphone



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:TELE-MCP9012

Availability: In Stock

Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm
Free Shipping (Continental US)
  • This series microphones are phantom-powered "back-electret" miniature condenser gooseneck microphones. The back-electret feature provides greater sensitivity, wider frequency response, and superior immunity from handling noise than a diaphragm-electret microphone. The removable windscreen provides pop filtering; response shaping and overload protection to further enhance the acoustic performance of the microphone. The MCP-90 microphones are mechanically designed for quick, easy mounting to RTS keypanels and selected Audiocom intercoms.

    The frequency response is tailored for full-range sound reproduction with natural sound pick-up optimized for close-up use. The microphones are fitted with a threaded TRS male connector that is compatible with RTS standard threaded TRS female connectors. The MCP-90 series is designed to be phantom powered with a wide voltage range of 1.5 to 9 VDC.Features
    • Miniature condenser gooseneck mic with proprietary threaded TRS connector for front panel attachment to Telex RTS and select Audiocom intercom stationsMic output impedance fully RTS compatibleBack-electret design feature for greater sensitivity, wider frequency response and lower handling noiseFrequency response and pickup pattern optimized for close-up use1.5 - 9 Volt phantom power operationSupplied proprietary windscreen provides maximum pop filtering, response shaping and overload protection
  • Generation Element:Dual condenser, back-electret
    Frequency Response:100 Hz to 15,000 Hz
    Polar Patterns: Cardioid
    Sensitivity,
    Open Circuit Voltage:4.5mV (-47 dB)/pascal @ 1 kHz
    Power Level, 1 kHz (0 dB= 1 mW/ pascal): -44 dB
    Dynamic Range: 102 dB
    Output Impedance:Compatible with RTS® keypanels
    Power Requirements: 1.5 to 9 VDC phantom supply
    Current Consumption: <500 μA
    Color:Nonreflecting black
    Environmental Conditions
    Relative Humidity 0-50%:-29° to 74°C (-20° to 165°F)
    Relative Humidity 0 to 95%:-29° to 57°C (-20° to 135°F)
    Mounting: Male threaded TRS
    Dimensions
    Knurled Stem to Head Length: MCP-90-12: 304.8mm (12)
    Maximum Head Diameter: 14 mm (0.55)
    Gooseneck Diameter: 6.4 mm (¼)
    Electronics Module Diameter: 20 mm (0.79)
    Accessories Furnished:Specially designed windscreen to prevent overloading and distortion in normal operation.
