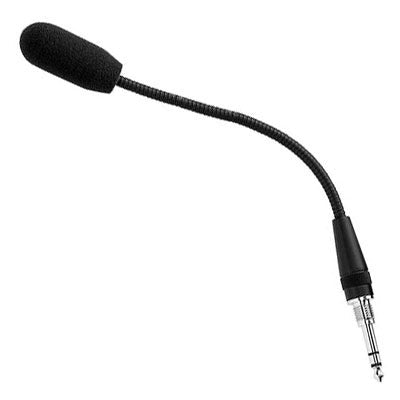

Telex MCP-90-8 Phantom Powered 8" Miniature Panel Mount Gooseneck Microphone
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
This series of microphones are phantom-powered "back-electret" miniature condenser gooseneck microphones. The back-electret feature provides greater sensitivity, wider frequency response, and superior immunity from handling noise than a diaphragm-electret microphone. The removable windscreen provides pop filtering; response shaping and overload protection to further enhance the acoustic performance of the microphone. The MCP-90 microphones are mechanically designed for quick, easy mounting to RTS keypanels and selected Audiocom intercoms.
The frequency response is tailored for full-range sound reproduction with natural sound pick-up optimized for close-up use. The microphones are fitted with a threaded TRS male connector that is compatible with RTS standard threaded TRS female connectors. The MCP-90 series is designed to be phantom powered with a wide voltage range of 1.5 to 9 VDC.Features- Miniature condenser gooseneck mic with proprietary threaded TRS connector for front panel attachment to Telex RTS and select Audiocom intercom stations
- Mic output impedance fully RTS compatible
- Back-electret design feature for greater sensitivity, wider frequency response and lower handling noise
- Frequency response and pickup pattern optimized for close-up use
- 1.5 - 9 Volt phantom power operation
- Supplied proprietary windscreen provides maximum pop filtering, response shaping and overload protection
| Generation Element | Dual condenser, back-electret |
| Frequency Response | 100 Hz to 15,000 Hz |
| Polar Patterns | Cardioid |
| Sensitivity | |
| Open Circuit Voltage | 4.5mV (-47 dB)/pascal @ 1 kHz |
| Power Level, 1 kHz (0 dB= 1 mW/ pascal) | -44 dB |
| Dynamic Range | 102 dB |
| Output Impedance | Compatible with RTS¨ keypanels |
| Power Requirements | 1.5 to 9 VDC phantom supply |
| Current Consumption | <500 μA |
| Color | Nonreflecting black |
| Environmental Conditions | |
| Relative Humidity 0-50% | -29¡ to 74¡C (-20¡ to 165¡F) |
| Relative Humidity 0 to 95% | -29¡ to 57¡C (-20¡ to 135¡F) |
| Mounting | Male threaded TRS |
| Dimensions | |
| Knurled Stem to Head Length | MCP-90-8 8 |
| Maximum Head Diameter | 14 mm (0.55) |
| Gooseneck Diameter | 6.4 mm (_) |
| Electronics Module Diameter | 20 mm (0.79) |
| Accessories Furnished | Specially designed windscreen to prevent overloading and distortion in normal operation. |
