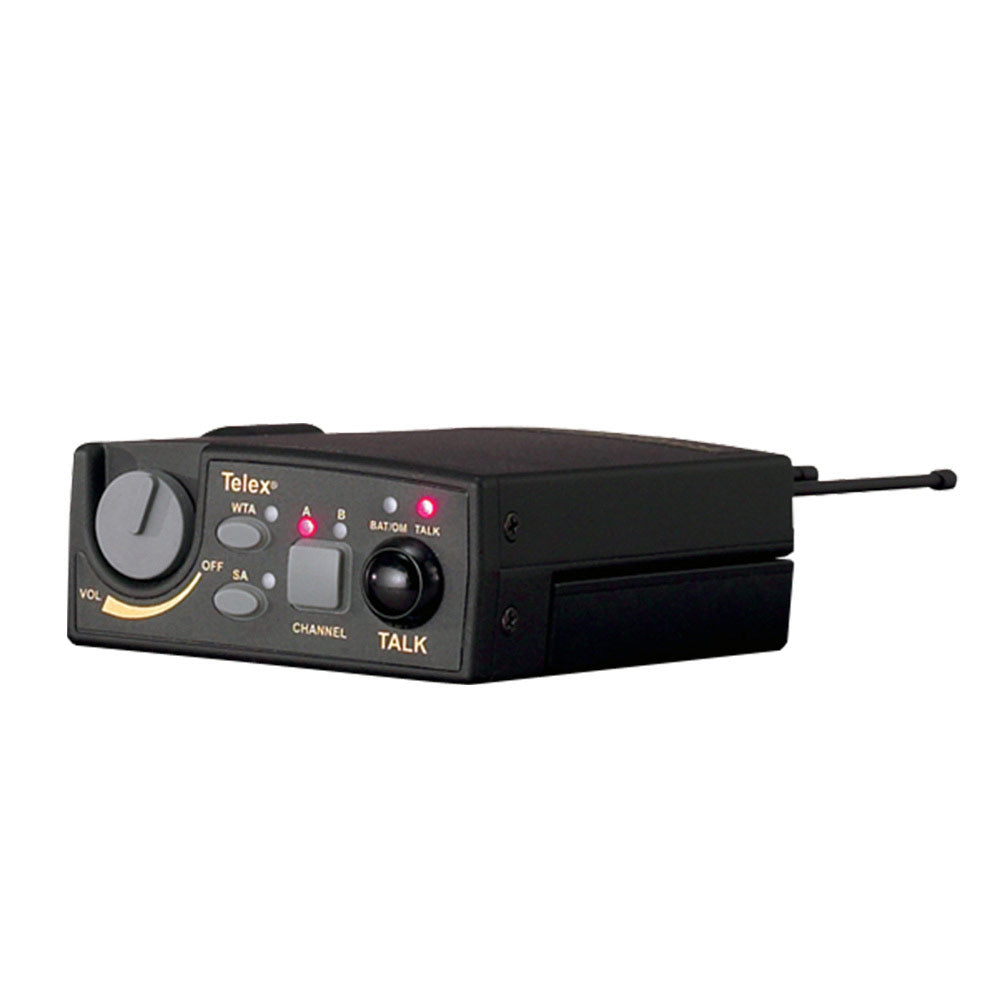

Telex TR-800 2-Channel Full Duplex UHF Beltpack Transceiver with A4M Headset Jack - E88
Dale #:
TELE-TR800E88Availability:
In StockAvailable for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm
Description
Two-channel UHF frequency-agile wireless beltpack for use with the BTR-800. All metal cast magnesium case, an LCD based graphical user interface, stage announce activation, wireless talk around (ISO) activation, enhanced ClearScan, detachable antennas and an auto-sensing headset connector that au... Read MoreOur Price: $2,093.00
Free Shipping (Continental US)
Suggested Accessories
Description
Two-channel UHF frequency-agile wireless beltpack for use with the BTR-800. All metal cast magnesium case, an LCD based graphical user interface, stage announce activation, wireless talk around (ISO) activation, enhanced ClearScan, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics.
Features
- Audio Channel Select Button
- Bat/Overmod Light (BAT/OM)
- On/Off & Volume Control
- Stage Announce (SA)
- State-of-the-Art
- Talk Button
- Talk Light
- Wireless Talk Around (WTA)
More +
Product Specs
| General | |
| RF Frequency Range: | 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands |
| Power Requirements: | 6 AA Cells Alkaline (NiMH optional) |
| Current Draw: | 140 mA (Push-to-Talk, Talk On) |
| Temperature Range: | -4° F to 130° F (-20° C to 55° C) |
| Dimensions: | 3¾W x 5.05H x 1.65 D (9.5 cm x 12.8 cm x 4.2 cm) |
| TX Antenna: | ¼ Wave (supplied), Screw type, Replaceable |
| RX Antenna: | ¼ Wave (supplied), Screw type, Replaceable |
| FCC ID: | B5DM518 (TX 470-608 MHz), B5DM515 (TX 614-746 MHz) |
| Frequency Response: | 300 Hz-8 kHz |
| Microphone Input Sensitivity: | 7 mV |
| Local Headset Output: | 40 mW output into 600W (1% distortion) |
| Transmitter | |
| Type: | Synthesized, 712 channels |
| Transmit Power: | 50 mW Max. (Auto-power reduction) |
| Modulation Type: | FM |
| Deviation: | 40 kHz (35 kHz Europe) |
| RF Frequency Stability: | 0.005% |
| Modulation Limiter: | Peak-Responding Compressor |
| Radiated Harmonics & Spurious: | Exceeds FCC specifications |
| Receiver | |
| Type: | Dual Conversion Super heterodyne, Synthesized, FM, 712 channels |
| RF Sensitivity: | <0.7 μV for 12 dB SINAD |
| Squelch Threshold: | 20 dB SINAD (About 1.0 μV) |
| IF Selectivity: | 3 dB at 230 kHz |
| Image Rejection: | 70 dB or better |
| Squelch Quieting: | 90 dB |
| RF Frequency Stability: | 0.005% |
| Distortion: | <1% at full deviation |
More +
