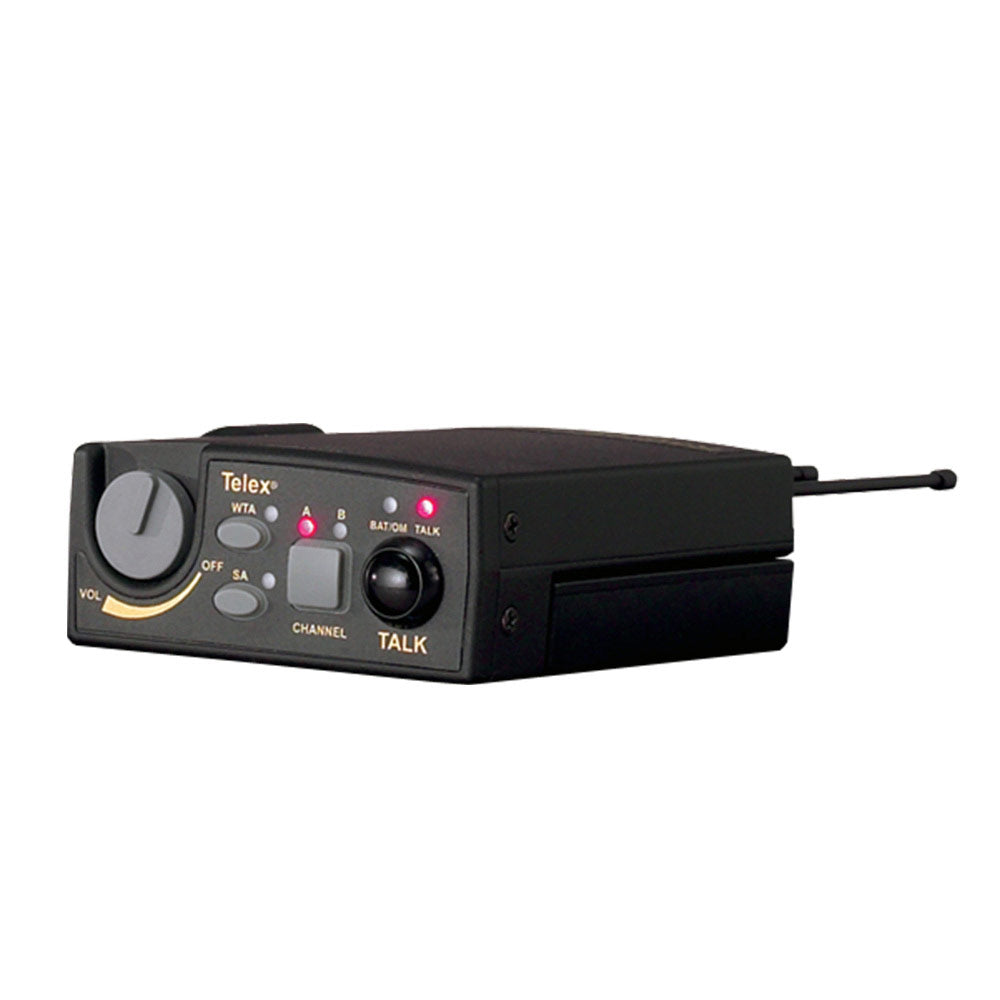

Telex TR-800 RTS RadioCom Intercom Beltpack (E88 Band/A5F Connector)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The RTS RadioCom TR-800 and TR-825 are 2-audio channel UHF frequency-agile wireless beltpacks for use with the BTR- 800. The TR-825 is a dual-listen beltpack, allowing you to listen to tech in one ear and production in the other. Individual volume controls also allow for easy level adjustment. The TR-800 and the TR-825 both have an all metal cast magnesium case, an LCD-based user interface, stage announce activation, WTA (Wireless Talk Around), enhanced ClearScan, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics.
On/Off & Volume Control
Turns the beltpack power on and controls head set volume.
Wireless Talk Around (WTA)
When pressed, the user's audio is disconnected from the wired intercom, auxiliary input/output and the base station's local headset. Other beltpack users, on that audio channel, can hear the user as normal.
Stage Announce (SA)
When pressed, the user's audio is routed to the stage announce connector on the back of the base station. The user also loses their sidetone as an indication that stage announce is activated. The other wireless beltpacks and wired users do not hear the user's audio. The button is non-latching and activates the nearby red LED.
Audio Channel Select Button
Allows user to select either audio channel A or B.
Bat/Overmod Light (BAT/OM)
Light will flash once when unit is turned on if the battery is good. If the light stays on, battery is low. If the light does not flash, battery is dead. A normal microphone gain setting will cause the LED to flash at the beginning of most words at normal speech levels. If the gain is too high, the LED will be red during the complete word at normal speech levels.
Talk Light
LED is on when the talk button, SA or WTA is active.
Talk Button
Press to enable the audio path from the local headset microphone. The TALK LED, #6, will turn red when enabled. A quick press and release latches the talk function, unless latching has been disabled. Holding the button for over 1/2 a second will cause the audio path to be enabled only for as long as the button is held. If the talk function is latched on, pressing the talk button again will turn it off.
| Antenna | _ Wave (supplied), Screw type, ReplaceableÊTX and RX |
| Binaural | No |
| Color | Black |
| Current Draw | 140 mAÊPush-to-Talk, Talk On |
| Depth | 1.65Ê(41.9 mm) |
| Distortion | < 1 %Êat full deviation |
| FCC ID | B5DM518 (TX 470-608 MHz), B5DM515 (TX 614-746 MHz) |
| Form Factor | Beltpack |
| Frequency Response | 300 Hz-8 kHz |
| Function | User Station |
| Height | 5.05Ê(128.3 mm) |
| IF Selectivity | 3 dBÊat 230 kHz |
| Image Rejection | 70 dBÊor better |
| Local Headset Output | 40 mW output into 600WÊ1% distortion |
| Microphone Input Sensitivity | 7 mV |
| Power Requirements | 6 “AA” Cells AlkalineÊNiMH optional |
| RF Frequency Range | 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands |
| RF Frequency Stability | 0.01 % |
| RF Sensitivity | < 0.7 VÊfor 12 dB SINAD |
| Squelch Quieting | 90 dB |
| Squelch Threshold | 20 dBÊSINAD About 1.0 V |
| Storage Temperature | -4¡ F to 130¡ F (-20¡ C to 55 ¡C |
| Type | Dual Conversion Super heterodyne, Synthesized, FM, 712 channels |
| Weight | 16ÊozÊ(453.59Êg) |
| Width | 3.75Ê(95.3 mm) |
The RTS RadioCom TR-800 and TR-825 are 2-audio channel UHF frequency-agile wireless beltpacks for use with the BTR- 800. The TR-825 is a dual-listen beltpack, allowing you to listen to tech in one ear and production in the other. Individual volume controls also allow for easy level adjustment. The TR-800 and the TR-825 both have an all metal cast magnesium case, an LCD-based user interface, stage announce activation, WTA (Wireless Talk Around), enhanced ClearScan, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics.
On/Off & Volume Control
Turns the beltpack power on and controls head set volume.
Wireless Talk Around (WTA)
When pressed, the user's audio is disconnected from the wired intercom, auxiliary input/output and the base station's local headset. Other beltpack users, on that audio channel, can hear the user as normal.
Stage Announce (SA)
When pressed, the user's audio is routed to the stage announce connector on the back of the base station. The user also loses their sidetone as an indication that stage announce is activated. The other wireless beltpacks and wired users do not hear the user's audio. The button is non-latching and activates the nearby red LED.
Audio Channel Select Button
Allows user to select either audio channel A or B.
Bat/Overmod Light (BAT/OM)
Light will flash once when unit is turned on if the battery is good. If the light stays on, battery is low. If the light does not flash, battery is dead. A normal microphone gain setting will cause the LED to flash at the beginning of most words at normal speech levels. If the gain is too high, the LED will be red during the complete word at normal speech levels.
Talk Light
LED is on when the talk button, SA or WTA is active.
Talk Button
Press to enable the audio path from the local headset microphone. The TALK LED, #6, will turn red when enabled. A quick press and release latches the talk function, unless latching has been disabled. Holding the button for over 1/2 a second will cause the audio path to be enabled only for as long as the button is held. If the talk function is latched on, pressing the talk button again will turn it off.
| Antenna | _ Wave (supplied), Screw type, ReplaceableÊTX and RX |
| Binaural | No |
| Color | Black |
| Current Draw | 140 mAÊPush-to-Talk, Talk On |
| Depth | 1.65Ê(41.9 mm) |
| Distortion | < 1 %Êat full deviation |
| FCC ID | B5DM518 (TX 470-608 MHz), B5DM515 (TX 614-746 MHz) |
| Form Factor | Beltpack |
| Frequency Response | 300 Hz-8 kHz |
| Function | User Station |
| Height | 5.05Ê(128.3 mm) |
| IF Selectivity | 3 dBÊat 230 kHz |
| Image Rejection | 70 dBÊor better |
| Local Headset Output | 40 mW output into 600WÊ1% distortion |
| Microphone Input Sensitivity | 7 mV |
| Power Requirements | 6 “AA” Cells AlkalineÊNiMH optional |
| RF Frequency Range | 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands |
| RF Frequency Stability | 0.01 % |
| RF Sensitivity | < 0.7 VÊfor 12 dB SINAD |
| Squelch Quieting | 90 dB |
| Squelch Threshold | 20 dBÊSINAD About 1.0 V |
| Storage Temperature | -4¡ F to 130¡ F (-20¡ C to 55 ¡C |
| Type | Dual Conversion Super heterodyne, Synthesized, FM, 712 channels |
| Weight | 16ÊozÊ(453.59Êg) |
| Width | 3.75Ê(95.3 mm) |
