RTS TR-825 2-Channel UHF Wireless Beltpack for BTR-800 - E88
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

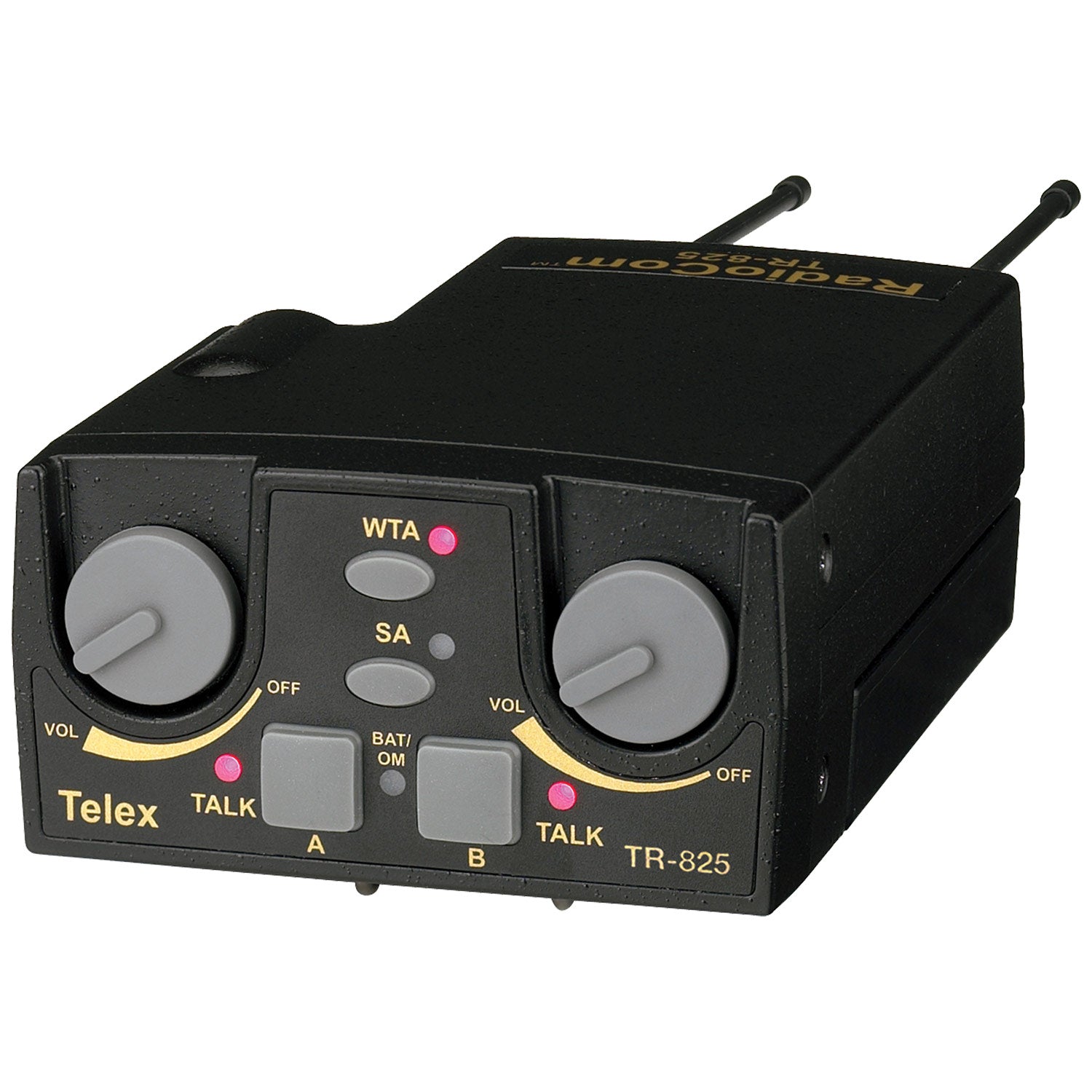

The Telex RadioCom TR-825 is a Two-channel UHF frequency-agile wireless beltpack for use with the BTR-800. The TR-825 is a dual listen beltpack, allowing you to listen to "Tech" in one ear and "Production" in the other. Individual volume controls also allow for easy level adjustment. The TR-800 has an all metal cast magnesium case, an LCD based graphical user interface, stage announce activation, wireless talk around (ISO) activation, enhanced ClearScan, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics.
Features:- Low Battery/Overmodulation (BAT/OM) Light
- On/Off & Volume Control
- Stage Announce (SA)
- Talk Button
- Talk Light
- Wireless Talk Around (WTA)
| RF Frequency Range | 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands |
| Power Requirements | 6 ÒAAÓ Cells Alkaline (NiMH optional) |
| TR-825 Current Draw | 190 mA (Push-to-Talk, A and B Talk On) |
| Temperature Range | -4¡ F to 130¡ F (-20¡ C to 55¡ C) |
| TX Antenna | _ Wave (supplied), Screw type, Replaceable |
| RX Antenna | _ Wave (supplied), Screw type, Replaceable |
| TR-825 FCC ID | B5DM517 |
| Frequency Response | 300 Hz-8 kHz |
| Microphone Input Sensitivity | 7 mV |
| Local Headset Output | 40 mW output into 600W (1% distortion) |
| Transmitter | |
| Type | Synthesized, 712 channels |
| Transmit Power | 50 mW Max. (Auto-power reduction) |
| Modulation Type | FM |
| Deviation | 40 kHz (35 kHz Europe) |
| RF Frequency Stability | 0.005% |
| Modulation Limiter | Peak-Responding Compressor |
| Radiated Harmonics / Spurious | Exceeds FCC specifications |
| Receiver | |
| Type | Dual Conversion Super heterodyne, Synthesized, FM, 712 channels |
| RF Sensitivity | <0.7 μV for 12 dB SINAD |
| Squelch Threshold | 20 dB SINAD (About 1.0 μ V) |
| IF Selectivity | 3 dB at 230 kHz |
| Image Rejection | 70 dB or better |
| Squelch Quieting | 90 dB |
| RF Frequency Stability | 0.005% |
| Distortion | <1% at full deviation |
| Product Dimensions/Weight | |
| TR-825 | 3.75ÓW x 5.35ÓH x 2.02ÓD (9.5cm x 13.5cm x 5.1cm) 21 oz (595 g) with alkaline batteries |
| Shipping Dimensions/Weight | |
| TR-825 | 7ÓW x 4ÓH x 14ÓD (17.78cm x 10.16cm x 35.56cm) 21 oz (595 g) with alkaline batteries |
