Telos 2001-00289 Zephyr Z/IP ONE IP Broadcast Codec (Analog/AES/Livewire)

  • Dale #:

    TELO-200100289000
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Z/IP ONE is a 1 RU rack-mount IP codec for remote broadcasting. It's a single-space rack unit perfect for studios, TOCs and remote kits. Z/IP ONE Includes a full range of codecs including AAC-ELD, AAC-HE, AAC-LD, MPEG 4 AAC, MPEG 2 AAC, MPEG Layer 2, G.711, G.722 codecs, plus linear audio and opt... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Z/IP ONE is a 1 RU rack-mount IP codec for remote broadcasting. It's a single-space rack unit perfect for studios, TOCs and remote kits. Z/IP ONE Includes a full range of codecs including AAC-ELD, AAC-HE, AAC-LD, MPEG 4 AAC, MPEG 2 AAC, MPEG Layer 2, G.711, G.722 codecs, plus linear audio and optional aptX® Enhanced coding. Z/IP ONE supports SIP 2.0 protocol and conforms to N/ACIP standards; it also works with VoIP devices and connects to compatible SIP PBXs. A choice of Livewire AoIP with standard analog I/O, or optional AES/EBU I/O, is available.

Features:

  • Works with wired and wireless IP connections via Wi-Fi; includes matching Wi-Fi stick.
  • Exclusive Agile Connection Technology (ACT) automatically senses network conditions and adapts codec performance to provide the best possible audio.
  • Largest choice of high-performance codecs: AAC-ELD, AAC-HE, AAC-LD, MPEG Layer-2, MPEG-4 AAC-LC, MPEG-2 AAC-LC, G.711,G.722, and linear PCM. Enhanced aptX coding optional.
  • Dual Ethernet ports for separate streaming and control, plus Livewire audio and GPIO I/O.
  • Livewire and analog inputs and outputs are standard; AES/EBU I/O optional.
  • Easy browser setup via built-in Web server.
  • Push Mode for one-way network transmission.
  • Mulitiple Push Mode for audio distribution to multiple destinations.
  • Distributed Z/IP Server directory service, with multiple geolocations, lets you easily connect to other Z/IP ONE devices without the need for an IP address and also provides sophisticated NAT raversal support.
  • Transparent, time-aligned RS-232 channel for remote control or metadata, e.g., RDS.
  • Time-aligned 8-bit parallel GPIO port for signaling and control.
  • Slim 1RU form factor is perfect for studio racks, remote kits or road cases.

Advanced caller management and superior sound
These days, you can get broadband Internet just about everywhere, which makes it ideal for live remotes. But public Internet is also notoriously erratic. You could be lucky enough to get a good connection, but it might deteriorate during your broadcast. What to do? Cross your fingers and hope for the best? Or reduce your bit rate, sacrificing audio quality in hopes of making it through your show?

With Z/IP ONE (the "Z/IP" stands for "Zephyr IP"), you don't have to compromise audio quality for a solid connection.

Z/IP ONE helps you get the best possible quality from public IP networks and mobile data services - even from connections behind NATs and firewalls. Telos collaborated with Fraunhofer (the developers of MP3 and many AAC breakthroughs) to develop a unique coding control algorithm that adapts to changing Internet conditions on the fly, helping you maintain quality and stability.

We call it ACT, short for Agile Connection Technology, and only Telos has it. Using ACT to sense and adapt to the condition of your IP link, Z/IP ONE delivers superb performance on real-world networks. ACT adapts dynamically to minimize the effects of packet loss and jitter. When the bits are flowing smoothly, you'll benefit from the lowest possible delay and the highest possible fidelity. If congestion starts to occur, Z/IP ONE automatically lowers bit rate and increases buffer length to keep audio flowing at maximum quality. You'll get reliable audio even when network conditions are unpredictable - and you won't need to fiddle with settings or codecs to do it.

To make certain your remote broadcast has excellent audio quality even when IP connections are not-so-excellent, Telos engineers employed a new codec based on low delay AAC. It's called AAC-ELD (Advanced Audio Coding-Enhanced Low Delay), and it produces excellent fidelity at low bitrates with nearly inaudible loss concealment and very little delay. Standard high-performance codecs are a part of the Z/IP ONE toolkit as well, such as AAC-HE, AAC-LD, MPEG4 AAC-LC, MPEG2 AAC-LC, G.711, G.722 and even linear PCM. And if apt-X® is part of your codec cache, you can add it to your Z/IP ONE as a small extra-cost option.

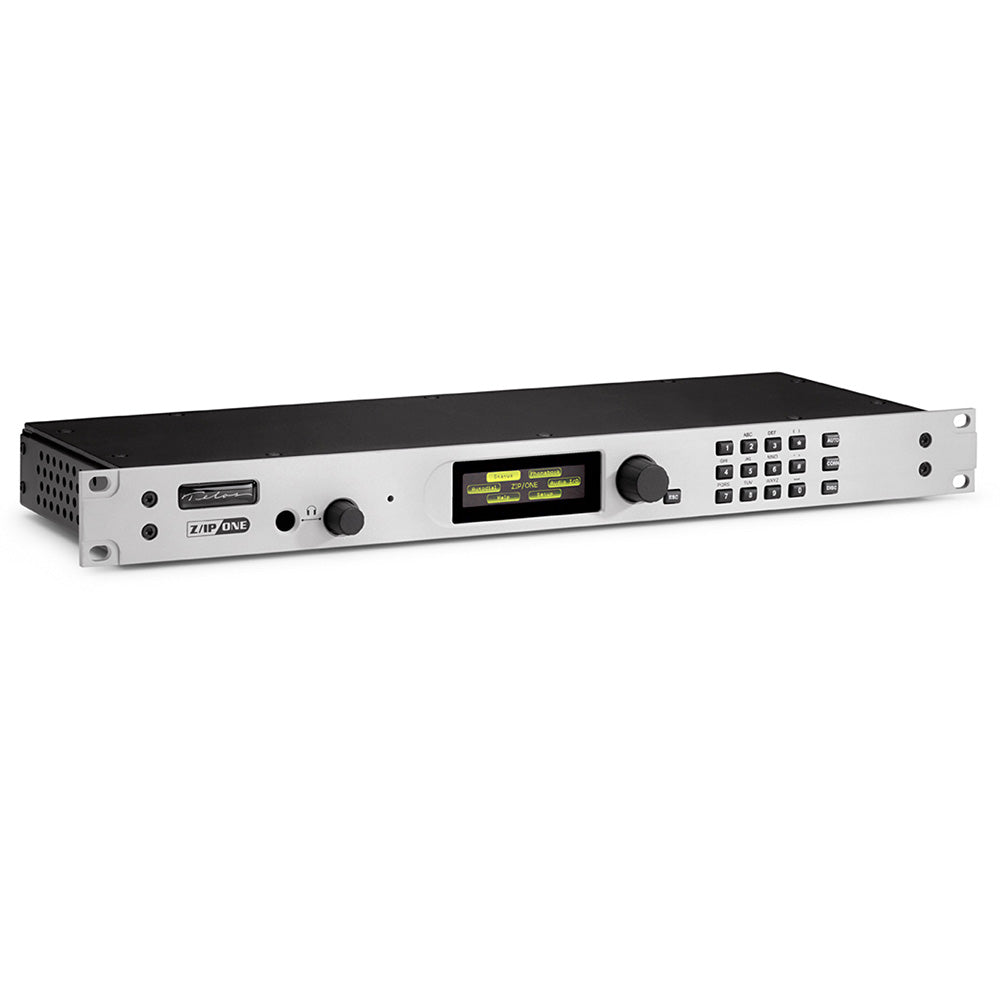

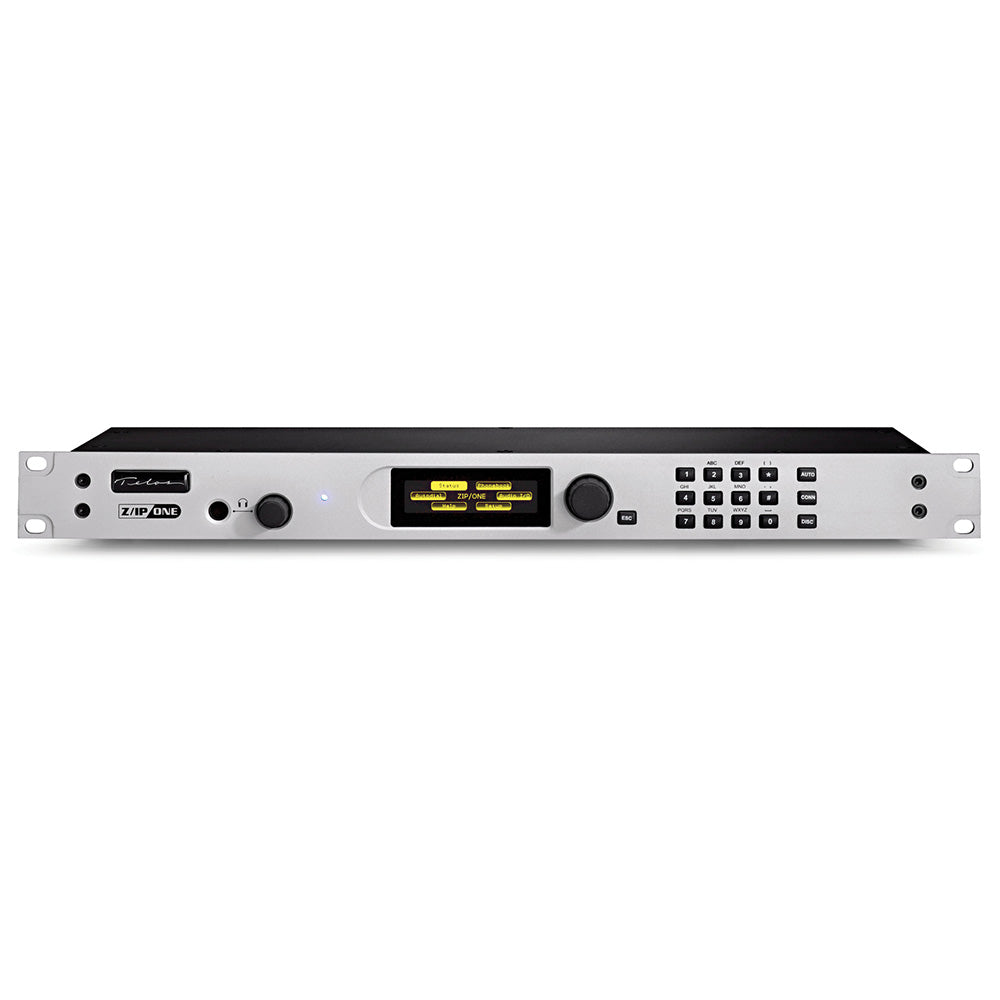

It's from Telos, so of course you expect that Z/IP ONE will be easy to set up and easy to use. And it is - the front panel controls are intuitive and friendly, and the built-in Web server makes short work of configuration or remote control via any PC with a Web browser. And our exclusive worldwide Z/IP Server service, free to Z/IP owners, lets you easily get around NATs and network firewalls for fast connections to your favorite locations. For even more flexibility, Z/IP ONE can connect to third-party apps such as LUCI LIVE and LUCI LIVE Lite to receive on-the-go reports from smartphones and tablets.

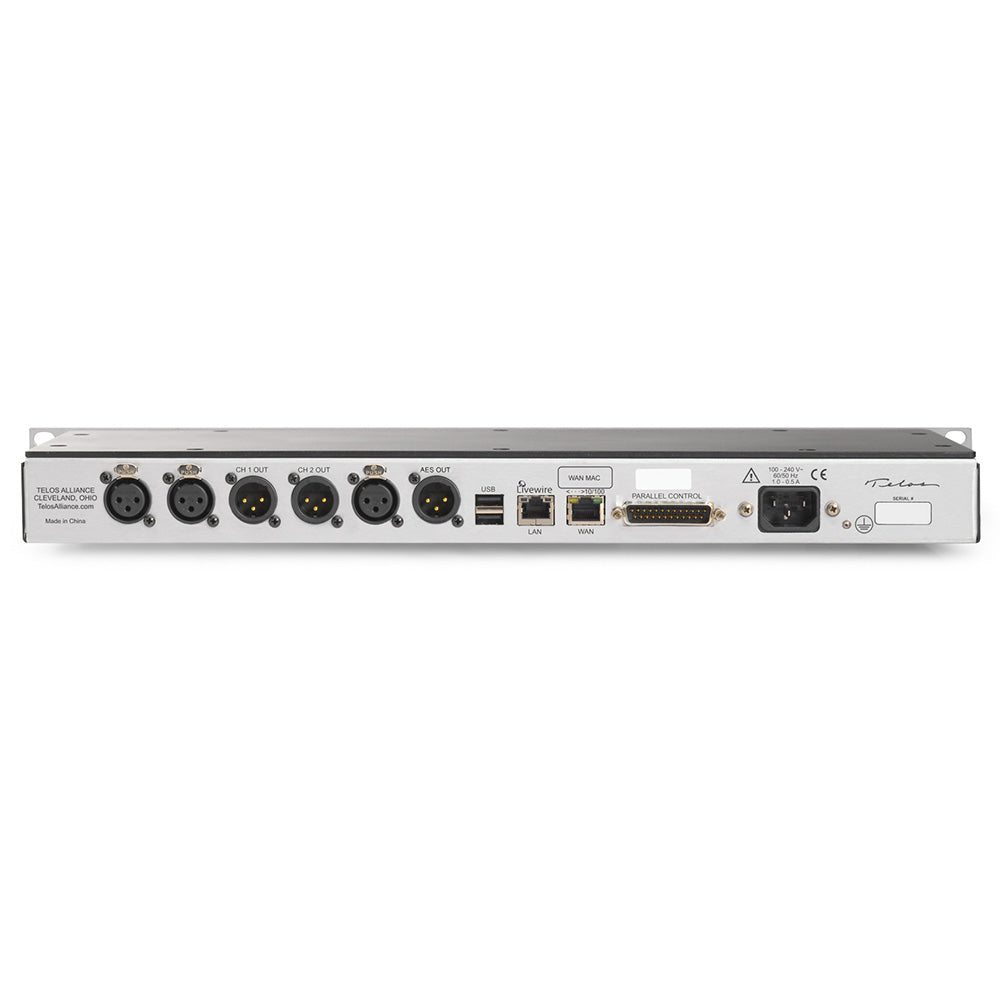

Around back, you'll find analog XLR ins and outs, a Livewire port for quick connection to Axia networks, and separate LAN and WAN jacks for safe connection to "the outside world." AES/EBU audio connections are optional.

Z/IP ONE is also wireless capable and connects natively to IP networks via Wi-Fi. A parallel port is provided for end-to-end, time-aligned GPIO contact closures; Z/IP ONE can also transport RS-232 serial data (using an inexpensive USB-to-Serial adaptor cable), synchronized with audio delivery - useful for RDS/RBDS data, as well as other serial data, at up to 9600 bps.

More +

Product Specs

Input Levels (Menu Selectable) +4dBu line level, -50dBu nominal microphone level
THD+N < 0.03% @ +12dBu, 1 kHz sine
Frequency Response +/- 1dBu 25-22kHz
Headroom 18dB
Dynamic Range >87dB unweighted, >90dB “A” weighted
Crosstalk >80dB
Output Clipping +22dB
Calculated Output Impedance 50 Ohms, Differential
Calculated Input Impedance 6k Ohms, Differential
Analog to Digital Converter 24bits
Digital to Analog Converter 24bits
Conformance and Compatibility Conforms to N/ACIP (Open) Standards. Fully supports Session Initiation Protocol 2.0 (SIP). Compatible with TCP, UDP, DNS, Zephyr Xstream, Uncompressed PCM and other Internet Protocols.
Codecs SIP: G.711, G.722, MPEG Layer2, MPEG AAC, MPEG 4 AAC LC, MPEG 2 AAC LC, Linear PCM, MPEG AAC-Enhanced Low Delay (ELD), High Efficiency AAC. Optional: apt-X® from CSR.
Input Power 0.12A @ 120VAC 14.2 Watts.
Power Supply Internal, auto-ranging, 90 – 132 / 187 – 264 VAC, 50Hz/60Hz. 100 Watts.
