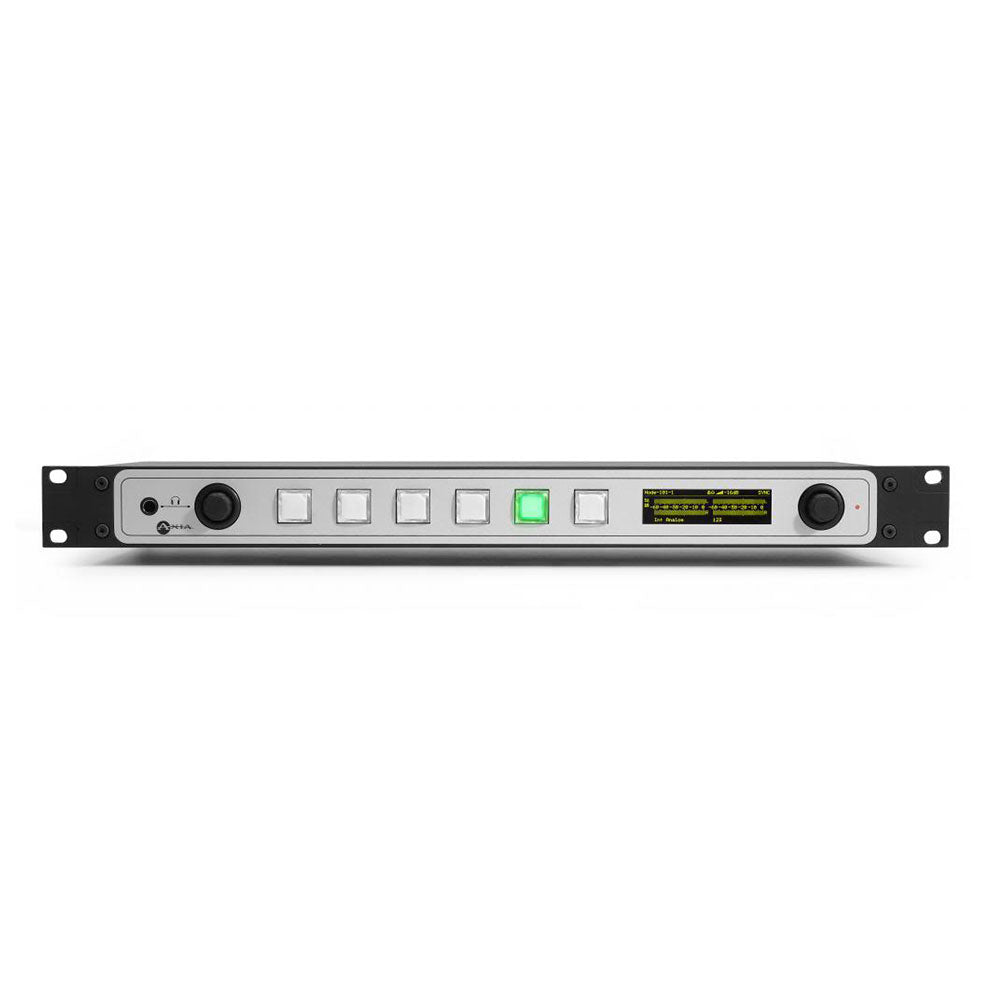

Telos 2001-00356-000 xSelector - xNode Routing Unit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Telos 2001-00356-000 xSelector - xNode Routing Unit
Sale price$2,426.00
Regular price$2,695.00
Description
The Axia xSelector combines the routing functions of an XY router control panel with the audio outputs of an Axia xNode. In addition to analog, AES3 and headphone outputs, the Router Selector Node also features an analog and an AES3 input -- ideal for production or news studios where operators both create and play audio streams. Six convenient 'radio buttons' can be quicklyprogrammed for instant access to favorite sources.
Features:
- Fanless design for silent in-studio operation.
- High-resolution front-panel multi-function OLED display meters inputs and outputs and provides audio source selection controls.
- Local I/O connections via industry-standard RJ-45 or XLR audio connectors,.
- In addition to being able to select audio streams from the Livewire® network for use locally, the xSelector features one stereo input and one stereo output, allowing fast network distribution of locally created streams from audio workstations or portable audio devices. Each xSelector can create 1 stereo Livewire stream, which becomes available to other devices on the Livewire network.
- Local I/O is presented on both AES digital and analog balanced inputs and outputs. The user can feed audio into either a balanced analog input or an AES input.
- Both the AES and analog outputs are active simultaneously; both outputs have the same audio present.
- Includes two GPIO closures presented on standard DB-15 connectors for machine control of associated devices.
- xSelector's stereo outputs can be assigned to output either the locally-created audio stream, or a single stereo Livewire stream acquired from the network and easily selected from a list of available streams using the front panel OLED display.
- Six frequently-used streams can be assigned to the front panel 'radio buttons' for instant access. Filmcap buttons can be labeled with names of assigned channels if desired.
- Dual Livewire 100BASE-T Ethernet ports for redundant connection to your Livewire audio network.
- Front panel headphone jack and volume control make xSelector a valuable addition to dubbing and ingest stations where minimal infrastructure is desired.
- Built-in HTTP server for easy remote control using any PC with a Web browser.
| Connections | |
| AES/EBU | 1x Stereo Input, presented on one XLR-F connection and one RJ-45 connection |
| Analog | 1x Stereo, presented on two XLR-F connections and one RJ-45 connection 1x Stereo, presented on two XLR-M connections and one RJ-45 connection |
| GPIO | 2x DB-15, each with 5 opto-isolated inputs and 5 outputs |
| Network | 2x 100BASE-T connections, presented on RJ-45 |
| Audio | |
| Analog Line Inputs | Input Impedance:>40 k Ohms, balanced Nominal Input Range: Selectable, +4 dBu or -10dBv Input Headroom: 20 dB above nominal inputMeta |
| Analog Line Outputs | Output Source Impedance: <50 Ohms balanced Output Load Impedance: 600 Ohms, minimum Nominal Output Level: +4 dBu Maximum Output Level: +24 dBu |
| Digital Audio Inputs And Outputs | Reference Level: +4 dBu (-20 dB FSD) Impedance: 110 Ohm, balanced Signal Format: AES3 (AES/EBU) AES3 Input Compliance: 24-bit with sample rate conversion AES3 Output Compliance: 24-bit Digital Reference: Internal (network timebase) or external reference 48 kHz, +/- 2 ppm Internal Sampling Rate: 48 kHz Input Sample Rate: 32 kHz to 192 kHz Output Sample Rate: 44.1 kHz or 48 kHz A/D Conversions: 24-bit, Delta-Sigma, 256x oversampling D/A Conversions: 24-bit, Delta-Sigma, 256x oversampling |
| Frequency Response | Any input to any output: +/- 0.5 dB, 20 Hz to 20 kHz |
| Dynamic Range | Analog Inputs to Analog Outputs 108dB referenced to 0dBFs, 111dB A-weighted Analog Inputs to Digital Outputs 110dB referenced to 0dBFs, 113dB A-weighted Digital Inputs to Analog Outputs 112dB referenced to 0dBFs, 115dB A-weighted Digital Inputs to Digital Outputs 126dB |
| Total Harmonic Distortion + Noise | Analog Input to Analog Output: < 0.005%, 1 kHz, +18dBu input, +18dBu output Analog Input to Digital Output: < 0.004%, 1 kHz, +18dBu input, -6dBFs output Digital Input to Analog Output: < 0.004%, 1 kHz, -6dBFs input, +18dBu output Digital Input to Digital Output: < 0.0003%, 1 kHz, -20dBFs |
| Crosstalk Isolation, Stereo Separation And Cmrr | Analog Line channel to channel isolation: 90dB minimum, 20Hz to 20kHz Analog Line stereo separation: 85dB minimum, 20Hz to 20kHz Analog Line Input CMRR: 80dB minimum, 20Hz to 20kHz |
| Power Supply Ac Input | Auto-ranging supply, 90VAC to 240VAC, 30 Hz to 60 Hz, IEC receptacle, internal fuse Power consumption: 35 Watts |
| Operating Temperatures | 0 degree C to +40 degree C, <90% humidity, no condensation |
| Regulatory | North America: FCC and CE tested and compliant, power supply is UL approved. |
