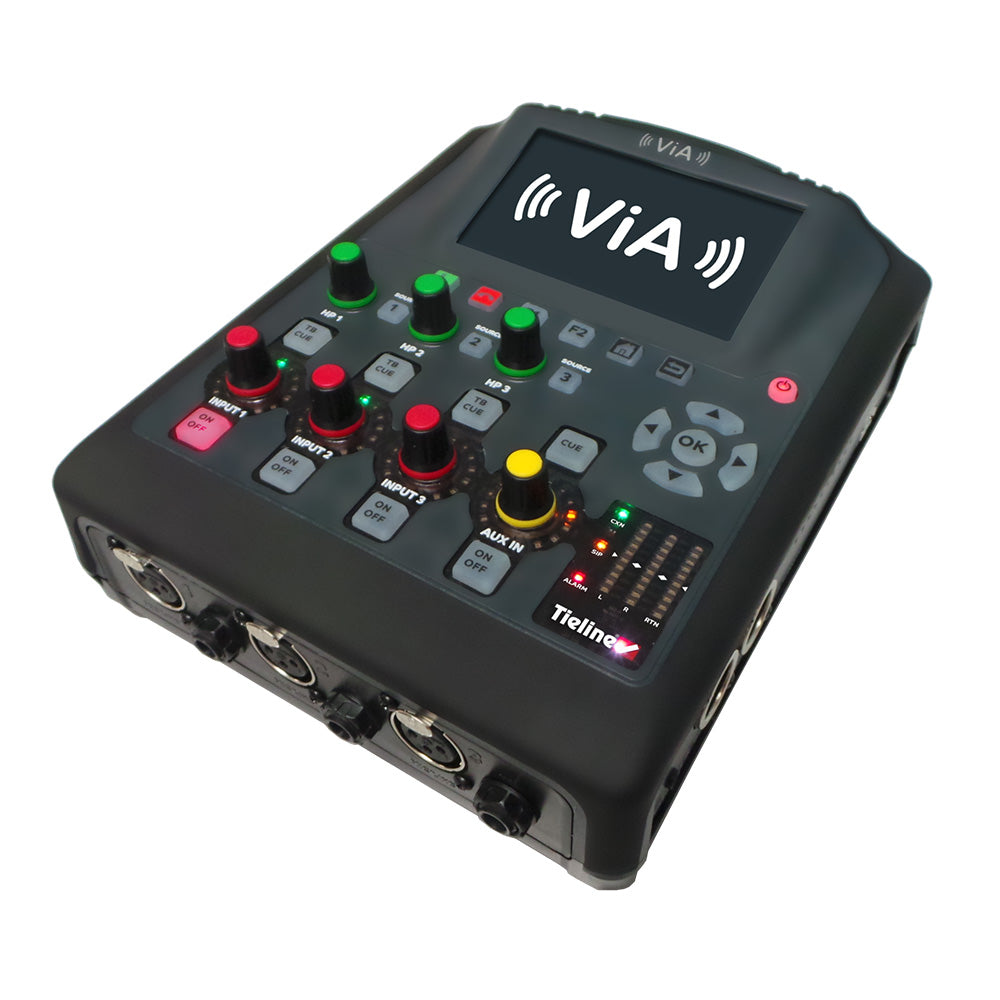

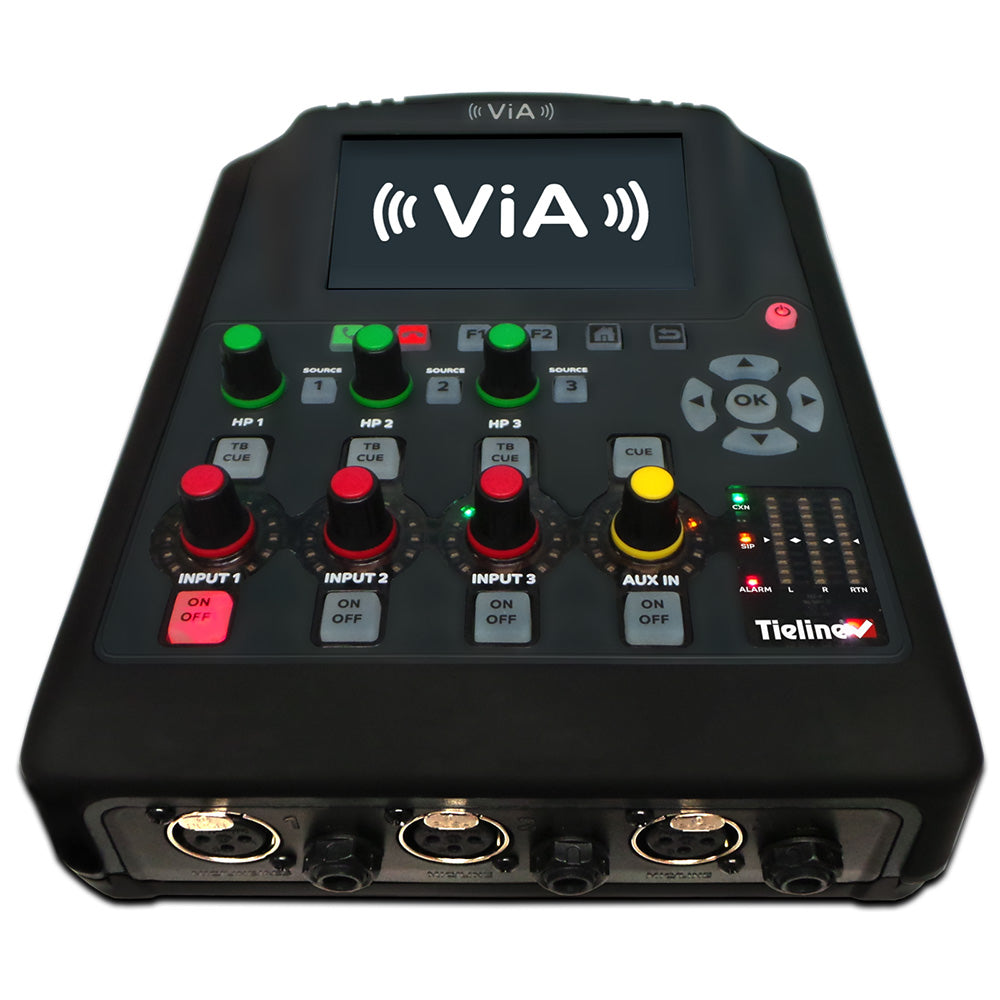

Tieline TLF5300 ViA Field IP Audio Codec with Mixer and Matrix



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:TIEL-TLF5300

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • It's time to reimagine remote broadcasting with the definitive remote codec of our generation. Tieline's revolutionary ViA portable codec sets a new standard in wireless remote broadcasting and will fundamentally change the way you perform live remotes. Picture yourself or an announcer taking your codec to a remote site, powering it up and tapping a single button on a color touchscreen to get connected - just like making a phone call. Wouldn't it be great if remotes were that simple? Well now they are - with ViA.

    Features:

    • Intuitive, simple to connect LED touch screen
    • Supports 2 separate mono connections, stereo, or stereo plus a separate IFB circuit (all connections bidirectional)
    • Dual Gigabit LAN ports
    • Optional ViA ISDN & ViA POTS interface modules
    • Inbuilt Wi-Fi and 2 x USB cellular options
    • Bonding of multiple IP interfaces with Fuse-IP
    • Includes SmartStream PLUS as standard
    • Automated backup over IP, ISDN or POTS
    • Linear audio plus a wide range of algorithms as standard, including Opus, Tieline Music and Music PLUS, aptX Enhanced,  MPEG1 Layer 2, MPEG 3, LC-AAC, HE-AACv1 & v2, AAC-LD, AAC-ELD, G.711 and G.722
    • Features added with periodic updates
    • Ships with a road case, battery and power supply as standard


    Remotes without limits
    Tieline's mission is to empower you with the technology to go live where no broadcaster has been before, and make it simpler. To achieve this, ViA delivers more IP choices and backup options than ever before.

    Connect using dual LAN Ethernet ports, or 2 USB modems, or use the on-board Wi-Fi module to connect over Wi-Fi. Insert an optional POTS or ISDN module and the codec is instantly transformed to connect over alternative network transports. This means you can configure primary and backup connections over different network transports as required, or use them as your IFB circuit.

    Fuse-IP and SmartStream PLUS
    With Tieline's proprietary Fuse-IP data aggregation technology you can bond multiple IP interfaces, including options like:

    • 2 USB modems
    • On-board Wi-Fi
    • Dual Ethernet LAN Ports

    Imagine the peace of mind knowing you can bond 2 USB modem data links from different Telcos and let Tieline's Fuse-IP technology automatically manage the data capability of each link! Tieline understands flexibility is paramount for remotes, so you can even bond a USB modem with a Wi-Fi connection, or bond Ethernet connections.

    ViA also includes Tieline's SmartStream PLUS dual redundant streaming software, which has set the benchmark for redundant IP streaming over the public internet. Some manufacturers charge thousands of dollars for IP management software like SmartStream PLUS as an optional extra, however Tieline believes high performance and rock-solid reliability is an essential part of each and every broadcast, so you get it for FREE!

    Nobody likes a traffic jam, least of all broadcasters dealing with IP packet congestion! With Tieline's SmartStream PLUS and Fuse-IP technologies, as well as automated jitter buffer management and error correction strategies, you can be assured of trouble-free motoring on the information superhighway!

    Program and Communications
    ViA seamlessly integrates with Tieline's Merlin and Merlin PLUS audio codecs to transmit high fidelity, full duplex stereo program audio with a separate bidirectional IFB circuit. As an example, you could use a USB data modem to broadcast your main program feed and another USB modem or Wi-Fi to transmit your IFB circuit. Now that's flexible!

  • Input / Output Specifications

    Analog Audio Inputs

    3 x Female XLR mic / line inputs

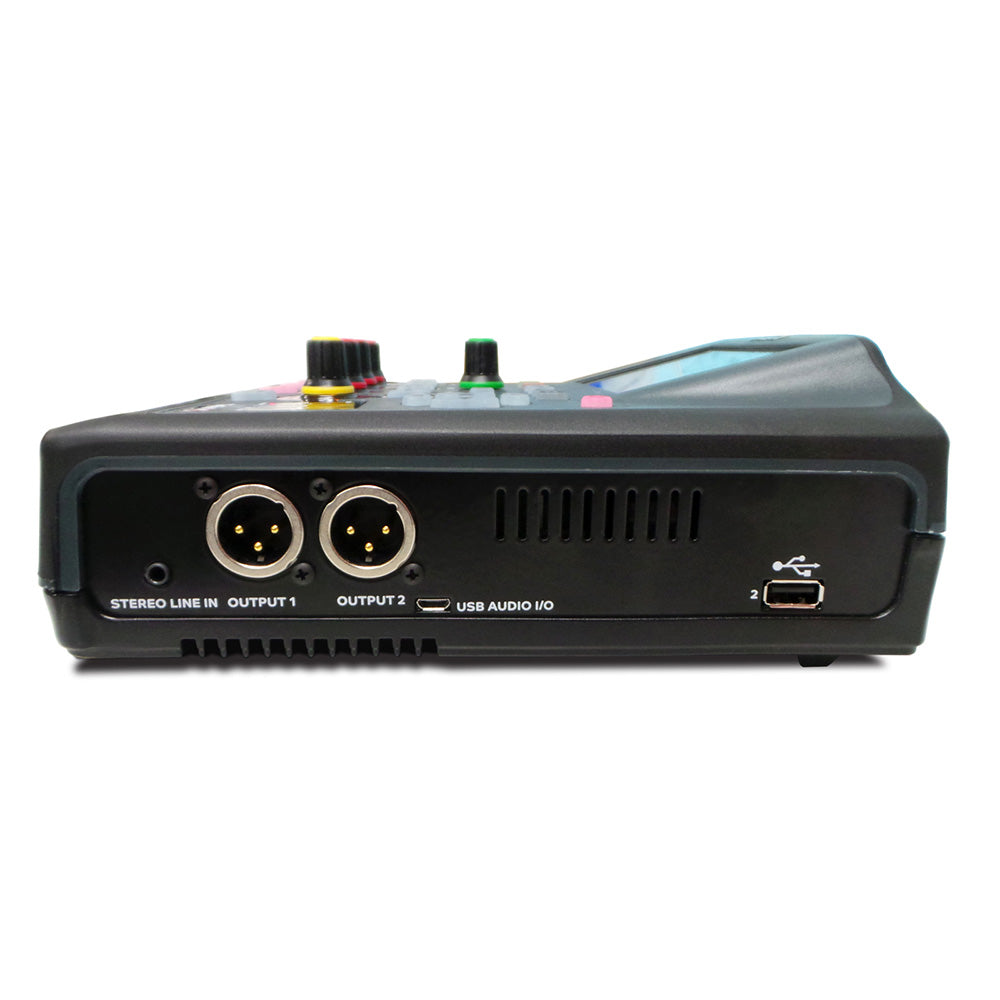

    Analog Audio Outputs

    2 x Male XLR

    AES3 In (via input 1)

    1 x female XLR (Channel 1 in; shared with Ch1 analog input & Ch 1 AES42 input)

    AES 42 (via input 1)

    1 x female XLR (Channel 1 in; shared with Ch1 analog input and Ch1 AES3 input)

    Auxiliary Inputs/Outputs

    S/PDIF in/out (RCA), or micro-USB in/out, or 3.5mm (1/8") Jack line input

    Headphones Out

    3 x 6.35mm (1/4") Jacks

    Control Port In/Out

    Four relay inputs and four opto-isolated outputs for machine control via a DB15 connector.

    Mic Phantom Power

    Selectable 48V phantom power on all analog XLR inputs

    AES42 Digital Phantom Power

    10V nominal

    Input Impedance

    High Impedance  > 5K ohm (line input); approximately 2K ohm (mic input)

    Output Impedance

    <50 ohm Balanced

    Clipping Level

    +22dBu (XLR input and outputs)

    A/D & D/A Converters

    24 bit

    Frequency Response at 48kHz

    20Hz to 20kHz

    THD and Noise (Analog)

    < 0.005% (-86dB) at +16dBu unweighted

    THD and Noise (Digital)

    <0.0001% (-120dB) at -1 dBFS

    Analog Signal to Noise

    >90dB at +22dBu, unweighted

    Sample Frequencies

    IP Sample Frequencies

    8kHz, 16kHz, 24kHz, 32kHz, 44.1kHz, 48kHz

    Algorithms

    IP

    Tieline Music, Tieline MusicPLUS, G.711, G.722, MPEG-1 Layer 2, MP3, LC-AAC, HE-AAC and HE-AACv2, AAC-LD, AAC-ELD, Opus, 16/24 bit aptX Enhanced

    IP (uncompressed)

    Linear PCM16/24 bit 48 kHz sampling

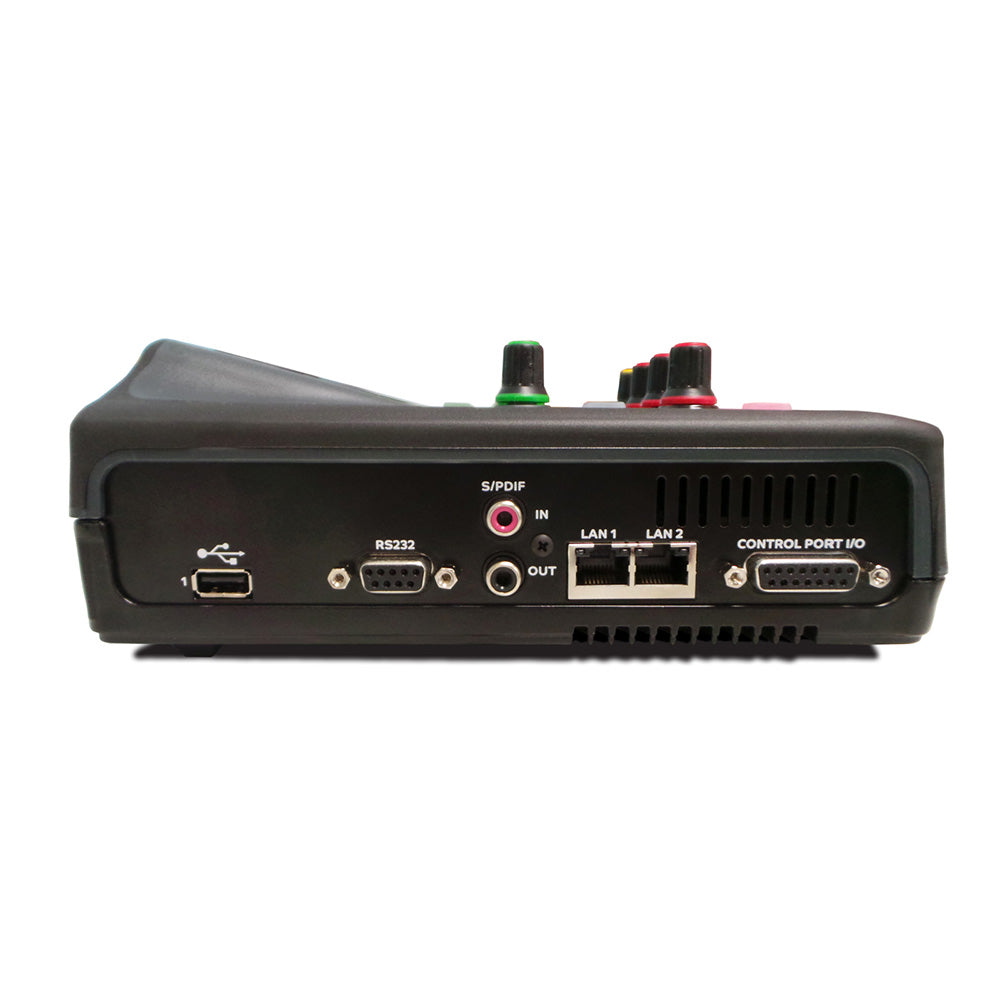

    Data and Control Interfaces

    USB

    2 x USB 2.0 Host ports

    LAN

    2 x 10/100/1000 RJ45 Ethernet ports

    Advanced Networking

    VLAN tagging (IEEE 802.1Q,802.1p)

    Serial

    RS232 up to 115kbps with or without CTS/RTS flow control via female DB9 connector, can be used as a proprietary data channel

    Protocols supported

    Tieline, DHCP, SNMP, DNS, HTTP, IGMP, ICMP, VLAN, IPv4/v6, FEC, SIP/SDP (EBU N/ACIP Tech 3326 compliant), RTP, STUN

    ISDN via module

    Optional via module slot

    POTS via module

    Optional via module slot

    Wireless

    IEEE 802.11 a/b/g/n with dual band support (2.4 and 5 GHz)

    Front Panel Interfaces

    Display

    4.3 inch TFT Color LED touch screen

    Navigation

    Touch screen or 5 button navigation keypad

     General



    Dimensions

    5 5/16" x 3 1/4" x 7 7/8"  135mm (W) x 80mm (H) x 200mm (D) including rear connectors

    Weight

    1.62 kg (with battery)

    Power

    Li-ion internal battery or external 12VDC 3A Power Supply

    Operating Temp.

    0°C to 40°C (32°F to 104°F)

    Humidity Operating Range

    15% RH 80% (0 to 35°C/32°F to 95°F), non-condensing

    Battery



    Battery

    Rechargable Li-ion battery pack RRC2057; 7.5 V, 6.4 AH, 8A; Fast charging; 240g

    Battery Operation

    Up-to 6.5 hours*

    Battery Storage Temperature

    Max: -20°C to +50°C (-4°F to 122°F)

    Recommended: -20°C to 25°C (-4°F to 77°F)

    External Battery Charger

    Intelligent desktop single bay fast charger. External power supply for worldwide use with input voltage 100-240 VAC.

    Battery Charge Time (external charger)

    Charge time with maximum charge current < 3hrs at 25°C

    Battery Charge Time (inside codec with power supply attached)

    Charge time with maximum charge current < 4hrs at 25°C

    Battery Life Expectancy

    Minimum 300 charge/discharge cycles as per manufacturer's charge/discharge recommendations
