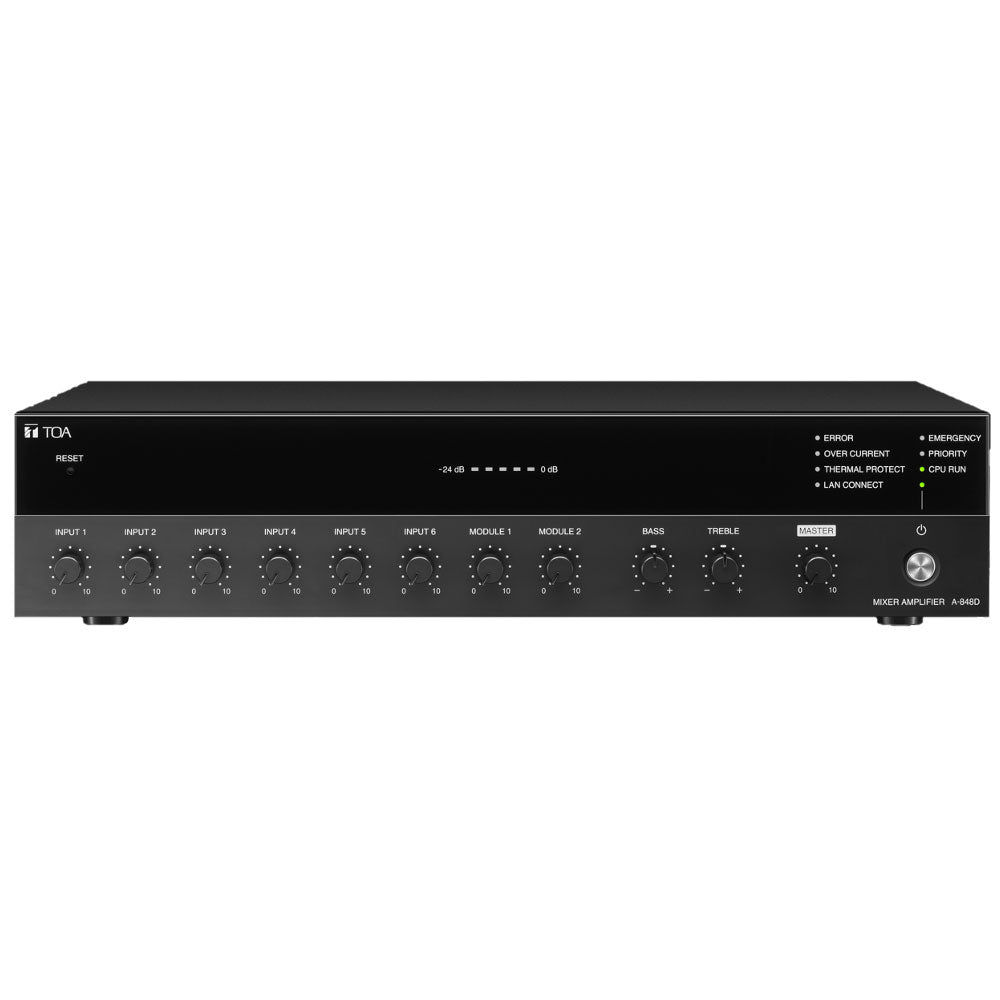

TOA A-824D - Digital Mixer Amplifier - 240W
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
TOA A-824D - Digital Mixer Amplifier - 240W
Sale price$1,205.00
Regular price$1,492.00
Description
This new digital mixer amplifier provides maximum flexibility with up to eight inputs and up to 240 W of power. Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems. Onboard DSP, a sleek new appearance, MOH output, two available 900 series module slots and TOA's legendary quality and reliability makes this a perfect fit for background and foreground music, paging, and noise masking applications.
Features:
- TOA Class D amplifiers for maximum efficiency
- Auto Gain Control for microphone inputs
- Onboard DSP
» Dynamic Feedback Filters
» Speaker EQ (3 bands of parametric EQ) Input tone controls - Assignable input priorities
- Builtin defeatable pre-announce chime
- Log Data
- IP protocol available
| Power Source | 120 V AC, 60 Hz | |
| Rated Output | 1W | |
| Power Consumption | 317 W (rated output), 62 W (based on UL62368) 200 mA or lessÊ(when power switch is OFF) | |
| Frequency Response | 50 Hz to 20 kHz ±3 dB (1/8 rated output) | |
| Total Harmonic Distortion | 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025)) | |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz | |
| Signal to Noise Ration | 88 dB or more (Master volume: min) 76 dB or more (Master volume: max) 55 dB or more (INPUT 1 to 6)Ê(A-weighted) | |
| Input | 1-2: | -60 dB* (MIC)/-20 dB* (LINE) selectable, 600 ½, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable). |
| Ê3-4: | -60 dB*, 600 ½, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: Equipped with phantom power (24 V DC, ON/OFF switchable). | |
| 5-6: | ÊMIC/LINE selectable MIC: -60 dB* , 600 ½, electronically-balanced, removable terminal block (3.81 mm, 3 pins) LINE: -20 dB*, 10 k½, unbalanced, RCA pin jack x 2 | |
| Module 1-2 | -20 dB*, 10 k½ | |
| Output |
Speaker | High impedance: 70 V line/21 ½/Low impedance 4 to 16 ½ÊLow impedance 4 to 16 ½Êselectable |
| REC: | 0 dB *, 600 ½, unbalanced, RCA pin jack x 2 | |
| PRE AMP: | 0 dB *, 600 ½, unbalanced, RCA pin jack | |
| Control Input | 4 channels, no-voltage make contact input, open voltage: 35 V DC or less,ÊShort-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins) | |
| REMOTE VOLUME: No-voltage make contact input, open voltage: 35 V DC or less,ÊShort circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins) | ||
| Control Output | POWER REMOTE: Open collector output, withstand voltage: 30 V DC or less,Êcontrol current: 25 mA or less, removable terminal block (3.50 mm, 4 pins) | |
| EMERGENCY OUT: Open collector output, withstand voltage: 30 V DC or less,Êcontrol current: 25 mA or less, removable terminal block (3.50 mm, 4 pins) | ||
| Indicators | LED level meter, Power indicator, Network connection confirmation indicator, Priority broadcast indicator, Emergency broadcast indicator, Thermal protection indicator, Over-current protection indicator, CPU running indicator, Error indi-cator | |
| Operating Temperature | -10 to +40 ûC (14 to 104 ûF) | |
| Operating Humidity | 85 % RH or less (no condensation) | |
| Finish | ÊPanel: ABS resign, black Case: Surface-treated steel plate, black, paint |
|
| Dimensions | 420 (w) x 96.1 (h) x 313.1 (d) mm or 16,54" x 3.78" x 12.33" | |
| Weight | 5.2 kg or 11.46 lb | |
| Options | Input transformer: IT-450, Perforated panel: PF-013B | |
This new digital mixer amplifier provides maximum flexibility with up to eight inputs and up to 240 W of power. Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems. Onboard DSP, a sleek new appearance, MOH output, two available 900 series module slots and TOA's legendary quality and reliability makes this a perfect fit for background and foreground music, paging, and noise masking applications.
Features:
- TOA Class D amplifiers for maximum efficiency
- Auto Gain Control for microphone inputs
- Onboard DSP
» Dynamic Feedback Filters
» Speaker EQ (3 bands of parametric EQ) Input tone controls - Assignable input priorities
- Builtin defeatable pre-announce chime
- Log Data
- IP protocol available
| Power Source | 120 V AC, 60 Hz | |
| Rated Output | 1W | |
| Power Consumption | 317 W (rated output), 62 W (based on UL62368) 200 mA or lessÊ(when power switch is OFF) | |
| Frequency Response | 50 Hz to 20 kHz ±3 dB (1/8 rated output) | |
| Total Harmonic Distortion | 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025)) | |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz | |
| Signal to Noise Ration | 88 dB or more (Master volume: min) 76 dB or more (Master volume: max) 55 dB or more (INPUT 1 to 6)Ê(A-weighted) | |
| Input | 1-2: | -60 dB* (MIC)/-20 dB* (LINE) selectable, 600 ½, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable). |
| Ê3-4: | -60 dB*, 600 ½, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: Equipped with phantom power (24 V DC, ON/OFF switchable). | |
| 5-6: | ÊMIC/LINE selectable MIC: -60 dB* , 600 ½, electronically-balanced, removable terminal block (3.81 mm, 3 pins) LINE: -20 dB*, 10 k½, unbalanced, RCA pin jack x 2 | |
| Module 1-2 | -20 dB*, 10 k½ | |
| Output |
Speaker | High impedance: 70 V line/21 ½/Low impedance 4 to 16 ½ÊLow impedance 4 to 16 ½Êselectable |
| REC: | 0 dB *, 600 ½, unbalanced, RCA pin jack x 2 | |
| PRE AMP: | 0 dB *, 600 ½, unbalanced, RCA pin jack | |
| Control Input | 4 channels, no-voltage make contact input, open voltage: 35 V DC or less,ÊShort-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins) | |
| REMOTE VOLUME: No-voltage make contact input, open voltage: 35 V DC or less,ÊShort circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins) | ||
| Control Output | POWER REMOTE: Open collector output, withstand voltage: 30 V DC or less,Êcontrol current: 25 mA or less, removable terminal block (3.50 mm, 4 pins) | |
| EMERGENCY OUT: Open collector output, withstand voltage: 30 V DC or less,Êcontrol current: 25 mA or less, removable terminal block (3.50 mm, 4 pins) | ||
| Indicators | LED level meter, Power indicator, Network connection confirmation indicator, Priority broadcast indicator, Emergency broadcast indicator, Thermal protection indicator, Over-current protection indicator, CPU running indicator, Error indi-cator | |
| Operating Temperature | -10 to +40 ûC (14 to 104 ûF) | |
| Operating Humidity | 85 % RH or less (no condensation) | |
| Finish | ÊPanel: ABS resign, black Case: Surface-treated steel plate, black, paint |
|
| Dimensions | 420 (w) x 96.1 (h) x 313.1 (d) mm or 16,54" x 3.78" x 12.33" | |
| Weight | 5.2 kg or 11.46 lb | |
| Options | Input transformer: IT-450, Perforated panel: PF-013B | |
