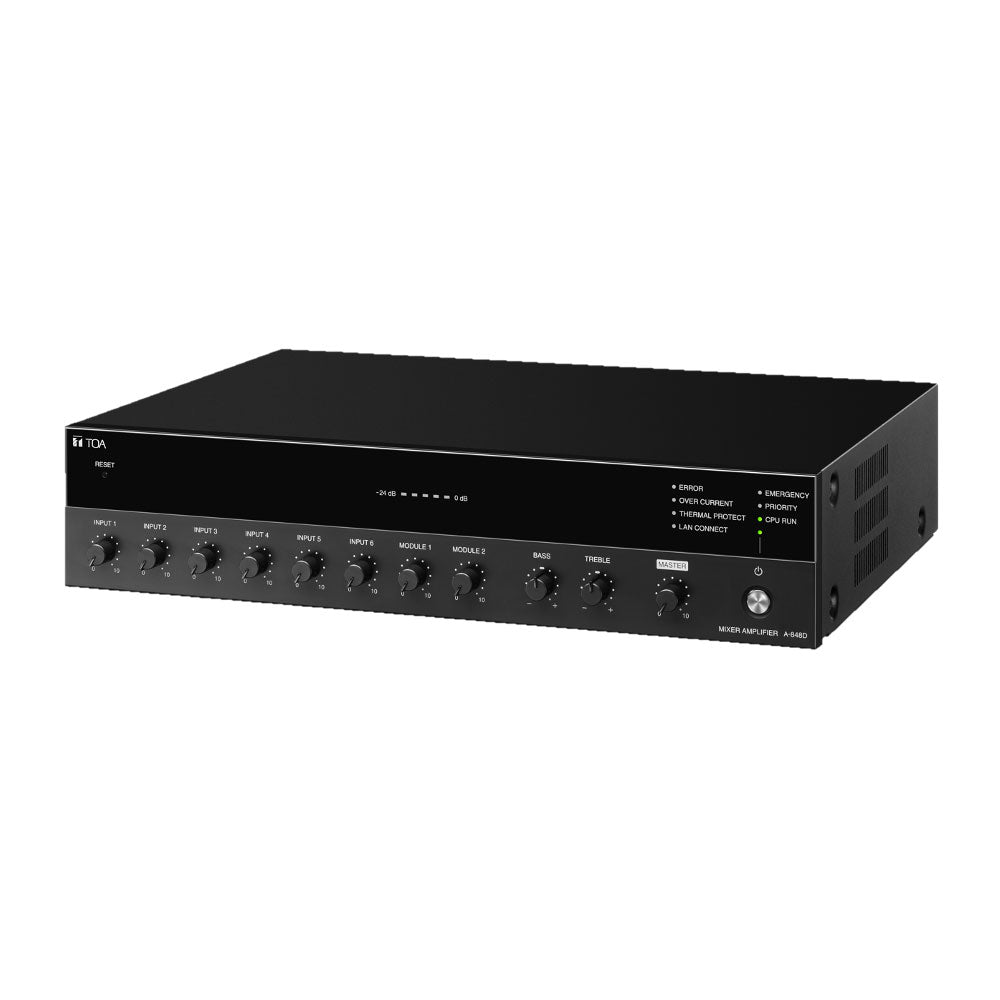

TOA A-848D - Digital Mixer Amplifier - 480W


  • Dale #:

    TOA-A848D
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

This digital mixer amplifier provides maximum flexibility with up to eight inputs and up to 480 W of power. Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems. Onboard DSP, a sleek new appearance, MOH output, two available 900 series module ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

This digital mixer amplifier provides maximum flexibility with up to eight inputs and up to 480 W of power. Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems. Onboard DSP, a sleek new appearance, MOH output, two available 900 series module slots and TOA's legendary quality and reliability makes this a perfect fit for background and foreground music, paging, and noise masking applications.

Features:

  • TOA Class D amplifiers for maximum efficiency
  • Auto Gain Control for microphone inputs
  • Onboard DSP
    » Dynamic Feedback Filters
    » Speaker EQ (3 bands of parametric EQ) Input tone controls
  • Assignable input priorities
  • Built in defeatable pre-announce chime
  • Log Data
  • IP protocol available

More +

Product Specs

Power Source 120 V AC, 60 Hz
Rated Output 480 W
Power Consumption 621 W (rated output), 103 W (based on UL62368) 200 mA or less (when power switch is OFF)
Frequency Response 50 Hz to 20 kHz ±3 dB (1/8 rated output)
Total Harmonic Distortion 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))
Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Signal to Noise Ration 88 dB or more (Master volume: min) 76 dB or more (Master volume: max) 55 dB or more (INPUT 1 to 6) (A-weighted)
Input 1-2: -60 dB* (MIC)/-20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable).
 3-4: -60 dB*, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: Equipped with phantom power (24 V DC, ON/OFF switchable).
5-6:  MIC/LINE selectable MIC: -60 dB* , 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) LINE: -20 dB*, 10 kΩ, unbalanced, RCA pin jack x 2
Module 1-2 -20 dB*, 10 kΩ
Output


Speaker High impedance: 70 V line/10 Ω Low impedance 4 to 16 Ω selectable
REC: 0 dB *, 600 Ω, unbalanced, RCA pin jack x 2
PRE AMP: 0 dB *, 600 Ω, unbalanced, RCA pin jack
Control Input 4 channels, no-voltage make contact input, open voltage: 35 V DC or less, Short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)
REMOTE VOLUME: No-voltage make contact input, open voltage: 35 V DC or less, Short circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)
Control Output POWER REMOTE: Open collector output, withstand voltage: 30 V DC or less, control current:          25 mA or less, removable terminal block (3.50 mm, 4 pins)
EMERGENCY OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins)
Indicators LED level meter, Power indicator, Network connection confirmation indicator, Priority broadcast indicator, Emergency broadcast indicator, Thermal protection indicator, Over-current protection indicator, CPU running indicator, Error indi-cator
Operating Temperature -10 to +40 ˚C (14 to 104 ˚F)
Operating Humidity 85 % RH or less (no condensation)
Finish  Panel: ABS resign, black
Case: Surface-treated steel plate, black, paint
Dimensions 420 (w) x 96.1 (h) x 313.1 (d) mm or 16,54" x 3.78" x 12.33"
Weight 5.4 kg or 11.9 lb
Options Input transformer: IT-450, Perforated panel: PF-013B
