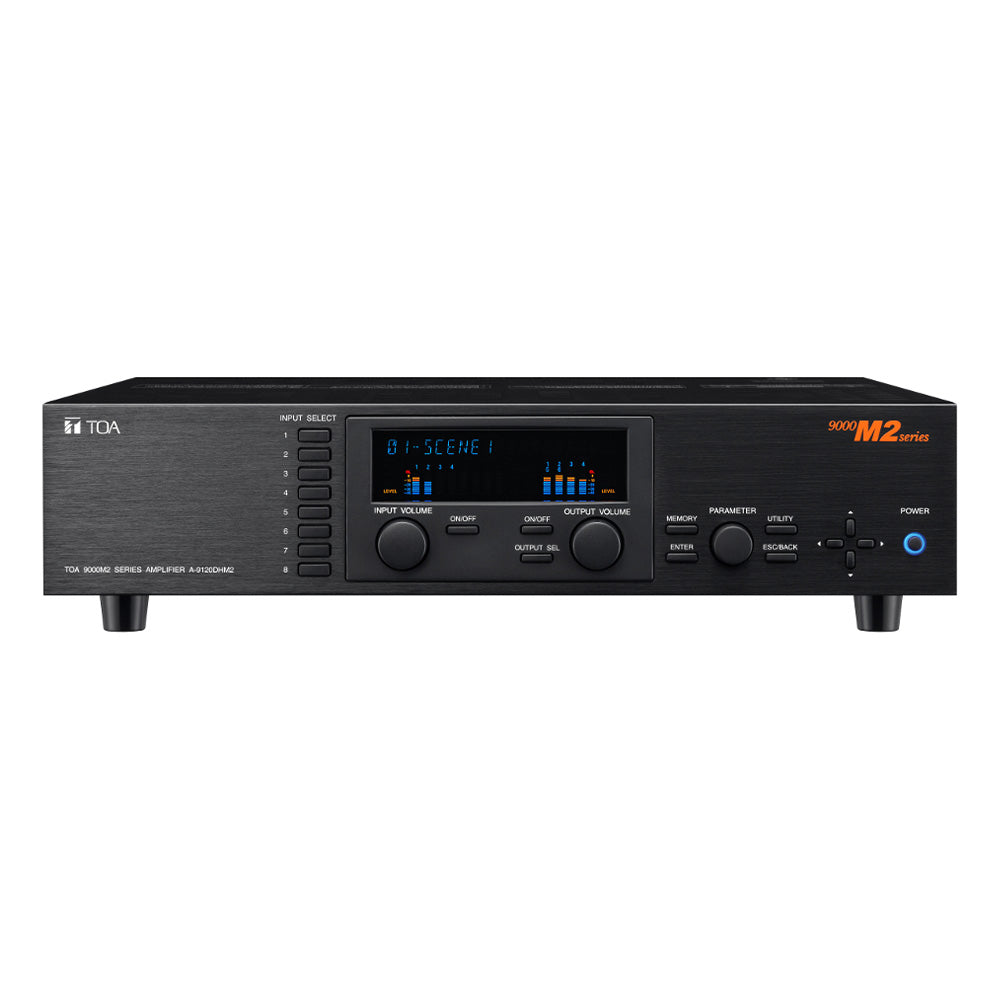

TOA A-9120DHM2 - 2x120W Digital Matrix Mixer Amplifier (Requires Modules)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
Description
The A-9120DHM2 CU Amplifier is designed to be used in conjunction with optional modules and can be confiugured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used. The most appropriate modules can be selected depending on applications. Since it comes with two 120W power amplifiers, it can individually perform multi-origin braodcasts. It is equipped with signal processing and control functions necessary for sound reinforcement, permitting all parameters to be set at the mixer. Settings data can be stored inside the unit and called up using the keys on the front panel.
The A-9120DHM2 CU has partnered with Key Digital as a Compass Alliance Partner for use with their control system.
| Power Source | 120 V AC, 60 Hz |
| Power Consumption | 250 W |
| Rated Output | 120 W _ 2 channels |
| Audio Input | Max. 8 channels, modular construction (modules optional) Power amplifier input 1, 2: 0 dB(*1), 10 k½, RCA pin jack |
| Audio Output | Preamplifier output 1, 2: 0 dB(*1), 300 ½, unbalanced, RCA pin jack Speaker output 1, 2: 120 W, 41 ½ _ 2, BTL output, removable terminal block (4 pins) |
| Module Slot | Analog input (slot 1 - 8): -10 dB(*1), 10 k½, unbalanced Digital input (slot 1 - 4): 24 bit/48 kHz MIX output (slot 1 - 8): -14 dB(*1), 330 ½ (CH 1 prefader output), unbalanced Digital output (slot 5 - 7): 24 bit/48 kHz Power supply (slot 1 - 8): +24 V, -24 V, +6 V DC |
| Digital Audio Signal Reference Level | -20 dBFS |
| Power Bandwidth | 20 Hz - 20 kHz, 0.008 % THD |
| Frequency Response | Power amplifier section: 20 Hz - 20 kHz, +0, -1 dB Analog input module to speaker output: 20 Hz - 20 kHz, +1, -3 dB |
| Total Harmonic Distortion | Power amplifier section: 0.0008 % (22 kHz LPF, 1 kHz, rated power) Analog input module to speaker output: 0.008 % (22 kHz LPF, 1 kHz, rated power) |
| S/N Ratio | At Input short, 20 Hz - 20 kHz, set to ALL FLAT or OFF setting Output volume min.: 90 dB (preamplifier output) Output volume max.: 61 dB (preamplifier output, Input 1 volume: 0 dB, Other Inputs: OFF) Power amplifier section: 110 dB |
| Cross Talk | 64 dB or more (at 20 kHz) |
| Tone Control | Bass: ±12 dB (at 100 Hz) Treble: %%p12 dB (at 10 kHz) |
| Parametric Equalizer | 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5 |
| Speaker Equalizer | 10 (setup software has 30 TOA speaker presets) |
| High-pass Filter | -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points |
| Low-pass Filter | -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points |
| Compressor | Depth: 1 - 5 |
| Delay | 0 - 40 ms (1 ms steps), maximum 40 ms (CH 1 + CH 2), mixer mode only |
| Scene/Event Memory | 32 |
| Auxiliary Function | Key lock function |
| Control Input/Output | RS-232C(*2), D-sub connector (9 P, female) Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3 V DC, short-circuit current: 1 mA or less, removable terminal block (14 pins) Control output: 4 outputs, open collector output, withstand voltage: 27 V DC, control current: 50 mA, removable terminal block (14 pins) Remote volume: 2 channels, connect a 10 k½/linear taper variable resistor or input the DC voltage of 0 to +10 V, removable terminal block (14 pins) |
| Operating Temperature | -10 _ to +40 _ (14 _F to 104 _F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Panel: Aluminum, hair-line, black Case: Surface-treated steel plate, black, paint |
| Dimensions | 420 (W) _ 107.6 (H) _ 395 (D) mm (16.54" _ 4.24" _ 15.55") |
| Weight | 11 kg (24.25 lb) |
| Accessory | Power cord (2 m (6.56 ft)) É1, Rack mounting bracket É2, Bracket mounting screw É4, Blank panel É7, Blank panel mounting screw É14, Removable terminal plug (4 pins) É1, Removable terminal plug (14 pins) É1, CD É1 |
