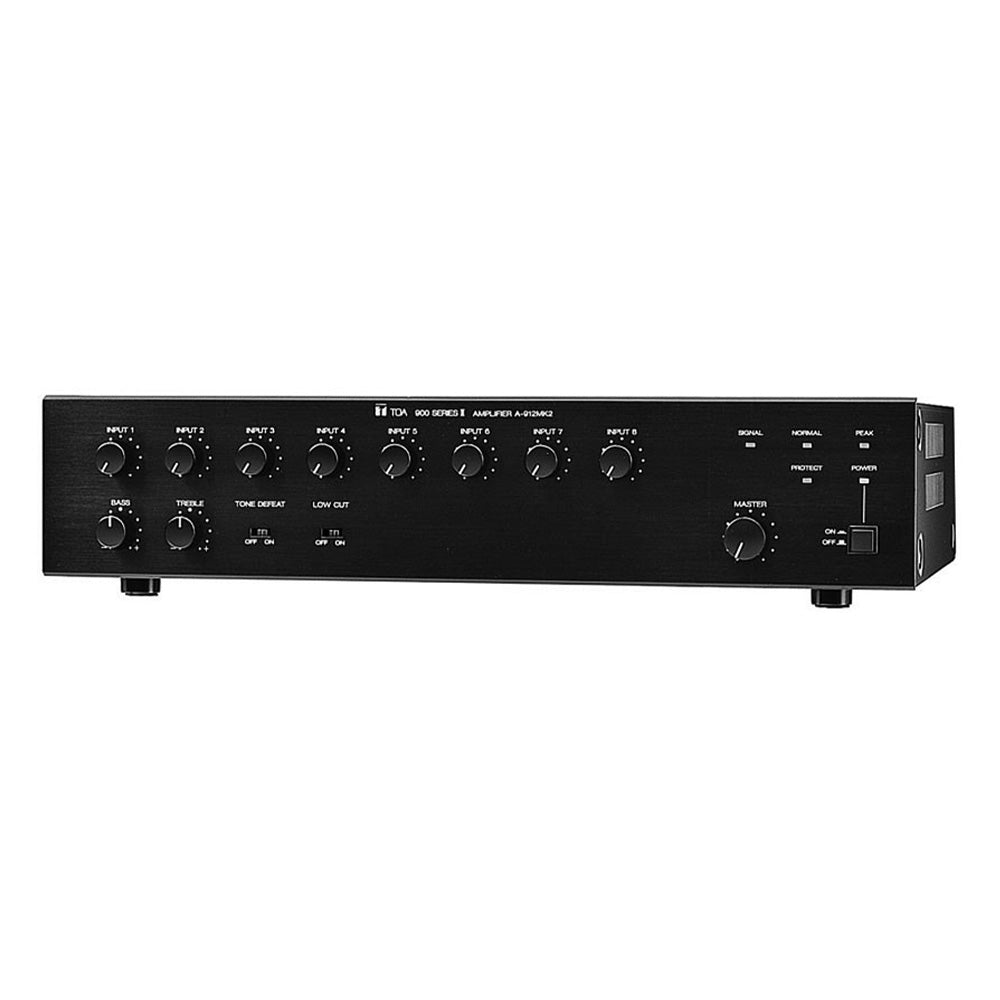

TOA A-912MK2 - 8-Channel 120-Watt Mixer Amplifier (Requires Modules)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Contact us
TOA A-912MK2 - 8-Channel 120-Watt Mixer Amplifier (Requires Modules)
Sale price$973.00
Regular price$1,204.00
Description
The TOA 900 Series are widely recognized as the industry standard in installed sound system amplification. When reliability and performance are critical - such as in paging and music distribution for airport, hospital, and industrial sound systems - you can count on the TOA 900 Series to perform consistently, day-in and day-out.
The A-912MK2 (120 W) Modular Mixer/Amplifiers are engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation.
Features:- Modular Eight Channel Mixer/Amplifiers for paging, background/foreground music distribution and music/messaging-on-hold.
- Proven TOA Quality and Reliability
- Engineered for High Performance with wide frequency response, very low noise and distortion, and excellent output regulation.
- Three Models: A-903MK2 (30 W), A-906MK2 (60 W), A-912MK2 (120 W)
- Eight Module Slots accept any combination of TOA plug-in modules for custom system configurations.
- 25 V, 70 V and 8 Ohm Transformer-Isolated Speaker Outputs with screw terminal connector and protective cover plate (A-903MK2: 4 ohm).
- Direct Low-Impedance Output Mode bypasses output transformer.
- Dual Mute Bus permits multiple levels of paging priority using optional mute-type modules.
- External Mute Terminals for activating mute function with external switch closure.
- Remote Master Volume Terminals for control with an external 10k ohm linear-taper potentiometer.
| Type | 8-channel mixer power amplifier |
| Output Power | 120WRMS |
| Power Band Width | (D) 20 ~20,000 Hz, 0.5% THD (T) 50 ~20,000 Hz, 0.5% THD |
| Frequency Response | (D) 20 ~20,000 Hz, ± 1 dB (T) 20 ~15,000 Hz, ± 1 dB (T) 20 ~20,000 Hz, +1 dB, -3 dB |
| Total Hamonic Distortion | 0.02% at 1 kHz, rated output |
| Inputs | Eight Input Ports : Each port accepts any input module. One Bridging Input/Output |
| Input Sensitivity/Impedance | Input Port #1 to #8 : 100 mV/10k ohms Bridging Input/Output: 100 mV/3.3k ohms |
| Preamp OUT/Power Amp IN | 1000 mV into 600 ohms/1000 mV, 10k ohms |
| Outputs (T)=Transformer (D)=Direct | Main (T) : 8 ohms, 25 / 70 volts, balanced Main (D) : 4 ohms, unbalanced , Aux : 10k ohms, 1V |
| Output Regulation (1 kHz) | (D) Less than 0.5 dB, no load to full load (T) Less than 1.0 dB, no load to full load |
| Signal to Noise Ratio (Band Pass 20 ~20,000 Hz) Tone Defeat SW ON | Master volume min : 90 dB Master volume max : 77 dB Power amplifier only : 105 dB |
| Tone Controls | Bass : ± 10 dB at 100 Hz, Treble : ± 10 dB at 10 kHz |
| Controls | 8 Input gain controls 1 Master gain control 1 Bass tone control 1 Treble control 1 Power ON/OFF switch 1 Tone defeat switch 1 Low-Cut switch (60 Hz, 6 dB/octave) |
| Indicators | 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED |
| Protection | Self-protection, with AC fuse (inside) |
| Connectors | Input No.1 to No.8 ..........................Card-edge connector Bridging, Mixer preamp. output Power amp. input, Aux output........RCA phono jack Output.............................................Screw-terminal strip Mute, Remote VR............................Screw-terminal strip AC power cord/plug.......................SJT, 3-prong type AC outlet.........................................3-pin grounding type |
| Power Consumption | 180W |
| Temperature Range | -10 ¡C ~ +60 C [12¡F~140¡F] |
| Dimensions (W) x (H) x (D) | 420 x 99.1 x 358 mm 9.6kg [21.2lb.] [16.5 X3.9X 14.1 in.] |
| Color | Black |
| Standard Accessories | 4 Volume control covers (YA-920) |
| Other Features | Output disconnected for approx. 5 seconds after switching power on. |
