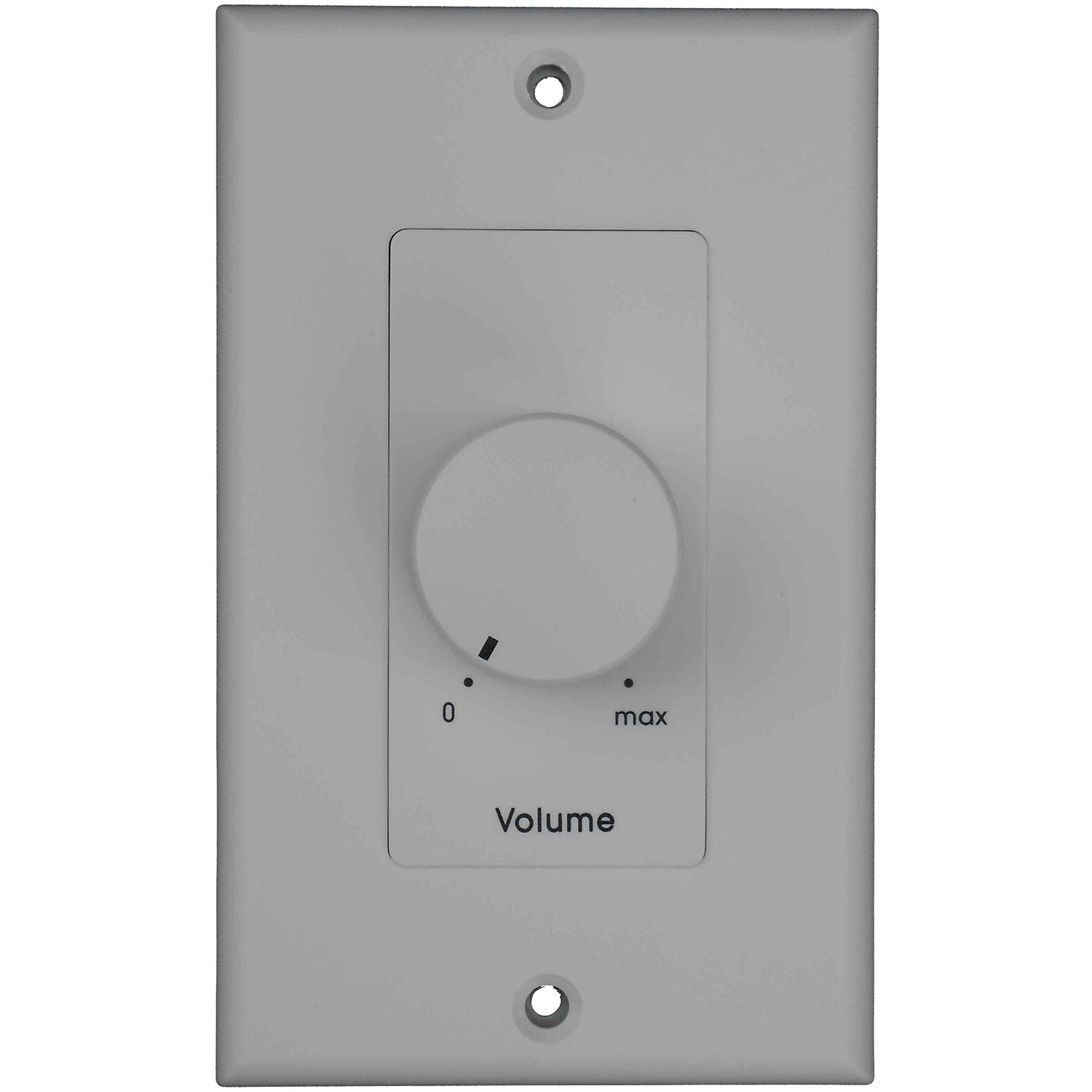

TOA AT-100EMG - Decora Mount 100-Watt Volume Control with Relay
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
TOA’s volume control attenuators provide precise level adjustment to single or multiple speaker lines. AT-100EMG is equipped with a 24VDC@15mA relay for applications that require emergency and paging signals to bypass/override the attenuator.
| Input Capacity | 100W |
| Attenuation | 13 steps (0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, OFF) |
| Wire Capacity | 14 gauge |
| Priority Relay | 24VDC@15mA |
| Finish | White plate / subplate / Decorastyle |
| Dimensions | Plate Width 2.75Ó Plate Height 4.5Ó Unit Depth 2.125Ó Unit Height 2.5Ó Unit Width 1.875Ó |
TOA’s volume control attenuators provide precise level adjustment to single or multiple speaker lines. AT-100EMG is equipped with a 24VDC@15mA relay for applications that require emergency and paging signals to bypass/override the attenuator.
| Input Capacity | 100W |
| Attenuation | 13 steps (0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, OFF) |
| Wire Capacity | 14 gauge |
| Priority Relay | 24VDC@15mA |
| Finish | White plate / subplate / Decorastyle |
| Dimensions | Plate Width 2.75Ó Plate Height 4.5Ó Unit Depth 2.125Ó Unit Height 2.5Ó Unit Width 1.875Ó |
