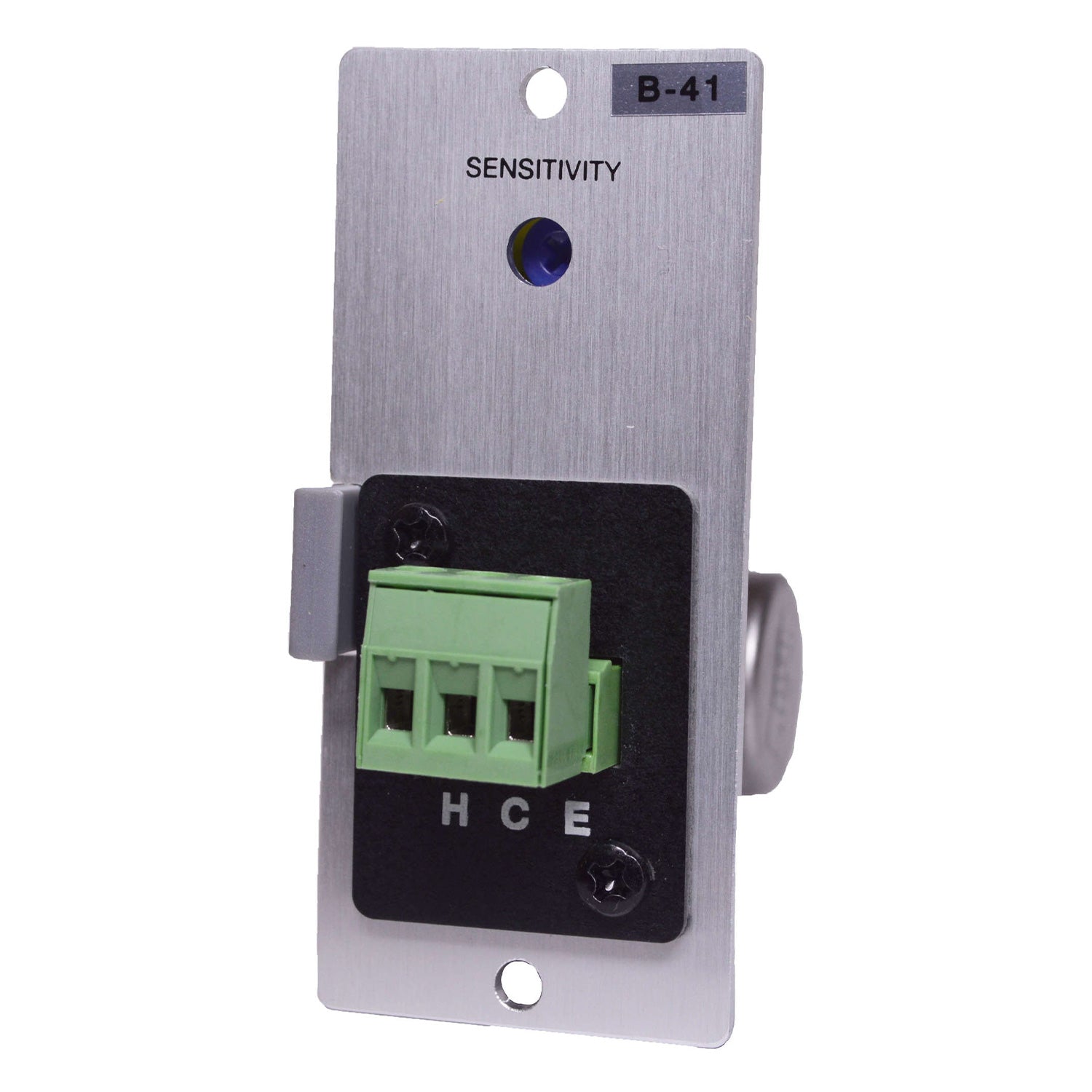

TOA B-41S Line Level Terminal Block Input Module
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Contact us
Description
This is an input module for use with TOA 900 series amplifiers. It has a removable terminal block connector and supports balanced or unbalanced line level signals from devices such as CD players, tape decks, or AM/FM tuners. The unit is transformer-isolated to minimize ground loop problems when connected to remote equipment. When a signal is present at the input terminals, the mute bus becomes activated.
- For Balanced Or Unbalanced Line Level Sources suchas mixer outputs, signal processors and wirelessmicrophone receivers.
- Transformer Isolation (10 kΩ) minimizes ground loopproblems when connecting remote equipment (greater than15 feet).
- Signal At Input Terminals Activates Both Mute Bus #1 and Mute Bus # 2 by Default (cut diode(s) todisconnect individual mute bus).
- Tip! Use the B-41S to connect to most modern telephonesystem's Page Output (usually line level).
- Connector: removable terminal block (B-41S).
| Faceplate Controls | Mute send sensitivity |
| PCB Controls | Mute bus selection |
| Input Impedance | 10 kohms, balanced transformer-isolated |
| Sensitivity | -16 dBu, min. -34 dBu to activate mute function |
| Gain | -2 dB |
This is an input module for use with TOA 900 series amplifiers. It has a removable terminal block connector and supports balanced or unbalanced line level signals from devices such as CD players, tape decks, or AM/FM tuners. The unit is transformer-isolated to minimize ground loop problems when connected to remote equipment. When a signal is present at the input terminals, the mute bus becomes activated.
- For Balanced Or Unbalanced Line Level Sources suchas mixer outputs, signal processors and wirelessmicrophone receivers.
- Transformer Isolation (10 kΩ) minimizes ground loopproblems when connecting remote equipment (greater than15 feet).
- Signal At Input Terminals Activates Both Mute Bus #1 and Mute Bus # 2 by Default (cut diode(s) todisconnect individual mute bus).
- Tip! Use the B-41S to connect to most modern telephonesystem's Page Output (usually line level).
- Connector: removable terminal block (B-41S).
| Faceplate Controls | Mute send sensitivity |
| PCB Controls | Mute bus selection |
| Input Impedance | 10 kohms, balanced transformer-isolated |
| Sensitivity | -16 dBu, min. -34 dBu to activate mute function |
| Gain | -2 dB |
