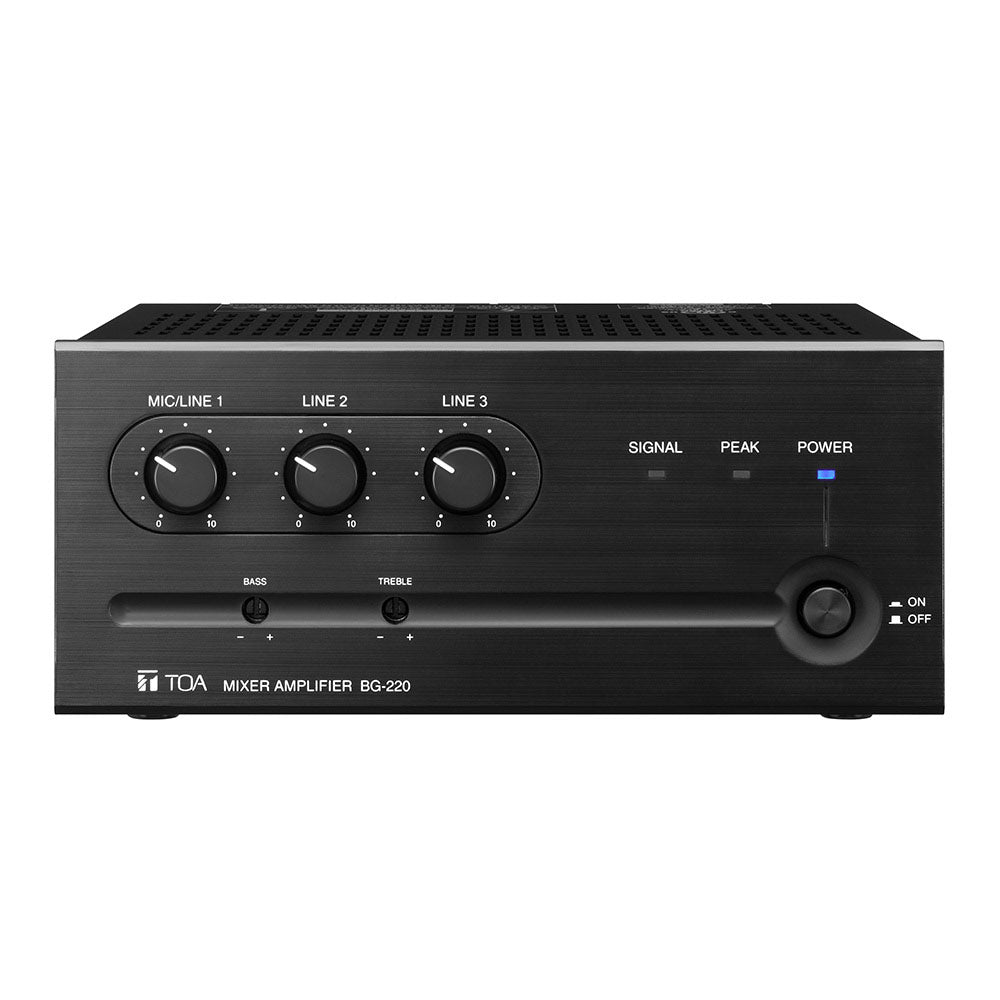

TOA BG-220 20 Watt 4 Ohm/25/70V Mixer Amplifier with Auto Mute, Mic/Line in and 2 Stereo Line Ins
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The BG-220 Mixer/Amplifier offers a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof construction that has made TOA an industry standard, the BG-220 Series Mixer/Amplifier is designed to make sound projects affordable, reliable and easy to install.
The BG-220 Amplifier is UL/cUL approved, competitively priced and is backed by TOA's 5 year warranty.

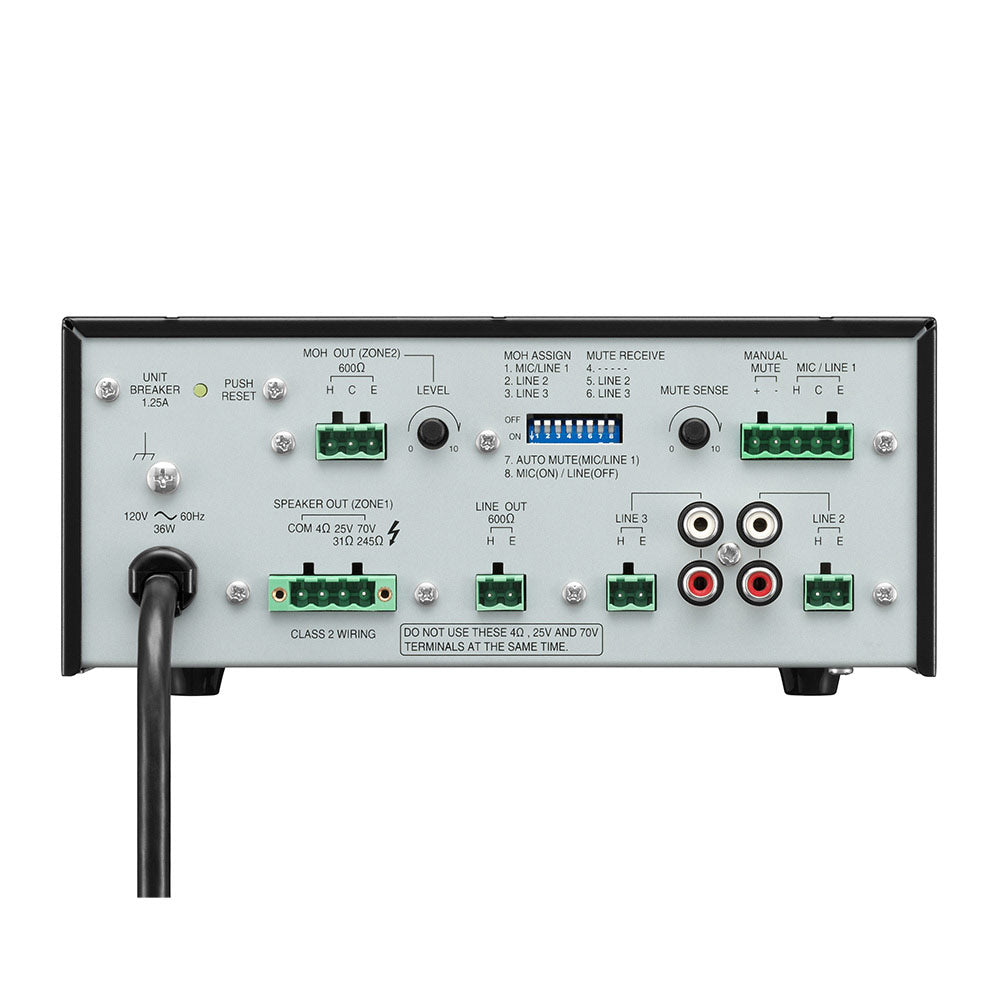

Features- All inputs/ outputs have removable terminal blocks for quick and easy installation
- Rear panel-mounted DIP switches allow easy settings
- 3 line inputs, 1 is mic/line switchable, while 2 and 3 are equipped with RCA pin jacks
- Recessed tamper-proof bass and treble controls preserve system settings
- Provides auto/manual mute function with adjustable muting sensitivity
- 2-channel broadcast system capability together with zone 2 expansion capability in conjunction with BA-200 Series
- Any of the 3 inputs assignable to MOH/ZONE 2 out
- Thermal protection circuits shut down to protect system should overheating occur
- Accessory security knobs for volume control prevent unauthorized volume setting changes
- Rack-mount kit options
- UL/cUL listed
- Five Year Warranty
THE TOA BG-200 SERIES MIXER/AMPLIFIERS are ideal solutions for installations in restaurants, retail stores, fast food outlets, bars, lounges, cafes, classrooms, meeting rooms and similar mid-sized locations.. Incorporating TOA's no-compromise technology, the new BA Series are designed to provide the high performance and audio quality with wide frequency response, low noise and distortion and stable output regulation. The new BG/BA Series is tailor-made for BGM distribution with its reliability and affordability.
TOA's new performance-oriented, cost-effective amplifiers. The new BG/BA Series of mixer/amplifiers represent ideal solutions for the most requested user requirements. The combination of proven TOA reliability and quality with the most essential features and functions required for paging, music distribution and music-on-hold applications provide more cost effectiveness than before in economical packages. Together with fast set-up capability and easy installation, the new BG Series are the best choice for a variety of environments.
Incorporating TOA's no-compromise technology, the new BG/BA Series are designed to provide the high performance and audio quality long associated with TOA products. Boasting a wide frequency response, vanishingly low noise and distortion and with stable output regulation, the new BG Series are also remarkably easy to install and configure as they are fitted with removable terminal blocks.
| Power Source | 120 V AC, 60 Hz | |
| Rated Output | 20 W | |
| Power Consumption | 60 W (rated output), 36 W (based on cULus standards) | |
| Frequency Response | 50 Hz Ð 20k Hz | |
| Total Harmonic Distortion | 0.5% or less, at 1 kHz, rated output | |
| Input | Mic | Ð60 dB/Line 1: Ð10 dB |
| Mic/Line 1 selectable | 600Ω, electronically balanced, removable terminal block | |
| Line 2, 3 | Ð10 dB, 10 kΩ, unbalanced, removable terminal block or RCA jack | |
| Output | Speaker | 4 Ω, 25 V (31 Ω) and 70 V (245 Ω) balanced, removable terminal block |
| MOH | 0 dB, 600 Ω, balanced, removable terminal block | |
| Line | 0 dB, 600 Ω, unbalanced, removable terminal block | |
| Output Regulation | 2 dB or less, no load to full load (1k Hz) | |
| S/N Ratio | Mic/Line 1 | 60 dB or more |
| Line 2, 3 | 80 dB or more | |
| Tone Control | Bass | ±10 dB at 100 Hz |
| Treble | ±10 dB at 10k Hz | |
| Controls | Mic/Line 1 gain control, Line 2 gain control, Line 3 gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Mute sense control, Auto mute switch (Mic/Line 1), Mic /Line 1 selector switch, Mute receive switch (Line 2, 3), MOH assign switch (Mic/Line 1, Line 2, 3), Power ON/OFF switch | |
| Indicators | Power LED, Signal level LED, Peak LED | |
| Other Feature | Automatic electronic drive limiter | |
| Operating Temperature | 0¡C to 40 ¡C (32¡F to 104 ¼F) | |
| Operating Humidity | 35 % to 80 % RH (no condensation) | |
| Finish Panel | ABS resin, black/Case: Steel plate, black, paint | |
| Dimensions | 210 (W) _ 94.3 (H) _ 265 (D)mm (8.27" _ 3.71" _ 10.43") | |
| Weight | 3.5 kg (7.72 lb) | |
| Accessories | Volume control cover: YA-920 _ 3, Removable terminal plug (2 pins) _ 3, Removable terminal plug (3 pins) _ 1, Removable terminal plug (4 pins) _ 1, Removable terminal plug (5 pins) _ 1 | |
| Option | Rack mounting brackets: MB-25B-BK, MB-25B-J | |
