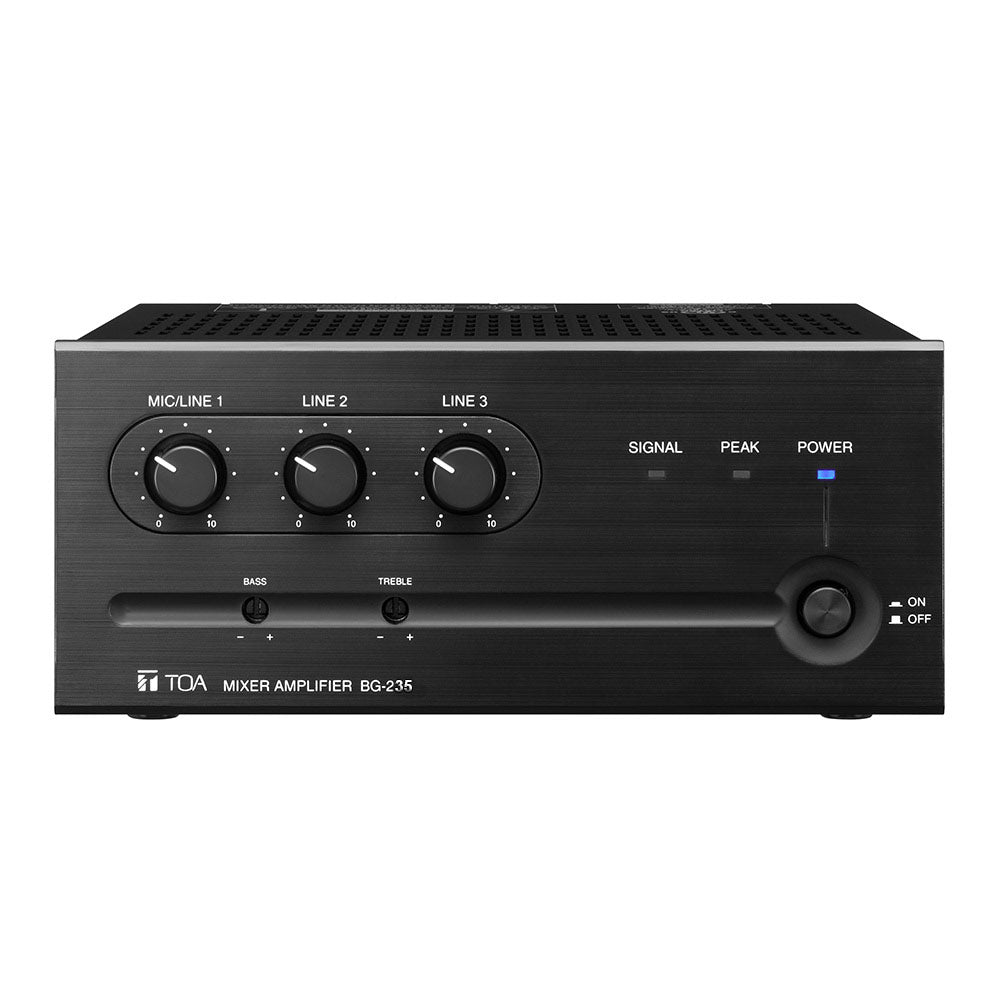

TOA BG-235 - 35-Watt 4-Ohm/25/70V Mixer Amplifier with Auto Mute, Mic/Line in and 2 Stereo Line Ins
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
BG-235 units are each equipped with 1 Mic/Line input and 2 Line inputs and also include an MOH Out. For installation ease, the rear-mounted terminal blocks are removable. DIP switches are provided to enable quick settings. A ZONE 2 OUT provides system expansion capability when needed.
Features:- Affordable and compact amplifiers designed for background music and paging applications.
- Ideal for mid-sized environments including bars, retail outlets, classrooms, restaurants etc.
- 2-channel broadcasts possible for system expansion as needed through MOH/ZONE
- Tamper-proof bass and treble controls preserve system settings.
- Security knobs for volume control included.
- Thermal protection circuits against overheating.
- Meets UL/cUL regulations.
- Any of 3 inputs can be assigned to MOH/ZONE 2 output.
- LINE 2/3 outputs equipped with RCA pin jacks.
- Automatic Mute sensing control to set mute activation threshold and manual mute function.
- Removable terminal blocks and rear-mounted DIP switches for fast and easy installation/setup.
Users' BGM market demands include affordable, mixer amplifiers optimized for simpler applications that will not require paging and/or MOH Out features. The new BA-235 and BA-260 power amplifiers are ideal solutions, delivering high-quality audio performance and generous power.
A wider scope of operation can be gained by combining BG and BA to achieve full 2- channel broadcasts. The compact and attractively priced BG and BA Series make it easy to provide ideal BGM services wherever desired as well as help to reduce system costs due to the significantly less time required for system installation and set-up.
THE TOA BG-200 SERIES MIXER/AMPLIFIERS are ideal solutions for installations in restaurants, retail stores, lounges, classrooms and meeting rooms. Incorporating TOA's no-compromise technology, the new BG-200 Series are designed to provide the high performance and audio quality with wide frequency response, low noise and distortion and stable output regulation.
The BG-200 Series Mixer/Amplifiers is comprised of two models: BG-220 (20W) and BG-235 (35W). Both models offer a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof construction that has made TOA an industry standard, the BG-200 Series Mixer/Amplifier is designed to make sound projects affordable, reliable and easy to install.
| Power Source | 120 V AC, 60 Hz |
| Rated Output | 35 W |
| Power Consumption | 90 W (rated output), 55 W (based on cULus standards) |
| Frequency Response | 50 Hz - 20 kHz |
| Total Harmonic Distortion | 0.5 % or less, at 1 kHz, rated output |
| Input | Mic: -60 dB*/ Line 1: -10 dB* Mic/Line 1 selectable, 600 ½, electronically balanced, removable terminal block Line 2, 3: -10 dB*, 10 k½, unbalanced, removable terminal block or RCA jack |
| Output | Speaker: 4 ½, 25 V (18 ½) and 70 V (140 ½), balanced, removable terminal block MOH: 0 dB*, 600 ½, balanced, removable terminal block Line: 0 dB*, 600 ½, unbalanced, removable terminal block |
| Output Regulation | 2 dB or less, no load to full load (1 kHz) |
| S/N Ratio | Mic/Line 1: 60 dB or more, Line 2, 3: 80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered) |
| Muting | Manual mute/Automatic mute |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Control | Mic/Line 1 gain control, Line 2 gain control, Line 3 gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Mute sense control, Auto mute switch (Mic/Line 1) Mic/Line 1 selector switch, Mute receive switch (Line 2, 3), MOH assign switch (Mic/Line 1, Line 2, 3), Power ON/OFF switch |
| Indicator | Power LED, Signal LED, Peak LED |
| Operating temperature | 0 _ to +35 _ (32 _F to 95 _F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Panel: ABS resin, black Case: Steel plate, black, paint |
| Dimensions | 210 (W) _ 94.3 (H) _ 265 (D) mm (8.27" _ 3.71" _ 10.43") |
| Weight | 4 kg (8.82 lb) |
| Accessory | Volume control cover: YA-920 ÉÉ3 Removable teminal plug (2 pins) ÉÉ3, Removable teminal plug (3 pins) ÉÉ1 Removable teminal plug (4 pins) ÉÉ1, Removable teminal plug (5 pins) ÉÉ1 |
| Option | Rack mounting bracket: MB-25B-BK, MB-25B-J |
BG-235 units are each equipped with 1 Mic/Line input and 2 Line inputs and also include an MOH Out. For installation ease, the rear-mounted terminal blocks are removable. DIP switches are provided to enable quick settings. A ZONE 2 OUT provides system expansion capability when needed.
Features:- Affordable and compact amplifiers designed for background music and paging applications.
- Ideal for mid-sized environments including bars, retail outlets, classrooms, restaurants etc.
- 2-channel broadcasts possible for system expansion as needed through MOH/ZONE
- Tamper-proof bass and treble controls preserve system settings.
- Security knobs for volume control included.
- Thermal protection circuits against overheating.
- Meets UL/cUL regulations.
- Any of 3 inputs can be assigned to MOH/ZONE 2 output.
- LINE 2/3 outputs equipped with RCA pin jacks.
- Automatic Mute sensing control to set mute activation threshold and manual mute function.
- Removable terminal blocks and rear-mounted DIP switches for fast and easy installation/setup.
Users' BGM market demands include affordable, mixer amplifiers optimized for simpler applications that will not require paging and/or MOH Out features. The new BA-235 and BA-260 power amplifiers are ideal solutions, delivering high-quality audio performance and generous power.
A wider scope of operation can be gained by combining BG and BA to achieve full 2- channel broadcasts. The compact and attractively priced BG and BA Series make it easy to provide ideal BGM services wherever desired as well as help to reduce system costs due to the significantly less time required for system installation and set-up.
THE TOA BG-200 SERIES MIXER/AMPLIFIERS are ideal solutions for installations in restaurants, retail stores, lounges, classrooms and meeting rooms. Incorporating TOA's no-compromise technology, the new BG-200 Series are designed to provide the high performance and audio quality with wide frequency response, low noise and distortion and stable output regulation.
The BG-200 Series Mixer/Amplifiers is comprised of two models: BG-220 (20W) and BG-235 (35W). Both models offer a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof construction that has made TOA an industry standard, the BG-200 Series Mixer/Amplifier is designed to make sound projects affordable, reliable and easy to install.
| Power Source | 120 V AC, 60 Hz |
| Rated Output | 35 W |
| Power Consumption | 90 W (rated output), 55 W (based on cULus standards) |
| Frequency Response | 50 Hz - 20 kHz |
| Total Harmonic Distortion | 0.5 % or less, at 1 kHz, rated output |
| Input | Mic: -60 dB*/ Line 1: -10 dB* Mic/Line 1 selectable, 600 ½, electronically balanced, removable terminal block Line 2, 3: -10 dB*, 10 k½, unbalanced, removable terminal block or RCA jack |
| Output | Speaker: 4 ½, 25 V (18 ½) and 70 V (140 ½), balanced, removable terminal block MOH: 0 dB*, 600 ½, balanced, removable terminal block Line: 0 dB*, 600 ½, unbalanced, removable terminal block |
| Output Regulation | 2 dB or less, no load to full load (1 kHz) |
| S/N Ratio | Mic/Line 1: 60 dB or more, Line 2, 3: 80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered) |
| Muting | Manual mute/Automatic mute |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Control | Mic/Line 1 gain control, Line 2 gain control, Line 3 gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Mute sense control, Auto mute switch (Mic/Line 1) Mic/Line 1 selector switch, Mute receive switch (Line 2, 3), MOH assign switch (Mic/Line 1, Line 2, 3), Power ON/OFF switch |
| Indicator | Power LED, Signal LED, Peak LED |
| Operating temperature | 0 _ to +35 _ (32 _F to 95 _F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Panel: ABS resin, black Case: Steel plate, black, paint |
| Dimensions | 210 (W) _ 94.3 (H) _ 265 (D) mm (8.27" _ 3.71" _ 10.43") |
| Weight | 4 kg (8.82 lb) |
| Accessory | Volume control cover: YA-920 ÉÉ3 Removable teminal plug (2 pins) ÉÉ3, Removable teminal plug (3 pins) ÉÉ1 Removable teminal plug (4 pins) ÉÉ1, Removable teminal plug (5 pins) ÉÉ1 |
| Option | Rack mounting bracket: MB-25B-BK, MB-25B-J |
