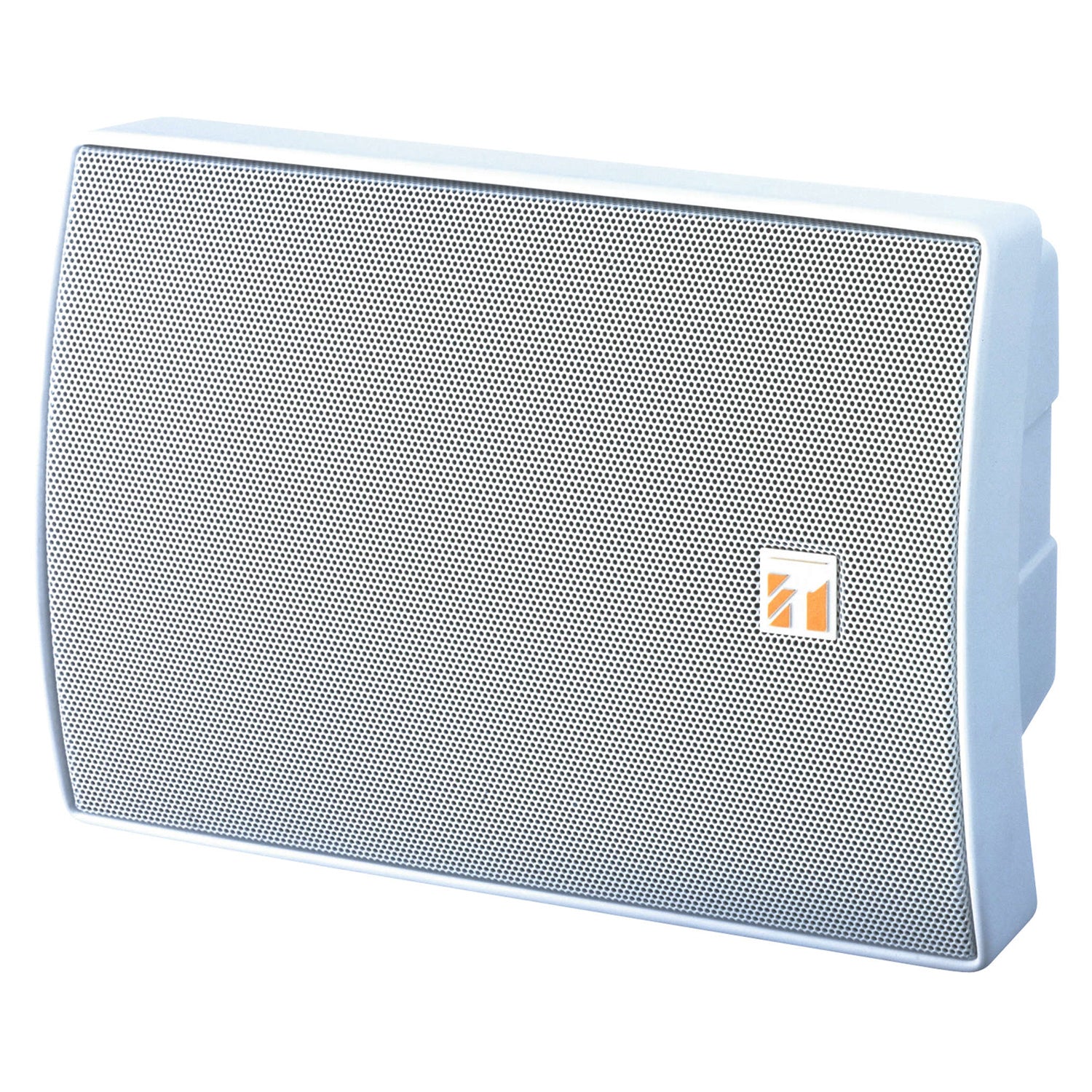

TOA BS-1030W 5" Two-Way Indoor/Outdoor Music and Paging Loudspeaker 90 Watts 70.7/100V - White
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
Description
THE TOA BS-1030 MUSIC/PAGING SPEAKER has exceptional sound quality and value for a wide variety of applications. Available in black and white, the versatile BS-1030 is designed for both indoor and outdoor use with a durable ABS resin enclosure and steel mesh grille. The two-way, bass-reflex design features a 4.72" (12 cm) cone woofer, 1" (2.5 cm) dome tweeter and built-in multi-tap transformer with screwdriver-adjustable power taps. A transformer bypass setting allows direct 8-ohm operation. Installation is fast and easy with the supplied mounting bracket or rear panel keyholes for horizontal or vertical surface-mounting.
FEATURES:- Indoor and Outdoor Applications
- Mounting Bracket Included
- Paintable Enclosure
- Two-Way, Bass-Reflex Design
- 70.7/100 V and 8-Ohm
- Screwdriver-Adjustable Tap Settings
- Black (BS-1030B) and White (BS-1030W)
Compact Speaker for Music and Voice Paging Distribution; Clear, Natural Sound Reproduction; TOA Quality and Reliability; Wide Variety of Indoor/Outdoor Applications; Available in Black (BS-1030B) and White (BS-1030W); Weather-Resistant (IEC IP-X4 Rating); Mounting Bracket Included; Horizontal or Vertical Mounting with rotatable logo badge; Durable ABS Resin UV-Resistant Paintable Enclosure.
Two-Way, Bass-Reflex Design; 4.72" Cone Woofer and;1" Dome Tweeter; Steel Mesh Grille; Power Handling;90 W (Continuous Program); Sensitivity: 90 dB SPL (1 W/1 m); Frequency Response: 80 Hz to 20 kHz;Built-in Multi-tap Transformer (70.7/100 V); Screwdriver-Adjustable Power Tap;Settings: 5, 10, 15, 20 and 30 W; Direct 8-Ohm Mode; Five Year Warranty
| Enclosure Type | Two-way bass reflex |
| Speaker Components | 4.72Ó (12 cm) dynamic cone-type speaker; 1Ó (2.5 cm) balanced dome tweeter |
| Impedance/Power Tap(screwdriver-adjustable rotary switch) | |
| 70.7 V line | 30 W (170 ohms), 20 W (250 ohms), 15 W (330 ohms), 10 W (500 ohms), 5 W (1k ohms) |
| 100 V line | 30 W (330 ohms), 20 W (500 ohms),15 W (670 ohms), 10 W (1k ohms), 5 W (2k ohms) |
| Direct | 8 ohms |
| Sensitivity (1 W/1 m, anechoic chamber) | 90 dB SPL |
| Power Handling | |
| Continuous Program | 90 W (8-ohm) |
| Continuous Pink Noise (24 hrs.) | 30 W (8-ohm) |
| Transformer | 30 W (70.7 V, 100 V line) |
| Frequency Response | 80 Ð 20,000 Hz |
| Crossover Frequency | 4 kHz |
| Speaker Cable | 2-conductor cable |
| Weather Resistance Rating(IEC 60529) | IP-X4 (Protected against water sprayed from all directions - limited ingress) |
| Material / Finish | |
| Enclosure | ABS resin, white, acrylic paint,UV-resistant |
| Grille/Bracket | Surface-treated steel plate,white, powder coating |
| Operating Temperature | 14¼ F to 122¼ F (-10¼ C to +50¼ C) |
| Dimensions (W x H x D) | 7.72 x 11.42 x 5.91 (196 mm x 290 mm x 150 mm) |
| Weight (without bracket) | 5.51 lbs. (2.5 kg) |
| Accessories (included) | Bracket x1, Bracket Mounting Screw x2,Bracket Mounting Washer x2 |
| Optional Brackets | BS-1030W:WCB-12W Swivel Bracket,White |
| Options | FB-100 Subwoofer; HB-1 Flush-Mount In-Wall Subwoofer |
THE TOA BS-1030 MUSIC/PAGING SPEAKER has exceptional sound quality and value for a wide variety of applications. Available in black and white, the versatile BS-1030 is designed for both indoor and outdoor use with a durable ABS resin enclosure and steel mesh grille. The two-way, bass-reflex design features a 4.72" (12 cm) cone woofer, 1" (2.5 cm) dome tweeter and built-in multi-tap transformer with screwdriver-adjustable power taps. A transformer bypass setting allows direct 8-ohm operation. Installation is fast and easy with the supplied mounting bracket or rear panel keyholes for horizontal or vertical surface-mounting.
FEATURES:- Indoor and Outdoor Applications
- Mounting Bracket Included
- Paintable Enclosure
- Two-Way, Bass-Reflex Design
- 70.7/100 V and 8-Ohm
- Screwdriver-Adjustable Tap Settings
- Black (BS-1030B) and White (BS-1030W)
Compact Speaker for Music and Voice Paging Distribution; Clear, Natural Sound Reproduction; TOA Quality and Reliability; Wide Variety of Indoor/Outdoor Applications; Available in Black (BS-1030B) and White (BS-1030W); Weather-Resistant (IEC IP-X4 Rating); Mounting Bracket Included; Horizontal or Vertical Mounting with rotatable logo badge; Durable ABS Resin UV-Resistant Paintable Enclosure.
Two-Way, Bass-Reflex Design; 4.72" Cone Woofer and;1" Dome Tweeter; Steel Mesh Grille; Power Handling;90 W (Continuous Program); Sensitivity: 90 dB SPL (1 W/1 m); Frequency Response: 80 Hz to 20 kHz;Built-in Multi-tap Transformer (70.7/100 V); Screwdriver-Adjustable Power Tap;Settings: 5, 10, 15, 20 and 30 W; Direct 8-Ohm Mode; Five Year Warranty
| Enclosure Type | Two-way bass reflex |
| Speaker Components | 4.72Ó (12 cm) dynamic cone-type speaker; 1Ó (2.5 cm) balanced dome tweeter |
| Impedance/Power Tap(screwdriver-adjustable rotary switch) | |
| 70.7 V line | 30 W (170 ohms), 20 W (250 ohms), 15 W (330 ohms), 10 W (500 ohms), 5 W (1k ohms) |
| 100 V line | 30 W (330 ohms), 20 W (500 ohms),15 W (670 ohms), 10 W (1k ohms), 5 W (2k ohms) |
| Direct | 8 ohms |
| Sensitivity (1 W/1 m, anechoic chamber) | 90 dB SPL |
| Power Handling | |
| Continuous Program | 90 W (8-ohm) |
| Continuous Pink Noise (24 hrs.) | 30 W (8-ohm) |
| Transformer | 30 W (70.7 V, 100 V line) |
| Frequency Response | 80 Ð 20,000 Hz |
| Crossover Frequency | 4 kHz |
| Speaker Cable | 2-conductor cable |
| Weather Resistance Rating(IEC 60529) | IP-X4 (Protected against water sprayed from all directions - limited ingress) |
| Material / Finish | |
| Enclosure | ABS resin, white, acrylic paint,UV-resistant |
| Grille/Bracket | Surface-treated steel plate,white, powder coating |
| Operating Temperature | 14¼ F to 122¼ F (-10¼ C to +50¼ C) |
| Dimensions (W x H x D) | 7.72 x 11.42 x 5.91 (196 mm x 290 mm x 150 mm) |
| Weight (without bracket) | 5.51 lbs. (2.5 kg) |
| Accessories (included) | Bracket x1, Bracket Mounting Screw x2,Bracket Mounting Washer x2 |
| Optional Brackets | BS-1030W:WCB-12W Swivel Bracket,White |
| Options | FB-100 Subwoofer; HB-1 Flush-Mount In-Wall Subwoofer |
