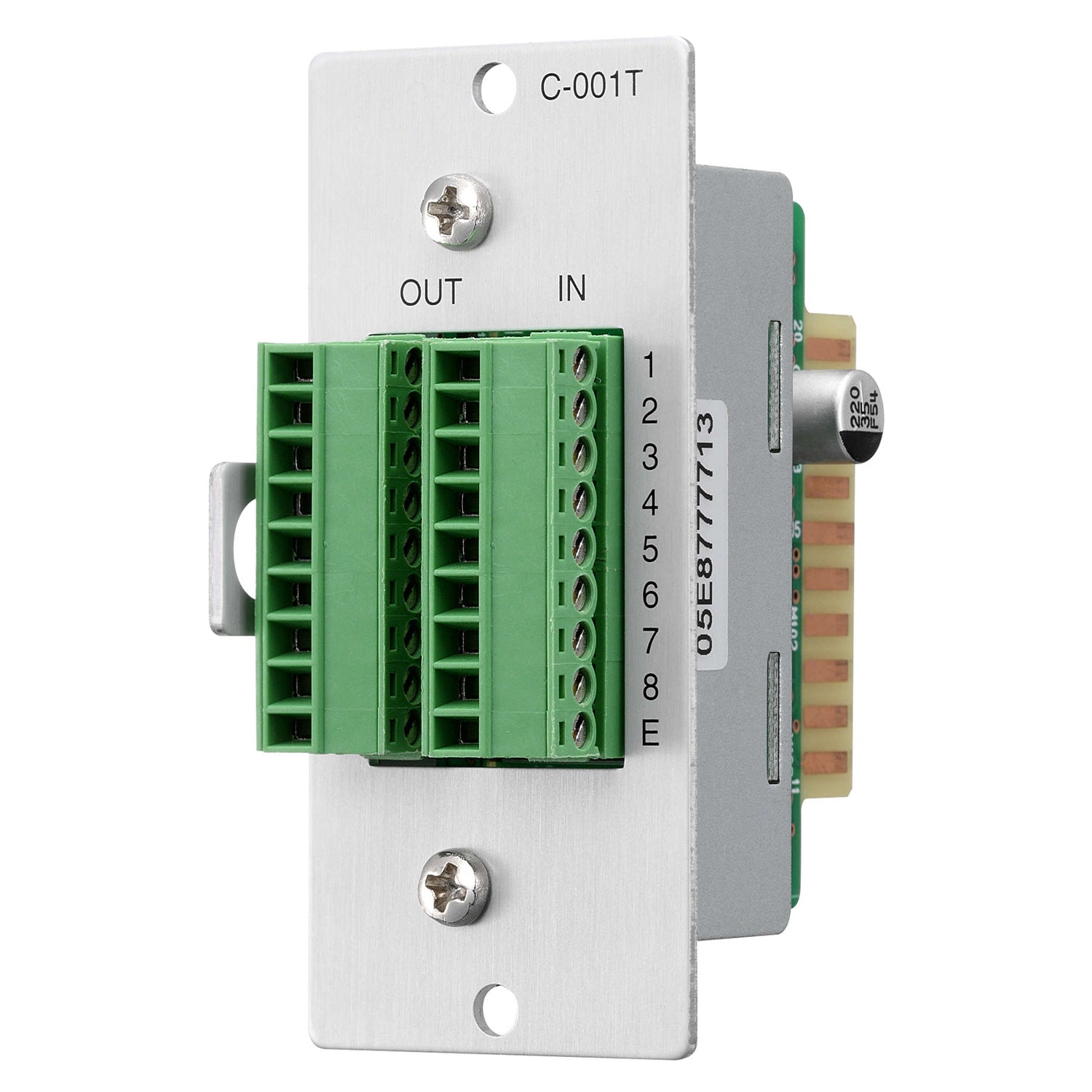

TOA C-001T Control I/O Expansion Module for 9000 Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
Description
The C-001T is a Control I/O expansion module designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 preinstalled inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T is used.
- Eight Assignable Control Inputs for Remote Volume, Event Selection and Channel Mute
- Eight Assignable Control Outputs for activating relays or other external equipment
- Removable Terminal Block
| Power Source | 6 VDC |
| Current Consumption | 15mA |
| Input | 8 Channels, Open Voltage: 3.3VDC ; Short-Circuit Current: Under 1 mA, Removable Terminal Block (9 Pins) |
| Output | 8 Channels, Open Collector Output, Withstand Voltage: 27VDC ; Control Current: Max. 50 mA, Removable Terminal Block (9 Pins) |
| Dimensions (WxHxD) | 1.4 x 3.1 x 3.6 (35 x 78 x 92 mm) |
| Weight | 2.2 oz (62 g) |
The C-001T is a Control I/O expansion module designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 preinstalled inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T is used.
- Eight Assignable Control Inputs for Remote Volume, Event Selection and Channel Mute
- Eight Assignable Control Outputs for activating relays or other external equipment
- Removable Terminal Block
| Power Source | 6 VDC |
| Current Consumption | 15mA |
| Input | 8 Channels, Open Voltage: 3.3VDC ; Short-Circuit Current: Under 1 mA, Removable Terminal Block (9 Pins) |
| Output | 8 Channels, Open Collector Output, Withstand Voltage: 27VDC ; Control Current: Max. 50 mA, Removable Terminal Block (9 Pins) |
| Dimensions (WxHxD) | 1.4 x 3.1 x 3.6 (35 x 78 x 92 mm) |
| Weight | 2.2 oz (62 g) |
