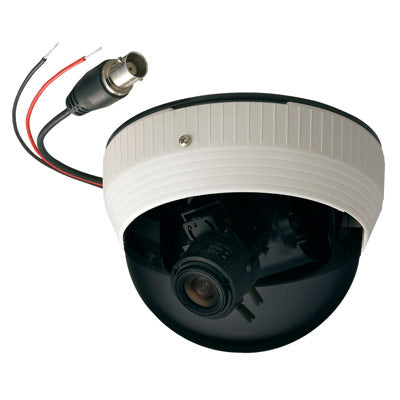

TOA C-CV202-3 4" Indoor Color CCD Mini Dome Wide Angle Adjustable Camera with 480 Resolution
Please Note: Orders will not be available for shipment until on or about Wednesday August, 19.
Contact us
Description
The C-CV202-3 Color Dome Camera is an indoor-use camera and is equipped with a high-resolution camera and lens. It is designed to operate on 12 V DC, which is supplied by an external power supply unit. Since its 2X vari-focal, auto-iris lens is built inside the camera, its angle of view can be manually adjusted.
Features:- Equipped with lens having a 38.3 – 76.7 degree horizontal viewing angle and a 28.7 – 56.8 degree vertical viewing angle
- Specifically designed for use in indoor applications
- 12V DC operation
- Horizontal resolution exceeds 480 lines
- Backlight compensation function
- Adjustment switch for easy focusing without using an ND filter
- Wide camera lens angle setting
- Monitor output for easy installation
- Flickerless operation for viewing ease.
| Power Source | 12V DC (±10%) |
| Power Consumption | 1.5W (120mA) |
| Image Device | 1/4 type IT-CCD |
| Number of Effective Pixels | 768 (H) _ 494 (V) (380,000 pixels) |
| Scanning System | 2:1 interlace |
| Scanning Frequency | |
| Horizontal | 15.734kHz |
| Vertical | 59.94Hz |
| Monitor Output | VBS 1.0V (p-p) 75ohms, RCA pin jack |
| Video Output | VBS 1.0V (p-p) 75ohms, BNC-R jack |
| Synchronizing System | Internal synchronization |
| Resolution | |
| Horizontal | 480 lines (at center) |
| Vertical | 350 lines (at center) |
| S/N Ratio | 50dB |
| Minimum Illumination | 8 lx (50 IRE), 2 lx (20 IRE) |
| White Balance Mode | ATW/AWB |
| Focal Length | f = 2.8 Ð 5.8mm |
| Maximum Aperture Ratio | 1: 1.4 Ð1.8 |
| Iris | Auto-iris |
| Angle of View | |
| Horizontal | 76.7¡ Ð 38.3¡ |
| Vertical | 56.8¡ Ð 28.7¡ |
| Adjustment Switch | ON/OFF (used for focus adjustment) |
| Other Function | Backlight compensation, Shutter speed (1/60, 1/100). Iris control |
| Operating Temperature | Ð10¡C to +50¡C |
| Operating Humidity | Under 90% RH (no dew condensation produced) |
| Applications | Indoor use |
| Finish | |
| Case | ABS resin, cool gray |
| Dome cover | Acrylic resin, smoked |
| Dimensions | ¿107 _ 78.7 (H)mm |
| Weight | 170g |
| Accessory | Dome cover fixing screw (2.6 _ 8) _ 1 |
