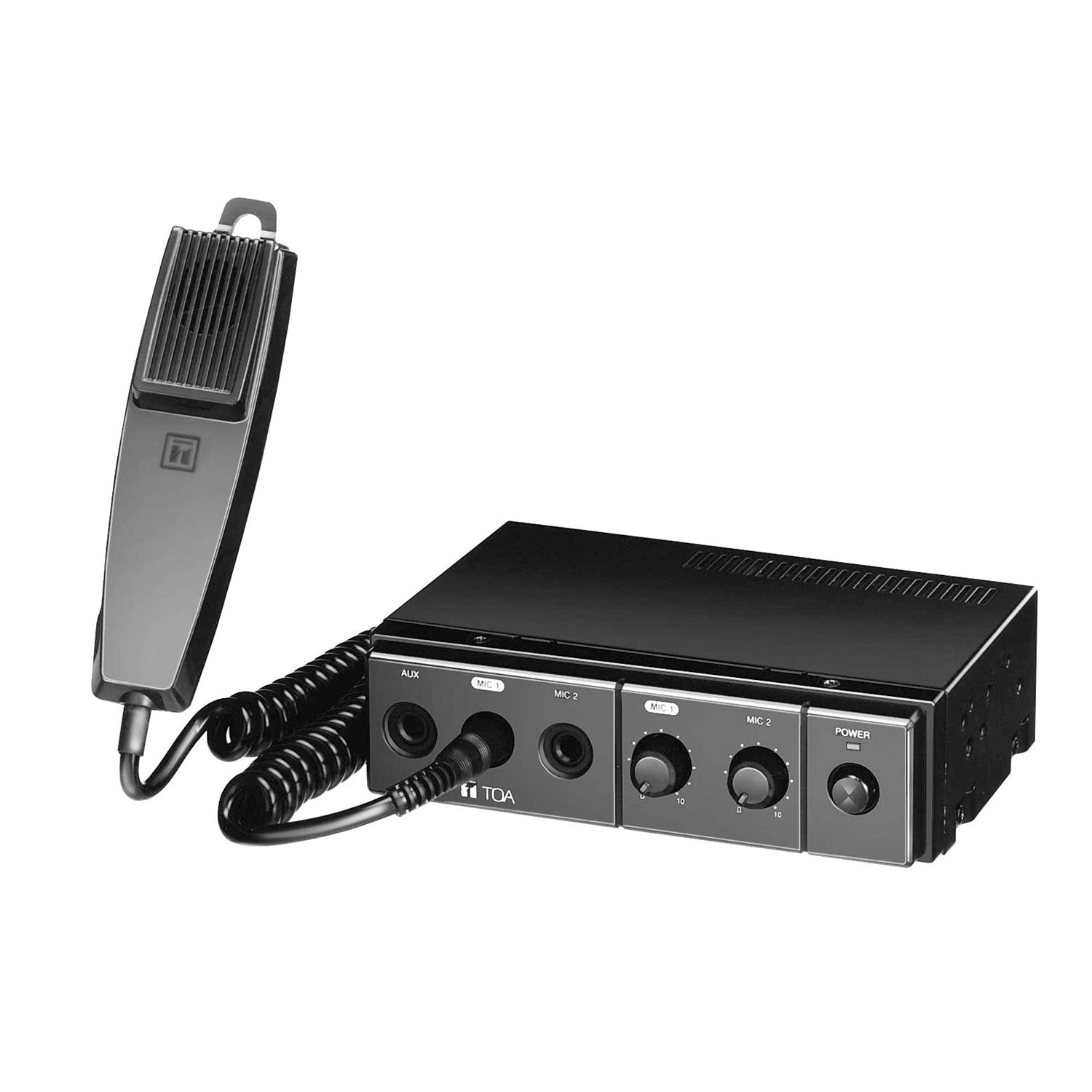

TOA CA-160 60W Mixer/Amplifier with Handheld Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
TOA CA-160 60W Mixer/Amplifier with Handheld Microphone
Sale price$233.00
Regular price$288.00
Description
The CA-160 is a 1-DIN size unit 60 W car amplifier designed for use with a 12 V car battery.
| Power Source | |
| Standard voltage | 14 V DC |
| Usable voltage | 10 - 16 V DC (12 V battery used) |
| Power Consumption | 9 A or less at rated output |
| Rated Output | 60 W |
| Output Impedance | 4 Ω (BRN), 8 Ω (ORG), Common (WHT) Changeable by changing lead wire connections |
| Distortion | Less than 5% (at 1,000 Hz rated output) |
| Frequency Response | 100 - 10,000 Hz |
| Input | |
| Mic1, 2 | 600 Ω, 4 mV, phone jack |
| Aux | 10 kΩ, 500 mV, phone jack |
| Finish | |
| Front panel | ABS resin, black |
| Case | Zinc plated steel sheet |
| Dimensions | 178 (W) _ 50 (H) _ 170 (D) mm (Mounting device excluded) |
| Weight | 1.2 kg |
| Accessory | Microphone holder ÉÉ 1, Mounting bracket ÉÉ 1, Mounting screw ÉÉ 1set, Fuse (12 A) ÉÉ 1, Connection cord ÉÉ 1set |
| Accessory Microphone | Unidirectional dynamic type with talk switch; Impedance: 600 Ω; Sensitivity: -53 dB (1 kHz, 0 dB = 1 V/Pa) |
The CA-160 is a 1-DIN size unit 60 W car amplifier designed for use with a 12 V car battery.
| Power Source | |
| Standard voltage | 14 V DC |
| Usable voltage | 10 - 16 V DC (12 V battery used) |
| Power Consumption | 9 A or less at rated output |
| Rated Output | 60 W |
| Output Impedance | 4 Ω (BRN), 8 Ω (ORG), Common (WHT) Changeable by changing lead wire connections |
| Distortion | Less than 5% (at 1,000 Hz rated output) |
| Frequency Response | 100 - 10,000 Hz |
| Input | |
| Mic1, 2 | 600 Ω, 4 mV, phone jack |
| Aux | 10 kΩ, 500 mV, phone jack |
| Finish | |
| Front panel | ABS resin, black |
| Case | Zinc plated steel sheet |
| Dimensions | 178 (W) _ 50 (H) _ 170 (D) mm (Mounting device excluded) |
| Weight | 1.2 kg |
| Accessory | Microphone holder ÉÉ 1, Mounting bracket ÉÉ 1, Mounting screw ÉÉ 1set, Fuse (12 A) ÉÉ 1, Connection cord ÉÉ 1set |
| Accessory Microphone | Unidirectional dynamic type with talk switch; Impedance: 600 Ω; Sensitivity: -53 dB (1 kHz, 0 dB = 1 V/Pa) |
