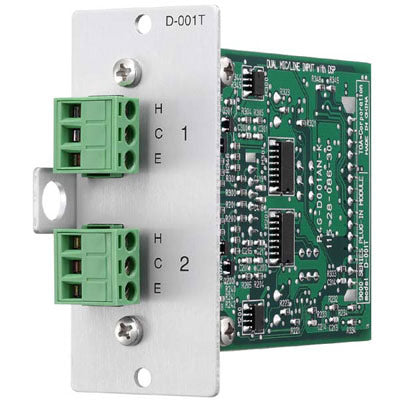

TOA D-001T Terminal Block Dual Microphone / Line Input Module with DSP
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
TOA D-001T Terminal Block Dual Microphone / Line Input Module with DSP
Sale price$206.00
Regular price$255.00
Description
Dual Mic/Line Input Module with DSP
- Two Balanced Mic / Line Inputs
- Digital Signal Processing
- 10-Band Parametric EQ
- Bass / Treble
- Loudness
- High and Low Pass Filters
- Compressor
- Adjustable Sensitivity (nine levels, -60 to -10 dBV)
- Phantom Power (24 VDC)
- Removable Terminal Block
- Maximum four per chassis
- Required for VOX (Voice-Operated Switch) function and input level metering
| Power Source | +24 V DC, -24 V DC, +6 V DC |
| Current Consumption | 20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA(at +6 V DC) |
| Input | 2 channels, 3 kΩ (when the phantom power is ON)/10 kΩ (when the phantom power is OFF), electronically-balanced, removable terminal block (3 pins) |
| Input Sensitivity | -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable) |
| Frequency Response | 20 Ð 20,000 Hz, +1, -3 dB |
| Total Harmonic Distortion + N | 0.008% (at 1 kHz, 20-20,000 Hz BPF, Input sensitivity: -10 dB) |
| Input Equivalent Noise | Under -112 dB (at 20 Ð 20,000 Hz BPF, Input short, Input sensitivity: -60 dB) |
| S/N Ratio | Over 73 dB (at 20 Ð 20,000 Hz BPF, Input short, Input sensitivity: -10 dB) |
| Crosstalk | Over 75 dB (at 20 kHz, Input sensitivity: -10 dB) |
| CMRR | Over 62 dB (at 1 kHz, Input sensitivity: -60 dB) |
| A/D Converter | 24 bit ΔΣADC |
| Sampling Frequency | 48 kHz |
| Tone Control | Bass: ±12 dB (at 100 Hz), Treble: ±12 dB (at 10 kHz) |
| Parametric Equalizer | 10 bands, Frequency: 20 Ð 20,000 Hz, 31 steps, Variable range: ±12 dB, Q: 0.3-5 |
| High-pass Filter | -12 dB/oct, Variable frequency range: 20 Ð 400 Hz, 14 steps |
| Low-pass Filter | -12 dB/oct, Variable frequency range: 4,000 Ð 20,000 Hz, 8 steps |
| Compressor | Depth: 1 Ð 5 |
| Phantom Power | +24 V DC |
| Operating Temperature | -10¡C to +40¡C |
| Finish | Panel: Aluminum, hair-line |
Dual Mic/Line Input Module with DSP
- Two Balanced Mic / Line Inputs
- Digital Signal Processing
- 10-Band Parametric EQ
- Bass / Treble
- Loudness
- High and Low Pass Filters
- Compressor
- Adjustable Sensitivity (nine levels, -60 to -10 dBV)
- Phantom Power (24 VDC)
- Removable Terminal Block
- Maximum four per chassis
- Required for VOX (Voice-Operated Switch) function and input level metering
| Power Source | +24 V DC, -24 V DC, +6 V DC |
| Current Consumption | 20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA(at +6 V DC) |
| Input | 2 channels, 3 kΩ (when the phantom power is ON)/10 kΩ (when the phantom power is OFF), electronically-balanced, removable terminal block (3 pins) |
| Input Sensitivity | -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable) |
| Frequency Response | 20 Ð 20,000 Hz, +1, -3 dB |
| Total Harmonic Distortion + N | 0.008% (at 1 kHz, 20-20,000 Hz BPF, Input sensitivity: -10 dB) |
| Input Equivalent Noise | Under -112 dB (at 20 Ð 20,000 Hz BPF, Input short, Input sensitivity: -60 dB) |
| S/N Ratio | Over 73 dB (at 20 Ð 20,000 Hz BPF, Input short, Input sensitivity: -10 dB) |
| Crosstalk | Over 75 dB (at 20 kHz, Input sensitivity: -10 dB) |
| CMRR | Over 62 dB (at 1 kHz, Input sensitivity: -60 dB) |
| A/D Converter | 24 bit ΔΣADC |
| Sampling Frequency | 48 kHz |
| Tone Control | Bass: ±12 dB (at 100 Hz), Treble: ±12 dB (at 10 kHz) |
| Parametric Equalizer | 10 bands, Frequency: 20 Ð 20,000 Hz, 31 steps, Variable range: ±12 dB, Q: 0.3-5 |
| High-pass Filter | -12 dB/oct, Variable frequency range: 20 Ð 400 Hz, 14 steps |
| Low-pass Filter | -12 dB/oct, Variable frequency range: 4,000 Ð 20,000 Hz, 8 steps |
| Compressor | Depth: 1 Ð 5 |
| Phantom Power | +24 V DC |
| Operating Temperature | -10¡C to +40¡C |
| Finish | Panel: Aluminum, hair-line |
