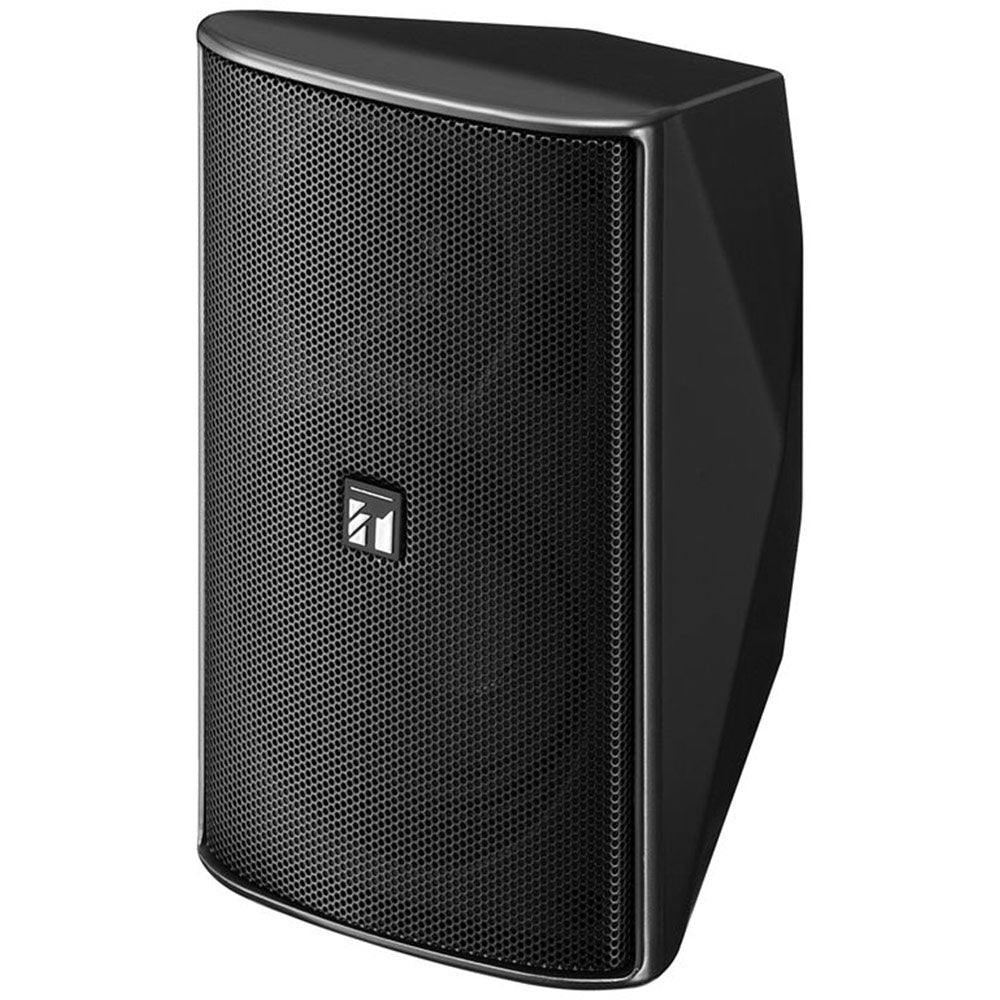

TOA F-1000BTWP - Weather-Resistant Two-Way 4-Inch Install Loudspeaker
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The F-1000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application. The F-1000BTWP features a water-proof design (splash-proof type meeting IPX4 standard), so that it can be permanently installed outdoors.
| Enclosure | Bass-reflex type |
| Rated Input | 15 W |
| Rated Impedance | 100 V line: 670 ½ (15 W), 2 k½ (5 W), 3.3 k½ (3 W), 10 k½ (1 W) 70 V line: 330 ½ (15 W), 670 ½ (7.5 W), 2 k½ (2.5 W), 3.3 k½ (1.5 W), 10 k½ (0.5 W) |
| Sensitivity | 87 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response | 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 5 kHz |
| Directivity Angle | Horizontal: 90_, Vertical: 90_ |
| Speaker Component | Low frequency: 10 cm (4") cone-type High frequency: Balanced dome tweeter |
| Input Terminal | Push-in terminal |
| Water Protection | IPX4 |
| Operating Temperature | -10 _ to +50 _ (14 _F to 122 _F) |
| Finish | Enclosure: HIPS, black Punched net: Surface-treated steel plate, black, anticorrosive paint Joint bracket, wall bracket: Stainless steel Speaker bracket: Die-cast aluminum, black, paint |
| Dimensions | 130 (W) _ 202 (H) _ 131 (D) mm (5.12" _ 7.95" _ 5.16") |
| Weight | 2 kg (4.41 lb) (including the supplied brackets) |
| Accessory | Speaker bracket É1, Joint bracket É1, Wall bracket É1, Bracket fixing screw É1 set, Terminal cover É1, Terminal cover mounting screw É4 |
| Option | Speaker mount bracket: YS-60B |
The F-1000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application. The F-1000BTWP features a water-proof design (splash-proof type meeting IPX4 standard), so that it can be permanently installed outdoors.
| Enclosure | Bass-reflex type |
| Rated Input | 15 W |
| Rated Impedance | 100 V line: 670 ½ (15 W), 2 k½ (5 W), 3.3 k½ (3 W), 10 k½ (1 W) 70 V line: 330 ½ (15 W), 670 ½ (7.5 W), 2 k½ (2.5 W), 3.3 k½ (1.5 W), 10 k½ (0.5 W) |
| Sensitivity | 87 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response | 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 5 kHz |
| Directivity Angle | Horizontal: 90_, Vertical: 90_ |
| Speaker Component | Low frequency: 10 cm (4") cone-type High frequency: Balanced dome tweeter |
| Input Terminal | Push-in terminal |
| Water Protection | IPX4 |
| Operating Temperature | -10 _ to +50 _ (14 _F to 122 _F) |
| Finish | Enclosure: HIPS, black Punched net: Surface-treated steel plate, black, anticorrosive paint Joint bracket, wall bracket: Stainless steel Speaker bracket: Die-cast aluminum, black, paint |
| Dimensions | 130 (W) _ 202 (H) _ 131 (D) mm (5.12" _ 7.95" _ 5.16") |
| Weight | 2 kg (4.41 lb) (including the supplied brackets) |
| Accessory | Speaker bracket É1, Joint bracket É1, Wall bracket É1, Bracket fixing screw É1 set, Terminal cover É1, Terminal cover mounting screw É4 |
| Option | Speaker mount bracket: YS-60B |
