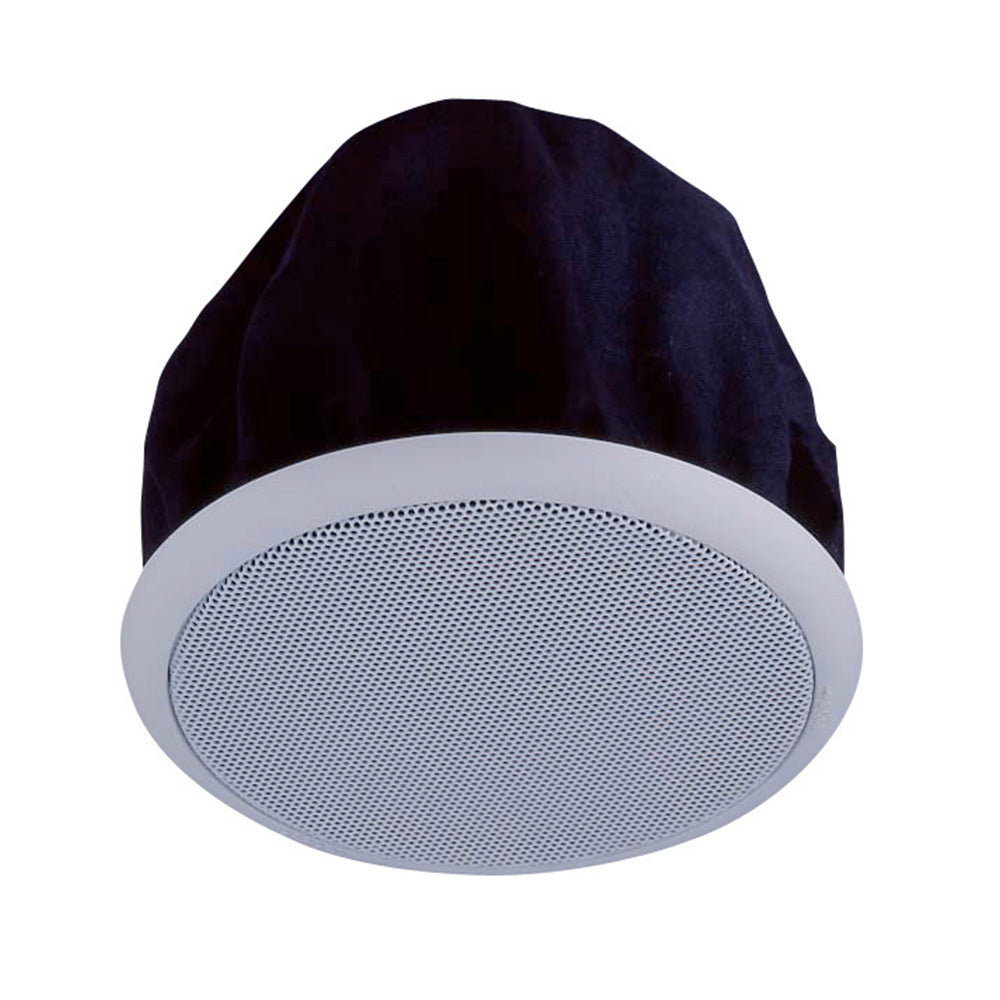

TOA F-1522SC Full-Range Wide-Dispersion Ceiling Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The F-1522SC is a small, flush-mounted ceiling speaker that employs a full-range speaker element designed to offer a wide frequency range and high-quality sound output. It can be mounted to the ceiling panel that is up to 37 mm in thickness.
This speaker has a rear-open type speaker system employing a speaker element covering a full frequency range. The wide-dispersion flush-mount ceiling speaker design employs unique acoustic construction to realize a wide area of coverage. Uniform sound output levels are achievable not only directly under the speaker, but also over a wide radius. Because the speaker is provided with both low- and high-impedance operating capability, it can be used in many different applications and a front panel-mounted input selector switch permits easy verification and change of current impedance/power settings, even after installation. It can be quickly and accurately mounted to ceilings and its rotating front grille can be installed/removed quickly and conveniently. The attractive exterior design specially created by an interior designer, blends naturally with any architectural space.
Features:
- 6W @ 70 V, 18 W @ 8 ohms
- Excellent sound quality
- Wide-dispersion, smooth off-axis coverage
- Fast and easy installation
- Built-in 25/70.7 V multi-tap transformer
- Power tap selector on front baffle
- Low impedance mode (8/16 Ohms)
- Low-profile, paintable grille
- Overload protection circuitry
- Mounting hardware included
- Ultra-compact -only 4.2in "(106 mm) deep
- 4" full-range driver
- Wide-dispersion: 160° conical (1-4k Hz avg.)
- Competitive pricing
- Five year warranty
| Rated Input | 6 W (High Impedance) |
| Power Handling Capacity | Continuous pink noise: 9 W (8 ?), 6 W (16 ?) Continuous program: 18 W (8 ?), 12 W (16 ?) |
| Impedance | 100 V line: 1.7 k? (6 W), 3.3 k? (3 W) 70 V line: 830 ? (6 W), 1.7 k? (3 W), 3.3 k? (1.5 W) 25 V line: 830 ? (0.75 W), 1.7 k? (0.4 W), 3.3 k? (0.2 W) 16 ?, 8 ? |
| Sound Pressure Level | 88 dB (1 W, 1 m) |
| Frequency Response | 65 Hz - 18 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.) |
| Speaker Component | 10 cm cone-type |
| Mounting Hole | ?135 mm (Maximum ceiling thickness: 37 mm) |
| Input Terminal | Push-in connector (Bridging terminal-2 branch type) |
| Usable Cable | 600 V Vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: ?0.8 - ?1.6 mm (equivalent to AWG No. 20 - 15) 7-core twisted copper wire: 0.75 - 1.25 m? (equivalent to AWG No. 18 - 17) |
| Finish | Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint Punched net: Steel plate, white, paint Dust-proof bag: Artificial fiber, black |
| Dimensions | ?155 _ 117 (D) mm |
| Weight | 1 kg (including panel) |
| Accessory | Panel É1, Paper pattern É1 |
| Option | Reinforcement ring: HY-RR1 |
The F-1522SC is a small, flush-mounted ceiling speaker that employs a full-range speaker element designed to offer a wide frequency range and high-quality sound output. It can be mounted to the ceiling panel that is up to 37 mm in thickness.
This speaker has a rear-open type speaker system employing a speaker element covering a full frequency range. The wide-dispersion flush-mount ceiling speaker design employs unique acoustic construction to realize a wide area of coverage. Uniform sound output levels are achievable not only directly under the speaker, but also over a wide radius. Because the speaker is provided with both low- and high-impedance operating capability, it can be used in many different applications and a front panel-mounted input selector switch permits easy verification and change of current impedance/power settings, even after installation. It can be quickly and accurately mounted to ceilings and its rotating front grille can be installed/removed quickly and conveniently. The attractive exterior design specially created by an interior designer, blends naturally with any architectural space.
Features:
- 6W @ 70 V, 18 W @ 8 ohms
- Excellent sound quality
- Wide-dispersion, smooth off-axis coverage
- Fast and easy installation
- Built-in 25/70.7 V multi-tap transformer
- Power tap selector on front baffle
- Low impedance mode (8/16 Ohms)
- Low-profile, paintable grille
- Overload protection circuitry
- Mounting hardware included
- Ultra-compact -only 4.2in "(106 mm) deep
- 4" full-range driver
- Wide-dispersion: 160° conical (1-4k Hz avg.)
- Competitive pricing
- Five year warranty
| Rated Input | 6 W (High Impedance) |
| Power Handling Capacity | Continuous pink noise: 9 W (8 ?), 6 W (16 ?) Continuous program: 18 W (8 ?), 12 W (16 ?) |
| Impedance | 100 V line: 1.7 k? (6 W), 3.3 k? (3 W) 70 V line: 830 ? (6 W), 1.7 k? (3 W), 3.3 k? (1.5 W) 25 V line: 830 ? (0.75 W), 1.7 k? (0.4 W), 3.3 k? (0.2 W) 16 ?, 8 ? |
| Sound Pressure Level | 88 dB (1 W, 1 m) |
| Frequency Response | 65 Hz - 18 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.) |
| Speaker Component | 10 cm cone-type |
| Mounting Hole | ?135 mm (Maximum ceiling thickness: 37 mm) |
| Input Terminal | Push-in connector (Bridging terminal-2 branch type) |
| Usable Cable | 600 V Vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: ?0.8 - ?1.6 mm (equivalent to AWG No. 20 - 15) 7-core twisted copper wire: 0.75 - 1.25 m? (equivalent to AWG No. 18 - 17) |
| Finish | Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint Punched net: Steel plate, white, paint Dust-proof bag: Artificial fiber, black |
| Dimensions | ?155 _ 117 (D) mm |
| Weight | 1 kg (including panel) |
| Accessory | Panel É1, Paper pattern É1 |
| Option | Reinforcement ring: HY-RR1 |
